Specialist for Audio-Amplifiers

————————————————————————————————————————-

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

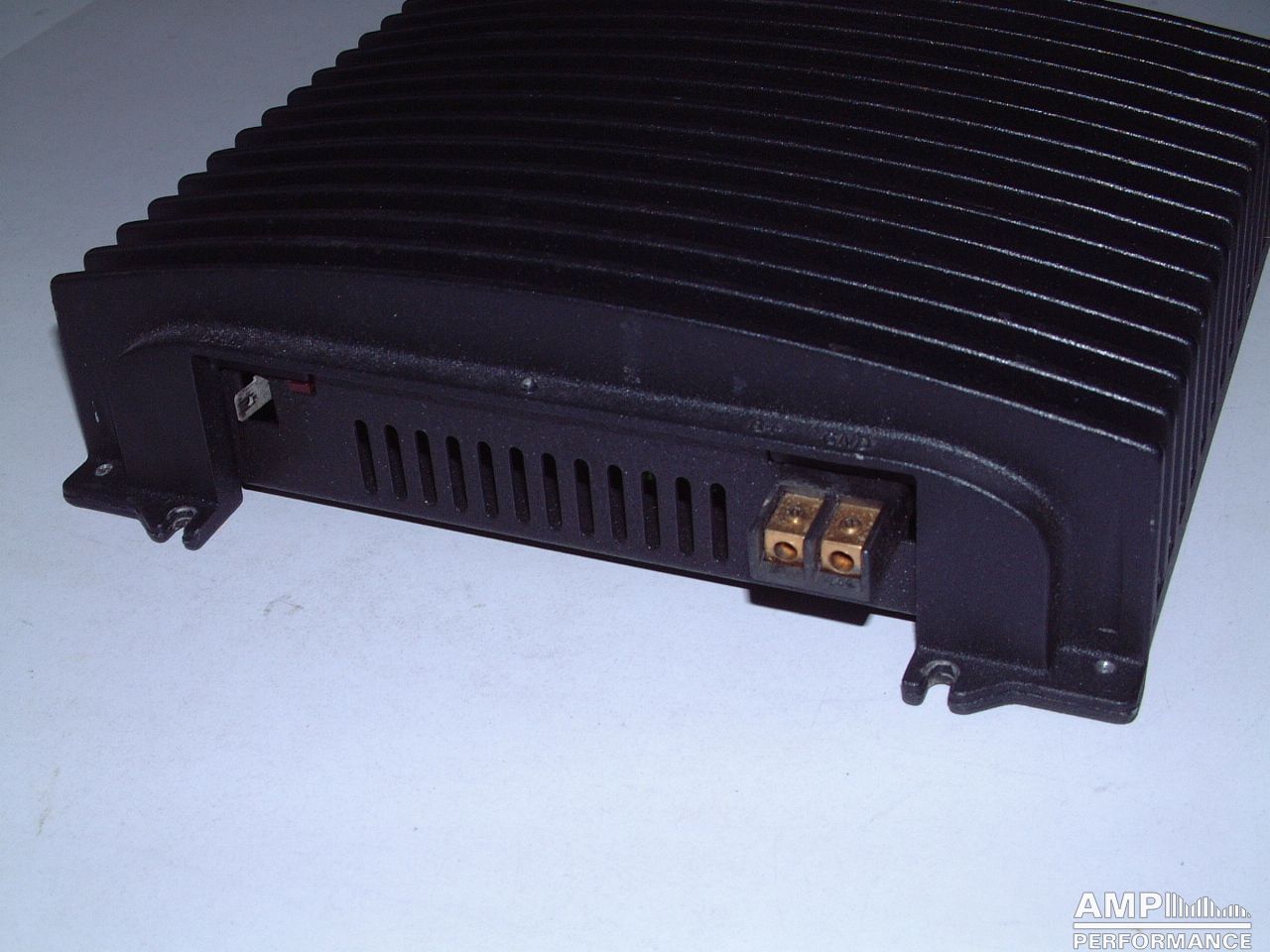

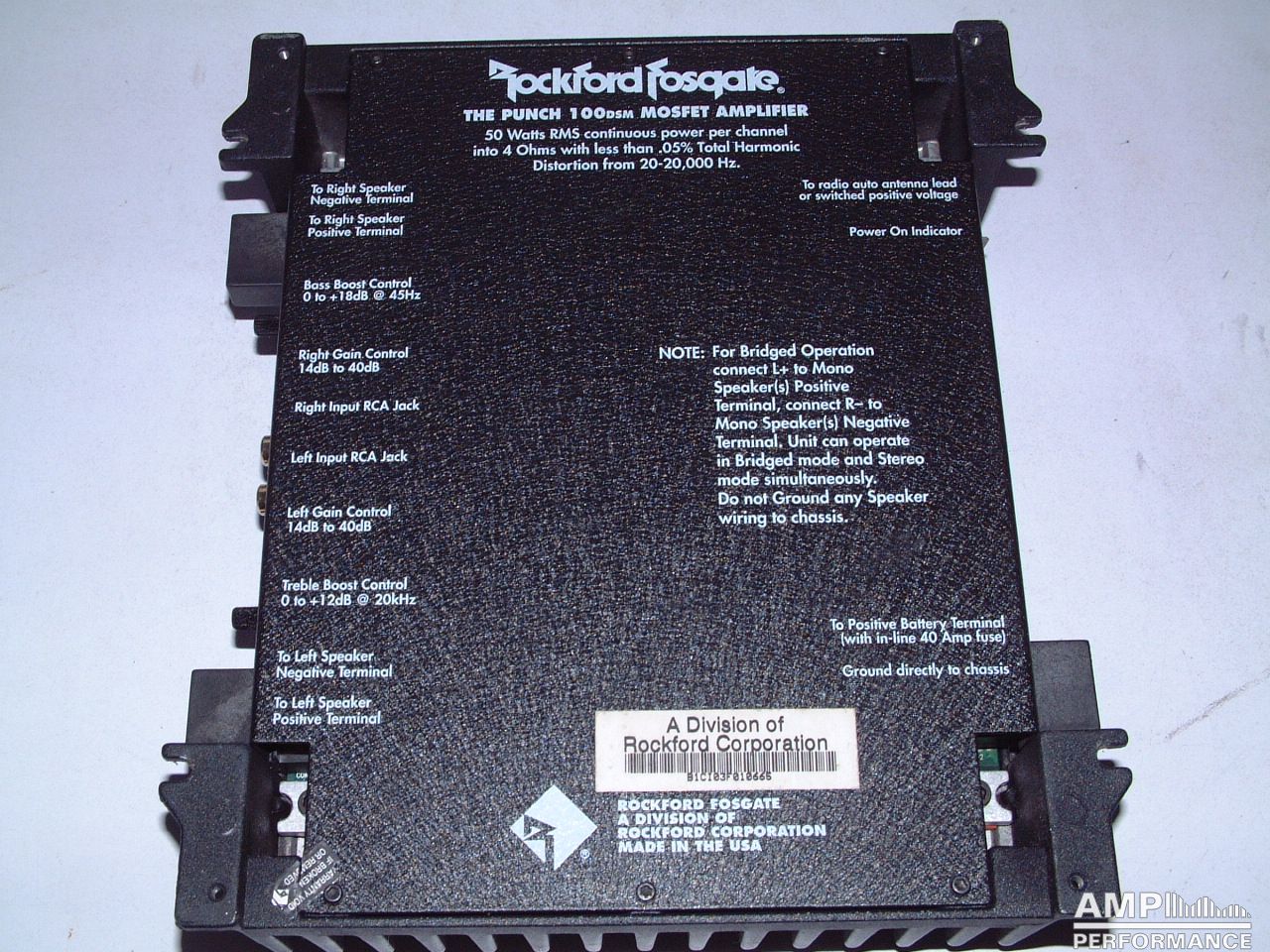

Rockford Fosgate Punch 100DSM

1 × 132 watts, channel 1 at 4 Ohm
2 × 124 watts, channel 1 + 2 at 4 Ohm
Current consumption 27,1A
efficiency 68%

1 × 380 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 47,2A
efficiency 59,7%

380 watts total power

provided by Albrecht Gerster aus dem Stevemeadedesigns-Forum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

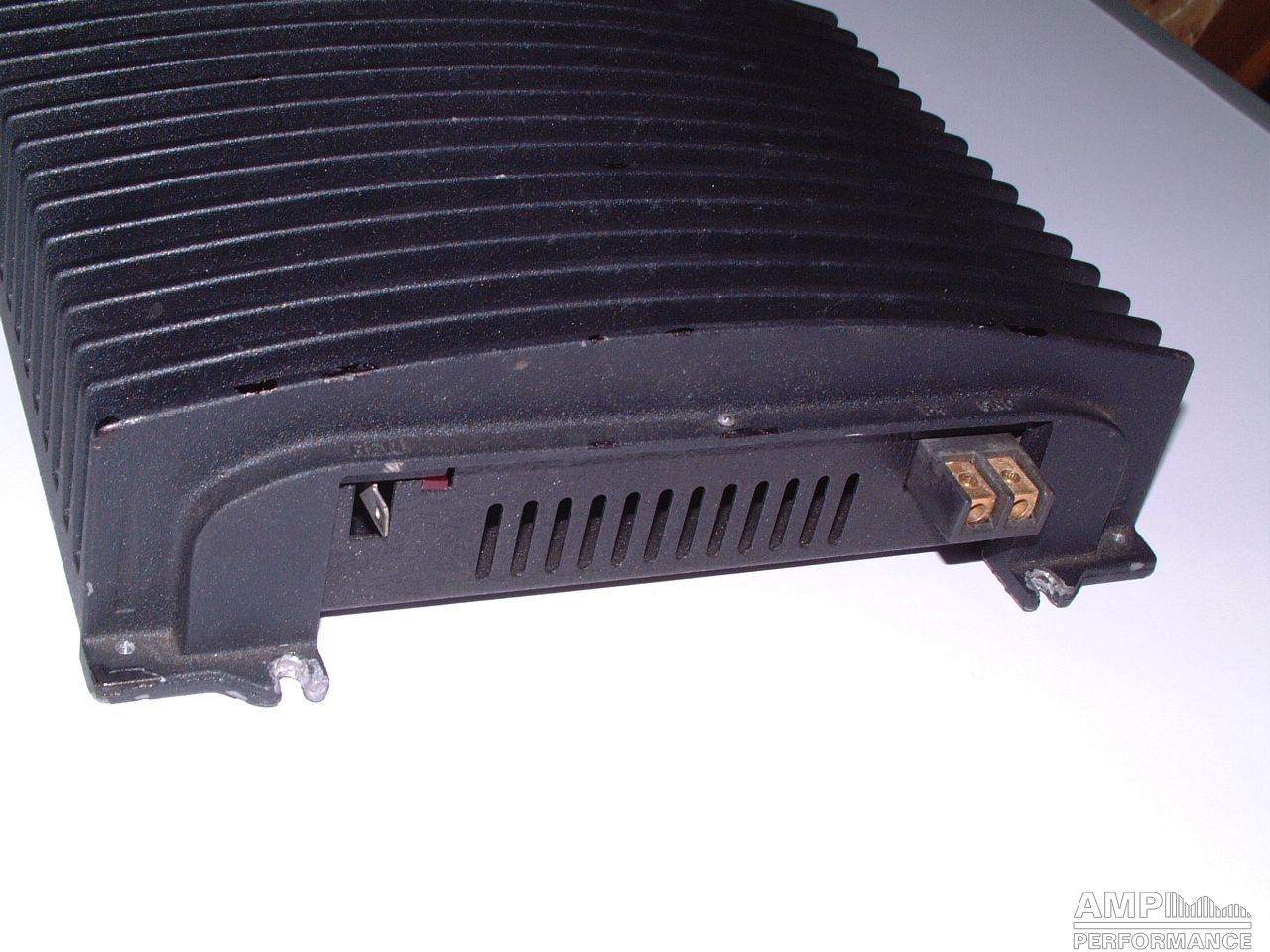

Rockford Fosgate Punch 100DSM

1 × 130 watts, channel 1 at 4 Ohm
2 × 130 watts, channel 1 + 2 at 4 Ohm
Current consumption 27,4A
efficiency 70,3%

1 × 449 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 50,5A
efficiency 65,9%

449 watts total power
