Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

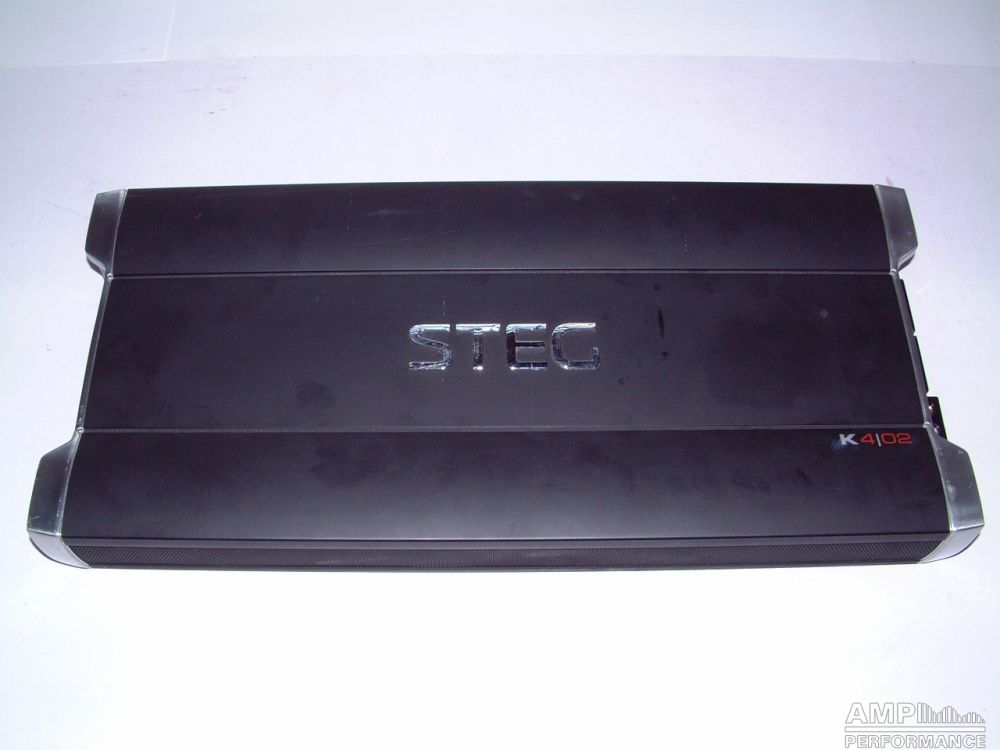

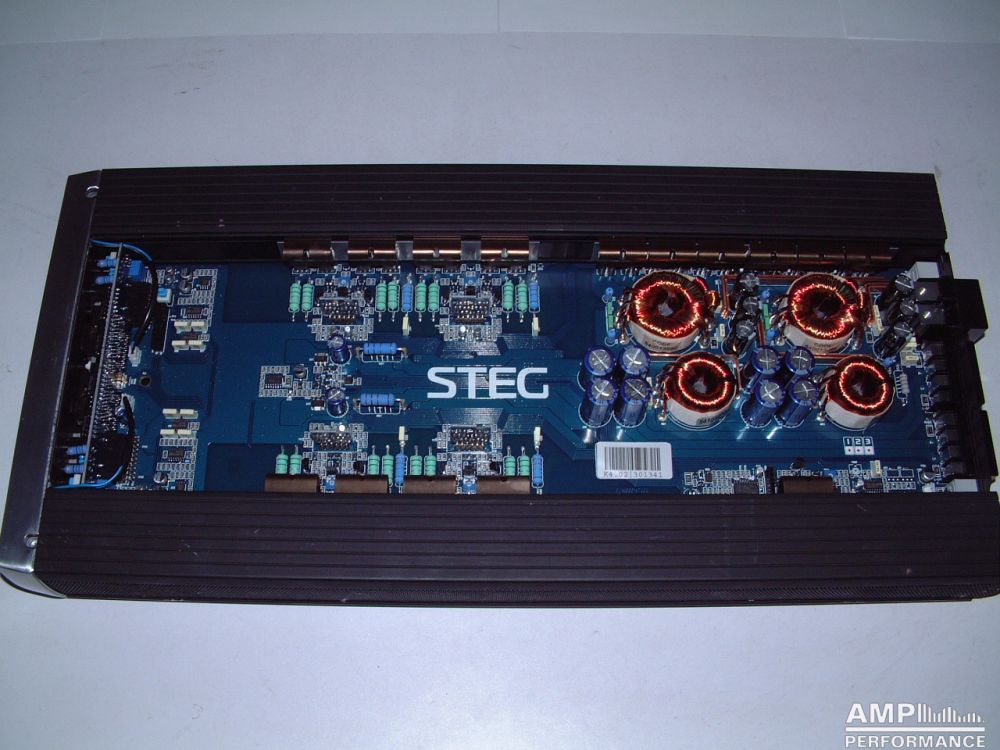

Steg K4.02
1 × 127 watts, channel 1 at 4 Ohm
2 × 127 watts, channel 1 + 2 at 4 Ohm
4 × 127 watts, channel 1 up to 4 at 4 Ohm with 13,4V supply voltage
Current consumption 56,5A
efficiency 66,9%
1 × 475 watts, channel 1 + 2 bridged at 4 Ohm
2 × 475 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 121A
efficiency 59,1%
1 × 816 watts, channel 1 + 2 bridged at 2 Ohm
2 × 800 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,1V supply voltage
Current consumption 240A
efficiency 50,9%
1600 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

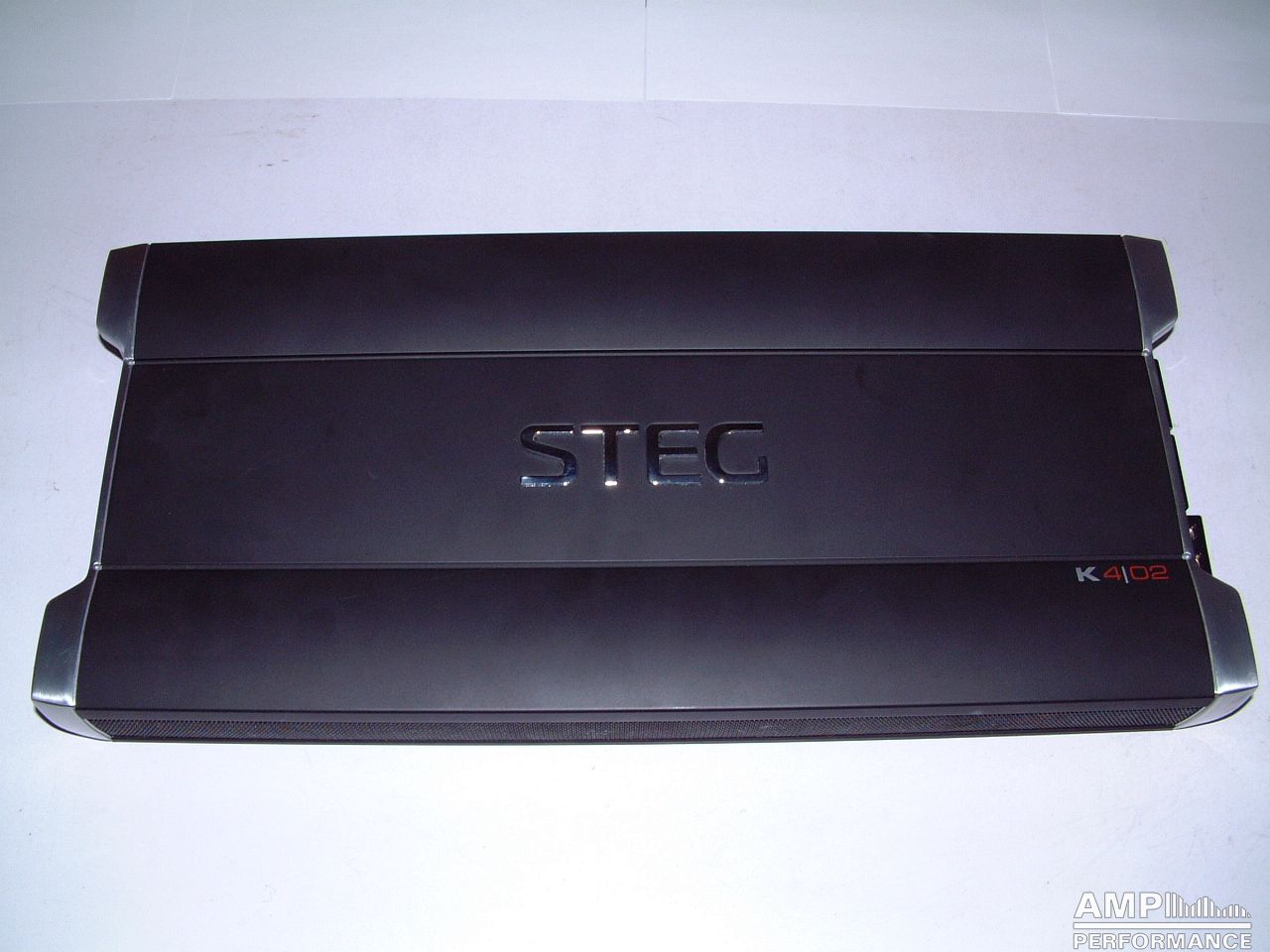

Steg K4.02
1 × 128 watts, channel 1 at 4 Ohm
2 × 128 watts, channel 1 + 2 at 4 Ohm
4 × 128 watts, channel 1 up to 4 at 4 Ohm
Current consumption 56,8A
efficiency 66,6%
1 × 488 watts, channel 1 + 2 bridged at 4 Ohm
2 × 488 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 119,5A
efficiency 61%
1 × 857 watts, channel 1 + 2 bridged at 2 Ohm
2 × 761 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 219A
efficiency 52,2%
1522 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

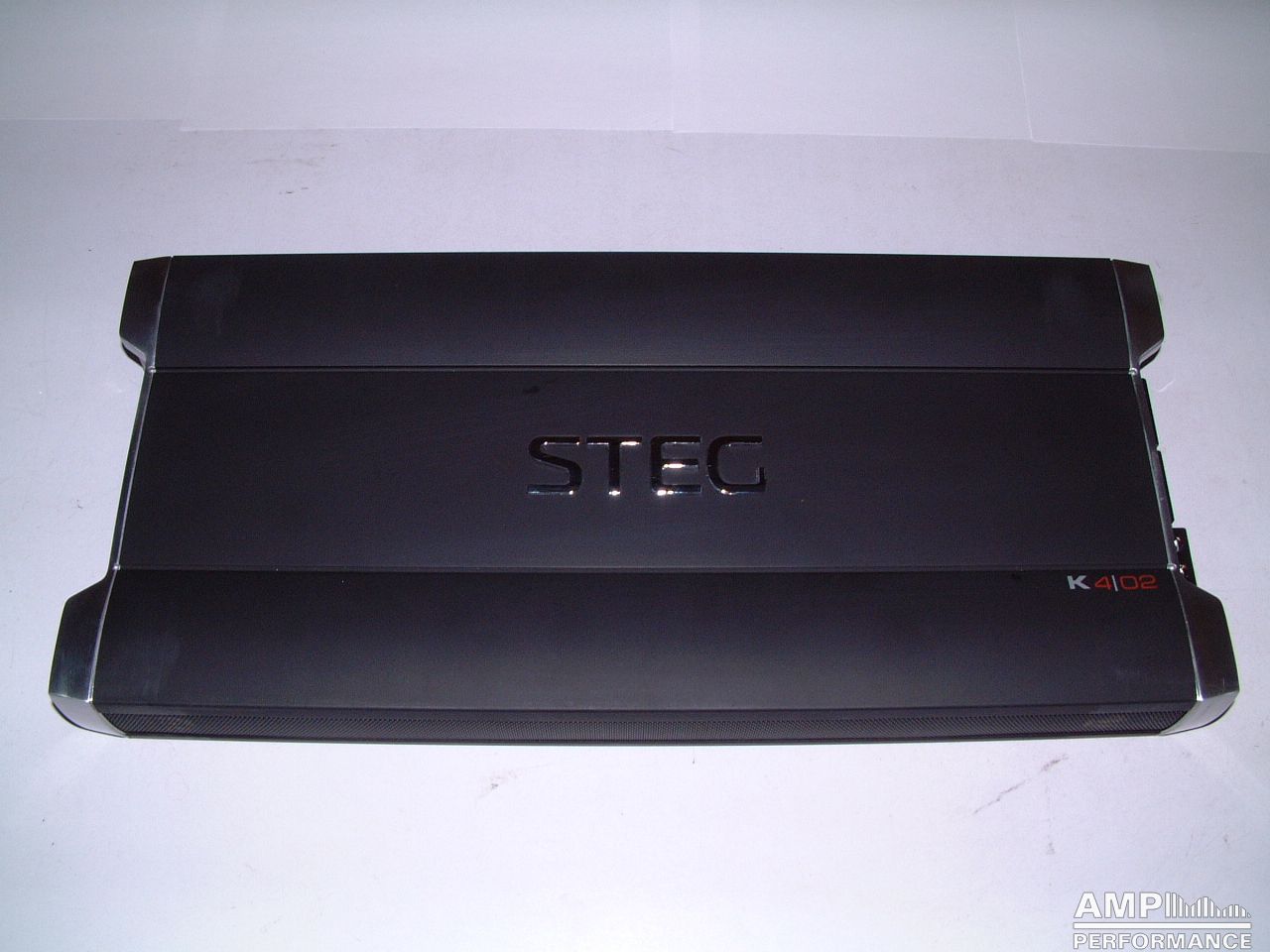

Steg K4.02
1 × 127 watts, channel 1 at 4 Ohm
2 × 127 watts, channel 1 + 2 at 4 Ohm
4 × 127 watts, channel 1 up to 4 at 4 Ohm
Current consumption 57,5A
efficiency 65,2%
1 × 484 watts, channel 1 + 2 bridged at 4 Ohm
2 × 484 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 120,5A
efficiency 60%
1 × 841 watts, channel 1 + 2 bridged at 2 Ohm
2 × 776 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,2V supply voltage
Current consumption 225A
efficiency 52,3%
1552 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Steg K4.02
1 × 129 watts, channel 1 at 4 Ohm
2 × 129 watts, channel 1 + 2 at 4 Ohm
4 × 129 watts, channel 1 up to 4 at 4 Ohm
Current consumption 58,1A
efficiency 65,7%
1 × 488 watts, channel 1 + 2 bridged at 4 Ohm
2 × 488 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 122,8A
efficiency 59,4%
1 × 865 watts, channel 1 + 2 bridged at 2 Ohm
2 × 745 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,2V supply voltage
Current consumption 219,5A
efficiency 51,4%
1490 watts total power
