Specialist for Audio-Amplifiers

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

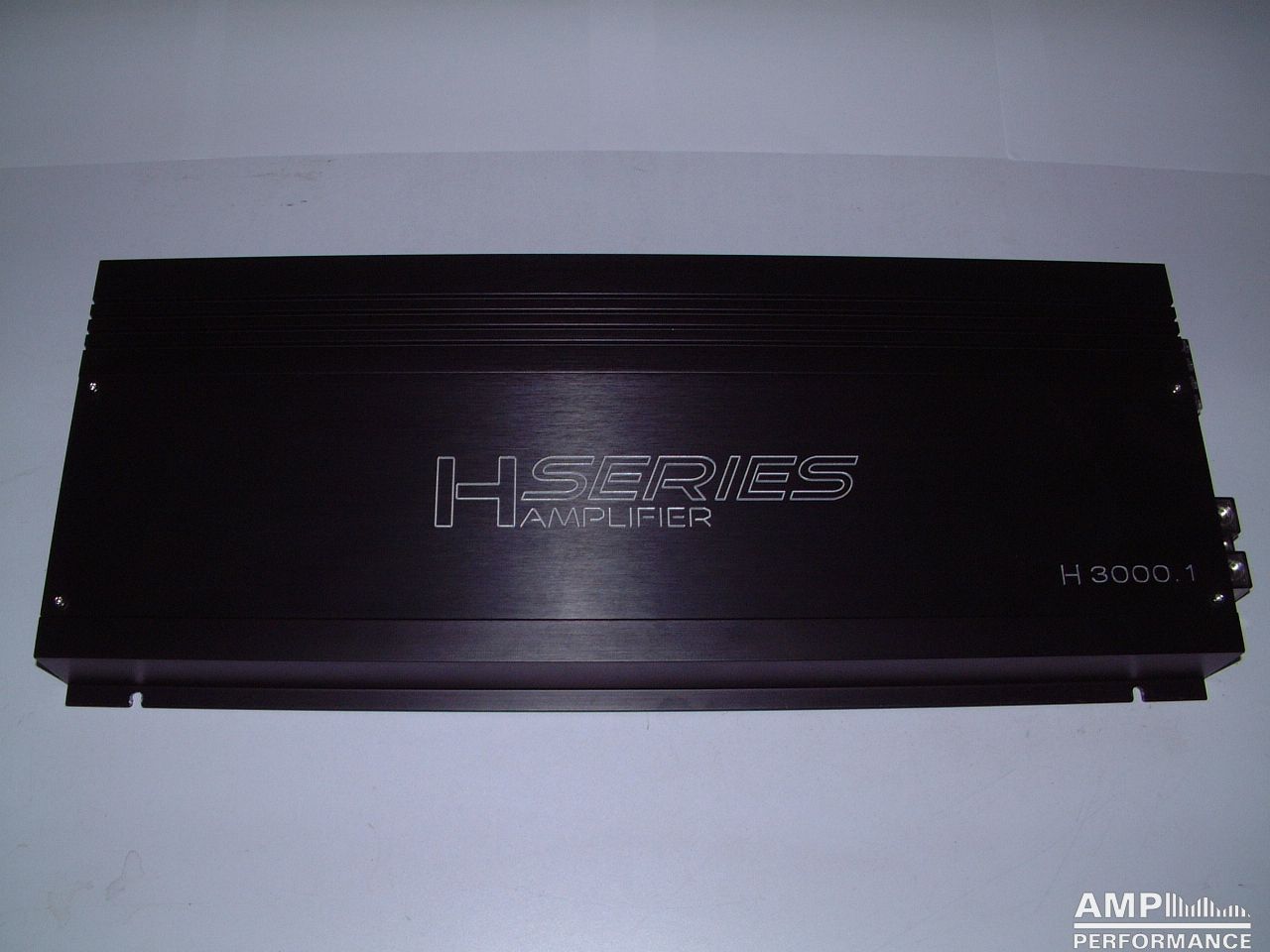

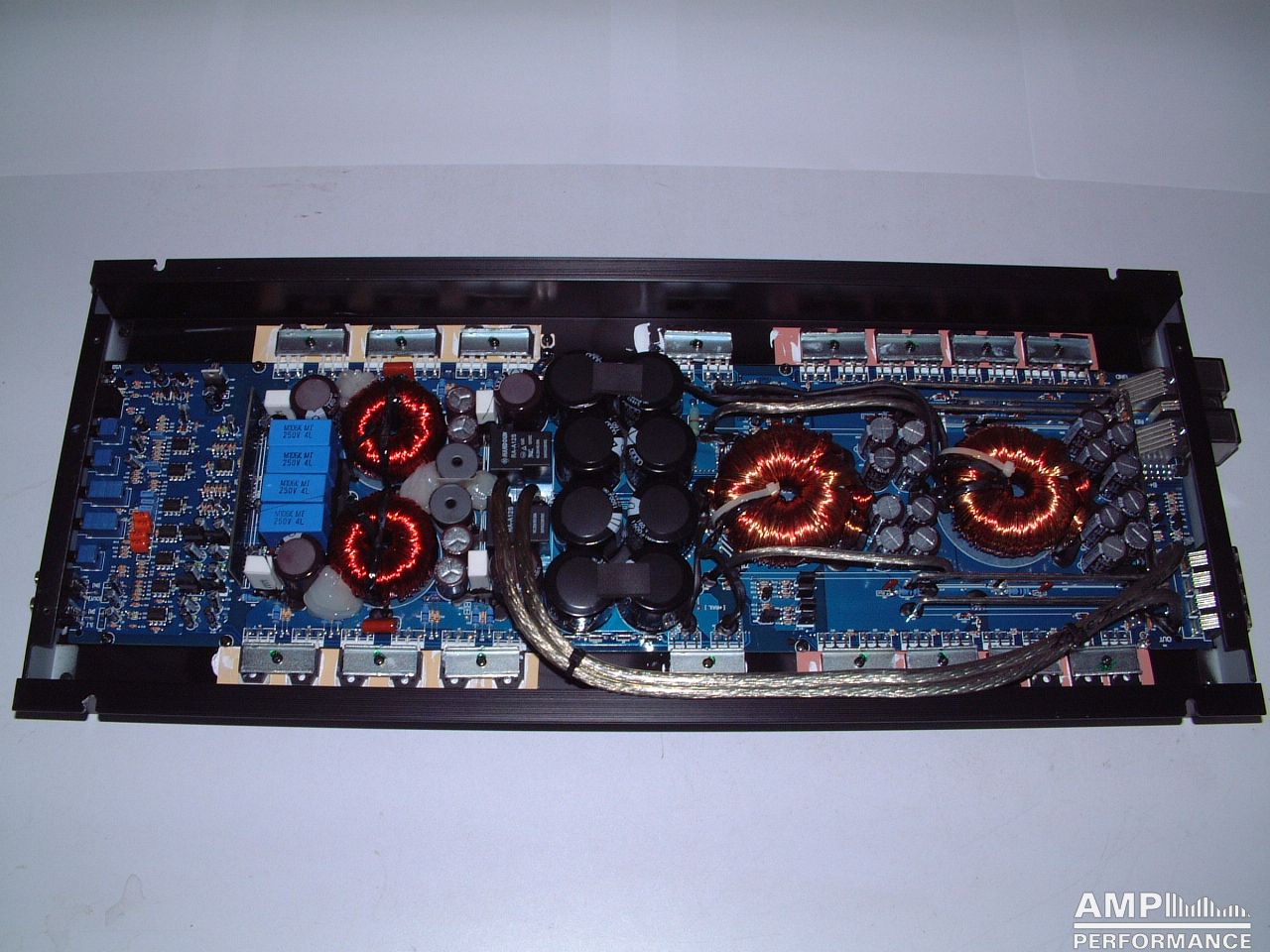

Audio System H3000.1

1 × 870 watts, channel 1 at 4 Ohm
Current consumption 76A
efficiency 84,8%

1 × 1741 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 158A
efficiency 82,2%

1 × 2529 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 245A
efficiency 77,6%

1 × 2916 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 303A
efficiency 72,9%

2916 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
