Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

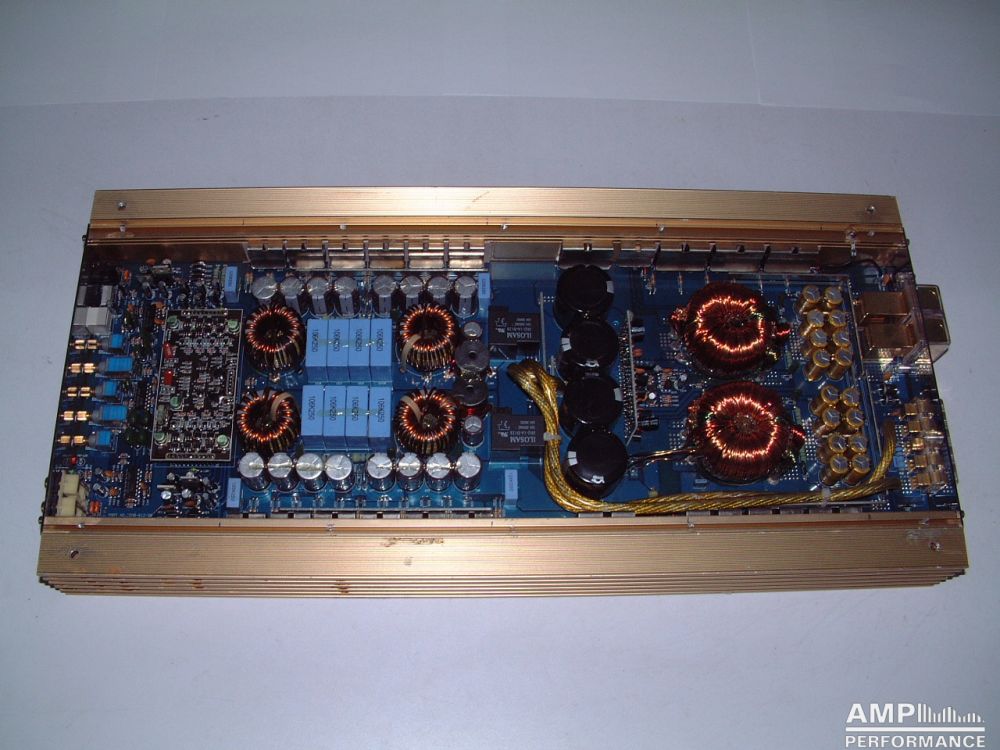

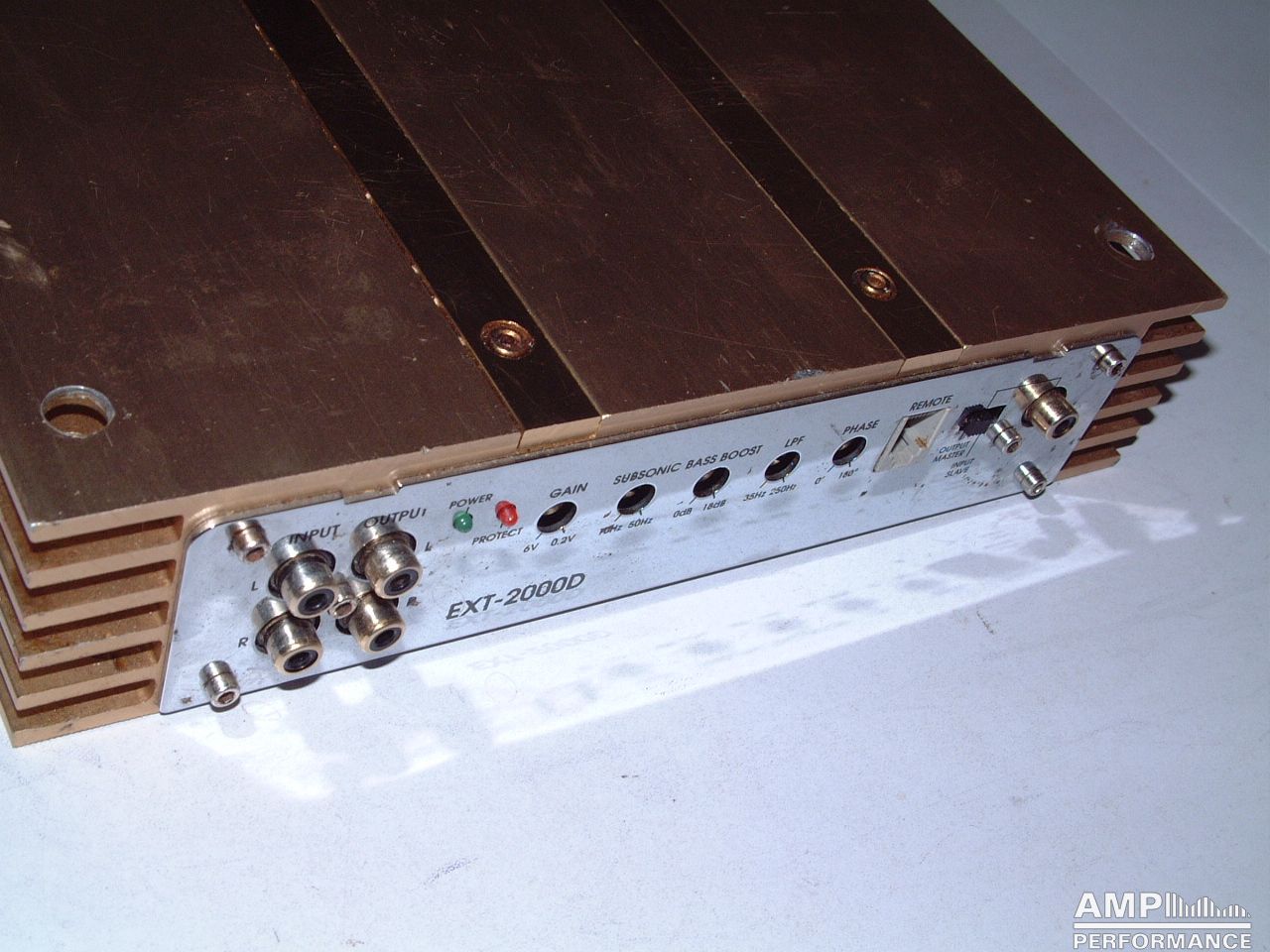

SPL Dynamics EXT-2000D

1 × 743 watts, channel 1 at 4 Ohm
Current consumption 64,3A
efficiency 85,5%

1 × 1352 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 121,6A
efficiency 83%

1 × 1805 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 172A
efficiency 78,9%

1 × 2116 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 212A
efficiency 75,1%

2116 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

SPL Dynamics EXT-2000D

1 × 729 watts, channel 1 at 4 Ohm
Current consumption 65A
efficiency 83,1%

1 × 1301 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 119A
efficiency 81,6%

1 × 1805 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 171A
efficiency 79,4%

1 × 2116 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 213A
efficiency 74,7%

2116 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
