Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

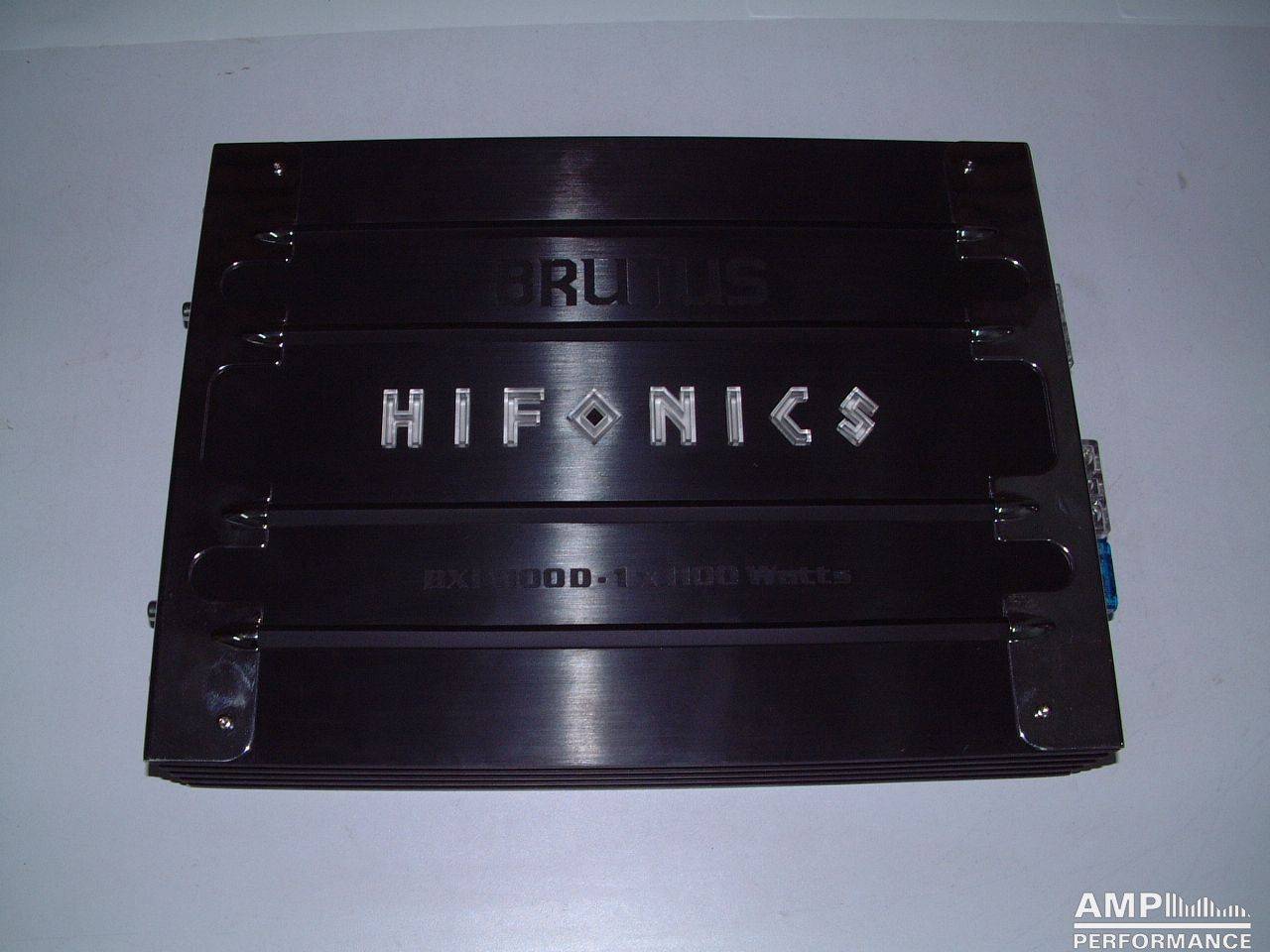

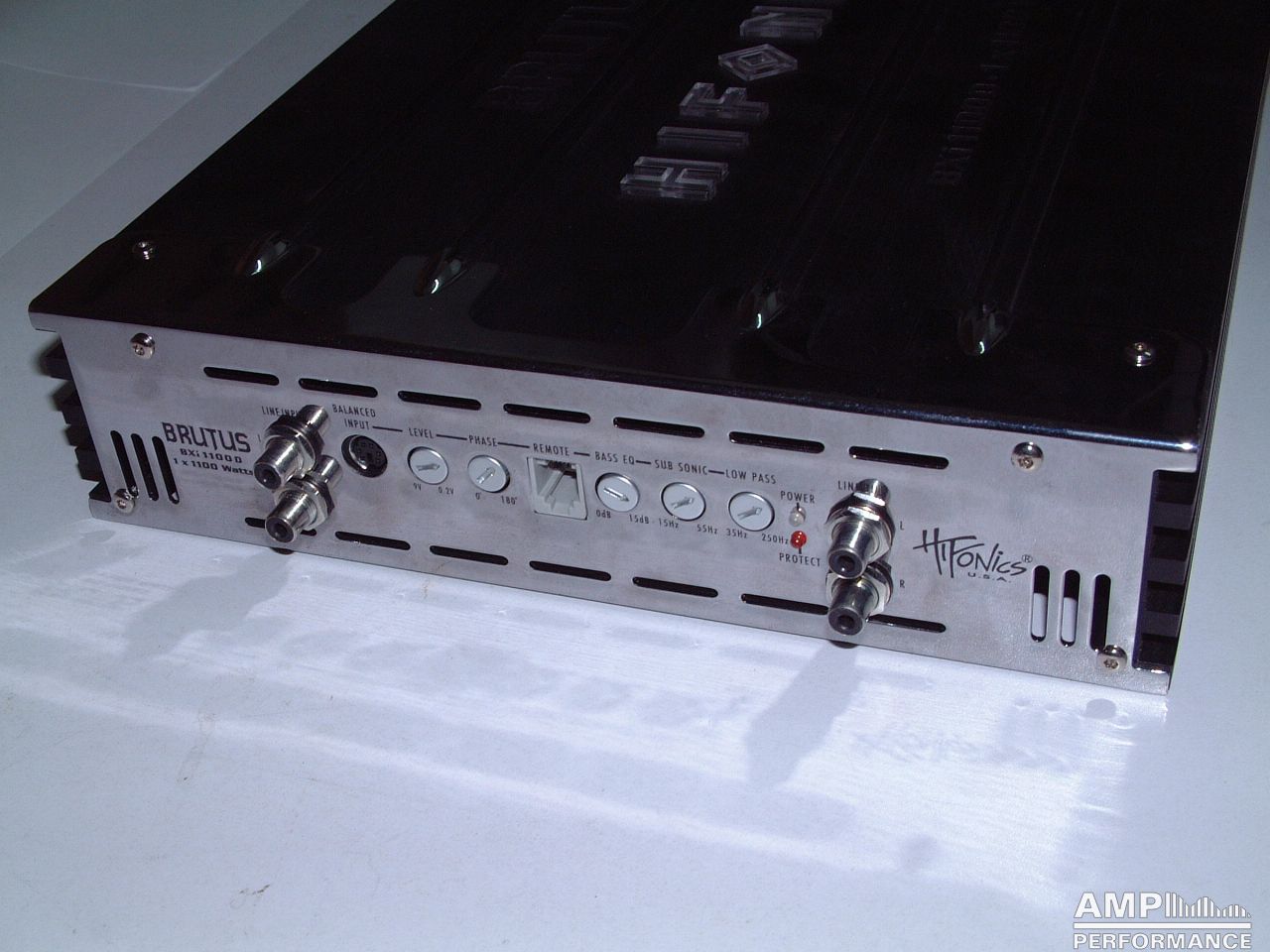

Hifonics Brutus BXi1100D
1 × 408 watts, channel 1 at 4 Ohm
Current consumption 37,1A
efficiency 81,5%
1 × 707 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 67A
efficiency 78,7%
1 × 921 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 90A
efficiency 76,4%
1 × 1076 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 111A
efficiency 72,9%
1076 watts total power
measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
