Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

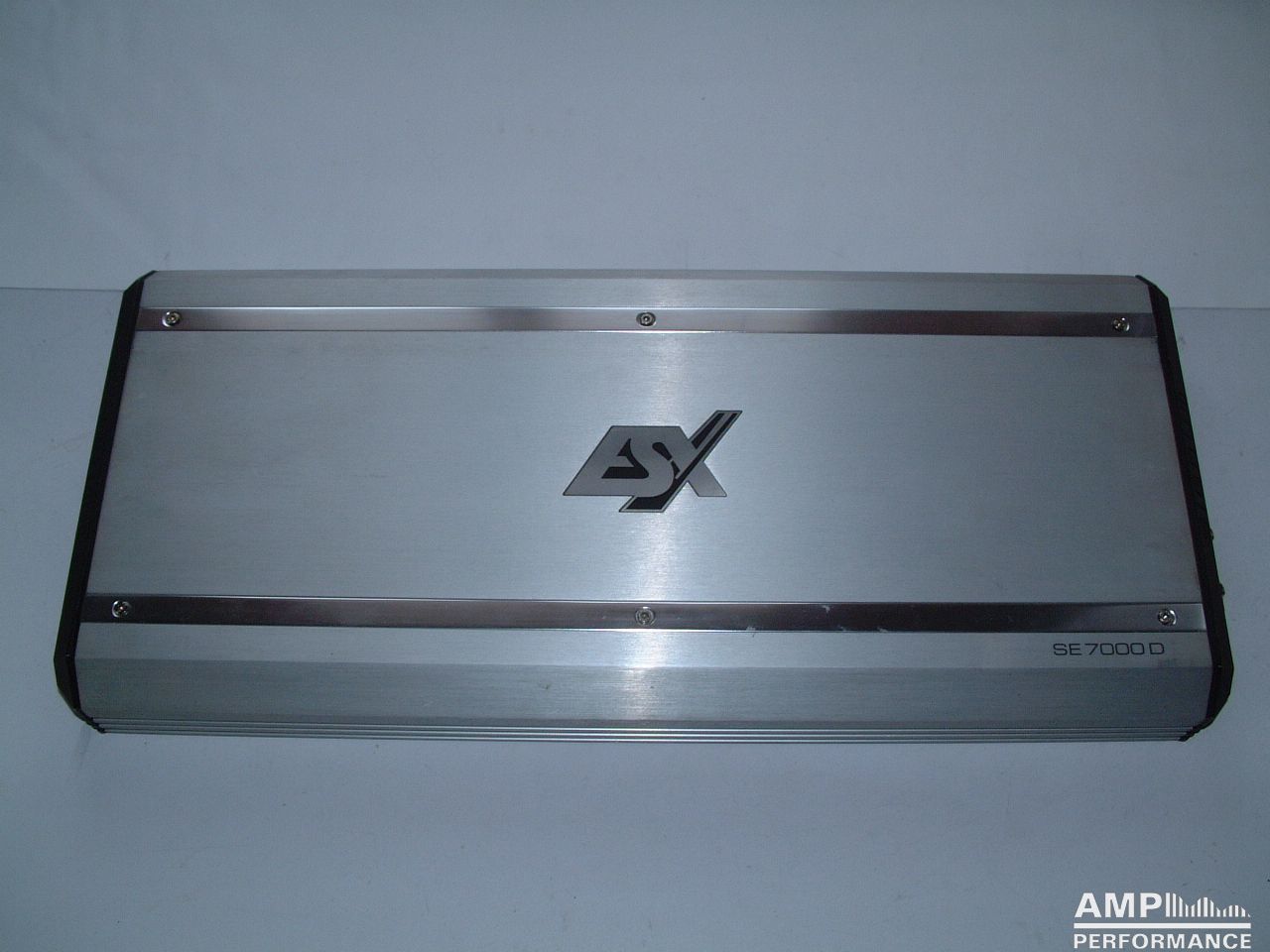

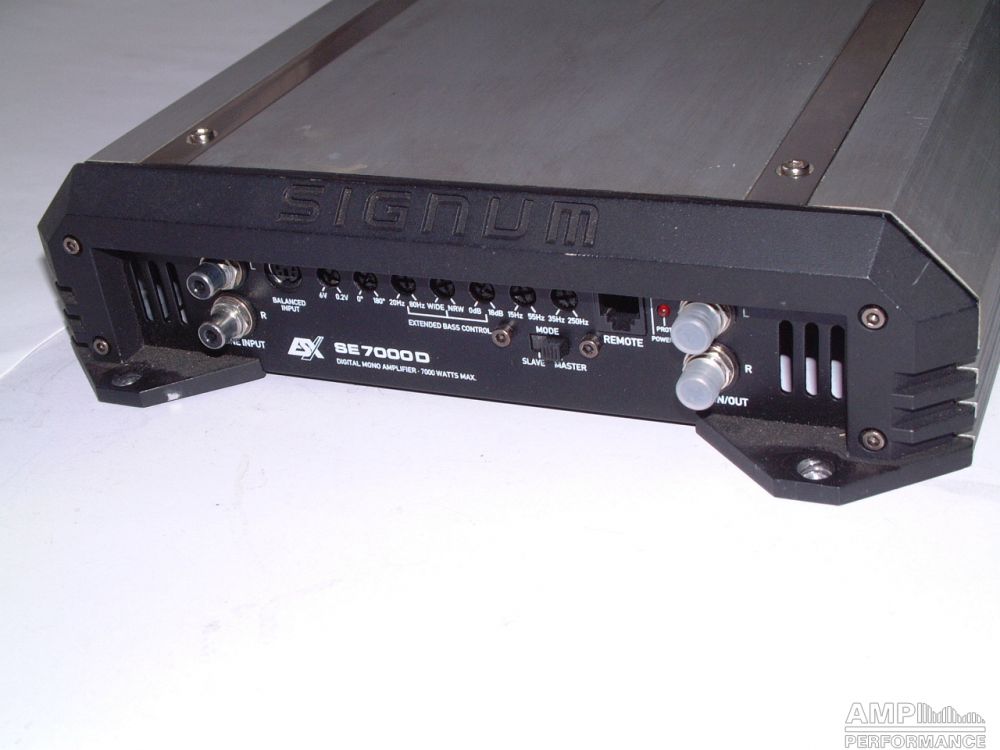

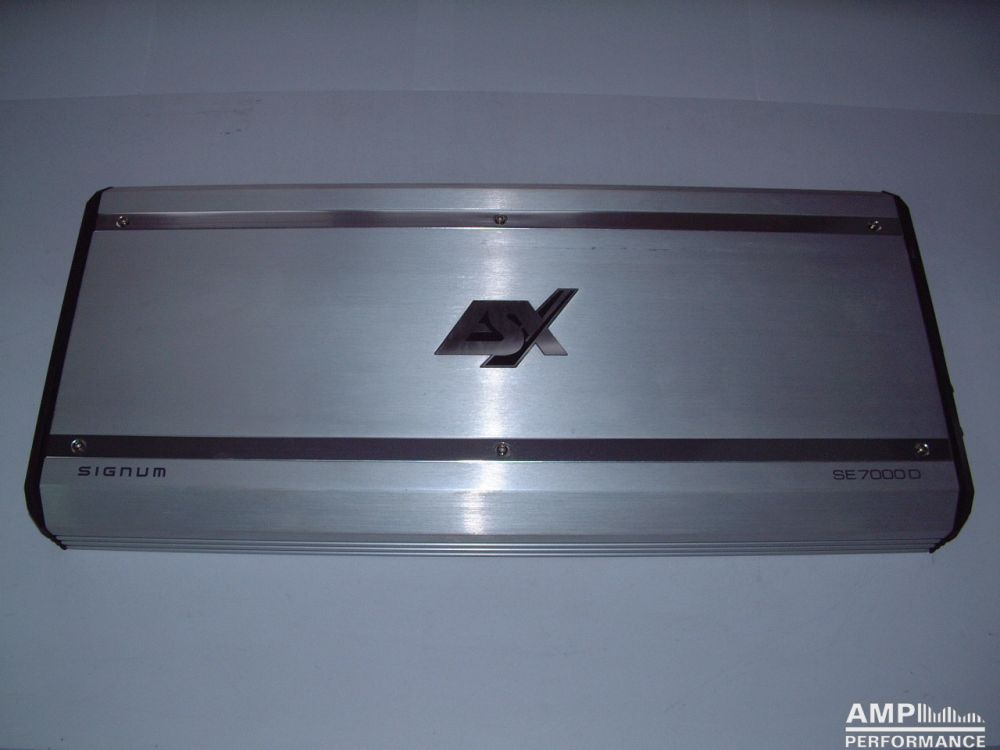

ESX Signum SE7000D

1 × 1225 watts, channel 1 at 4 Ohm
Current consumption 105A
efficiency 86,4%

1 × 2113 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 193A
efficiency 81,7%

1 × 2707 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 260A
efficiency 78,3%

1 × 3136 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 321A
efficiency 74%

3136 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

ESX Signum SE7000D

1 × 1225 watts, channel 1 at 4 Ohm
Current consumption 108A
efficiency 85,3%

1 × 2113 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 200A
efficiency 80%

1 × 2707 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 270A
efficiency 76,5%

1 × 3025 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 325A
efficiency 71,6%

3025 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
