Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

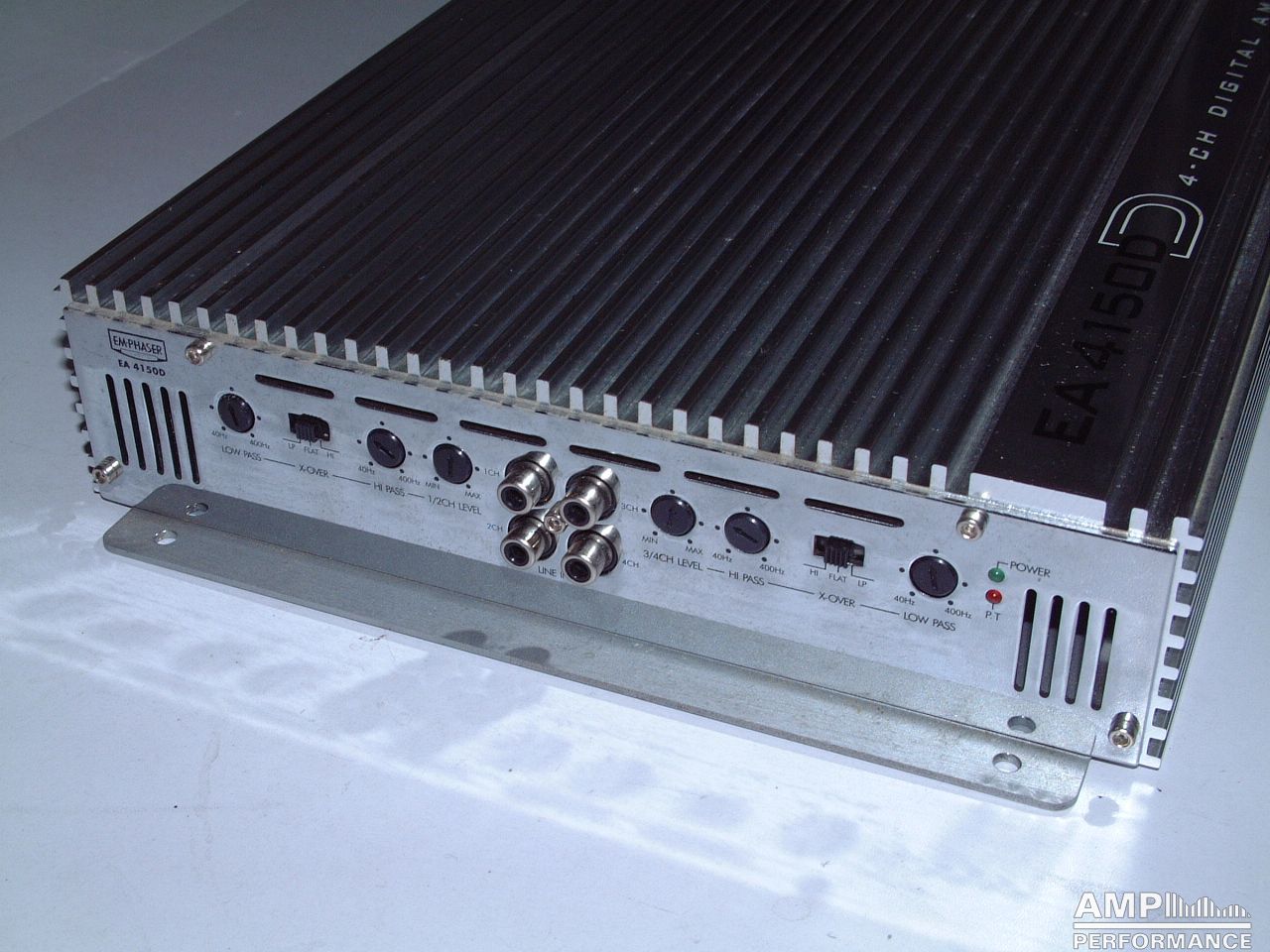

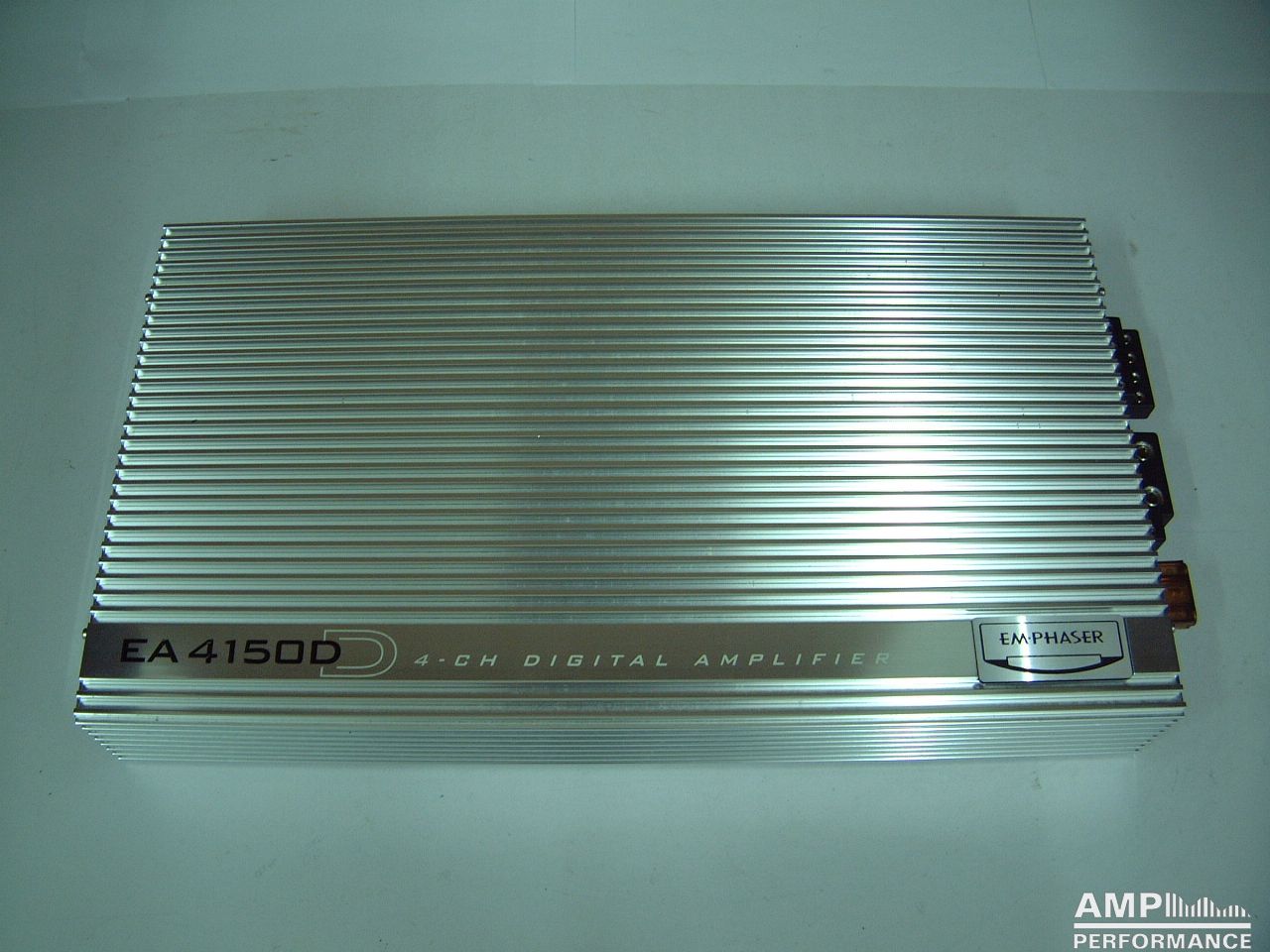

Emphaser EA 4150D

1 × 225 watts, channel 1 at 4 Ohm
2 × 218 watts, channel 1 + 2 at 4 Ohm
4 × 196 watts, channel 1 up to 4 at 4 Ohm
Current consumption 73A
efficiency 79,6%

1 × 676 watts, channel 1 + 2 bridged at 4 Ohm
2 × 529 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 109A
efficiency 72,4%

1058 watts total power

gemessen up to zur Clippinggrenze
