Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

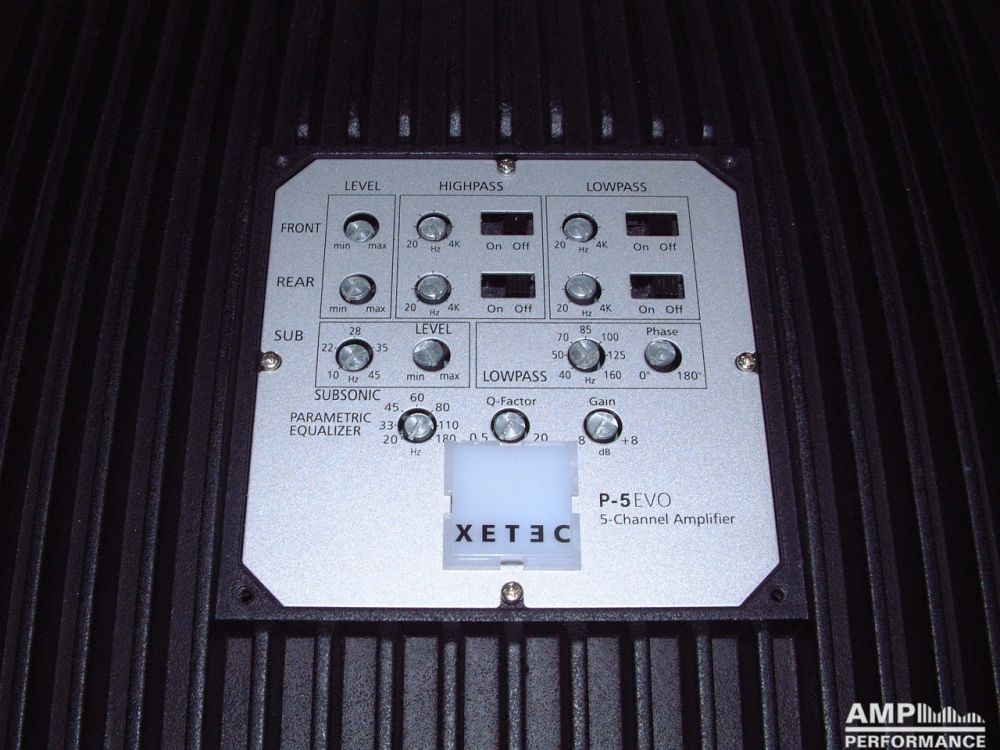

Xetec Prestige P5 EVO

1 × 116 watts, channel 1 at 4 Ohm
2 × 108 watts, channel 1 + 2 at 4 Ohm
4 × 92 watts, channel 1 up to 4 at 4 Ohm

4 × 90 watts, channel 1 up to 4 at 4 Ohm +
1 × 361 Watts channel 5 at 4 Ohm with 13,4V supply voltage
Current consumption 77A
efficiency 70%

4 × 133 watts, channel 1 up to 4 at 2 Ohm +
1 × 595 Watts channel 5 at 2 Ohm with 13,4V supply voltage
Current consumption 127A
efficiency 66,2%

1127 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter für channel 5
