Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

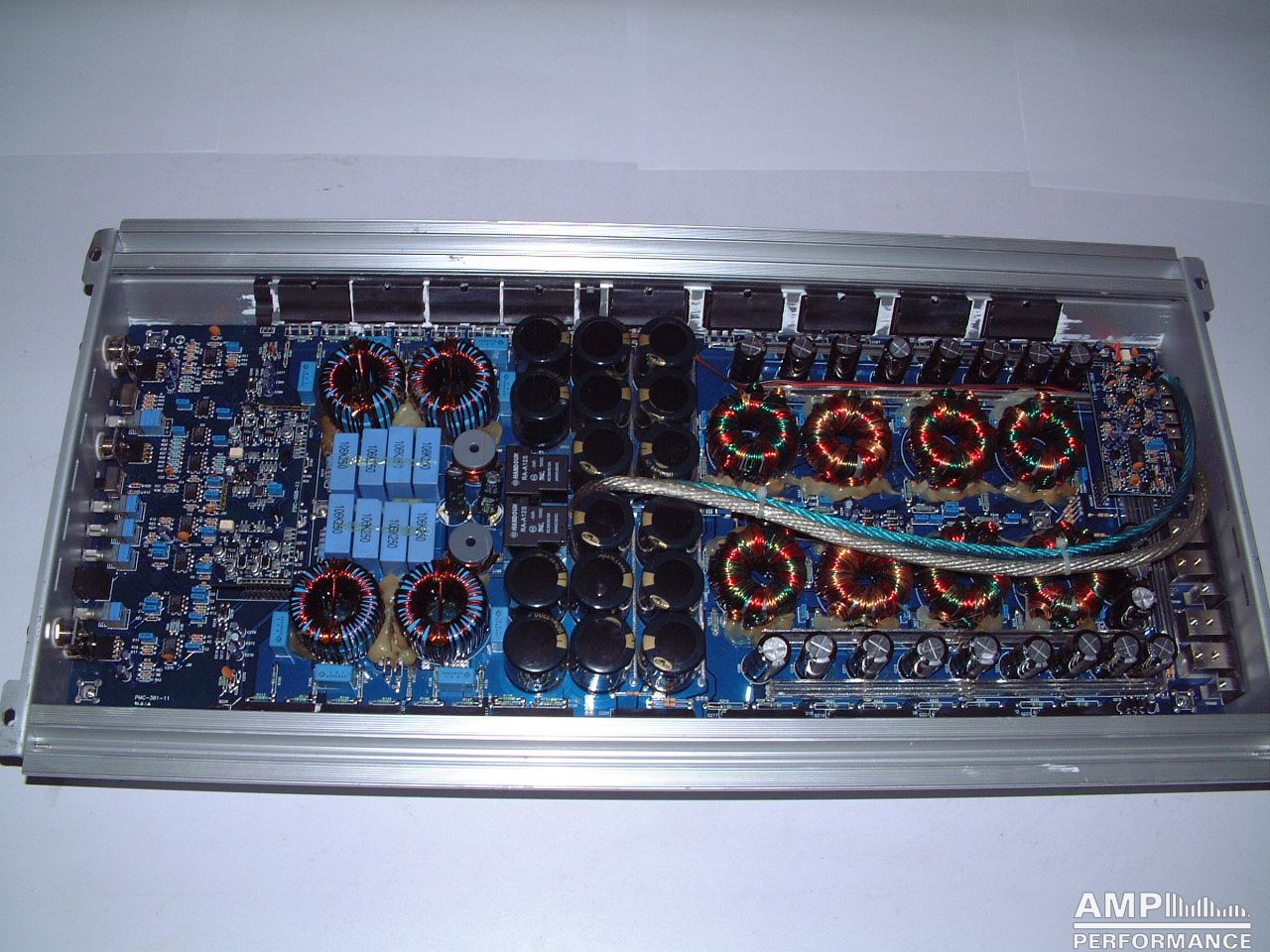

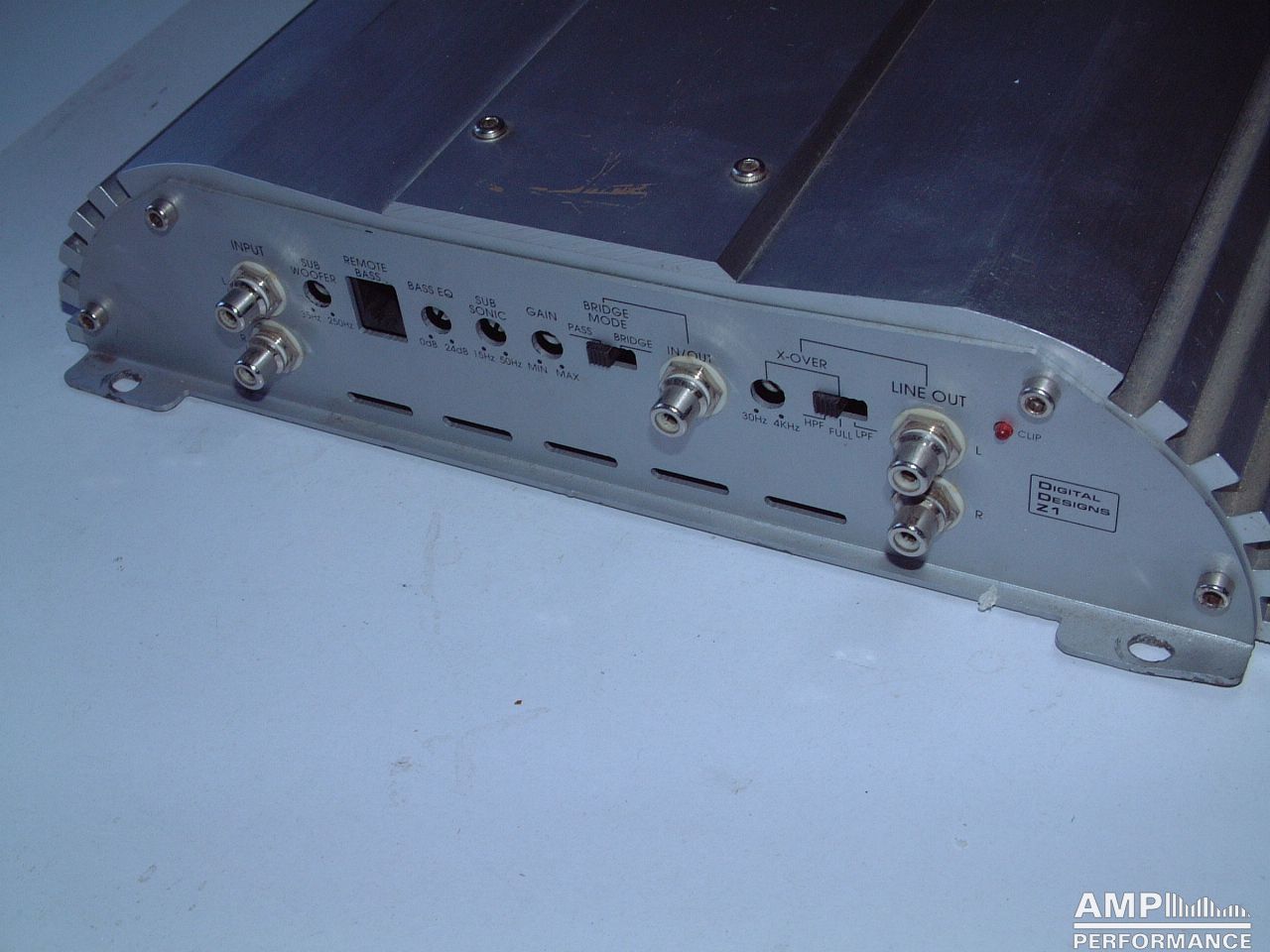

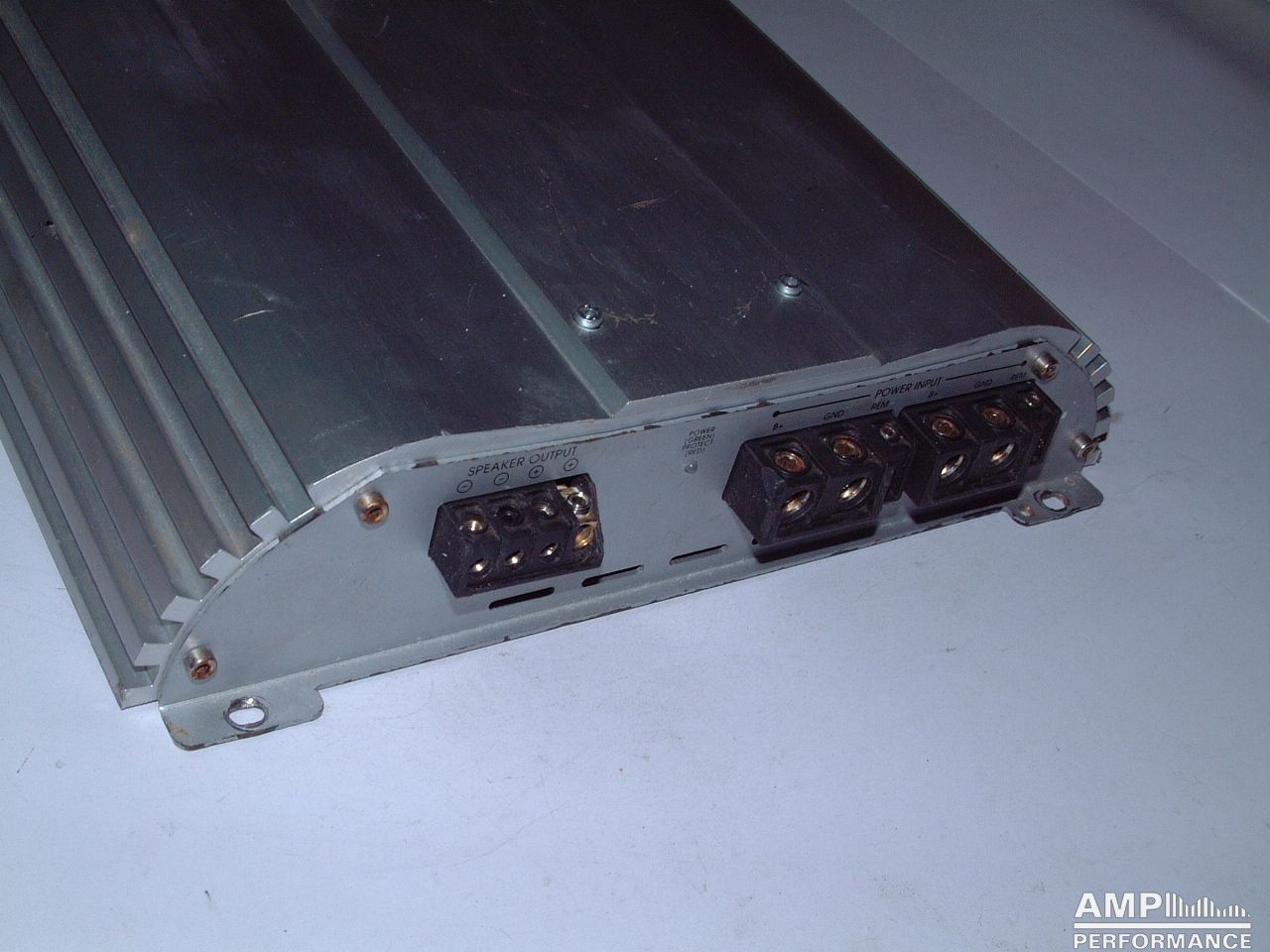

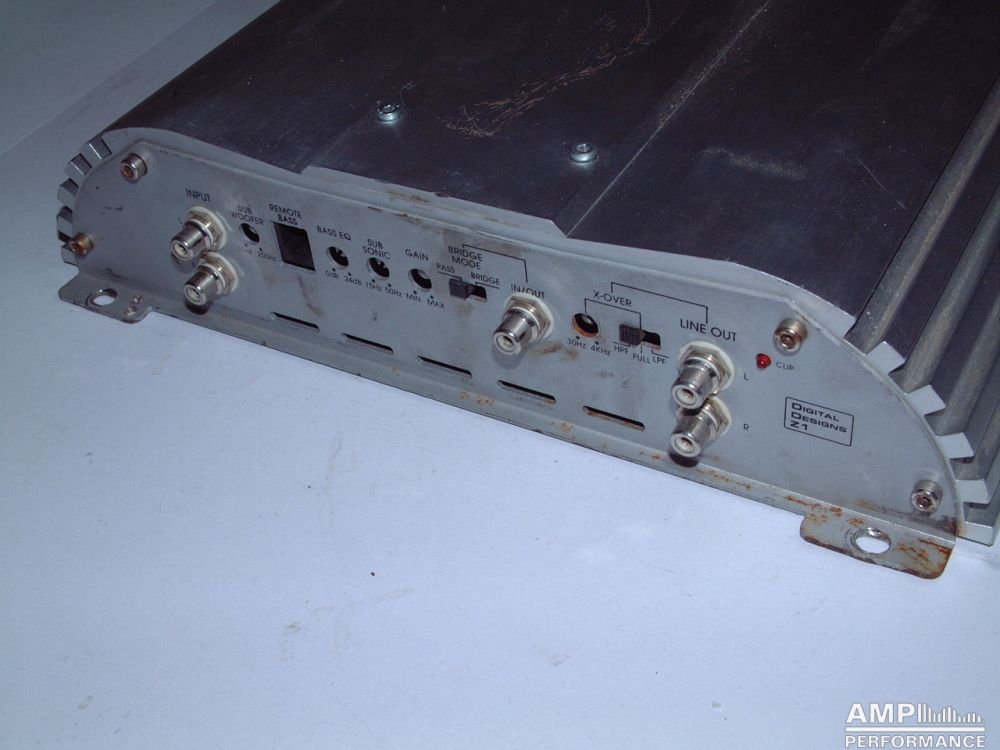

Digital Designs Z1

1 × 1225 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 119A
efficiency 76,8%

1 × 2178 watts, channel 1 at 2 Ohm with 13,3V supply voltage
Current consumption 208A
efficiency 78,7%

1 × 2890 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 274A
efficiency 79,3%

1 × 3481 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 348A
efficiency 75,8%

3481 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
