Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Phase Linear kW

High-Current
1 × 77 watts, channel 1 at 4 Ohm
2 × 77 watts, channel 1 + 2 at 4 Ohm
4 × 77 watts, channel 1 up to 4 at 4 Ohm
Current consumption 39A
efficiency 58,8%

1 × 289 watts, channel 1 + 2 bridged at 4 Ohm
2 × 289 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 89,2A
efficiency 48,4%

High-Dynamic
1 × 156 watts, channel 1 at 4 Ohm
2 × 156 watts, channel 1 + 2 at 4 Ohm
4 × 156 watts, channel 1 up to 4 at 4 Ohm with 13,4V supply voltage
Current consumption 78,8A
efficiency 59,2%

1 × 586 watts, channel 1 + 2 bridged at 4 Ohm
2 × 428 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 131A
efficiency 49,2%

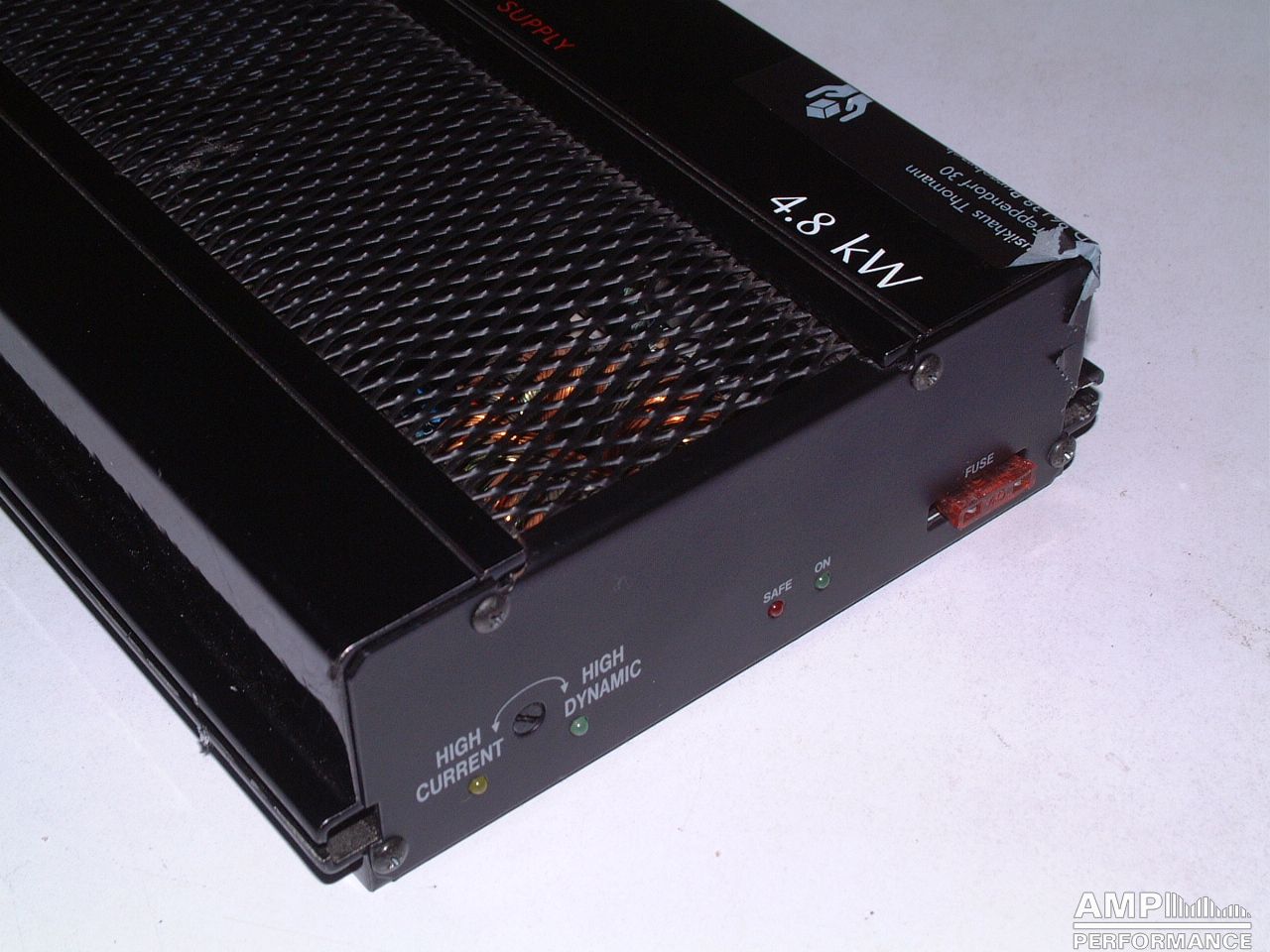

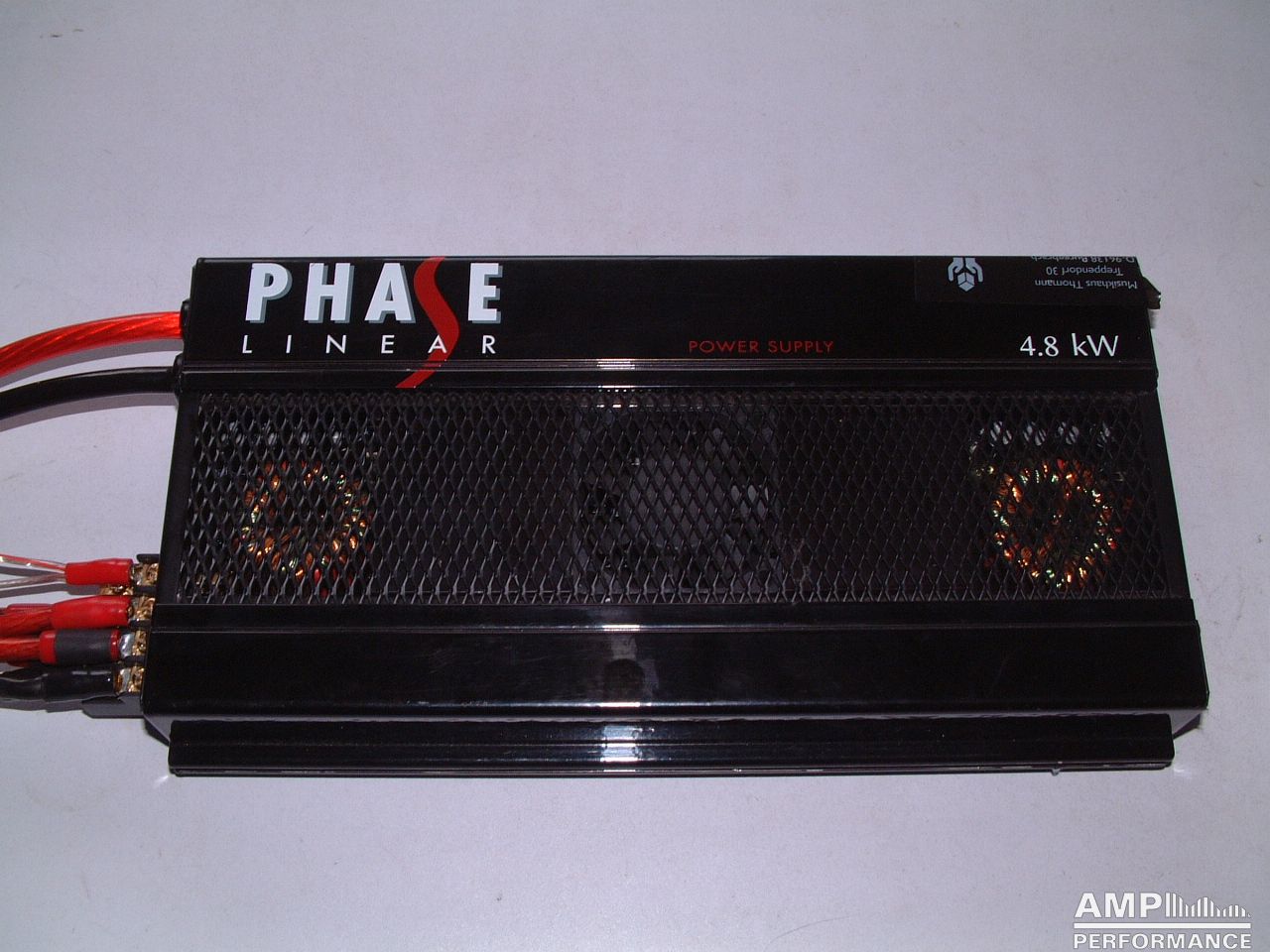

Phase Linear 4.8 kW

Phase Linear .6S kW

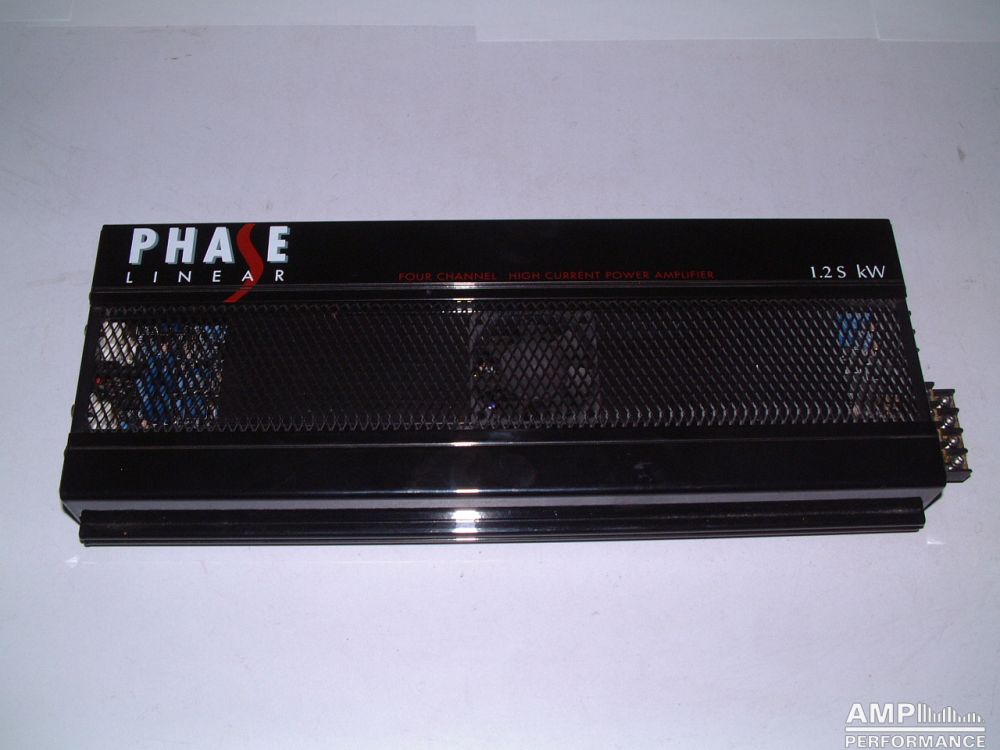

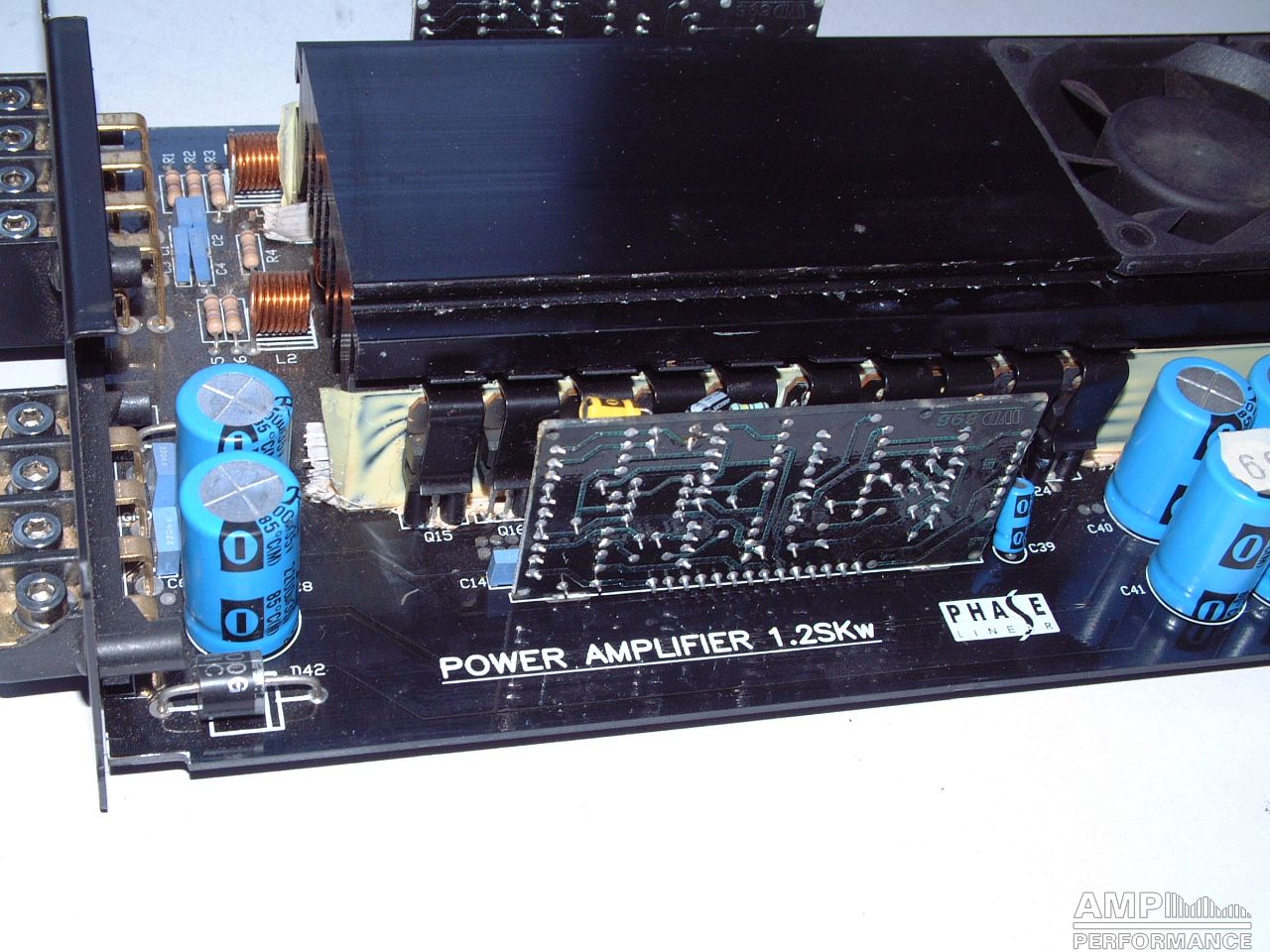

Phase Linear 1.2S kW
