provided by infinity aus dem Klangfuzzi-Forum
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

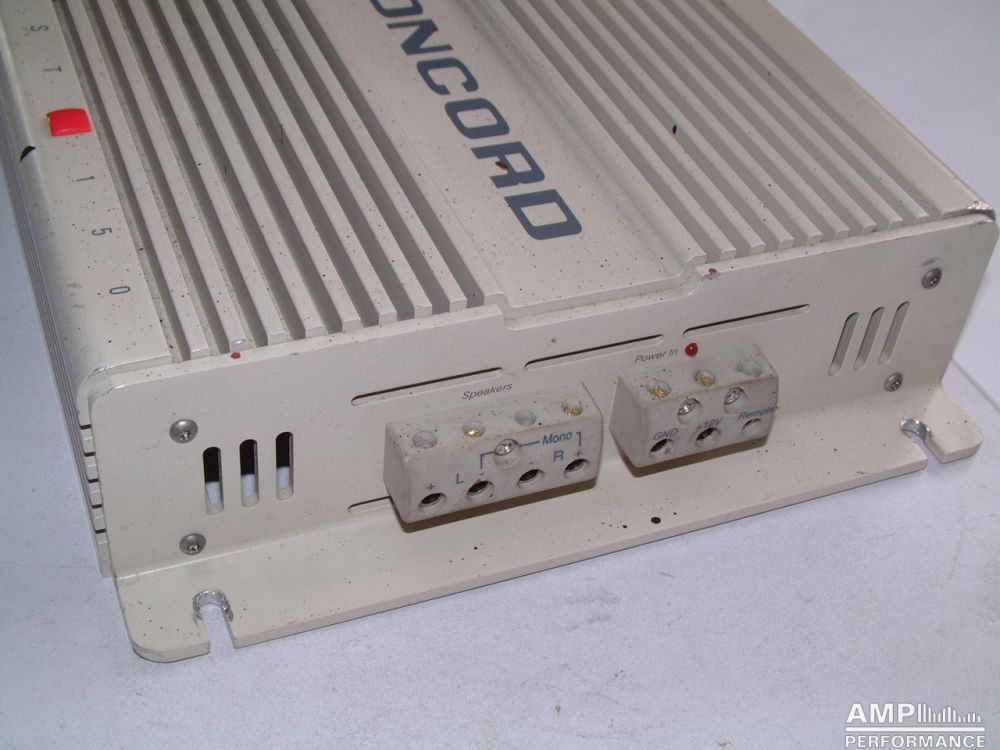

Concord ST150
1 × 64 watts, channel 1 at 4 Ohm
2 × 60 watts, channel 1 + 2 at 4 Ohm
Current consumption 14A
efficiency 63,6%
1 × 174 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 24,2A
efficiency 53,7%
174 watts total power
provided by infinity aus dem Klangfuzzi-Forum
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Concord ST150
1 × 62 watts, channel 1 at 4 Ohm
2 × 56 watts, channel 1 + 2 at 4 Ohm
Current consumption 14,1A
efficiency 58,3%
1 × 151 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 23A
efficiency 49,1%
151 watts total power
