Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

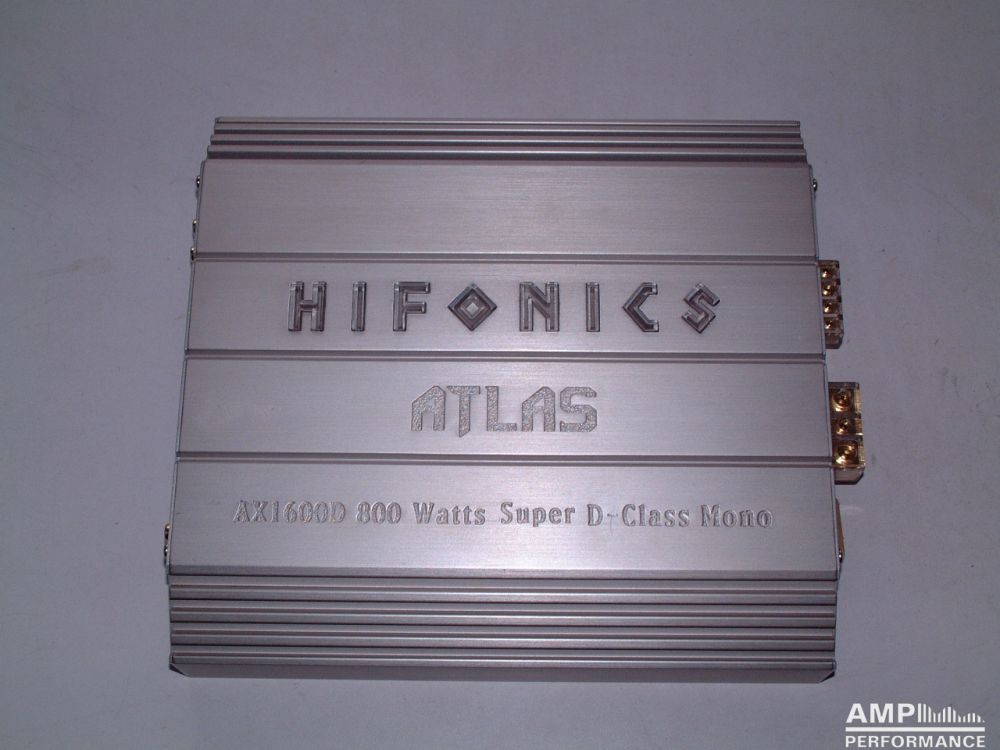

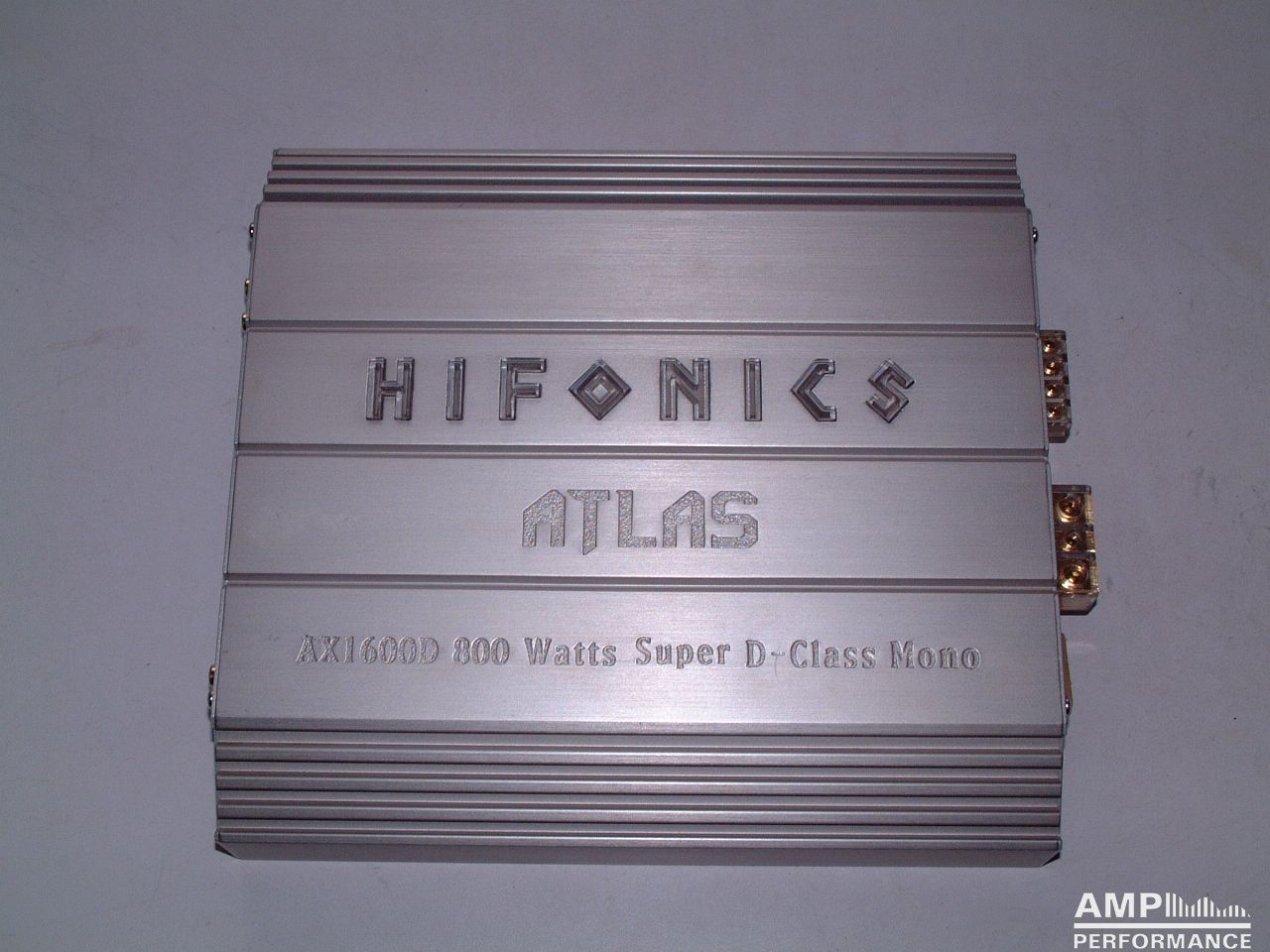

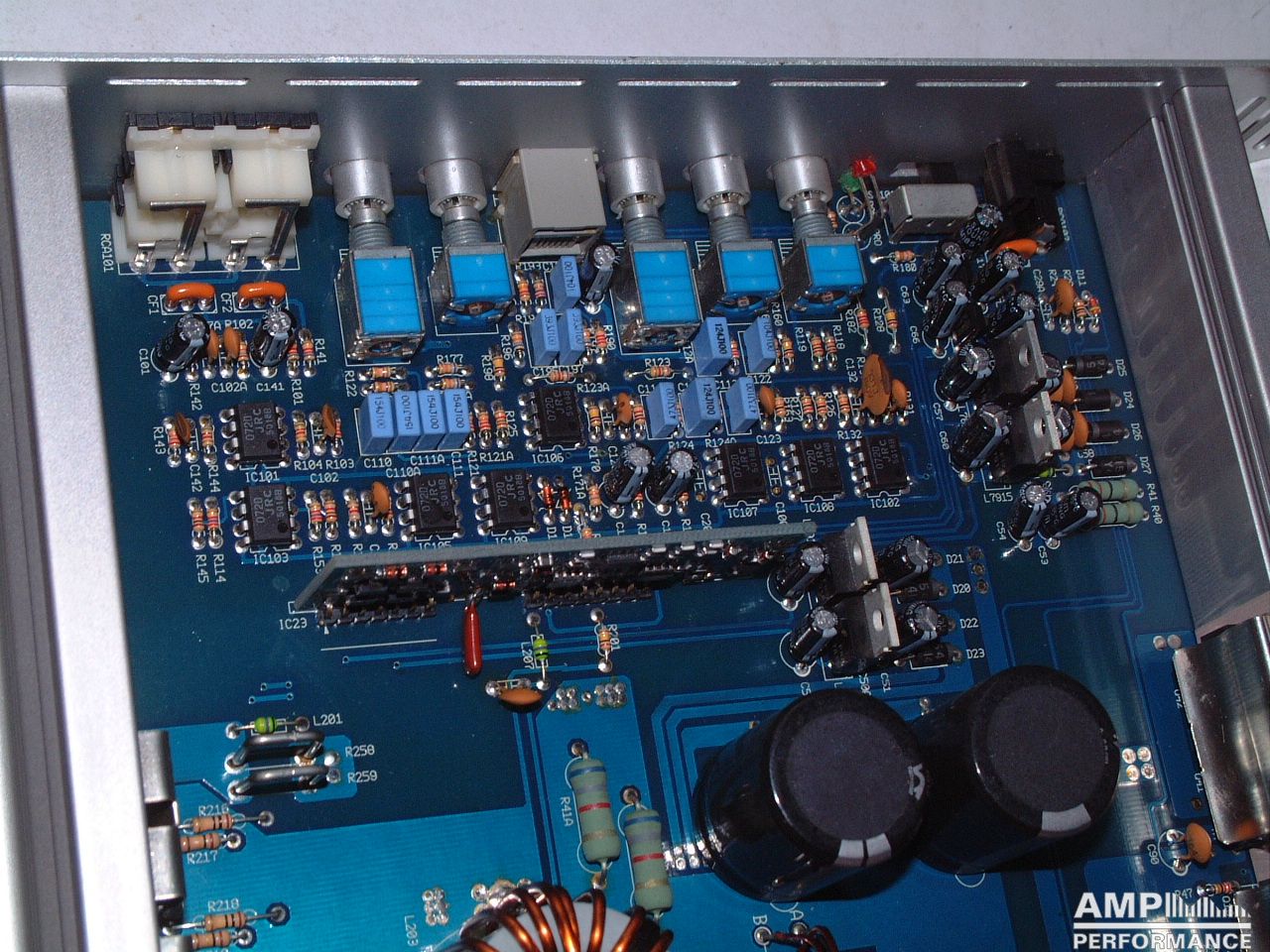

Hifonics Atlas AX1600D

1 × 361 watts, channel 1 at 4 Ohm
Current consumption 32,2A
efficiency 83,1%

1 × 613 watts, channel 1 at 2 Ohm
Current consumption 57,7A
efficiency 78,6%

1 × 770 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 76,7A
efficiency 74,9%

1 × 841 watts, channel 1 at 1 Ohm with 13,4V supply voltage
Current consumption 94,8A
efficiency 66,2%

841 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
