Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

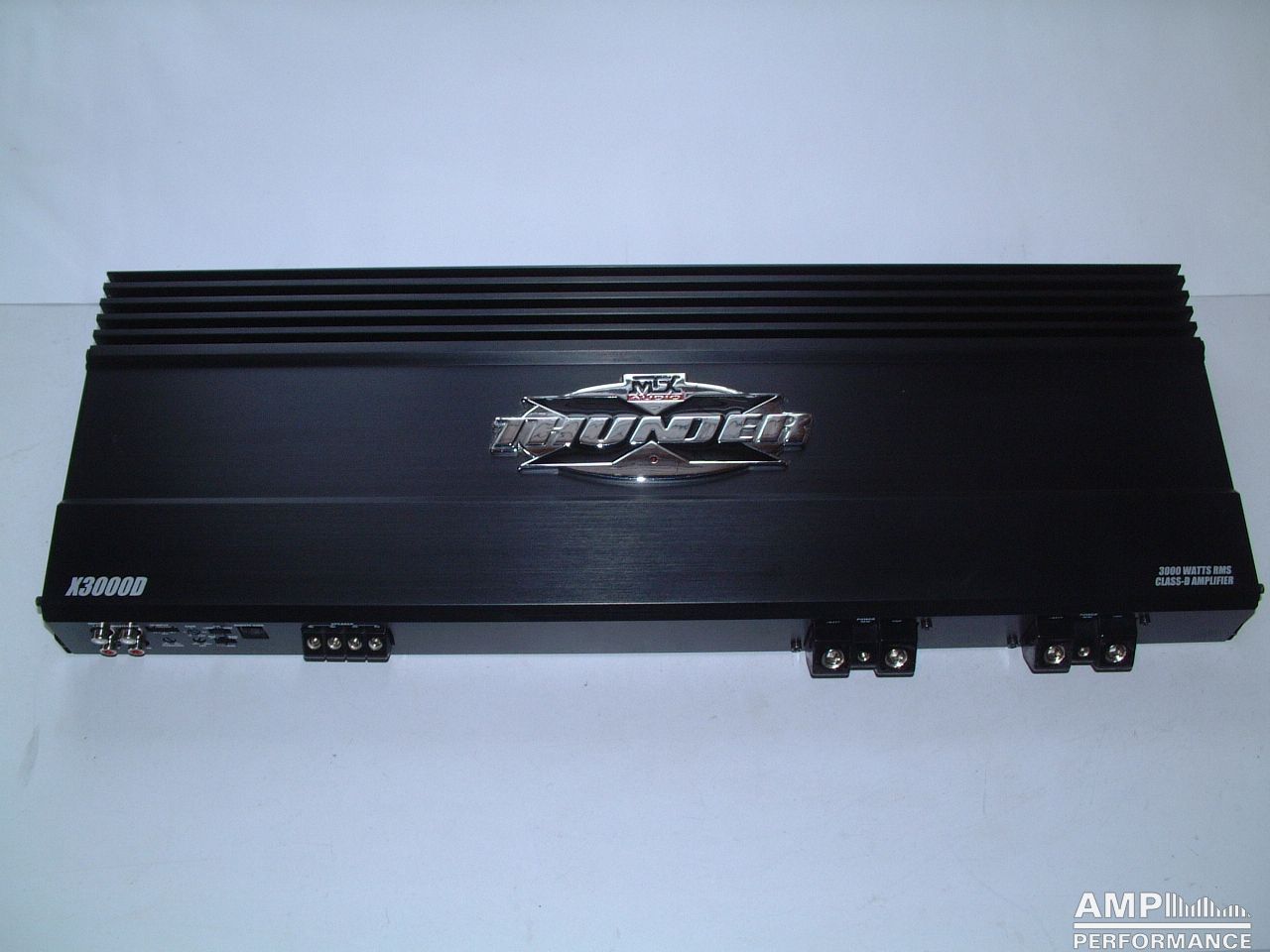

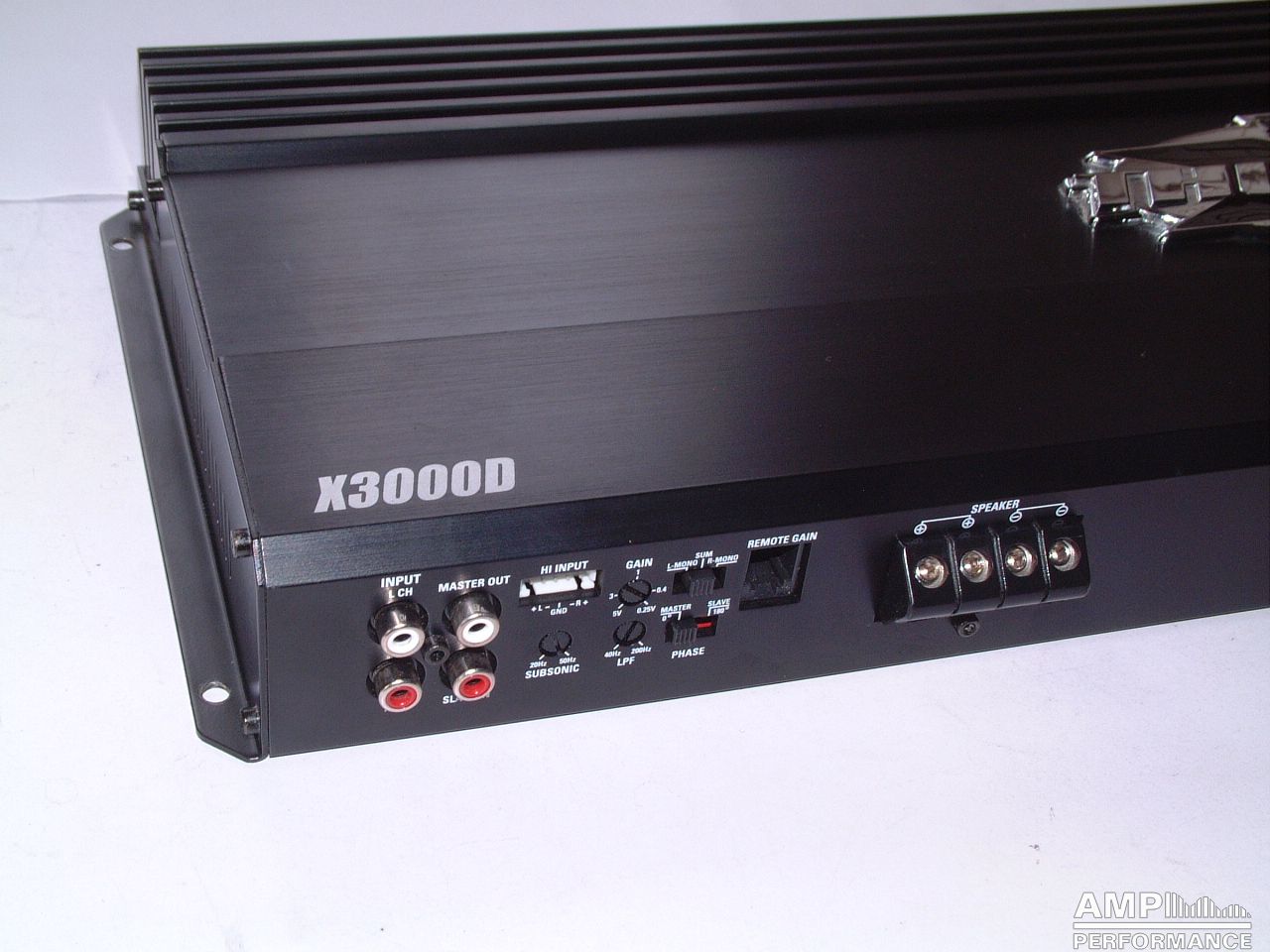

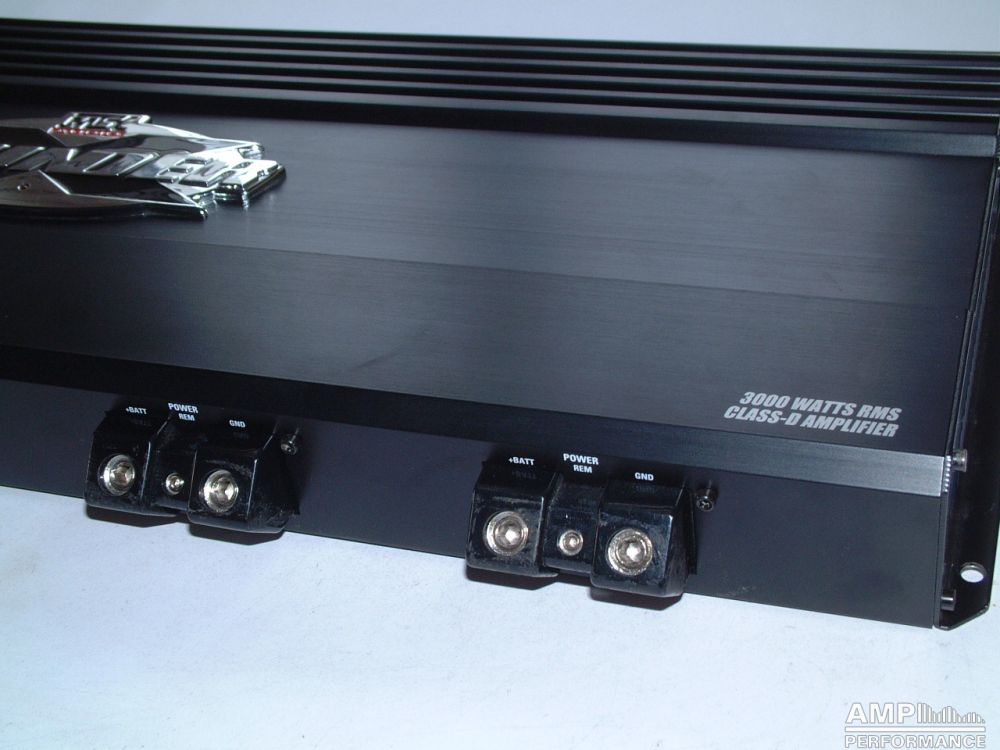

MTX X3000D

1 × 1089 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 89,2A
efficiency 91,1%

1 × 1861 watts, channel 1 at 2 Ohm with 13,3V supply voltage
Current consumption 158A
efficiency 88,5%

1 × 2443 watts, channel 1 at 1,33 Ohm with 13,2V supply voltage
Current consumption 225A
efficiency 82,3%

1 × 2916 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 286A
efficiency 77,2%

2916 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
