Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

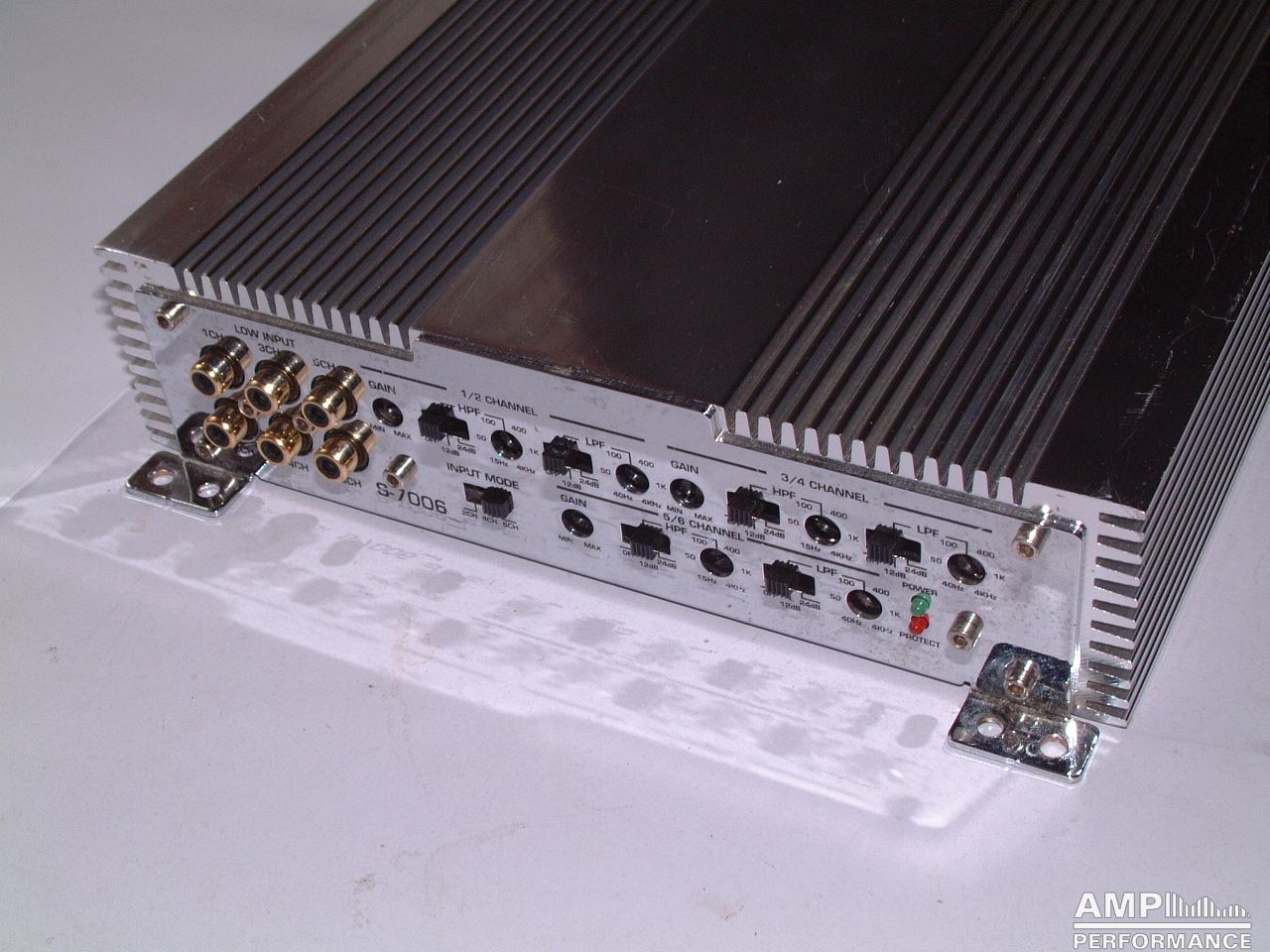

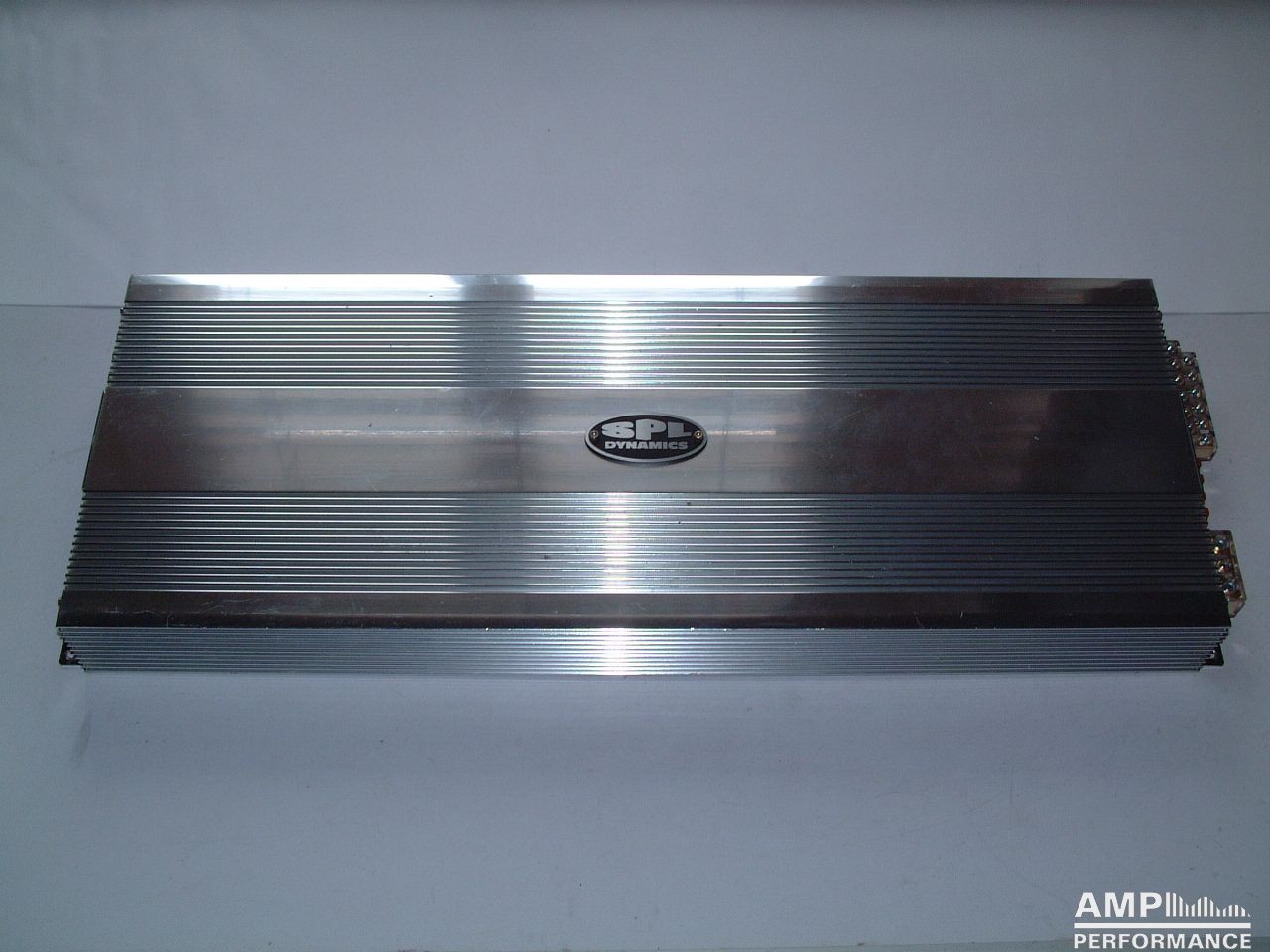

SPL Dynamics S7006
1 × 104 watts, channel 1 at 4 Ohm
2 × 98 watts, channel 1 + 2 at 4 Ohm
4 × 84 watts, channel 1 up to 4 at 4 Ohm
4 × 83 watts, channel 1 up to 4 at 4 Ohm +
2 × 230 Watts channel 5 + 6 at 4 Ohm with 13,4V supply voltage
Current consumption 94,5A
efficiency 62,4%
4 × 113 watts, channel 1 up to 4 at 2 Ohm +
2 × 313 Watts channel 5 + 6 at 2 Ohm with 13,3V supply voltage
Current consumption 153A
efficiency 52,8%
1078 watts total power
