Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

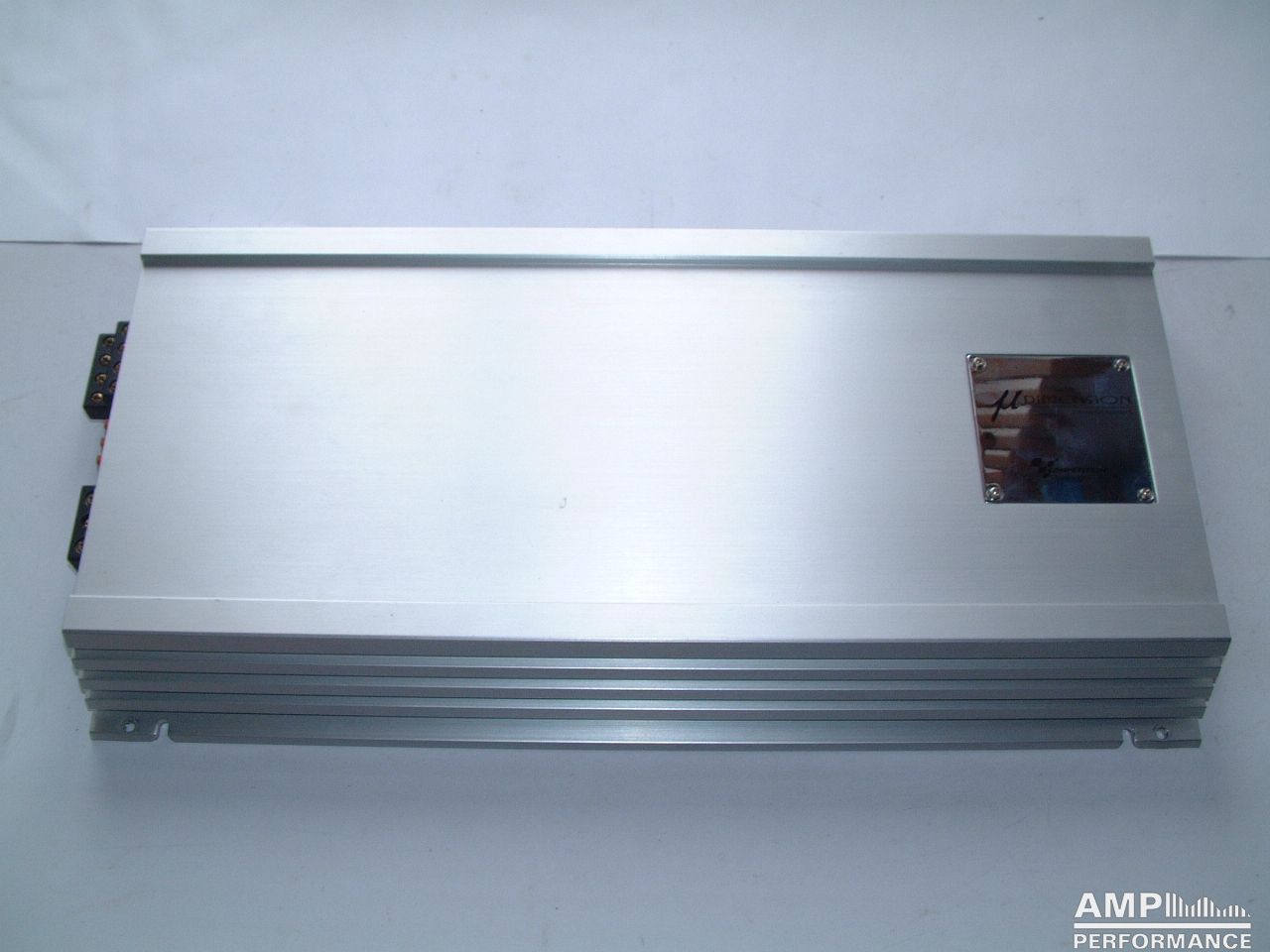

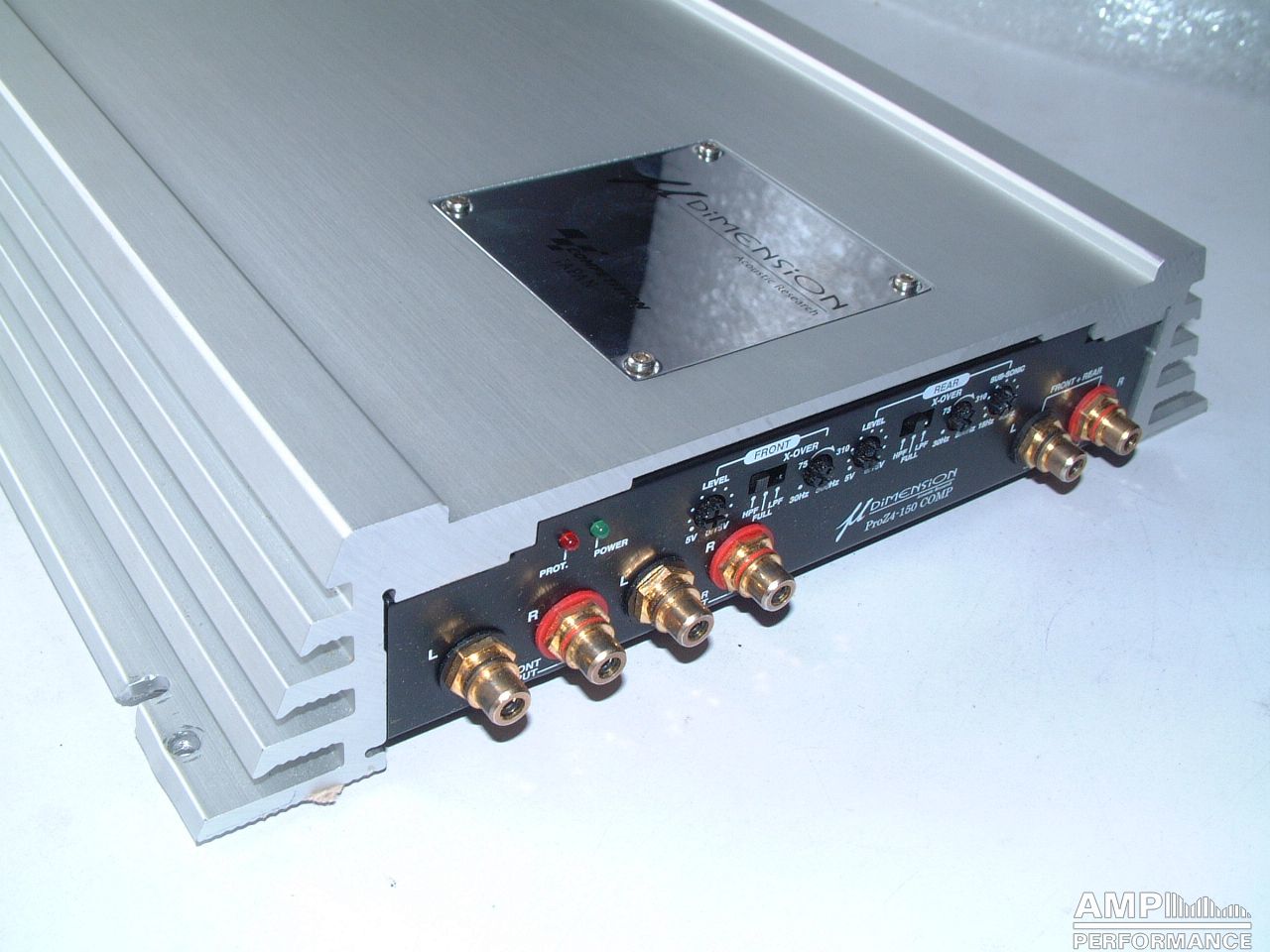

µ-Dimension ProZ4-150 Comp

1 × 172 watts, channel 1 at 4 Ohm
2 × 163 watts, channel 1 + 2 at 4 Ohm
4 × 144 watts, channel 1 up to 4 at 4 Ohm with 13,4V supply voltage
Current consumption 65,7A
efficiency 65,4%

1 × 529 watts, channel 1 + 2 bridged at 4 Ohm
2 × 433 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 113A
efficiency 57,6%

1 × 648 watts, channel 1 + 2 bridged at 2 Ohm
2 × 512 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,2V supply voltage
Current consumption 171A
efficiency 45,4%

1024 watts total power
