Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

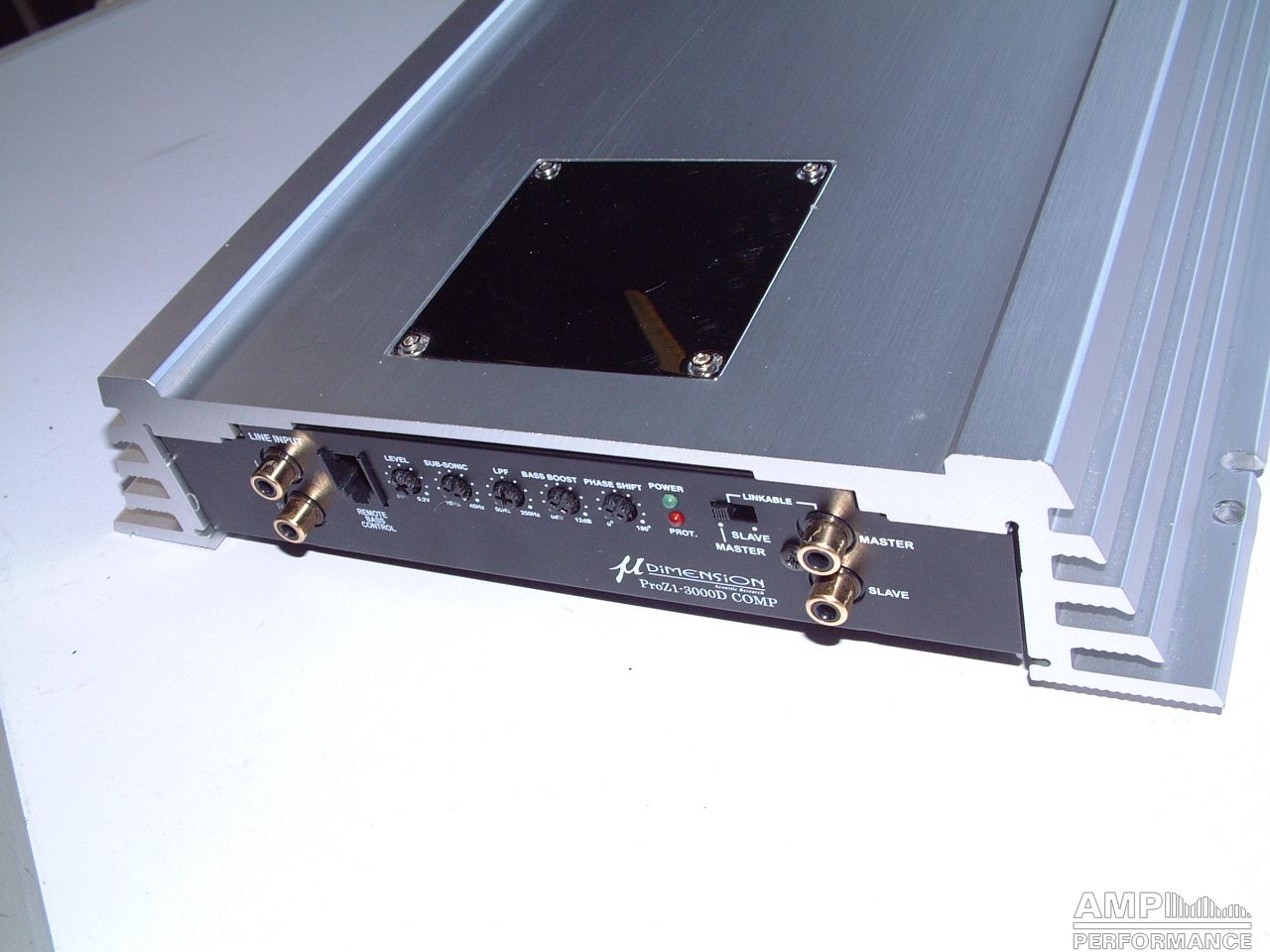

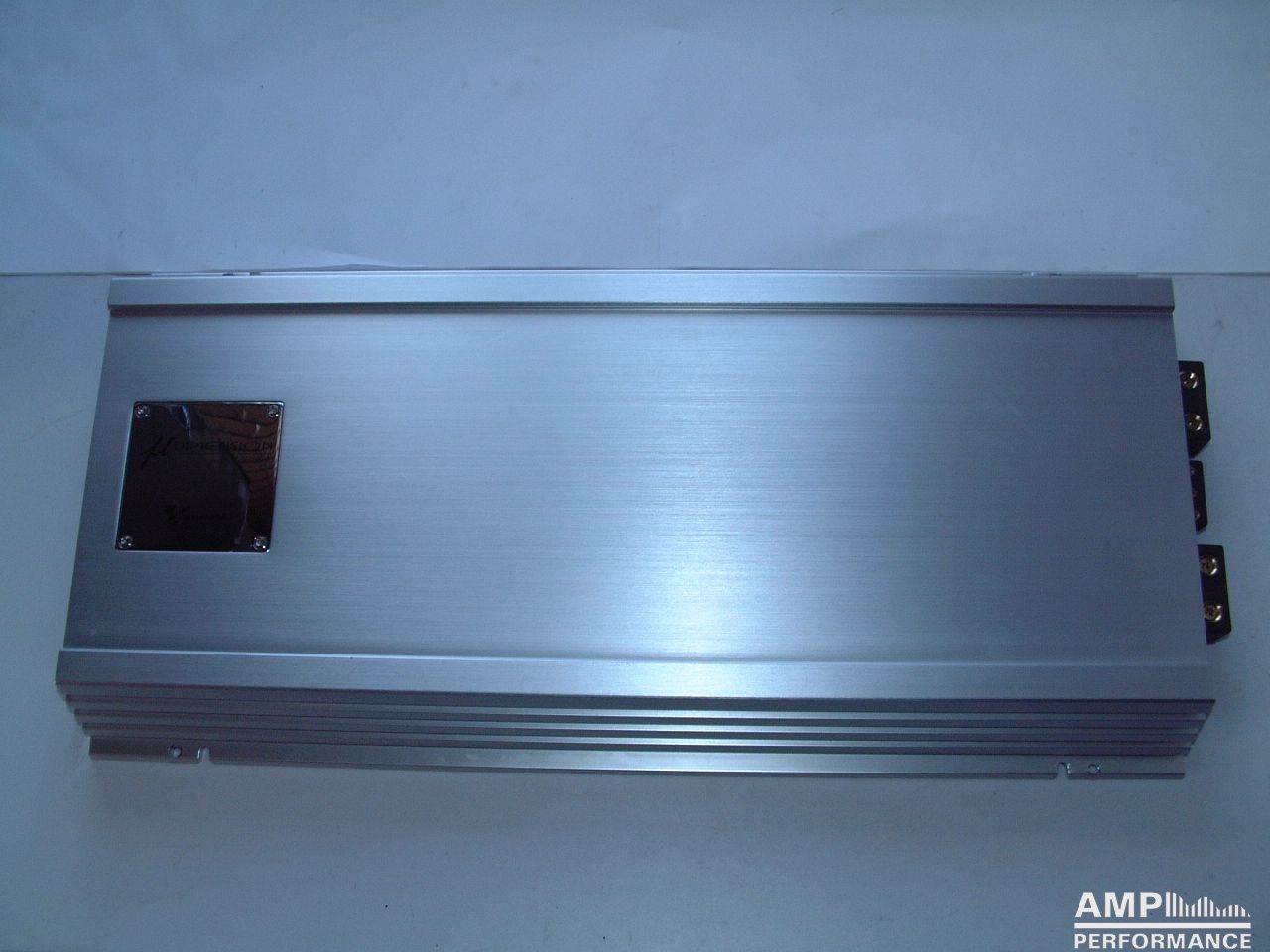

µ-Dimension ProZ1-3000D

1 × 650 watts, channel 1 at 4 Ohm
Current consumption 57,1A
efficiency 84,4%

1 × 1275 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 114A
efficiency 83,5%

1 × 1880 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 170A
efficiency 82,5%

1 × 2352 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 222A
efficiency 79,7%

2352 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
