Specialist for Audio-Amplifiers

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

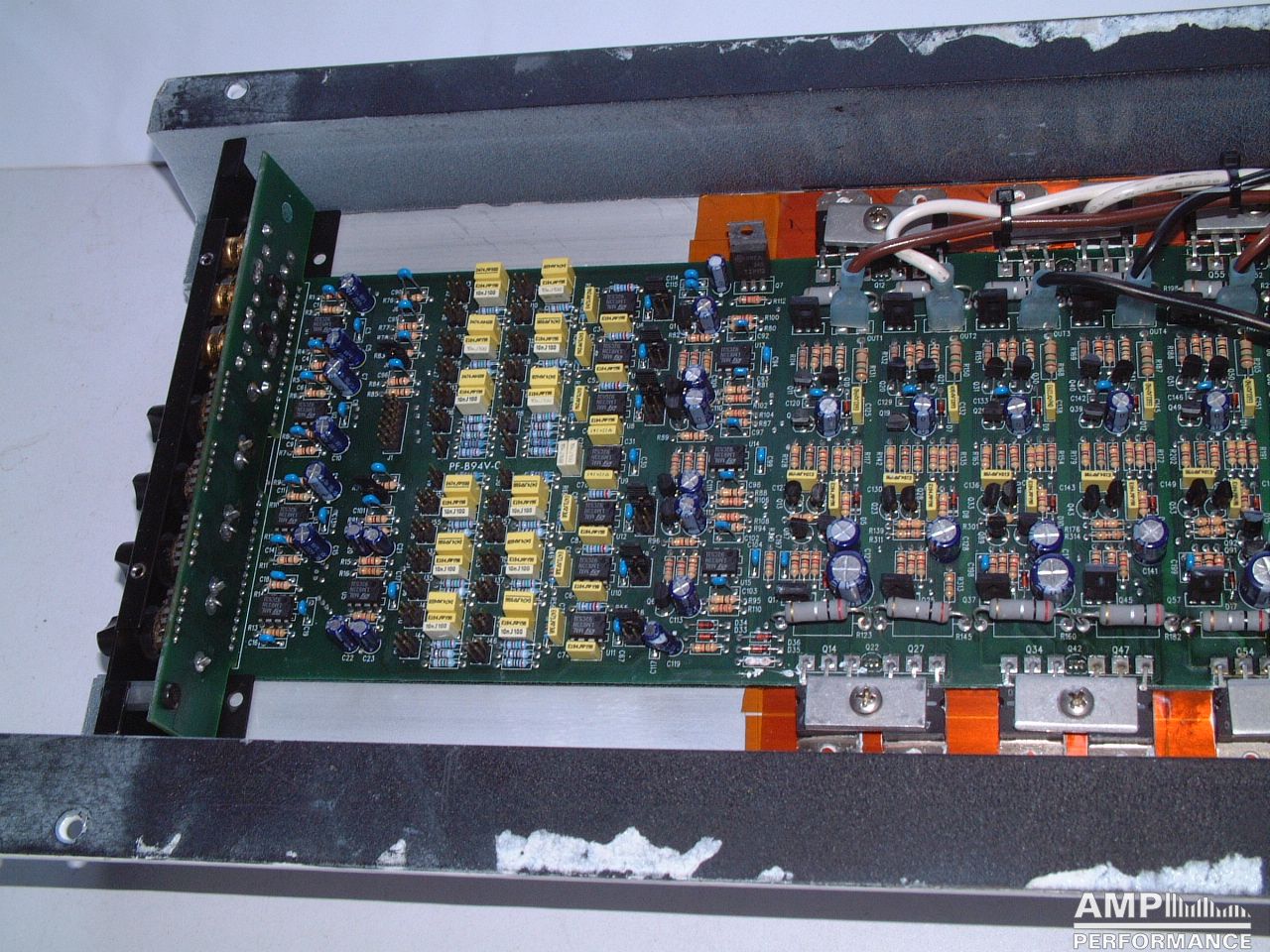

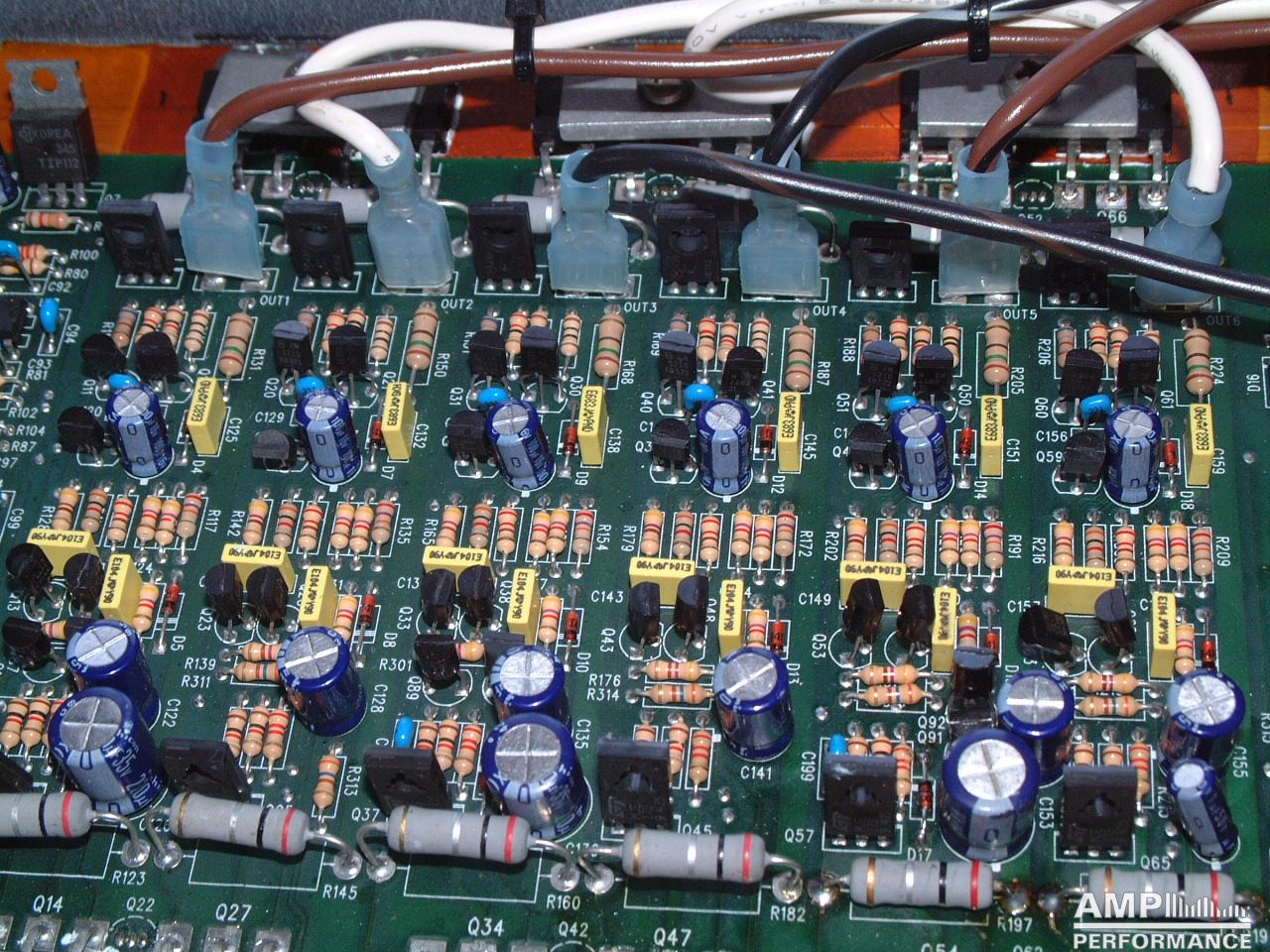

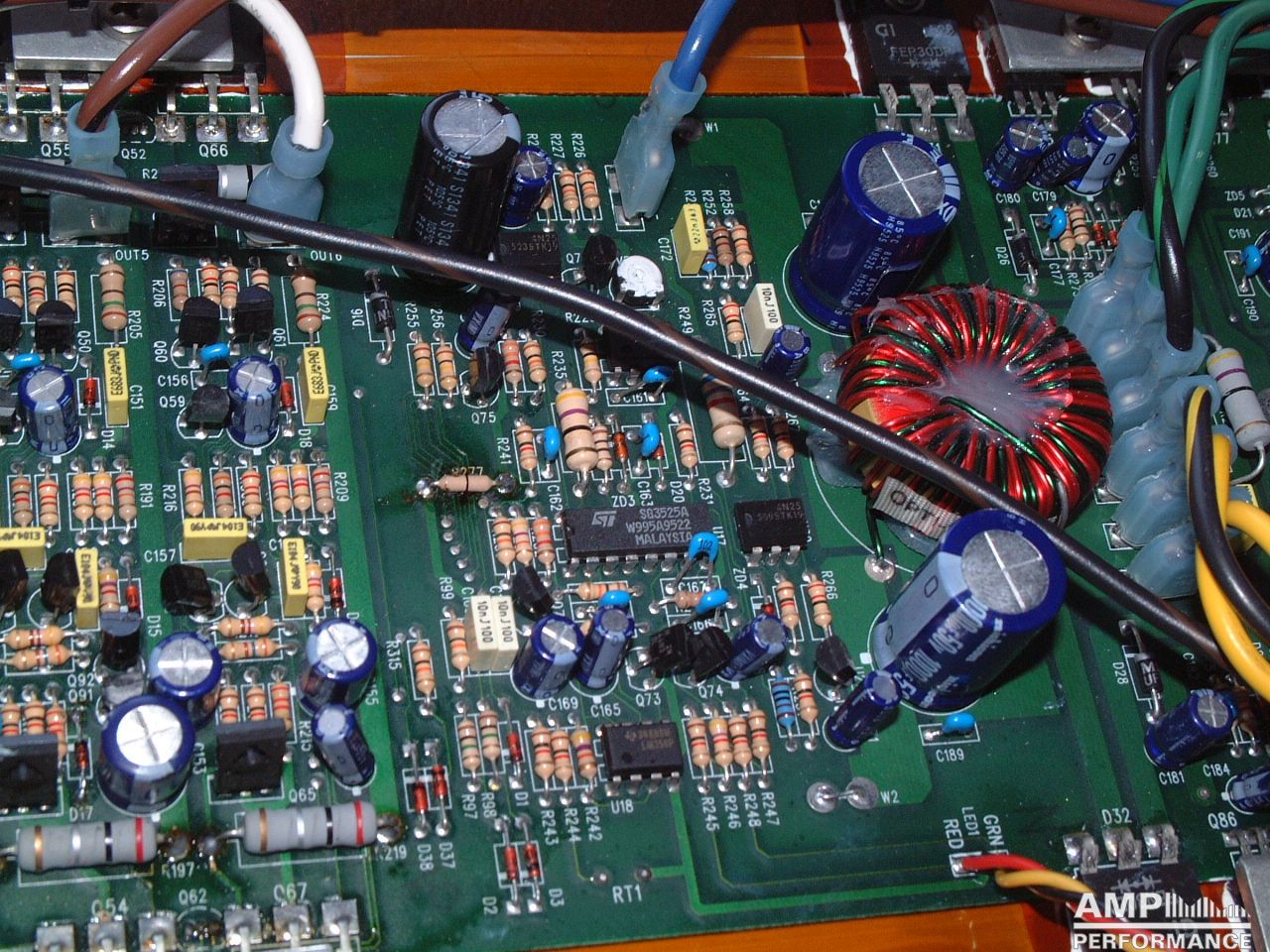

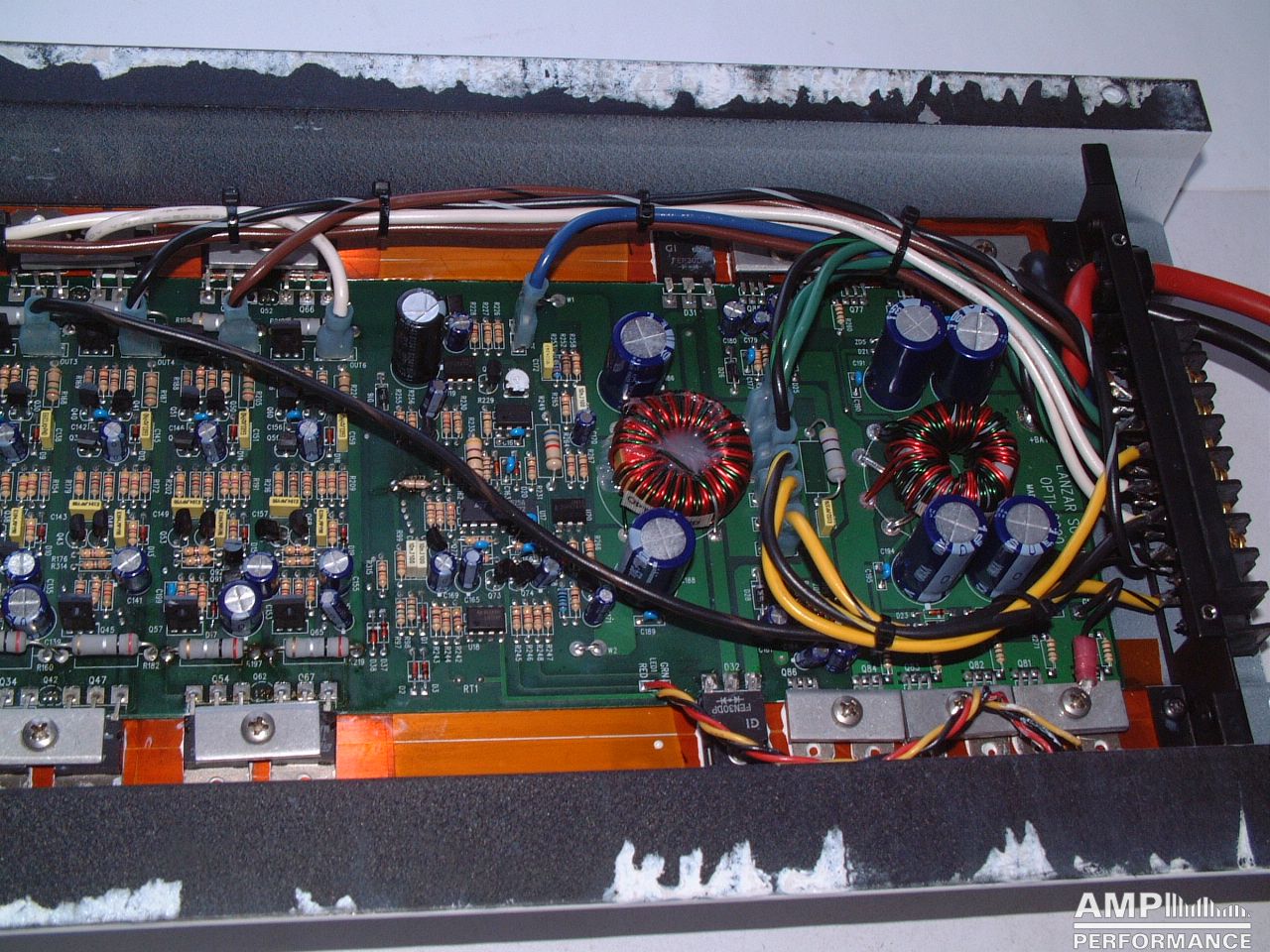

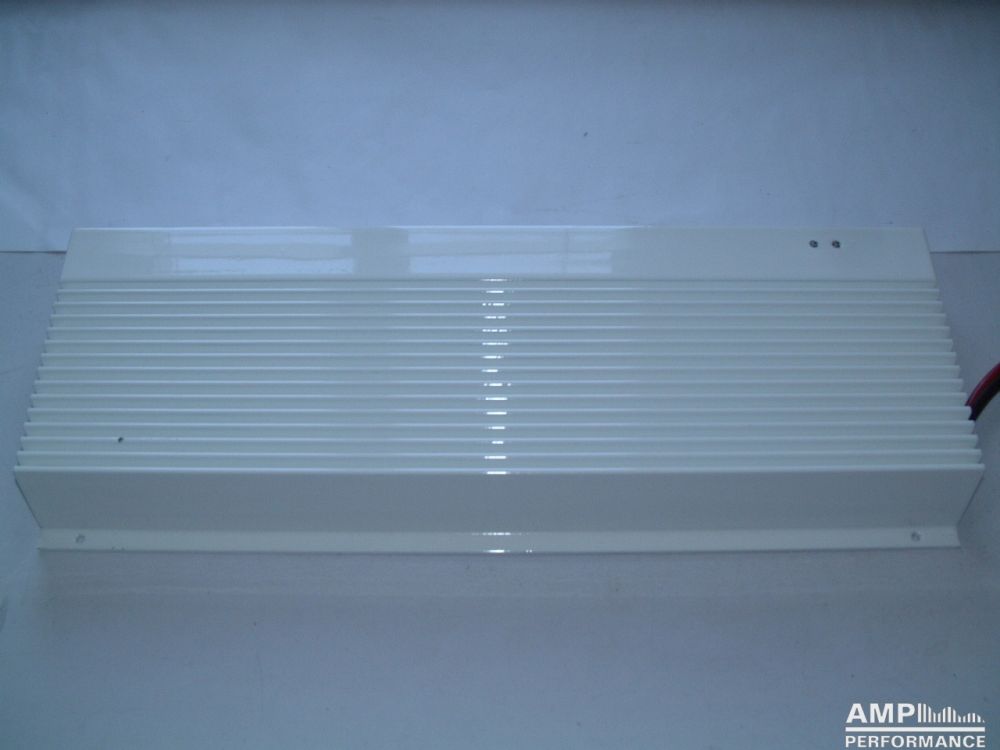

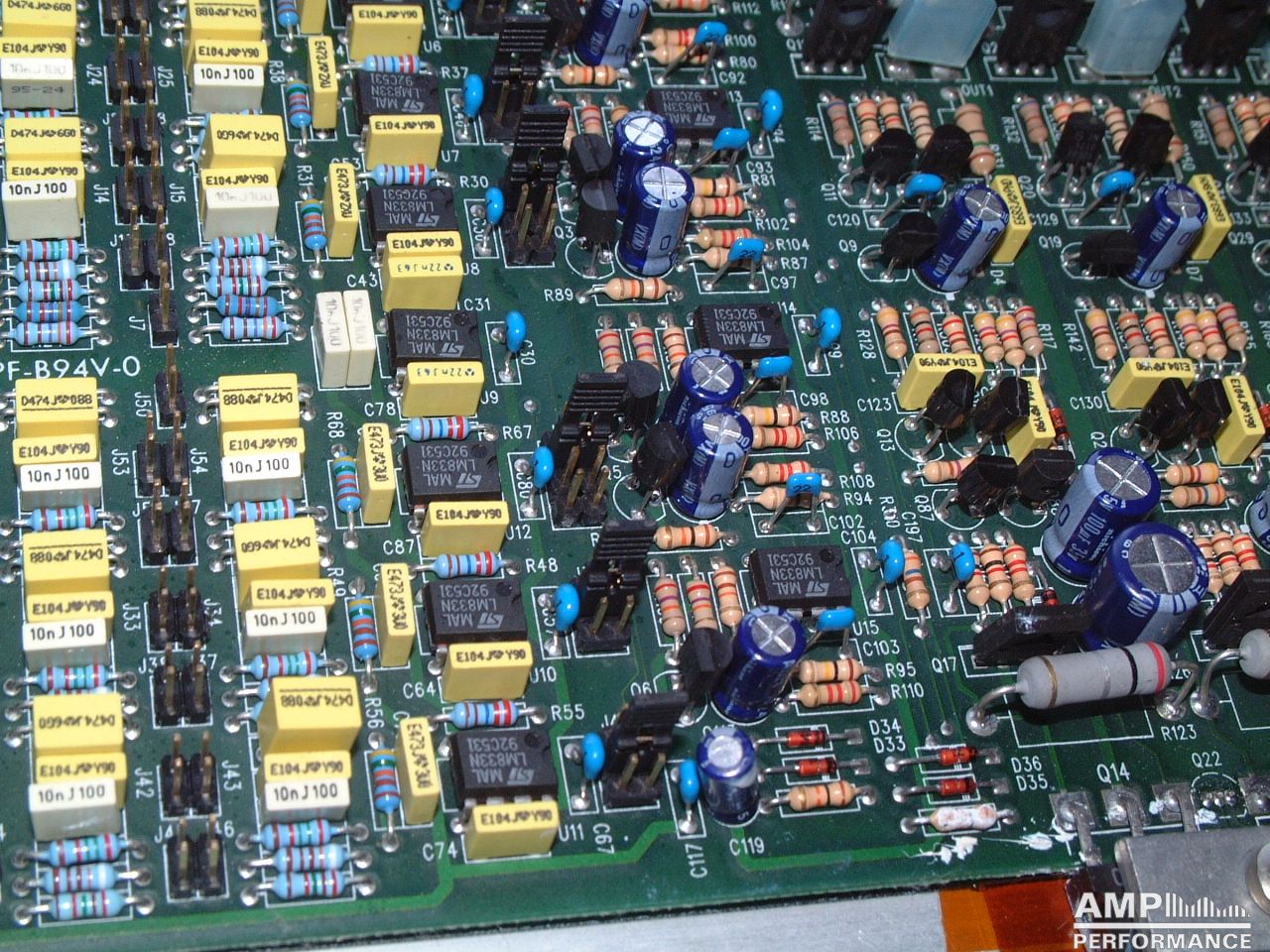

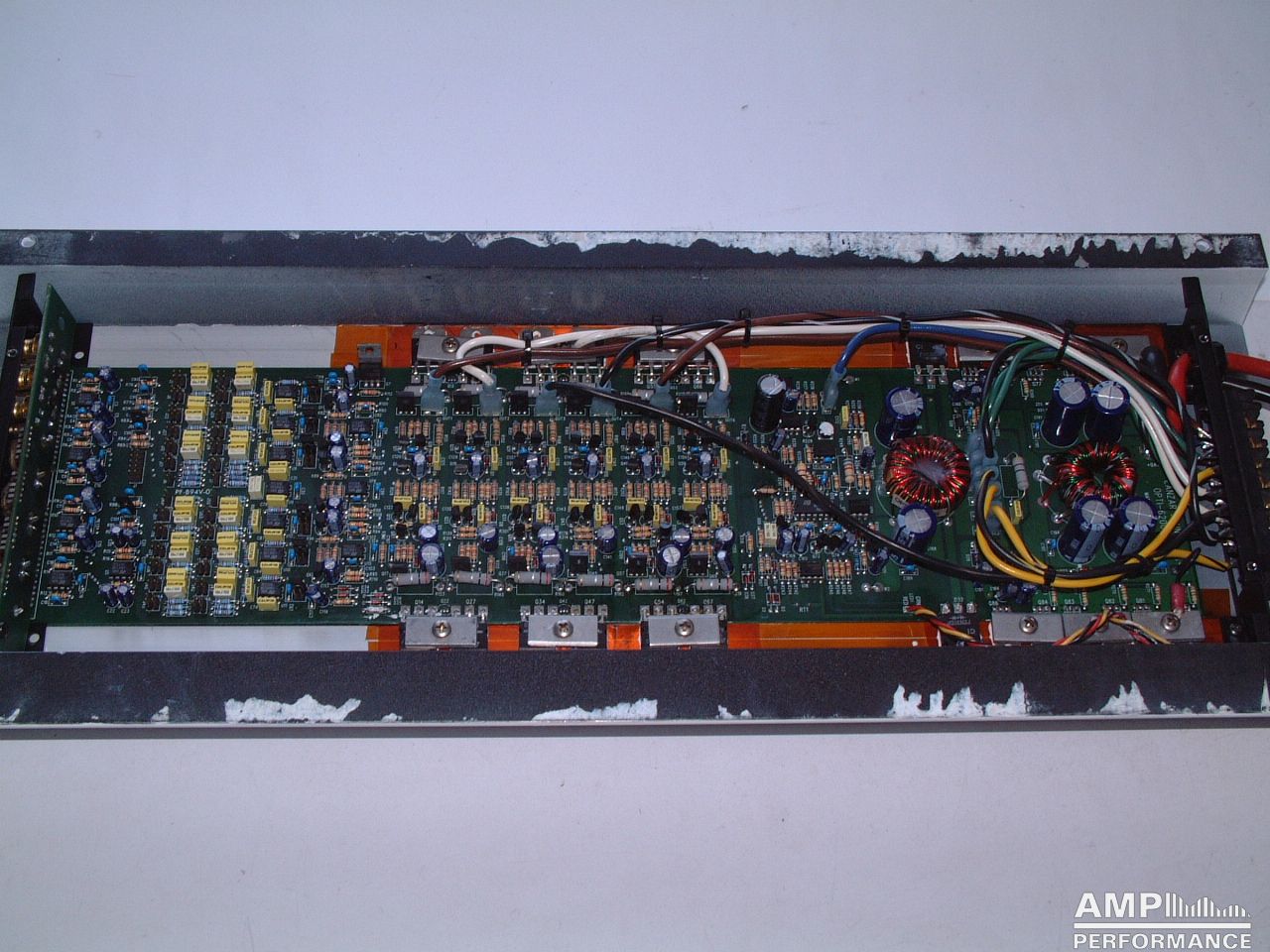

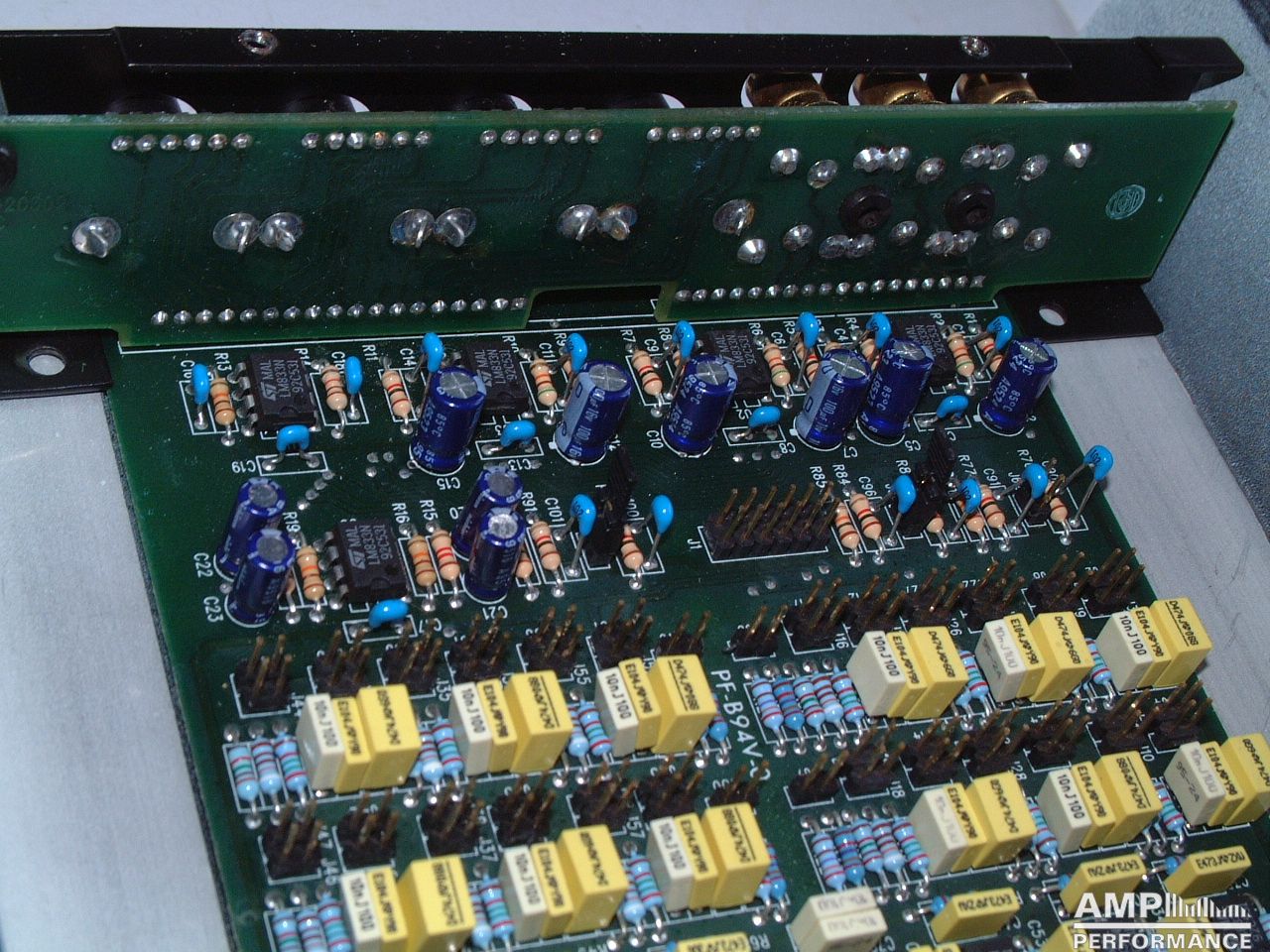

Lanzar Optidrive 6200

1 × 41 watts, channel 1 at 4 Ohm
2 × 41 watts, channel 1 + 2 at 4 Ohm
4 × 41 watts, channel 1 up to 4 at 4 Ohm
6 × 41 watts, channel 1 up to 6 at 4 Ohm
Current consumption 34,2A
efficiency 53,2%

1 × 146 watts, channel 1 + 2 bridged at 4 Ohm
2 × 146 watts, channel 1 up to 4 bridged at 4 Ohm
3 × 144 watts, channel 1 up to 6 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 74,2A
efficiency 43,5%

432 watts total power
