Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

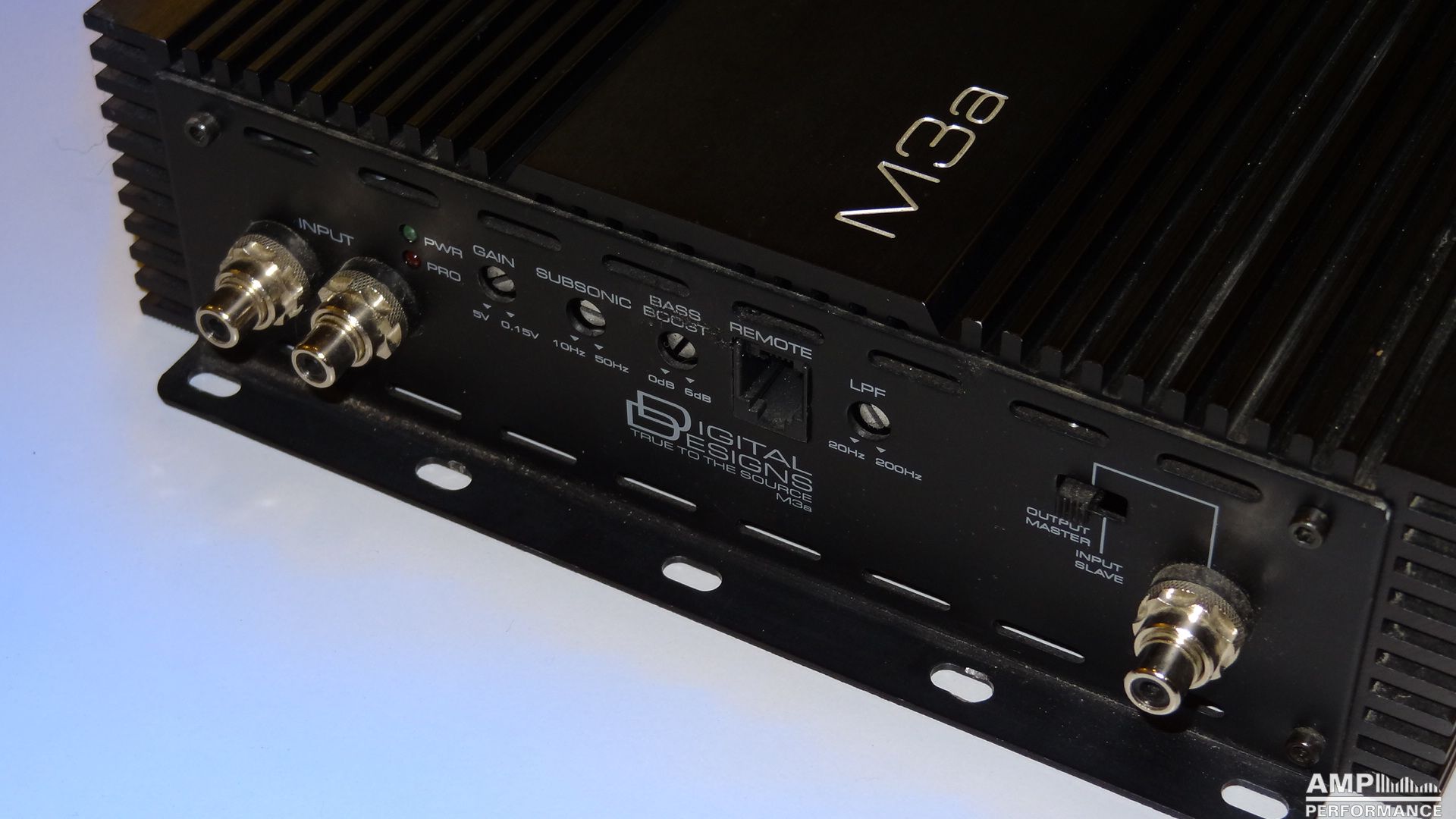

Digital Design M3a
1 × 812 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 72,4A
efficiency 83,7%
1 × 1513 watts, channel 1 at 2 Ohm with 13,3V supply voltage
Current consumption 139A
efficiency 81,8%
1 × 2112 watts, channel 1 at 1,33 Ohm with 13,2V supply voltage
Current consumption 199A
efficiency 80,4%
1 × 2601 watts, channel 1 at 1 Ohm with 13,1V supply voltage
Current consumption 253A
efficiency 78,5%
2601 watts total power
measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
