Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

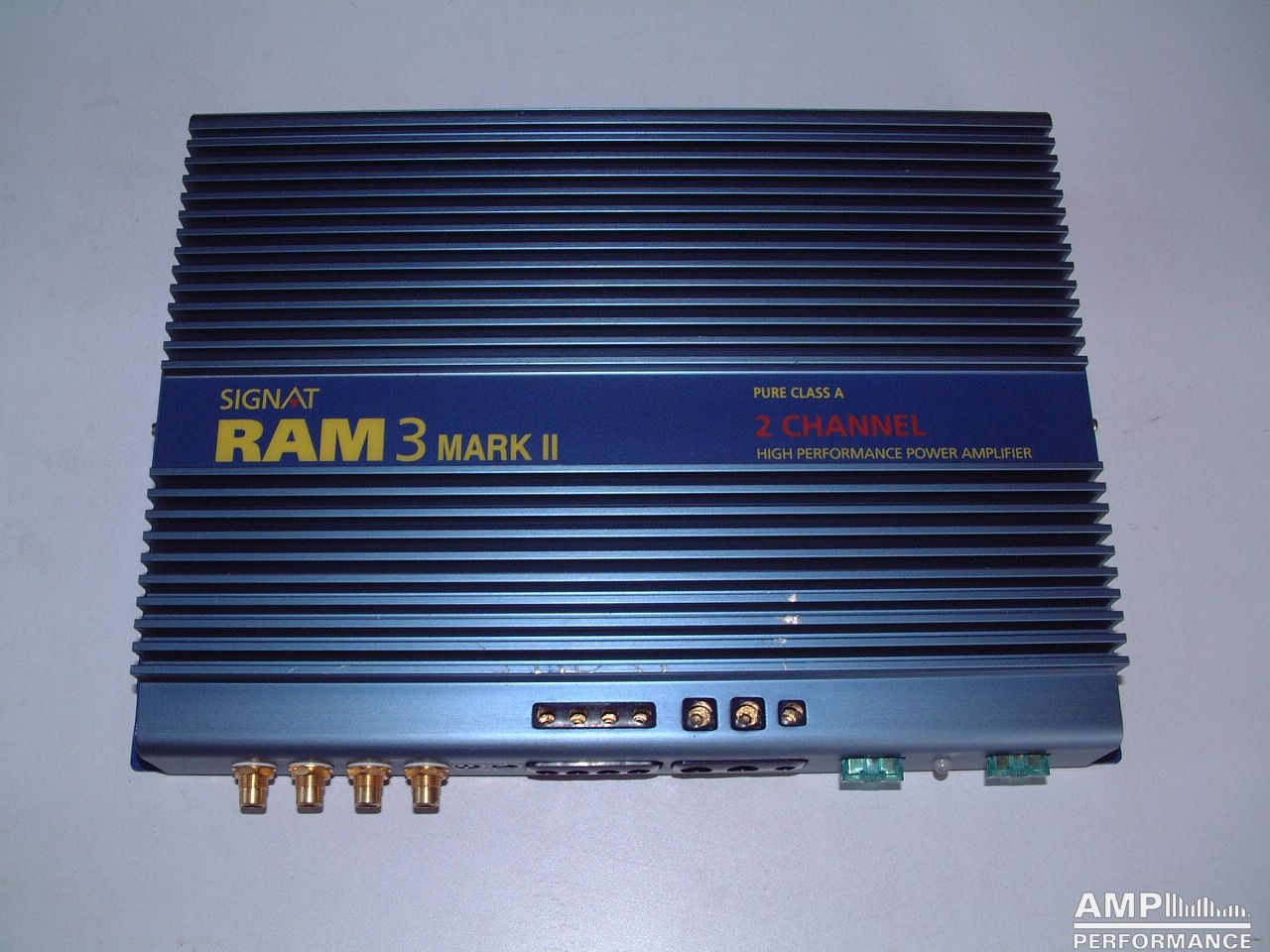

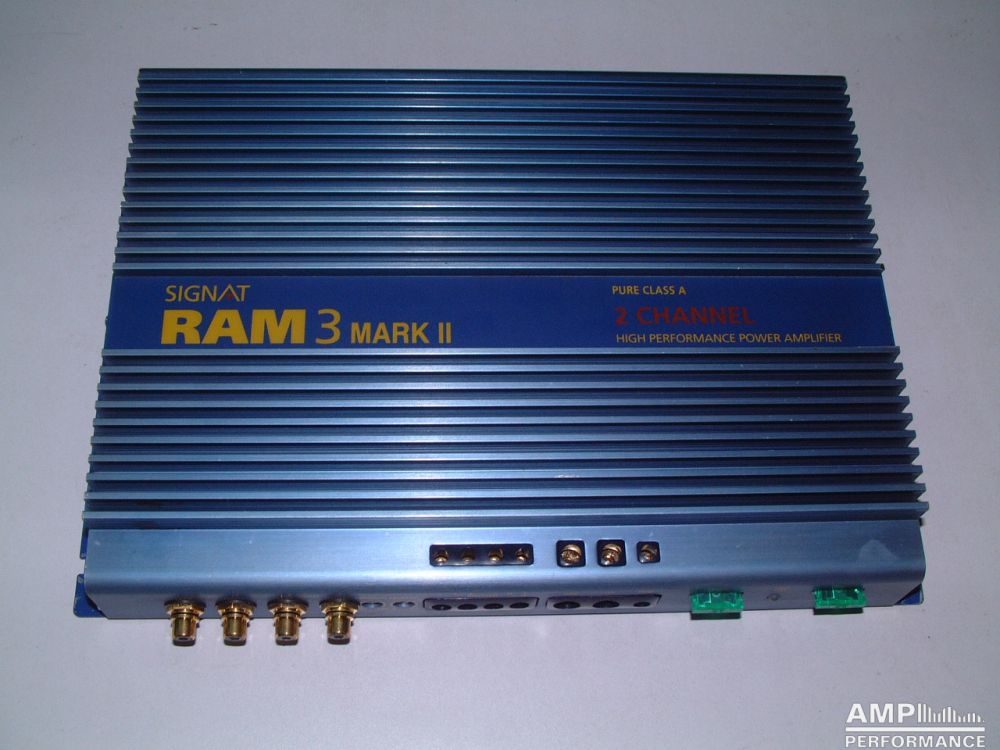

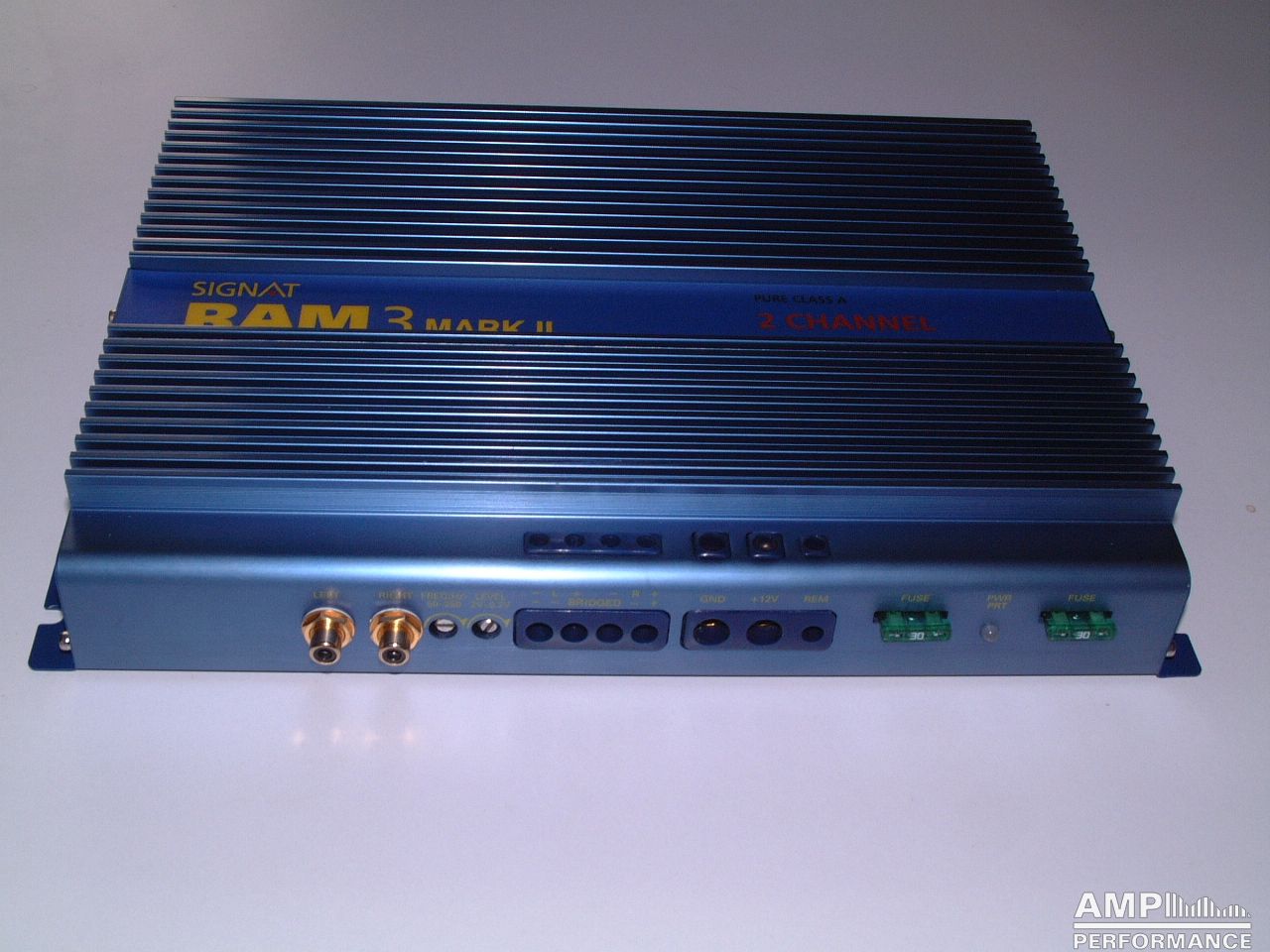

Signat Ram3 MkII
1 × 166 watts, channel 1 at 4 Ohm
2 × 150 watts, channel 1 + 2 at 4 Ohm
Current consumption 34,5A
efficiency 64,4%
1 × 441 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 61A
efficiency 53,6%
1 × 564 watts, channel 1 + 2 bridged at 2 Ohm
Current consumption 95,1A
efficiency 44%
564 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Signat Ram3 MkII
1 × 163 watts, channel 1 at 4 Ohm
2 × 146 watts, channel 1 + 2 at 4 Ohm
1 × 475 watts, channel 1 + 2 bridged at 4 Ohm
2 Om Brücke nicht gemessen
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Signat Ram 3 MKII
1 × 177 watts, channel 1 at 4 Ohm
2 × 165 watts, channel 1 + 2 at 4 Ohm
Current consumption 36,8A
efficiency 66,5%
1 × 538 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 66,3A
efficiency 60,1%
1 × 707 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 105,3A
efficiency 50,5%
707 watts total power
provided by Sierra111 from the Hififorum
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Signat Ram3 MkII
1 × 177 watts, channel 1 at 4 Ohm
2 × 166 watts, channel 1 + 2 at 4 Ohm
Current consumption 37,5A
efficiency 65,7%
1 × 538 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 67,5A
efficiency 59,6%
1 × 722 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 108,7A
efficiency 49,9%
722 watts total power
provided by AHS from the Hififorum
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Signat Ram3 MkII
1 × 173 watts, channel 1 at 4 Ohm
2 × 163 watts, channel 1 + 2 at 4 Ohm
Current consumption 36,5A
efficiency 66%
1 × 543 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 66,8A
efficiency 60,6%
1 × 753 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 110,5A
efficiency 51,2%
753 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Signat Ram3 MkII
1 × 177 watts, channel 1 at 4 Ohm
2 × 166 watts, channel 1 + 2 at 4 Ohm
Current consumption 37A
efficiency 66,6%
1 × 538 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 66,9A
efficiency 59,6%
1 × 767 watts, channel 1 + 2 bridged at 2 Ohm with 13,6V supply voltage
Current consumption 111A
efficiency 51,4%
767 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Signat Ram3 MkII
1 × 174 watts, channel 1 at 4 Ohm
2 × 163 watts, channel 1 + 2 at 4 Ohm
Current consumption 36,3A
efficiency 66,3%
1 × 529 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 65,8A
efficiency 59,6%
1 × 692 watts, channel 1 + 2 bridged at 2 Ohm with 13,4V supply voltage
Current consumption 103A
efficiency 50,1%
692 watts total power
