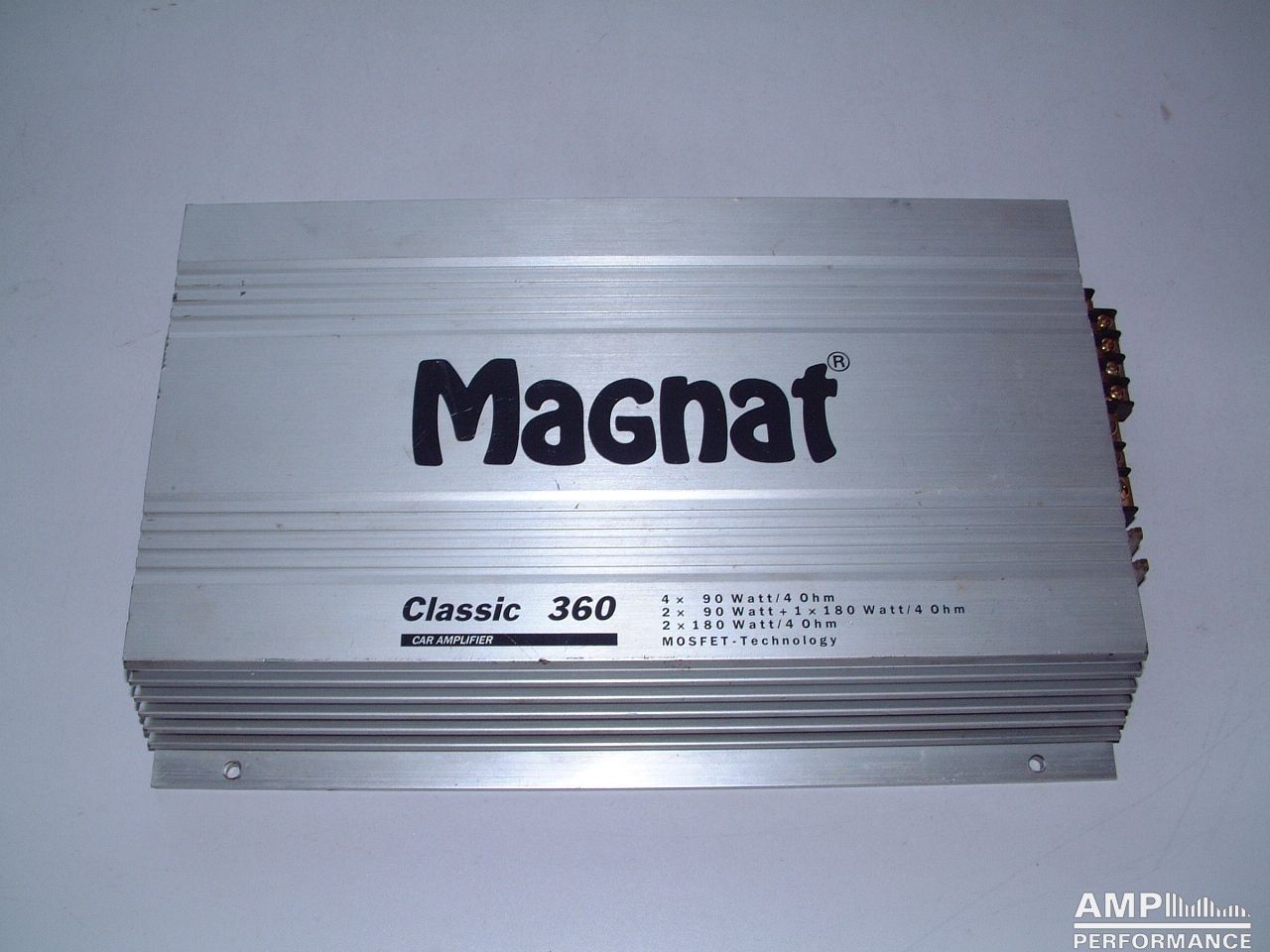

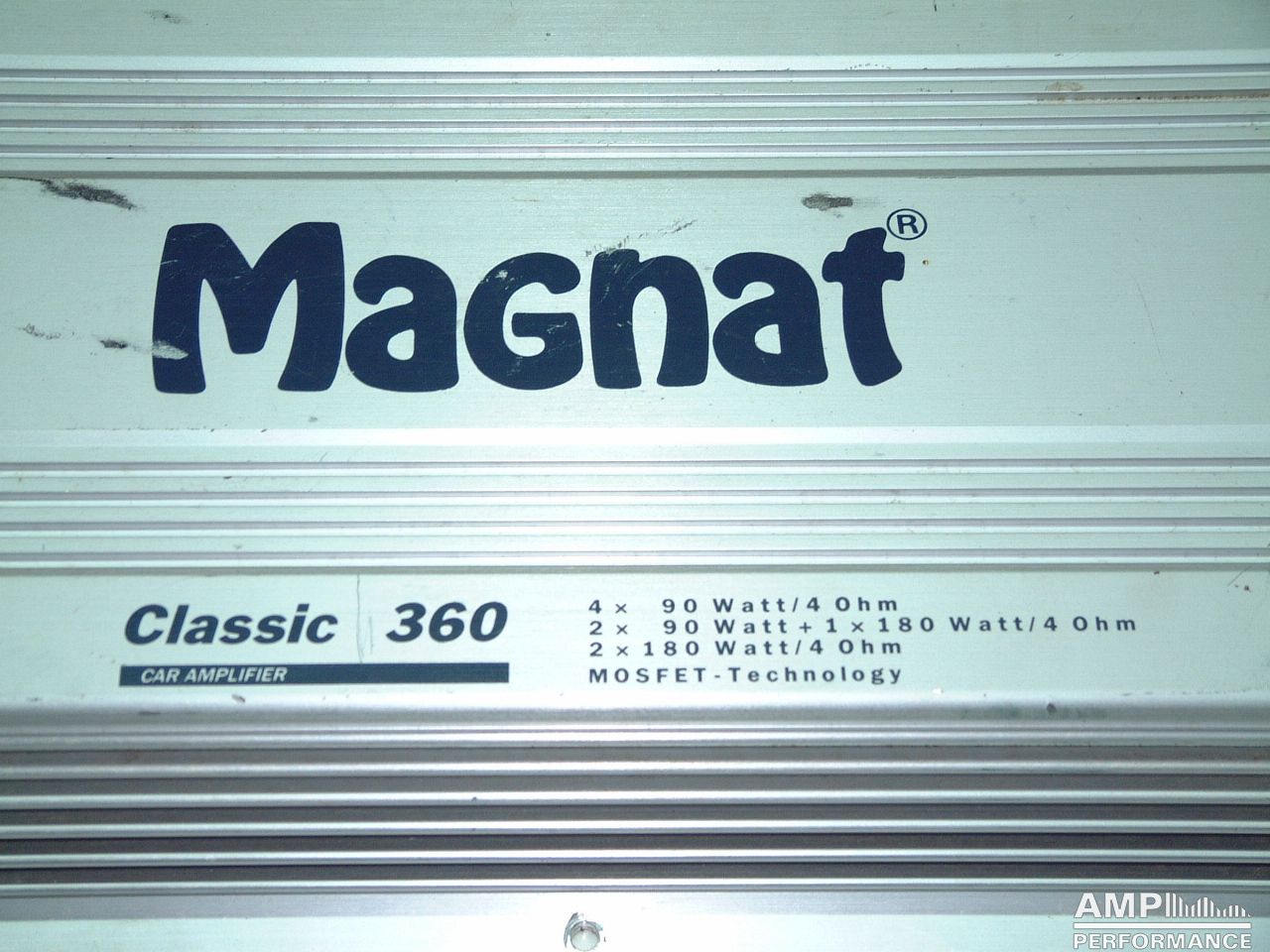

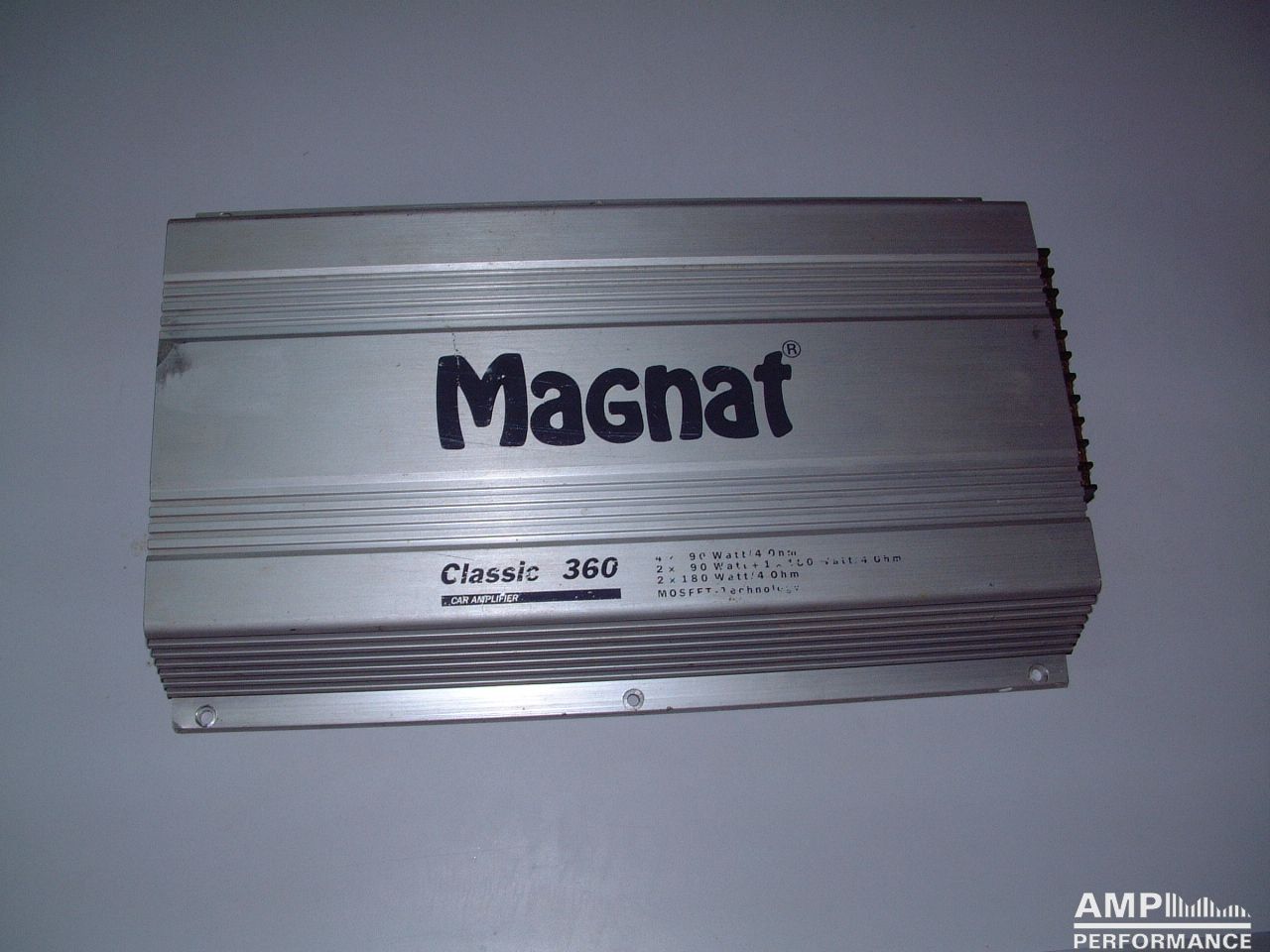

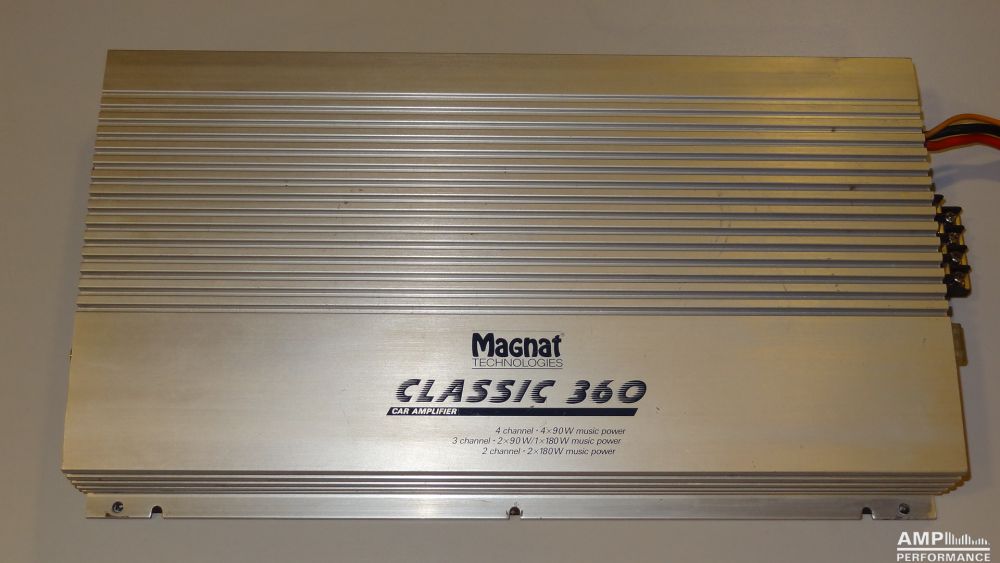

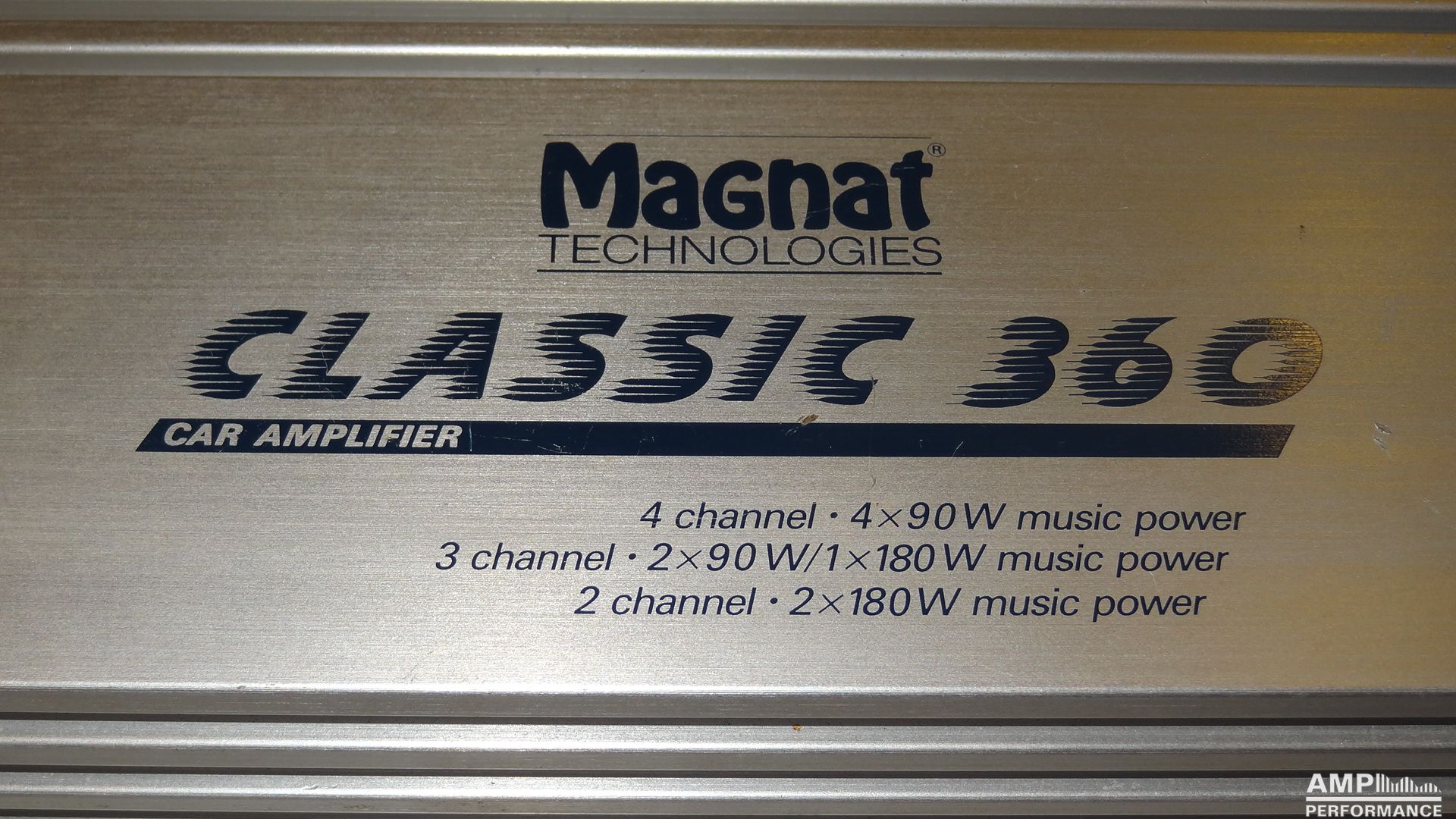

Magnat Classic 360

1st generation

1 × 90 watts, channel 1 at 4 Ohm
2 × 77 watts, channel 1 + 2 at 4 Ohm
4 × 56 watts, channel 1 up to 4 at 4 Ohm with 13,7V supply voltage
Current consumption 33,1A
efficiency 49,6%

1 × 202 watts, channel 1 + 2 bridged at 4 Ohm
2 × 125 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,6V supply voltage
Current consumption 48,9A
efficiency 37,7%

250 watts total power

provided by cwolfk from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Magnat Classic 360

3rd generation

1 × 64 Watts channel 1 at 4 Ohm
2 × 61 Watts channel 1 + 2 at 4 Ohm
4 × 56 Watts channel 1 up to 4 at 4 Ohm

1 × 193 Watts channel 1 + 2 bridged at 4 Ohm
2 × 166 Watts channel 1 + 2 and 3 + 4 bridged at 4 Ohm

332 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Magnat Classic 360

2nd generation

1 × 79 watts, channel 1 at 4 Ohm
2 × 71 watts, channel 1 + 2 at 4 Ohm
4 × 55 watts, channel 1 up to 4 at 4 Ohm
Current consumption 30,5A
efficiency 53,2%

1 × 190 watts, channel 1 + 2 bridged at 4 Ohm
2 × 130 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm
Current consumption 46,8A
efficiency 41,1%

260 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Magnat Classic 360

4th generation

1 × 60 watts, channel 1 at 4 Ohm
2 × 57 watts, channel 1 + 2 at 4 Ohm
4 × 56 watts, channel 1 up to 4 at 4 Ohm
Current consumption 27,7A
efficiency 60,2%

1 × 177 watts, channel 1 + 2 bridged at 4 Ohm
2 × 174 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm
Current consumption 48,6A
efficiency 53,1%

348 watts total power
