Specialist for Audio-Amplifiers

provided by cwolfk from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

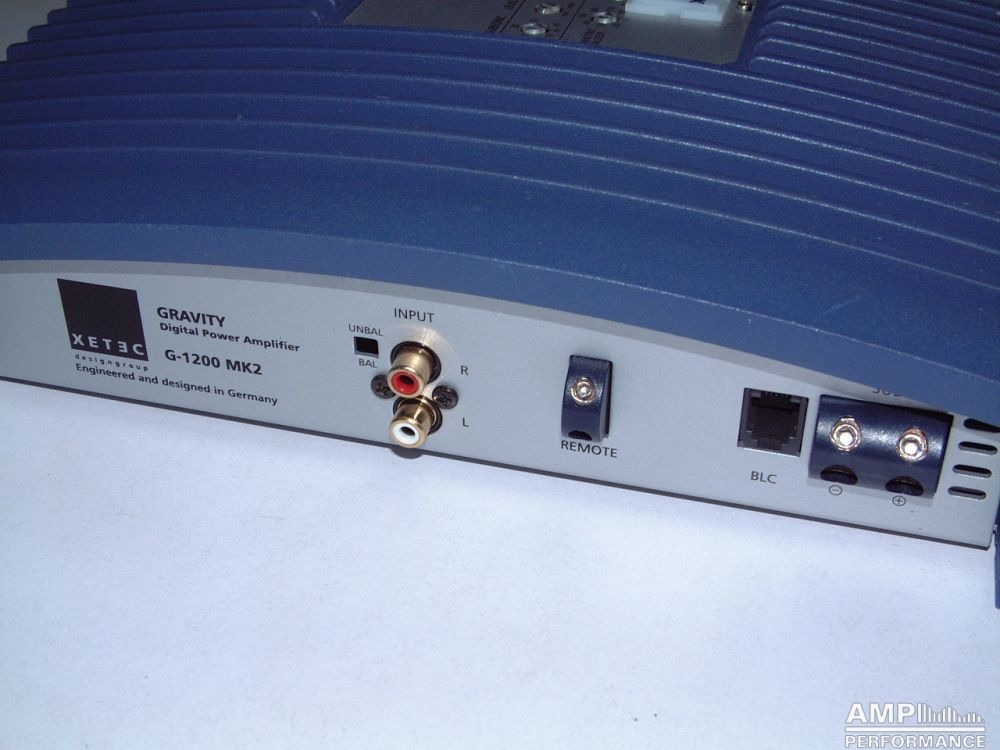

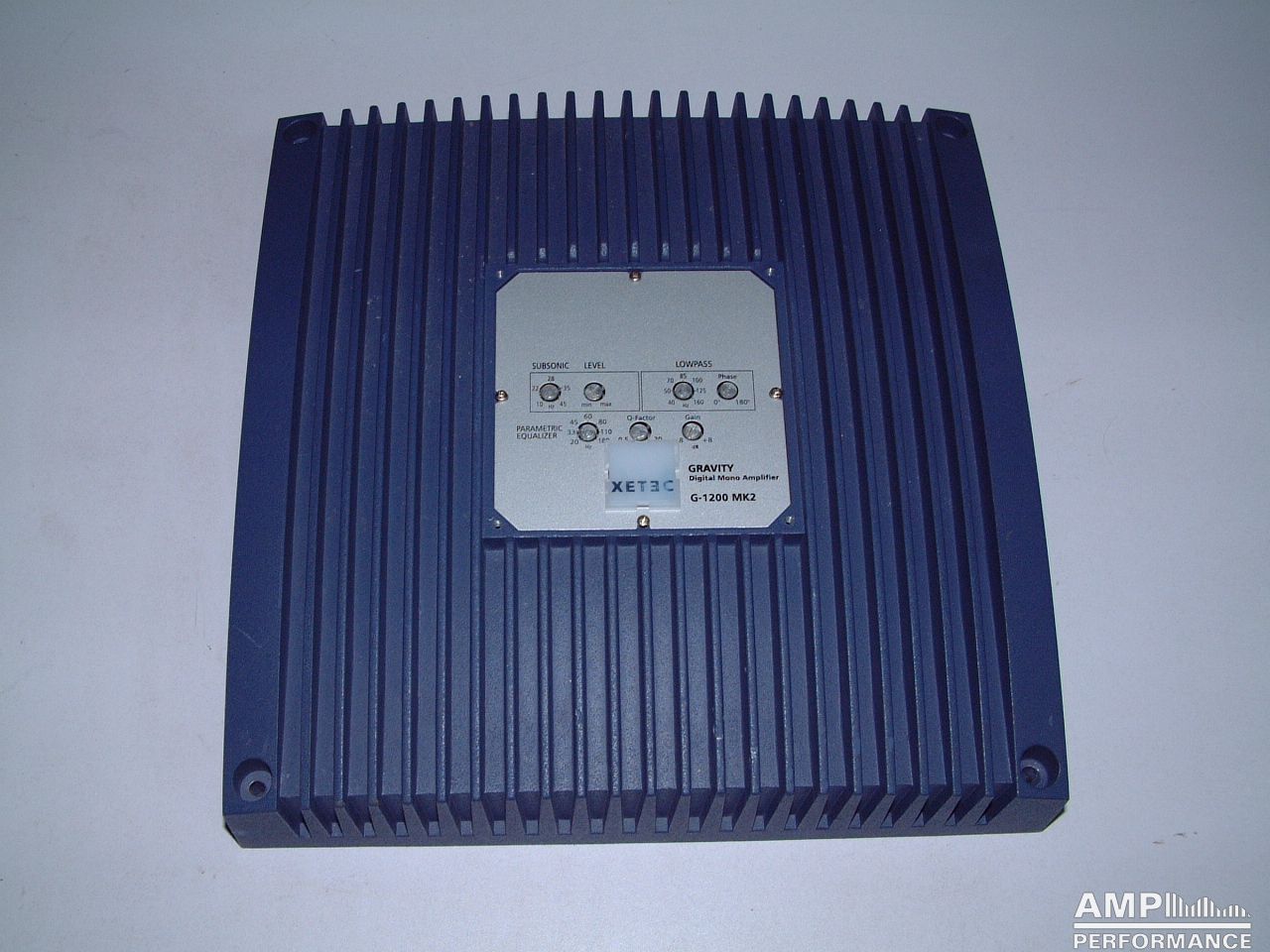

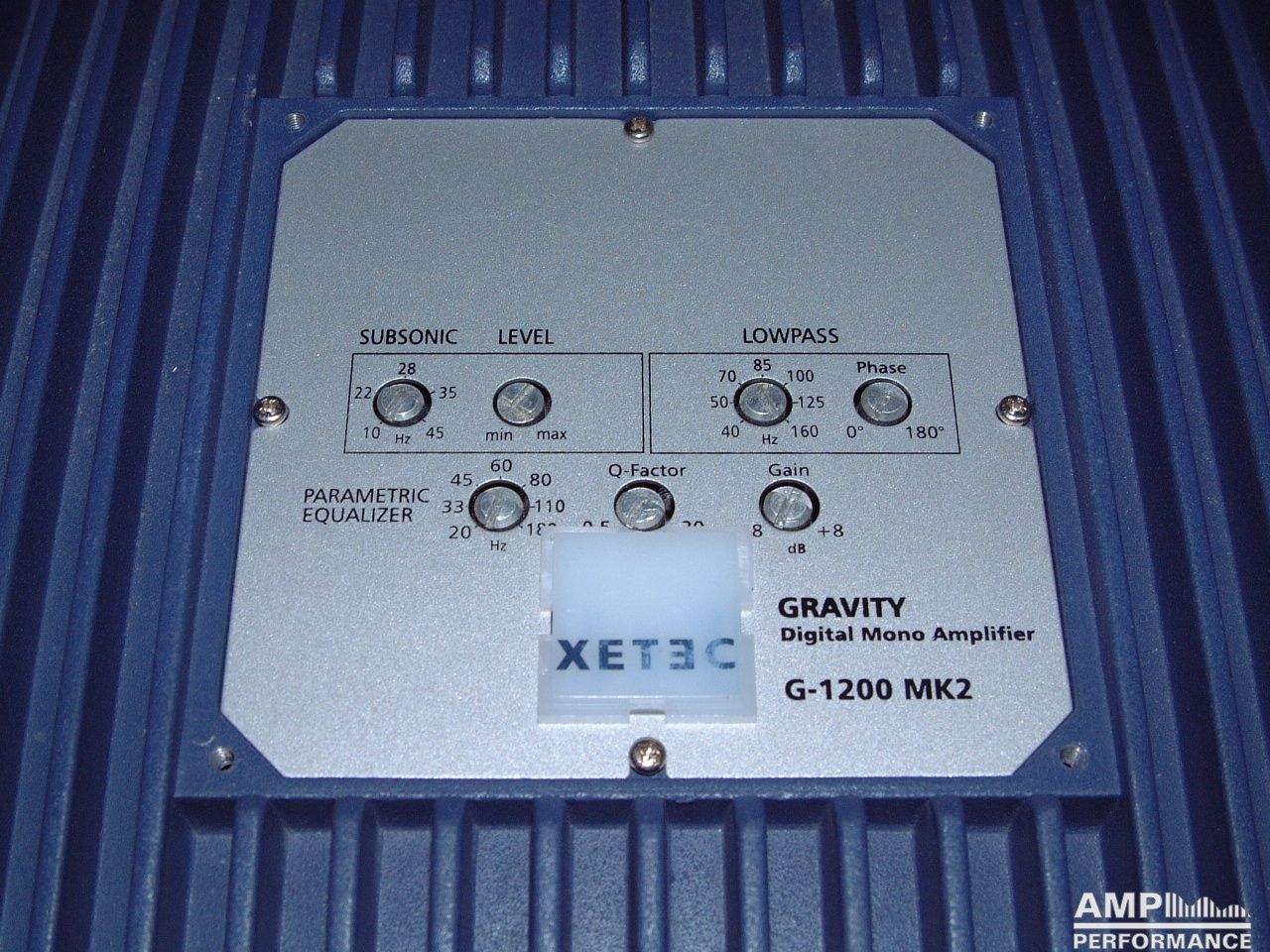

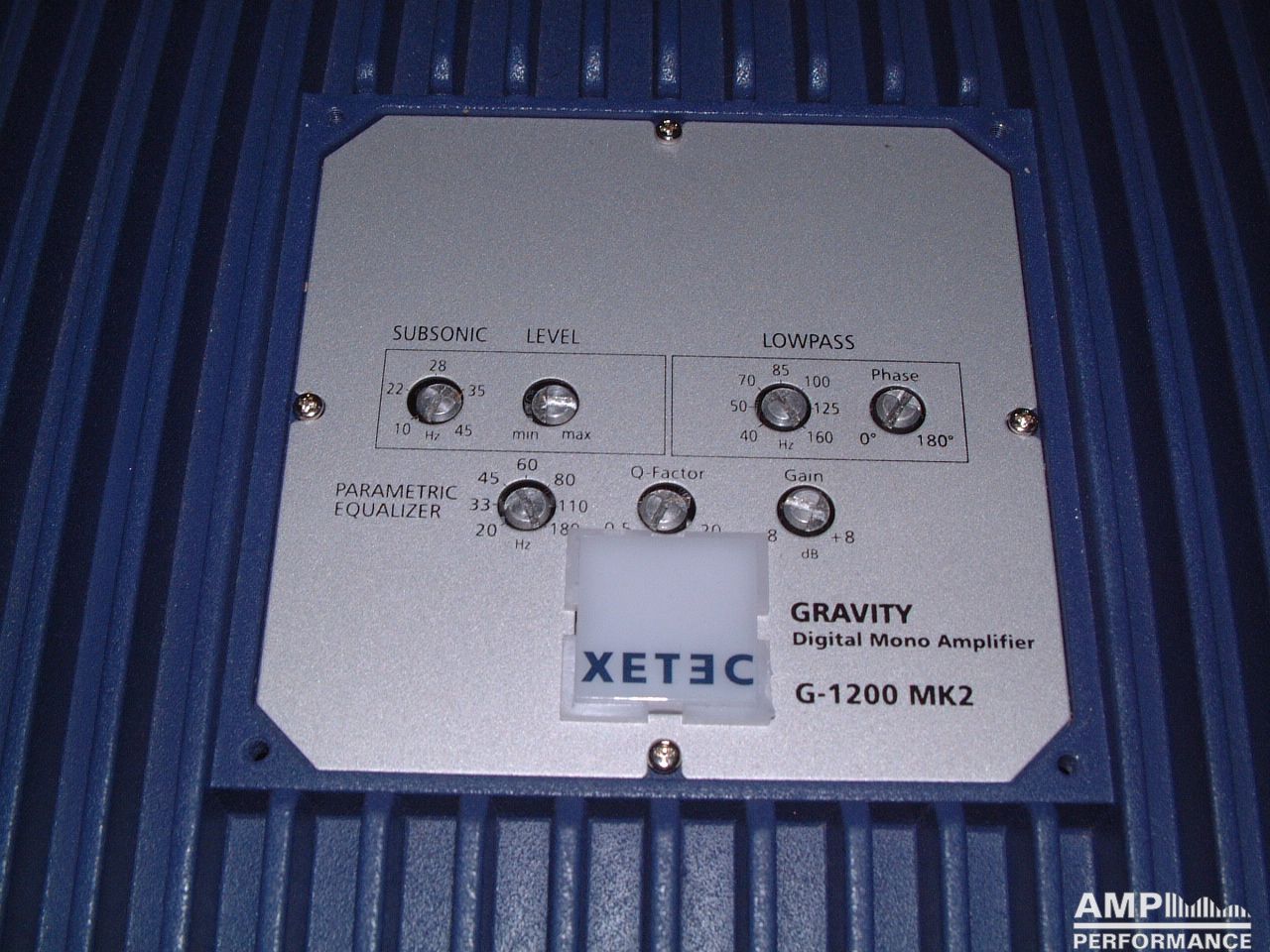

Xetec G-1200 MKII

1 × 404 watts, channel 1 at 4 Ohm

1 × 772 watts, channel 1 at 2 Ohm

1 × 945 watts, channel 1 at 1,33 Ohm

945 watts total power

measured with 200 Hz because of fixed preset low-pass filter

1-Ohm Betrieb nicht gemessen, wegen zu schwacher Stromversorgung (extern)

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Xetec G-1200 MKII

1 × 441 watts, channel 1 at 4 Ohm
Current consumption 40,2A
efficiency 81,3%

1 × 780 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 74A
efficiency 78,7%

1 × 1002 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 100,8A
efficiency 74,7%

1 × 1211 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 129A
efficiency 71,1%

1211 watts total power
measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Xetec G-1200 MKII

1 × 441 watts, channel 1 at 4 Ohm
Current consumption 40A
efficiency 81,7%

1 × 761 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 72,8A
efficiency 78%

1 × 1029 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 103A
efficiency 75,1%

1 × 1225 watts, channel 1 at 1 Ohm with 13,2V supply voltage
Current consumption 127,6A
efficiency 72,7%

1225 watts total power
measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
