provided by DJ-Lamá aus dem Carhififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

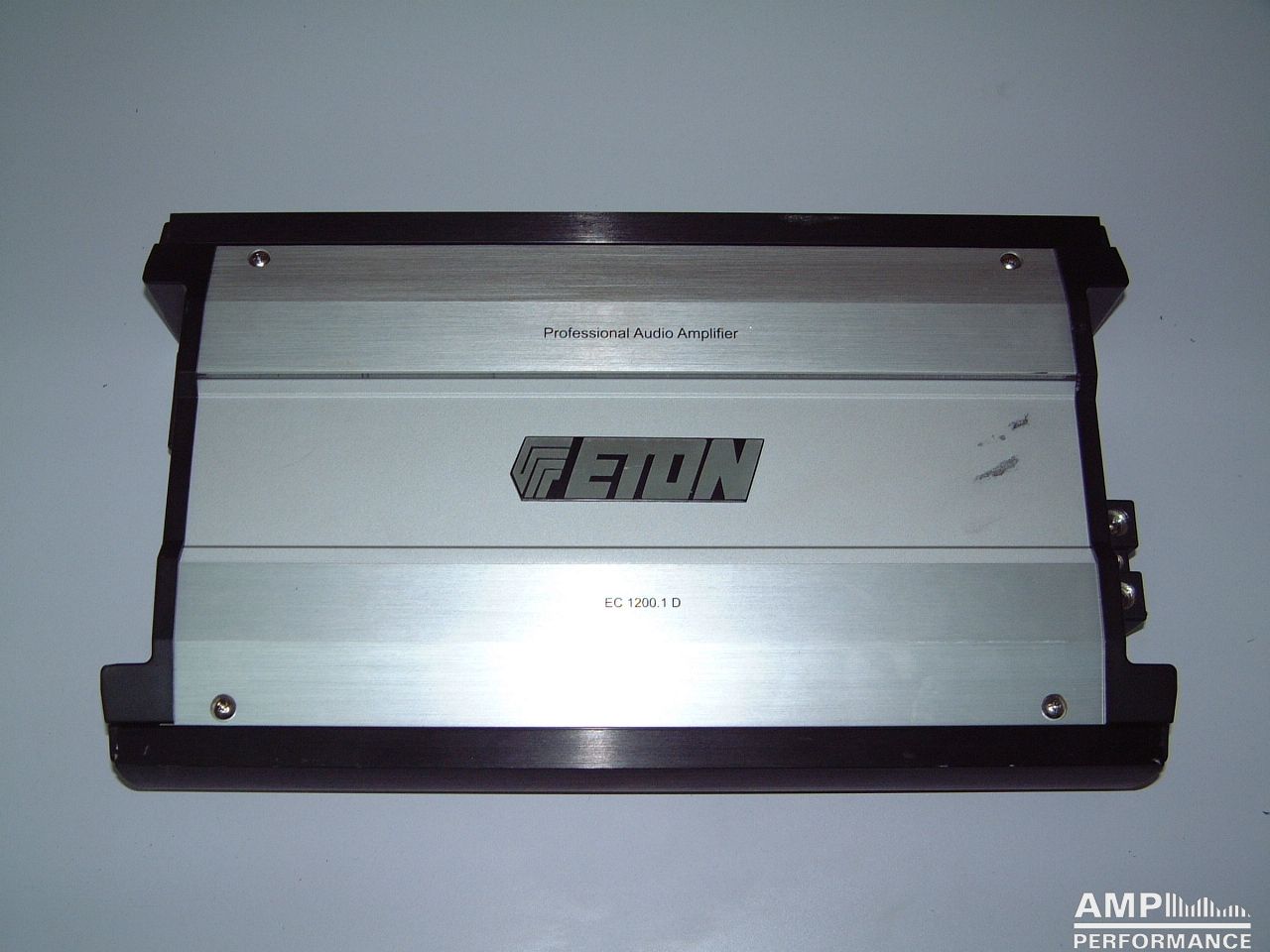

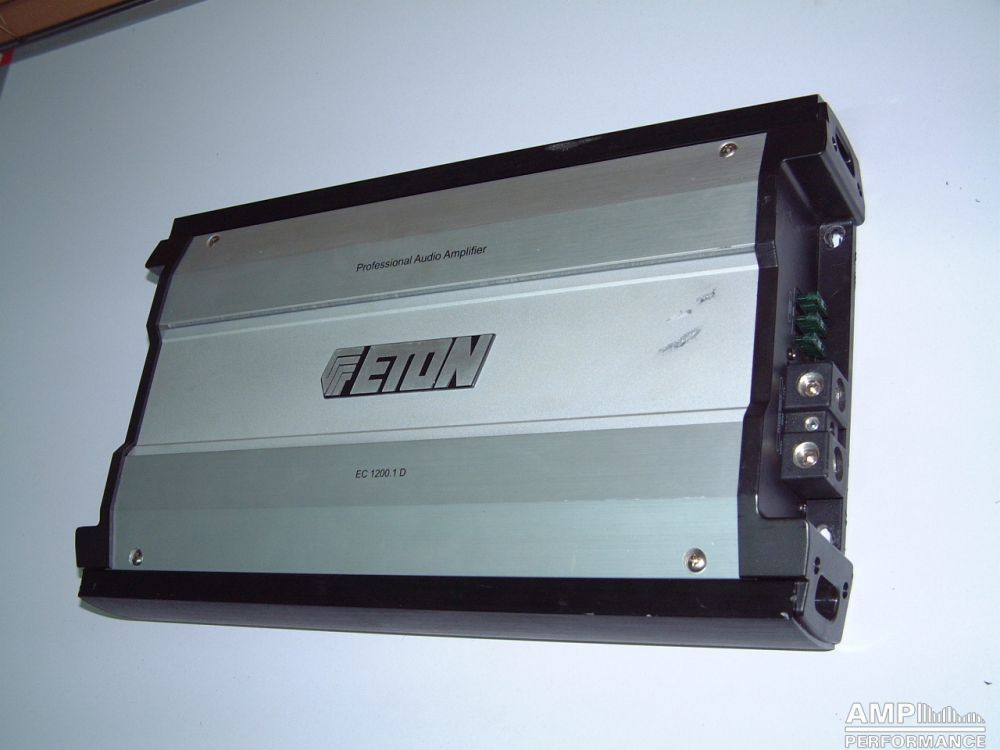

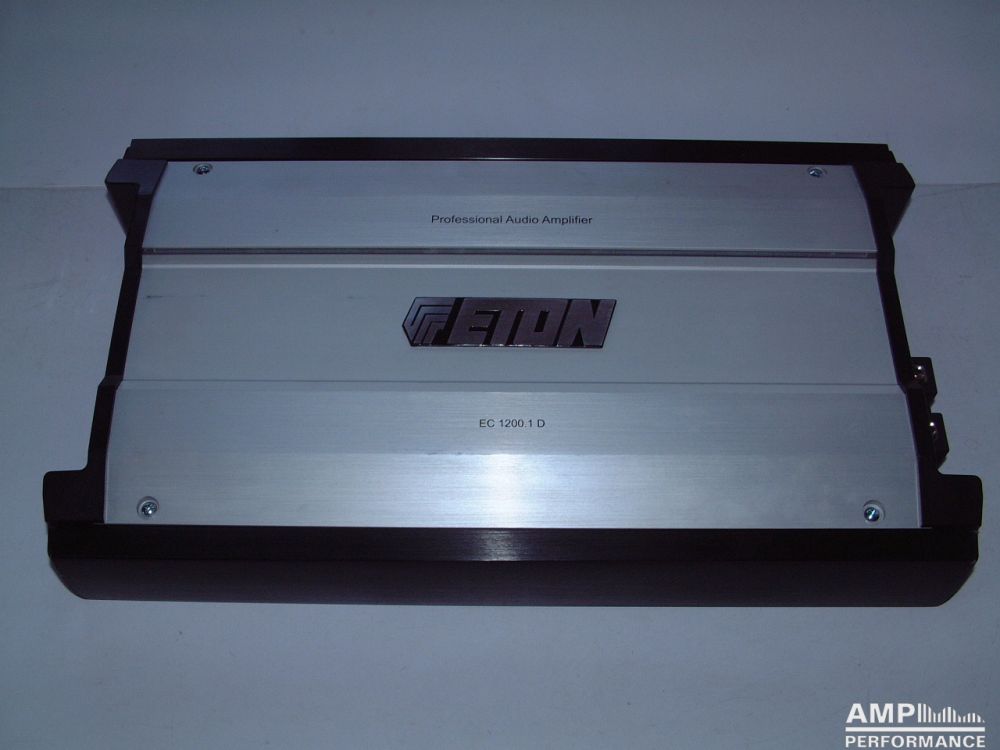

Eton EC 1200.1D

1 × 361 watts, channel 1 at 4 Ohm

1 × 648 watts, channel 1 at 2 Ohm

1 × 867 watts, channel 1 at 1,33 Ohm

867 watts total power

measured with 200 Hz because of fixed preset low-pass filter

1-Ohm Betrieb nicht gemessen, wegen zu schwacher Stromversorgung (extern)

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Eton EC 1200.1D

1 × 371 watts, channel 1 at 4 Ohm
Current consumption 33A
efficiency 83,2%

1 × 648 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 59,5A
efficiency 81,3%

1 × 869 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 83,8A
efficiency 77,4%

1 × 1056 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 105A
efficiency 75,6%

1056 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
