Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

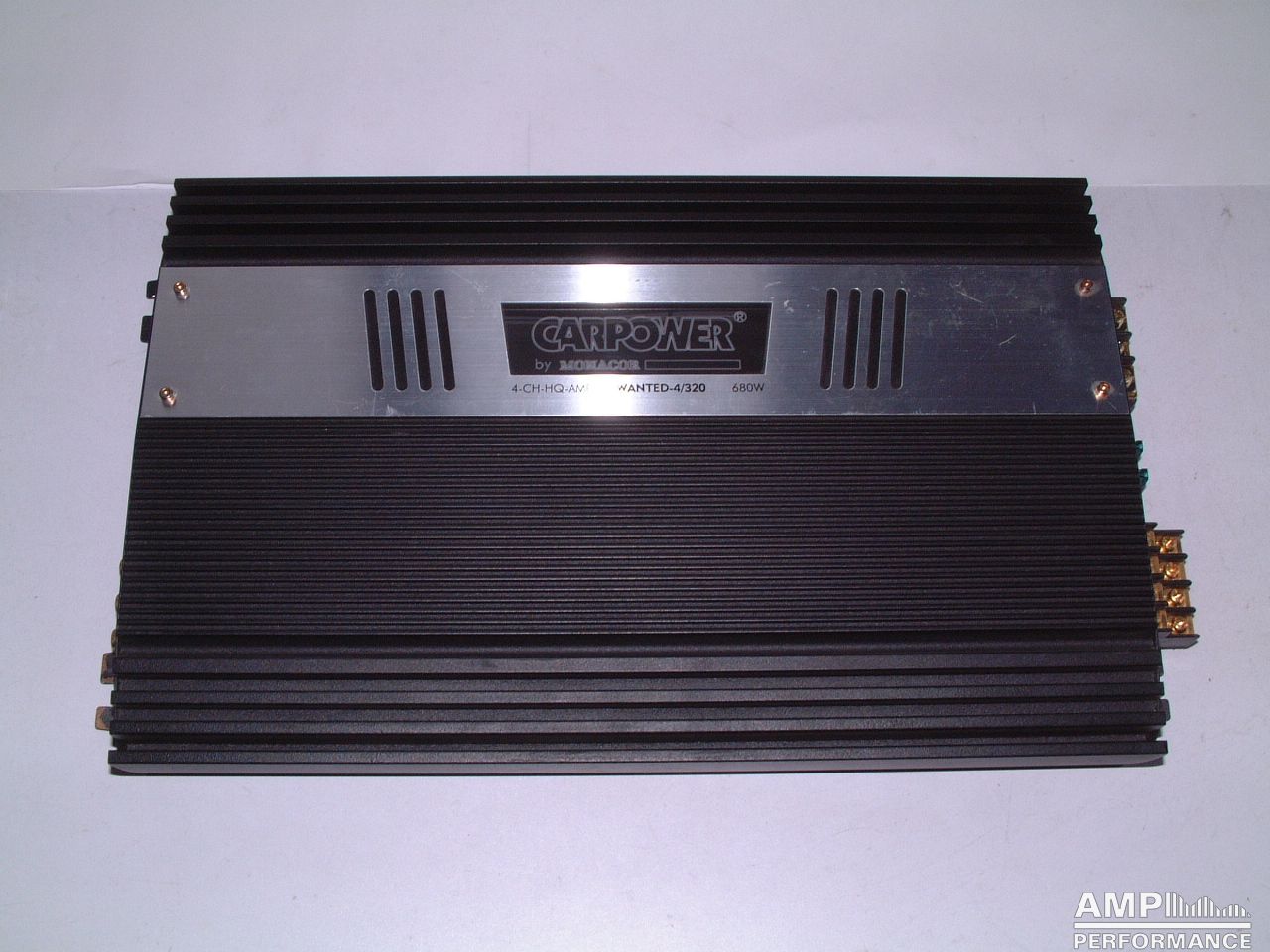

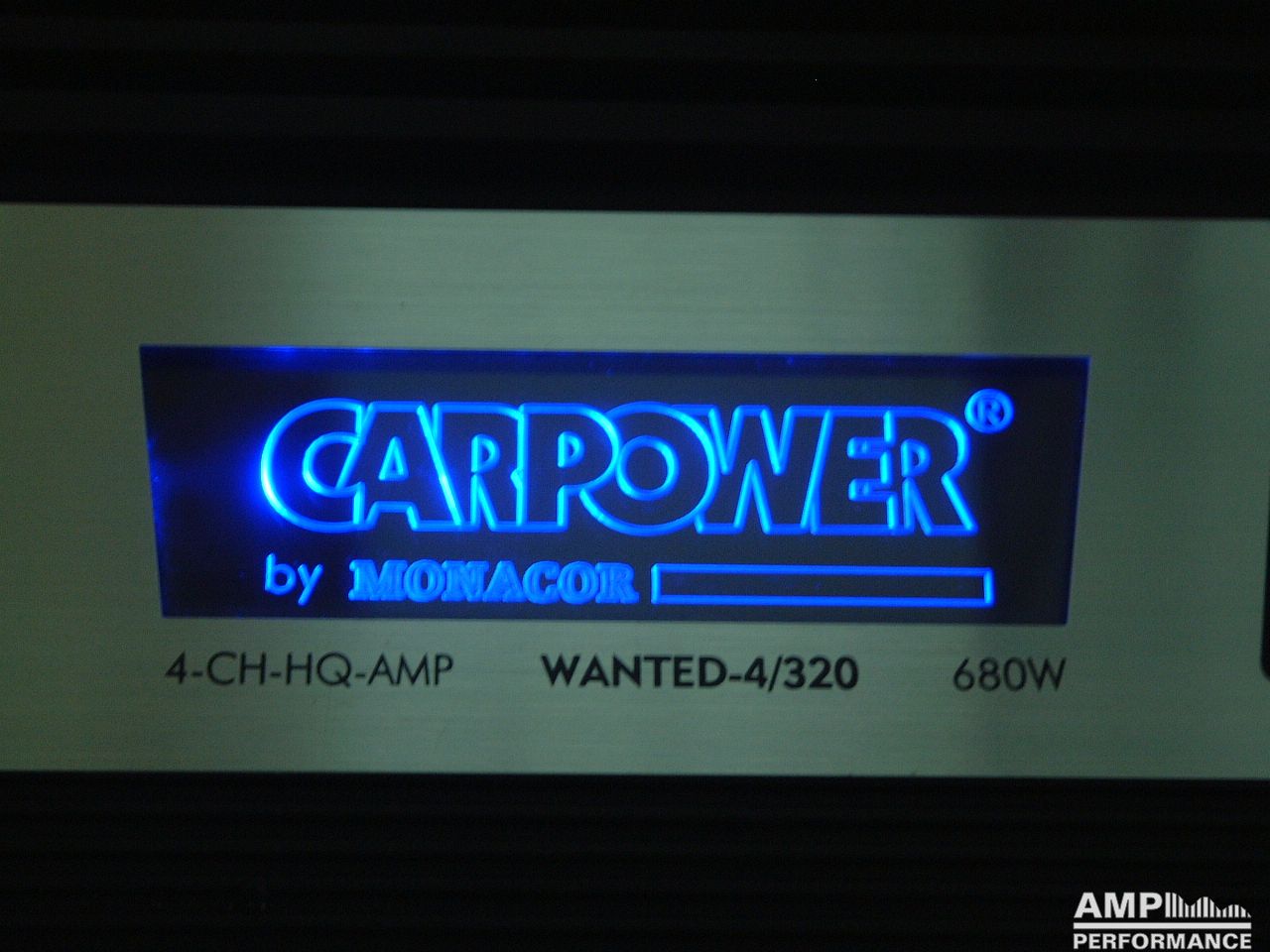

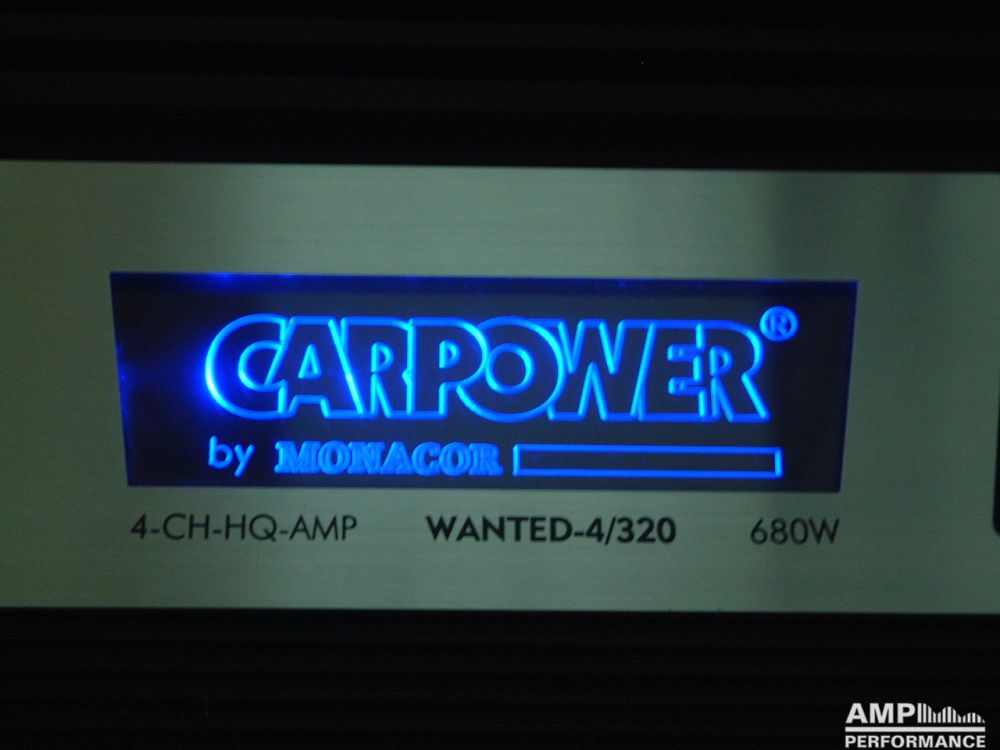

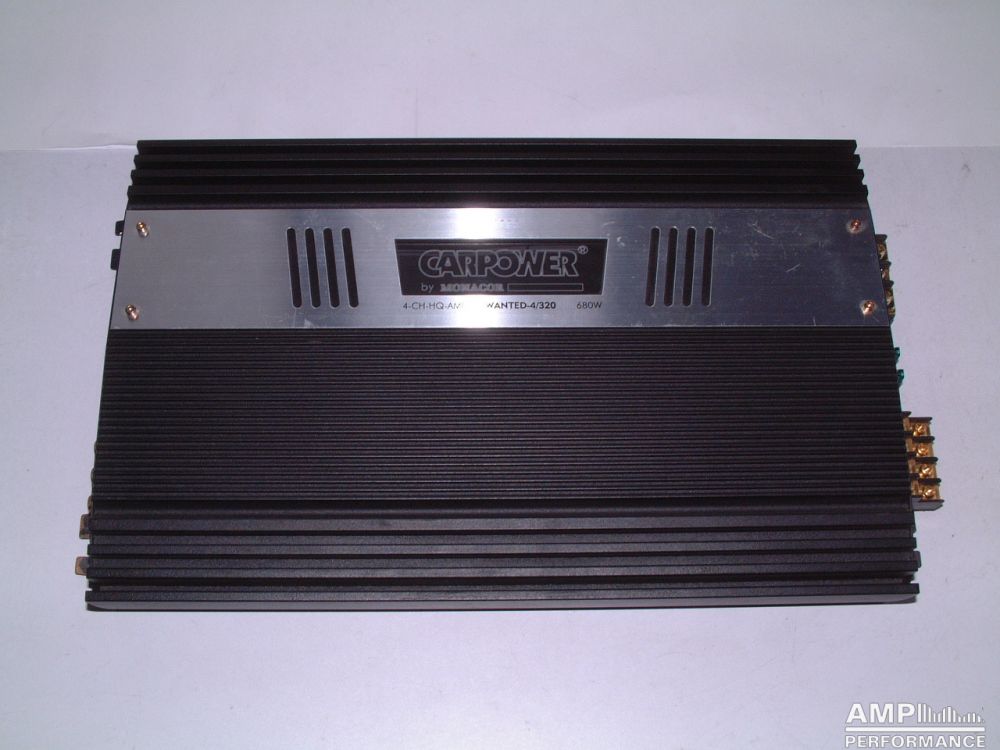

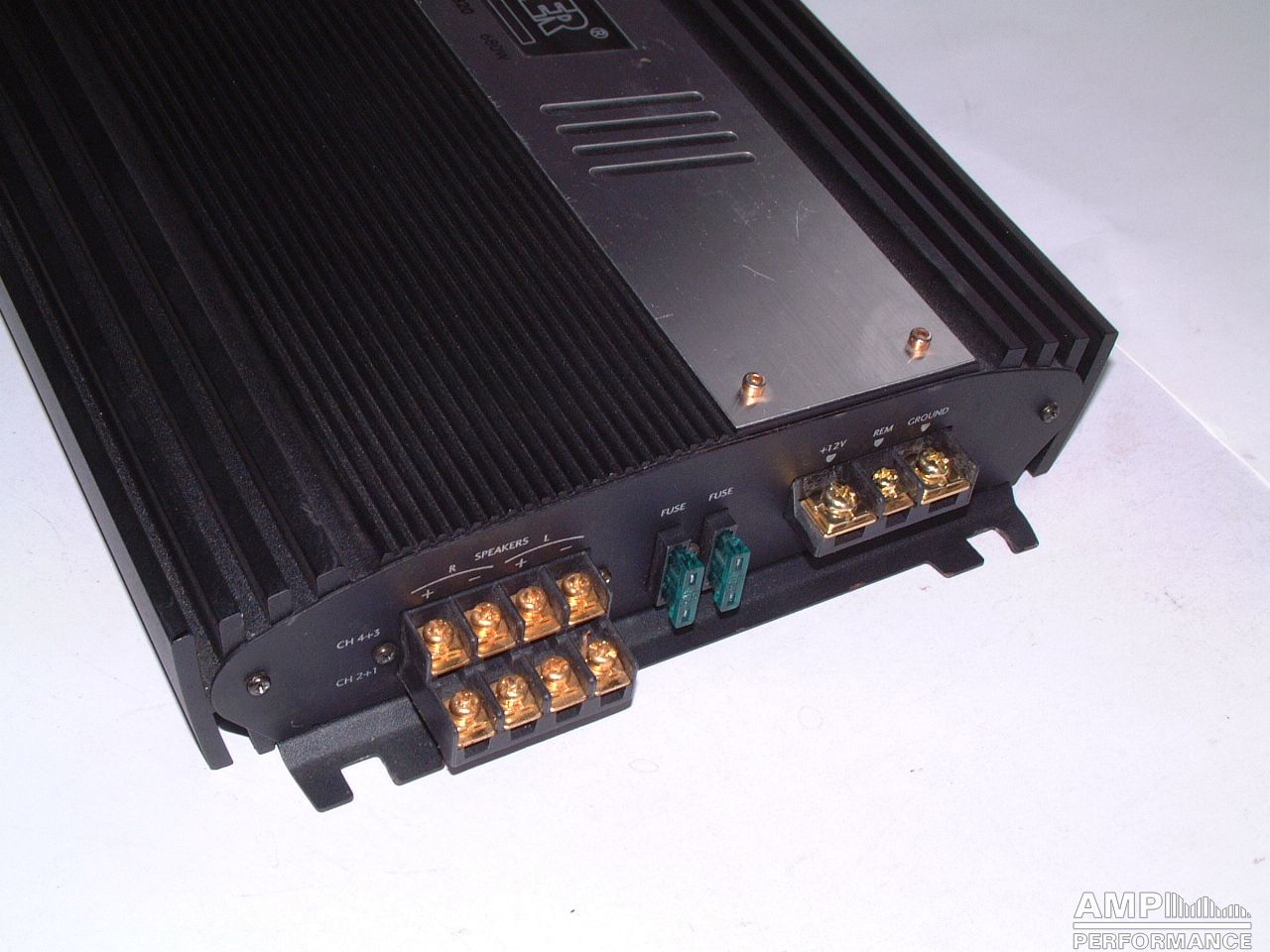

Carpower Wanted-4/320
1 × 90 Watts channel 1 at 4 Ohm
2 × 81 Watts channel 1 + 2 at 4 Ohm
4 × 77 Watts channel 1 up to 4 at 4 Ohm
1 × 272 Watts channel 1 + 2 bridged at 4 Ohm
2 × 225 Watts channel 1 + 2 and 3 + 4 bridged at 4 Ohm
450 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

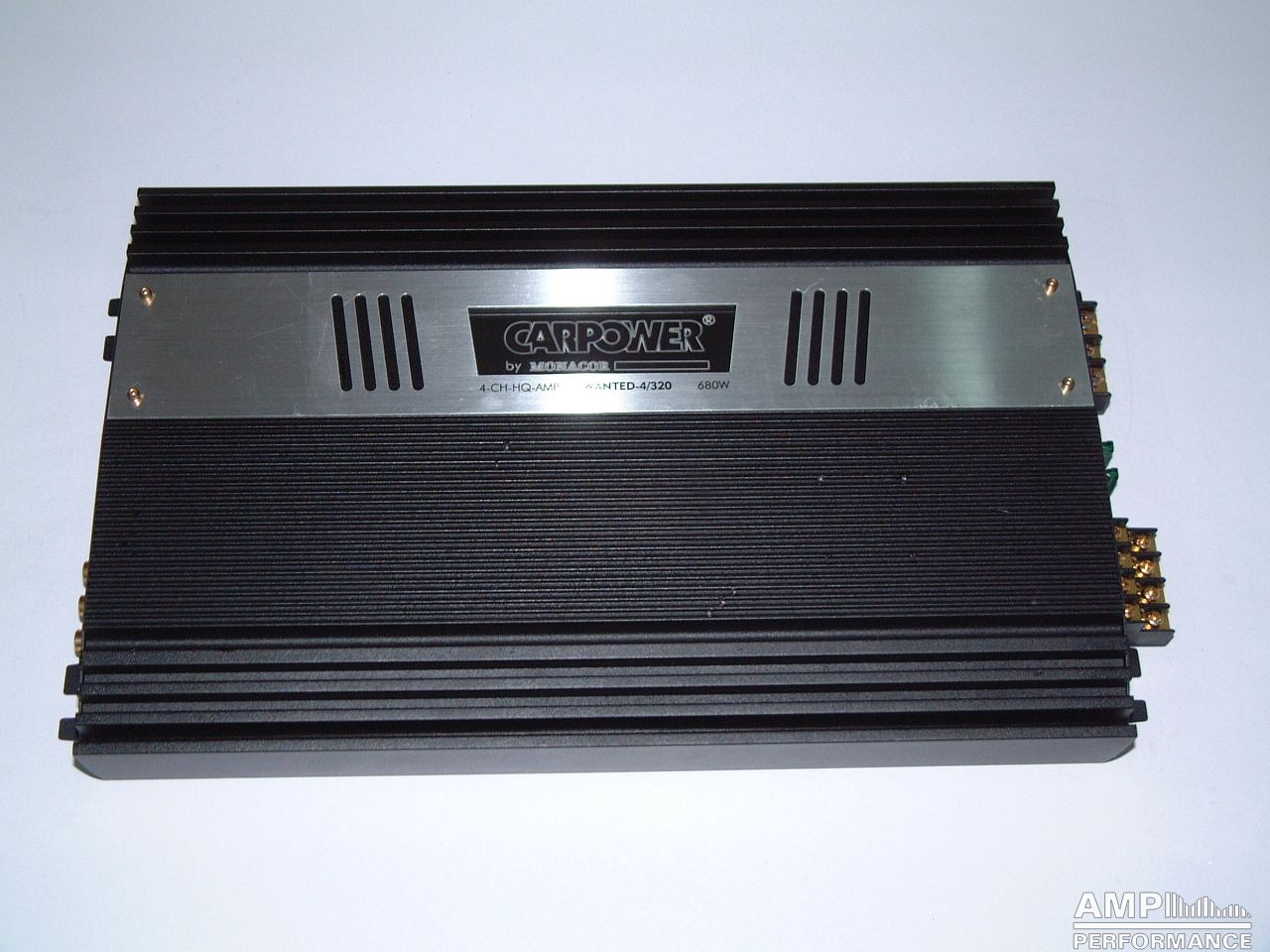

Carpower Wanted-4-320
1 × 93 watts, channel 1 at 4 Ohm
2 × 88 watts, channel 1 + 2 at 4 Ohm
4 × 76 watts, channel 1 up to 4 at 4 Ohm
Current consumption 37,4A
efficiency 60%
1 × 262 watts, channel 1 + 2 bridged at 4 Ohm
2 × 207 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 61,8A
efficiency 50,1%
414 watts total power
