Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

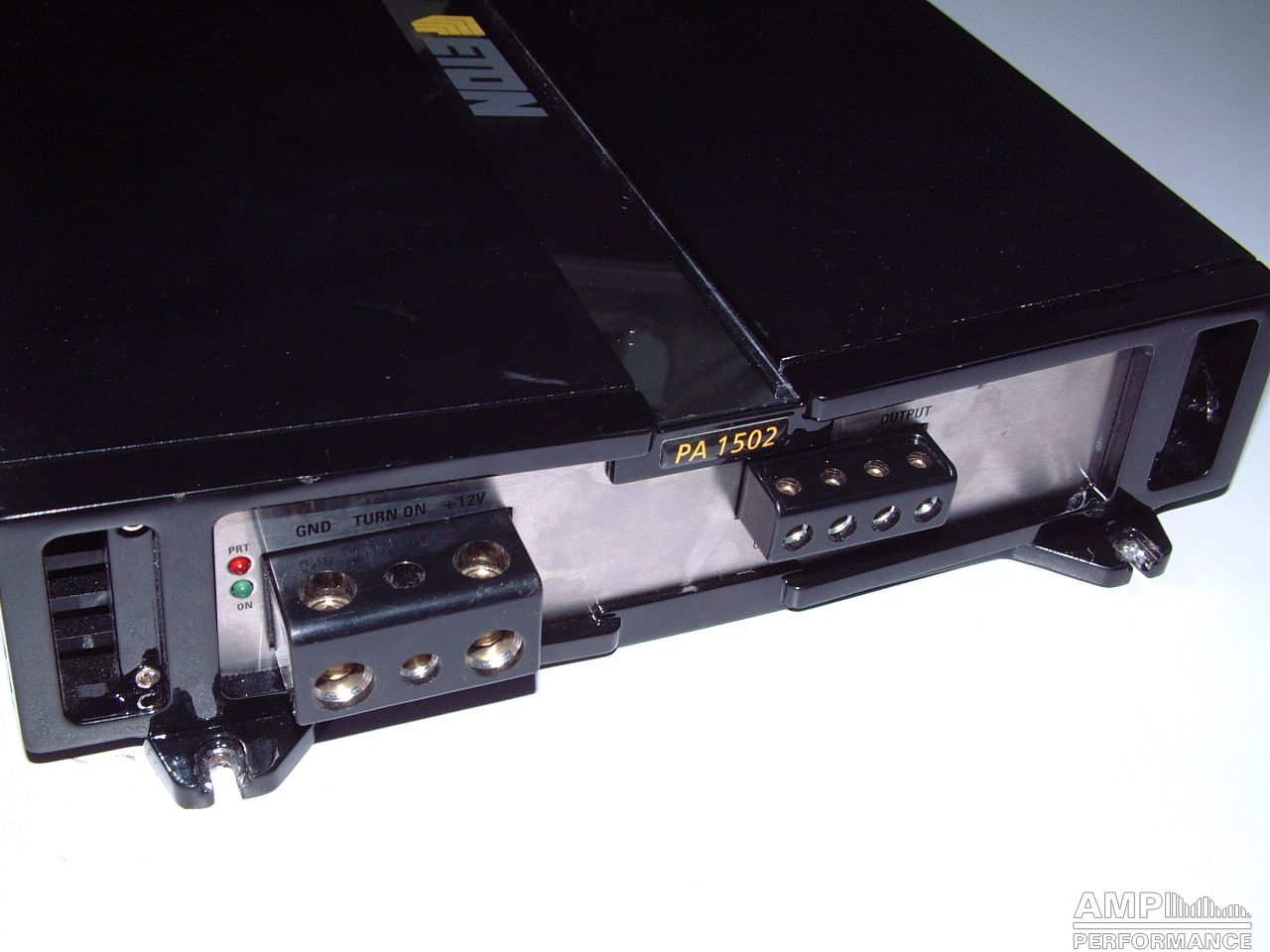

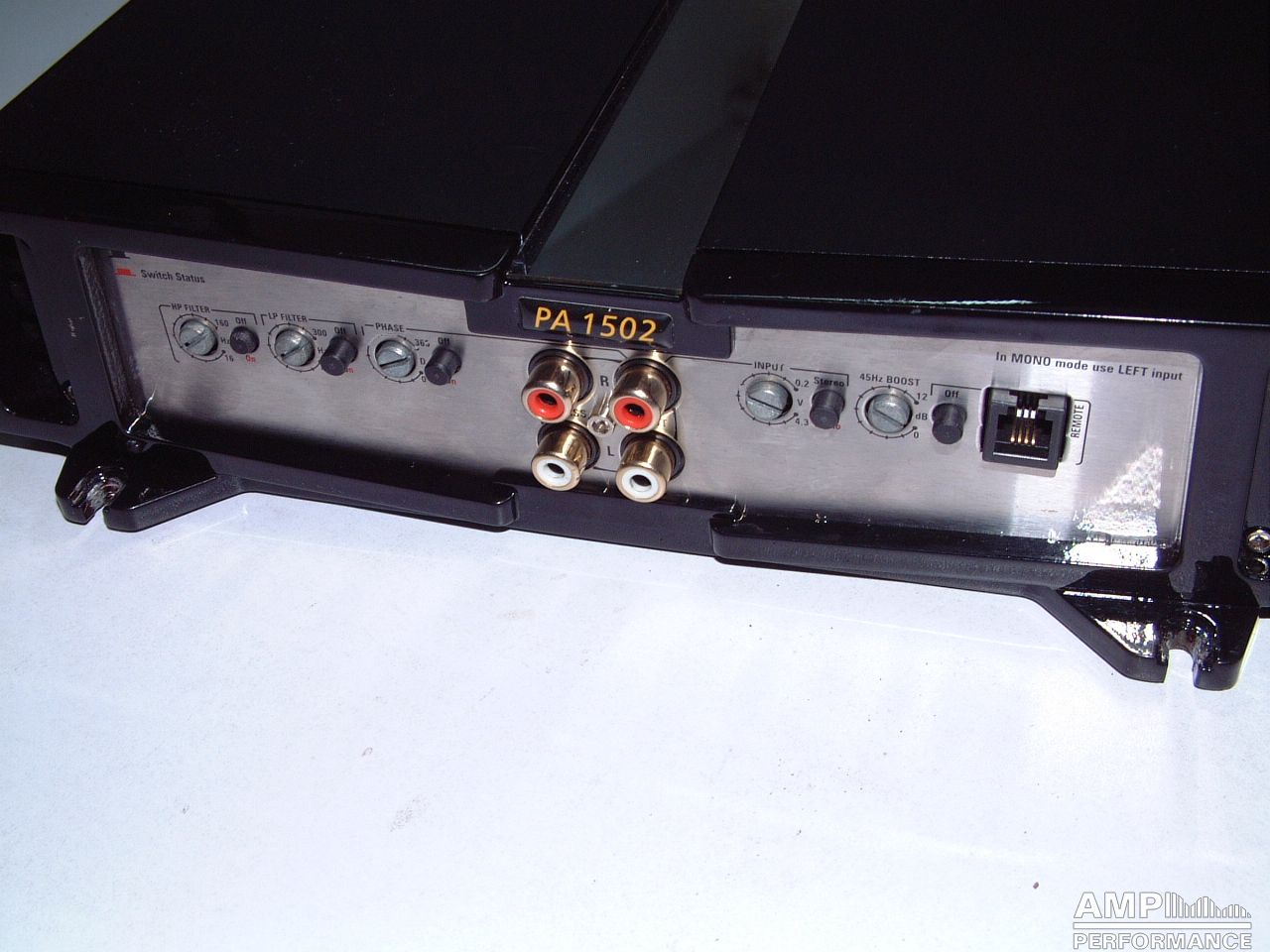

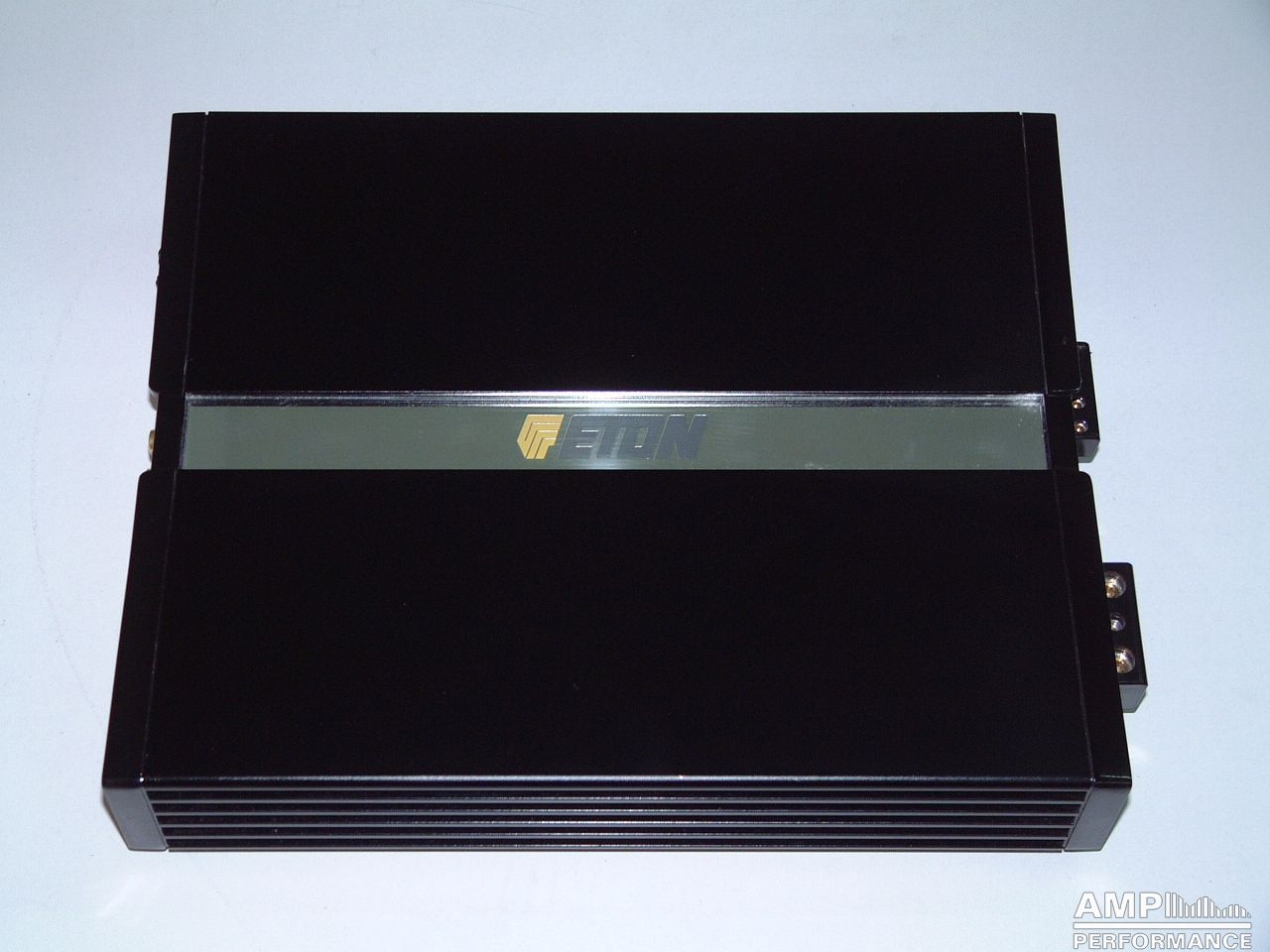

Eton PA 1502
1 × 174 watts, channel 1 at 4 Ohm
2 × 174 watts, channel 1 + 2 at 4 Ohm
1 × 666 watts, channel 1 + 2 bridged at 4 Ohm
666 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Eton PA 1502
1 × 177 watts, channel 1 at 4 Ohm
2 × 177 watts, channel 1 + 2 at 4 Ohm
Current consumption 38,8A
efficiency 67,5%
1 × 686 watts, channel 1 + 2 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 81,8A
efficiency 63,1%
686 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Eton PA 1502
1 × 178 watts, channel 1 at 4 Ohm
2 × 178 watts, channel 1 + 2 at 4 Ohm
Current consumption 40,4A
efficiency 65,4%
1 × 686 watts, channel 1 + 2 bridged at 4 Ohm with 13,1V supply voltage
Current consumption 87,1A
efficiency 60,2%
686 watts total power
