provided by ben2oo2 from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

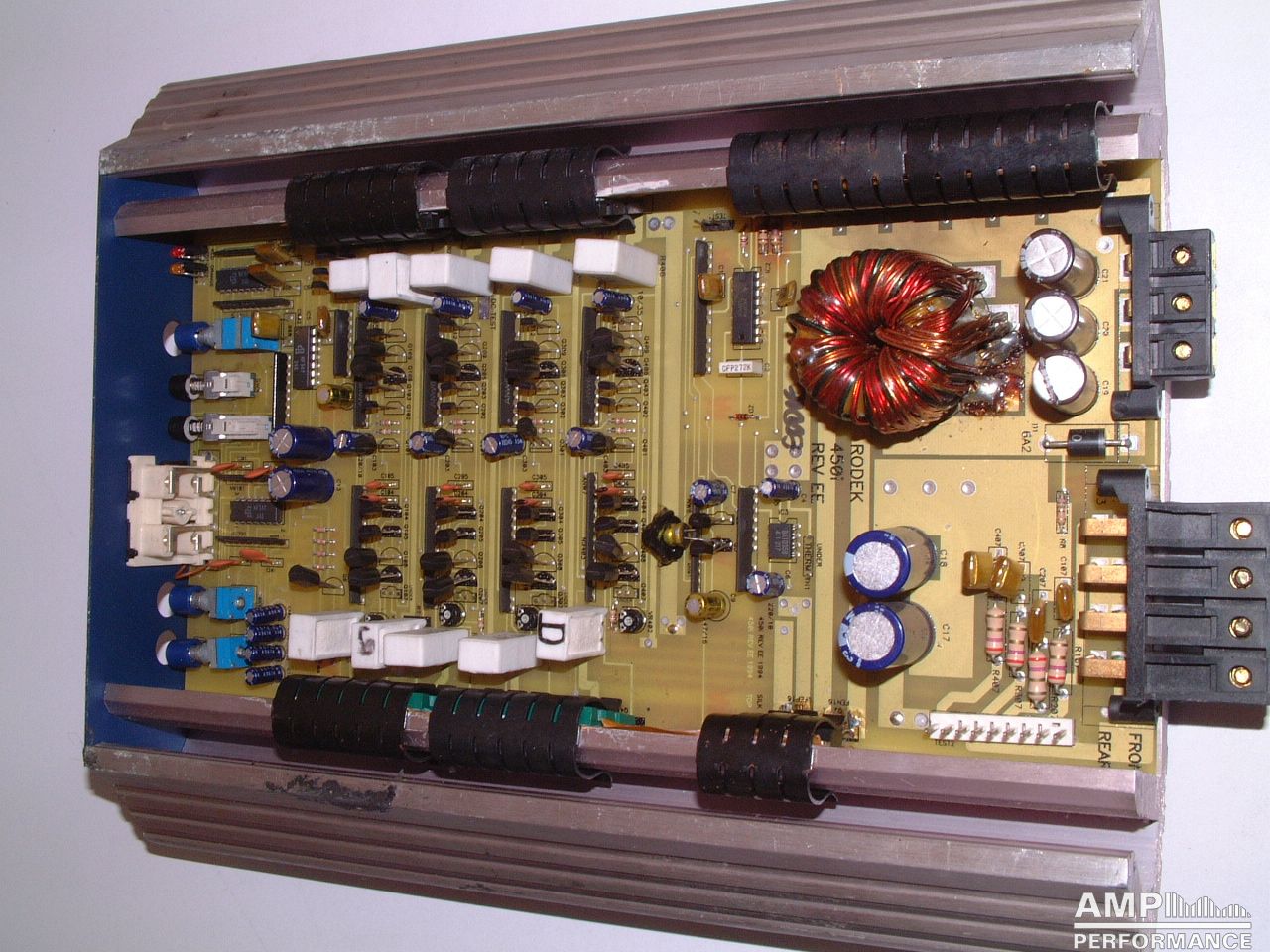

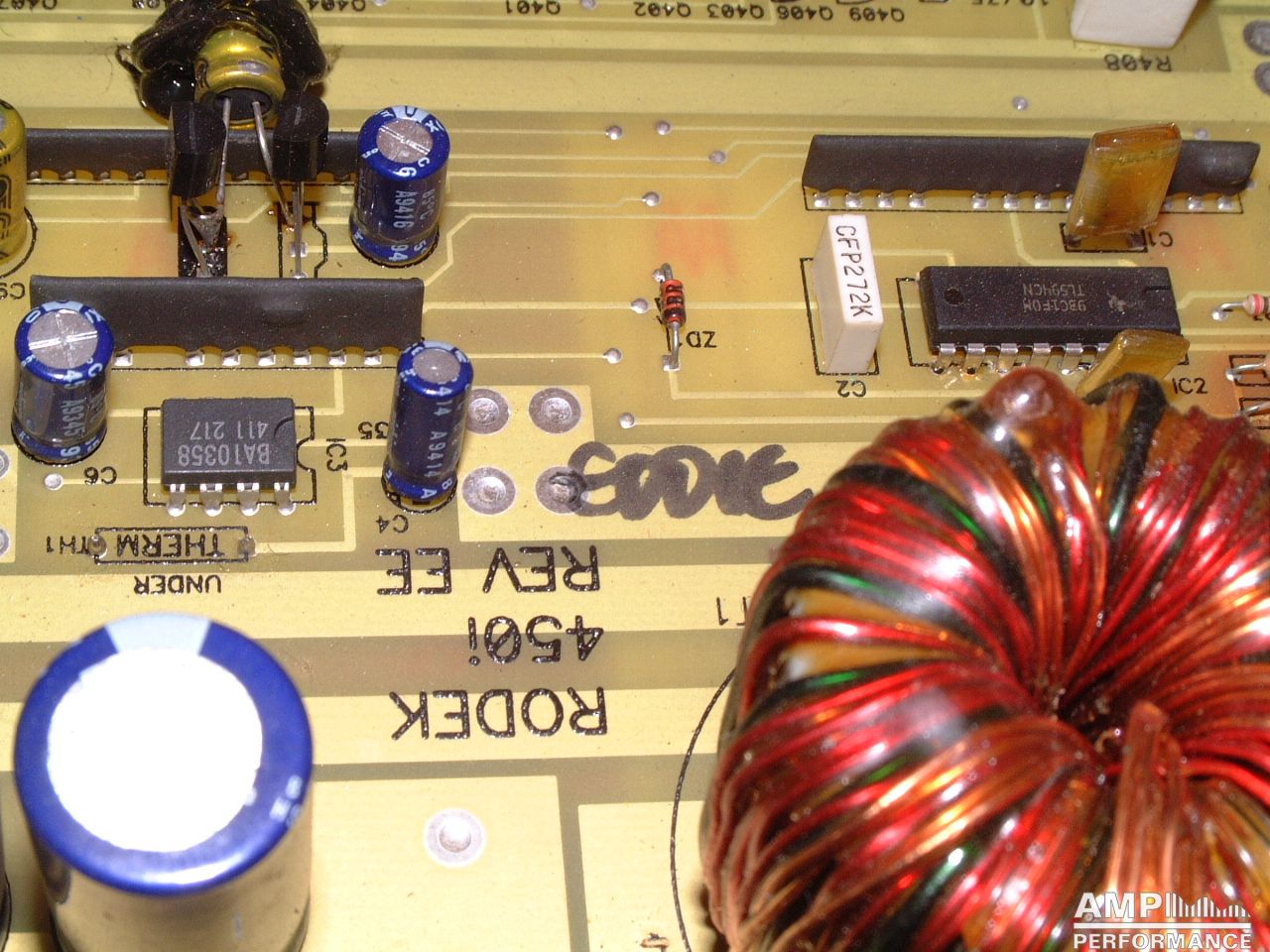

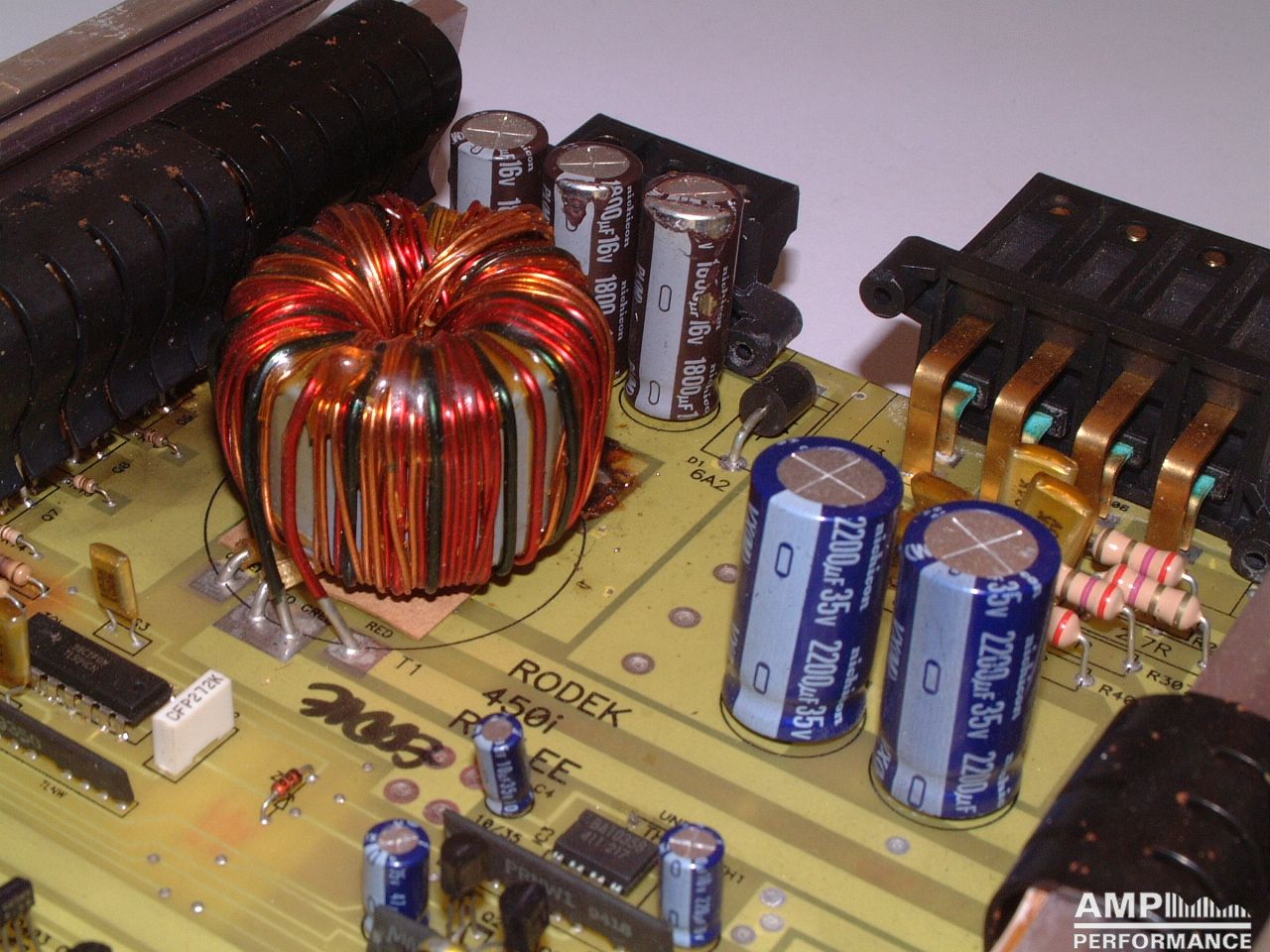

Rodek R450i REV EE

by Steven Mantz

1 × 63 Watts channel 1 at 4 Ohm
2 × 63 Watts channel 1 + 2 at 4 Ohm
4 × 63 Watts channel 1 up to 4 at 4 Ohm

1 × 219 Watts channel 1 + 2 bridged at 4 Ohm
2 × 219 Watts channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage

438 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

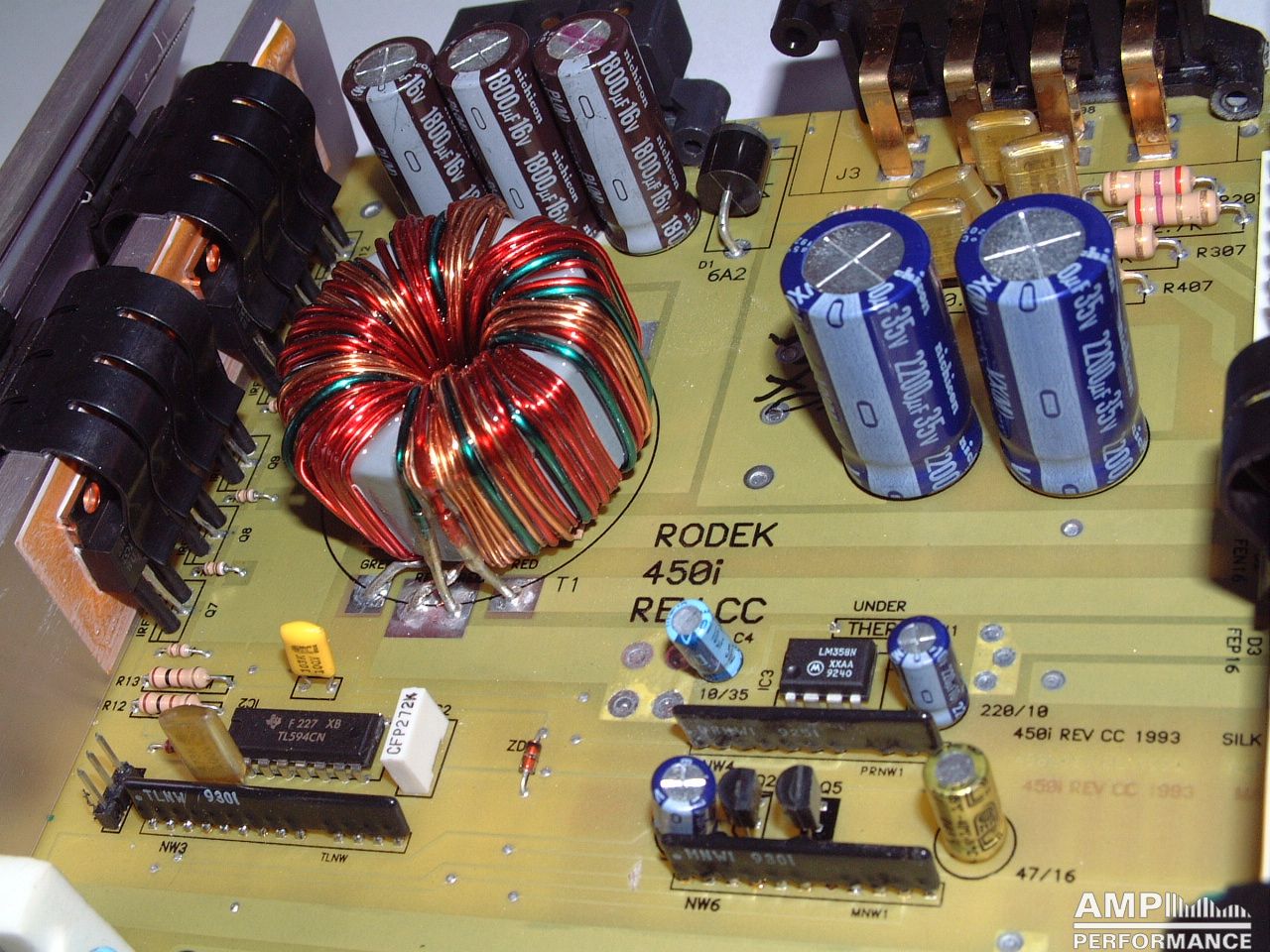

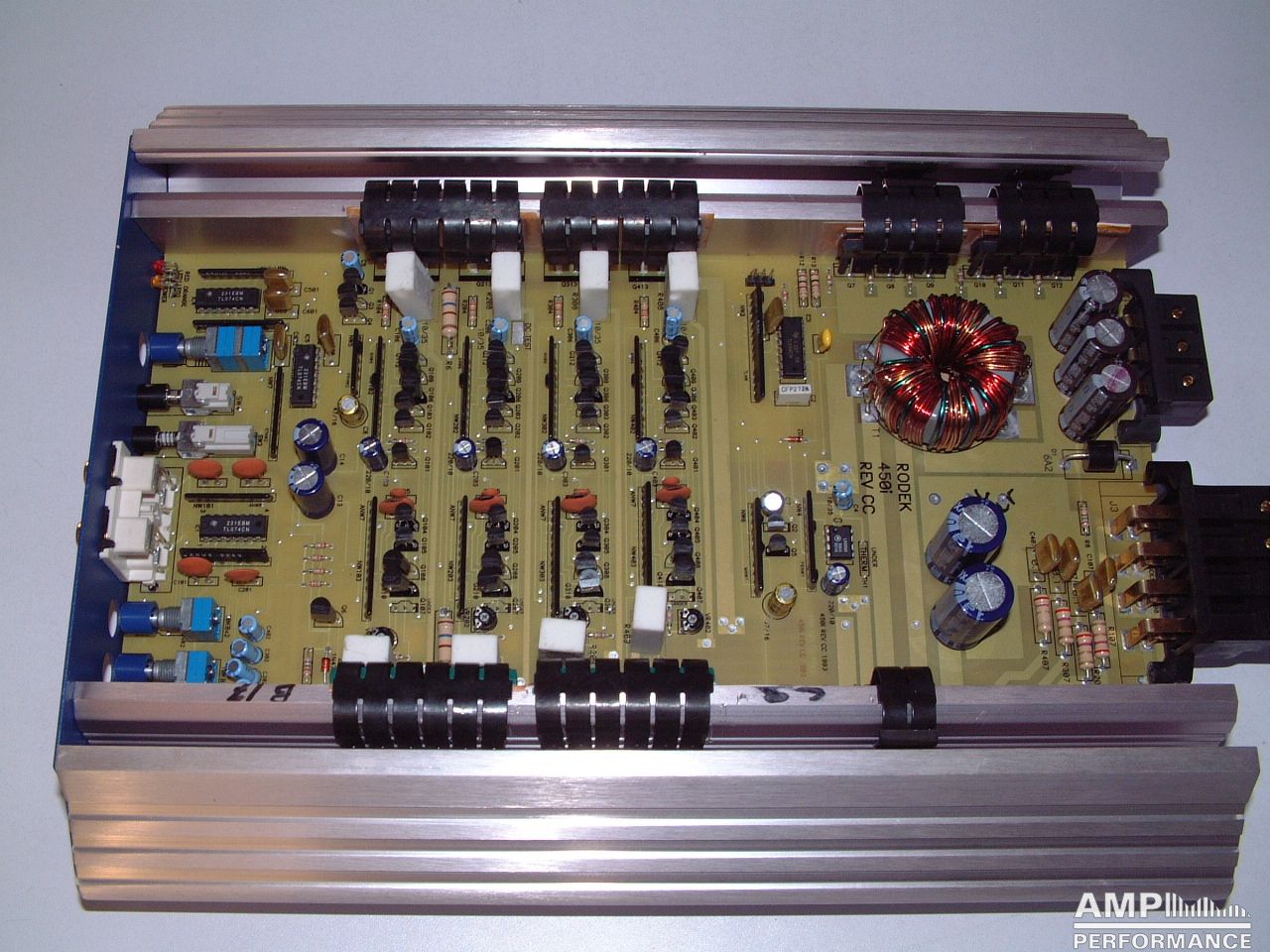

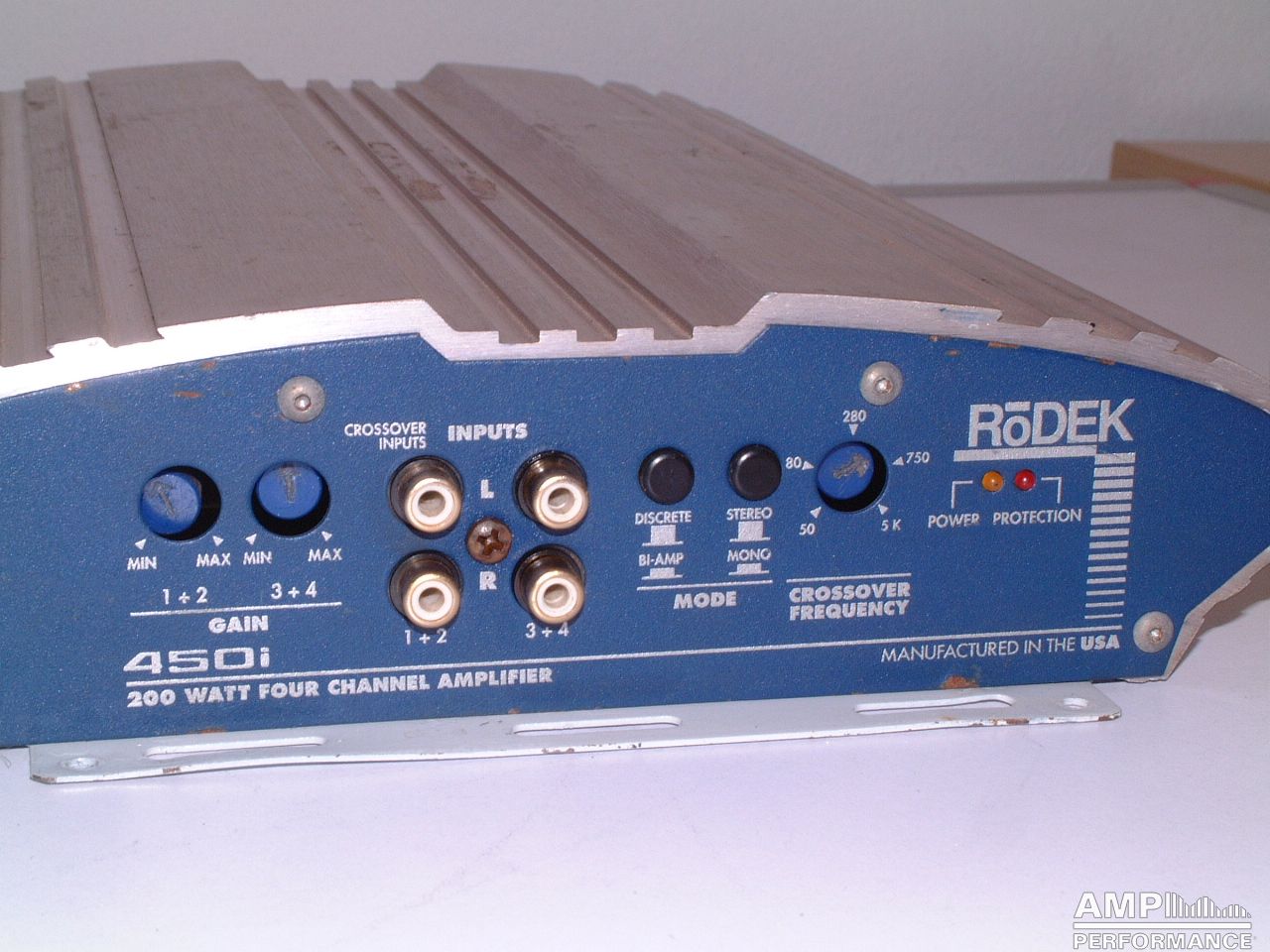

Rodek 450i REV CC

by Steven Mantz

1 × 71,4 watts, channel 1 at 4 Ohm
2 × 71,4 watts, channel 1 + 2 at 4 Ohm
4 × 71,4 watts, channel 1 up to 4 at 4 Ohm
Current consumption 42,3A
efficiency 50%

1 × 256 watts, channel 1 + 2 bridged at 4 Ohm
2 × 256 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 81,2A
efficiency 47,1%

512 watts total power
