provided by infinity aus dem Klangfuzzi-Forum

provided by ben2oo2 from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

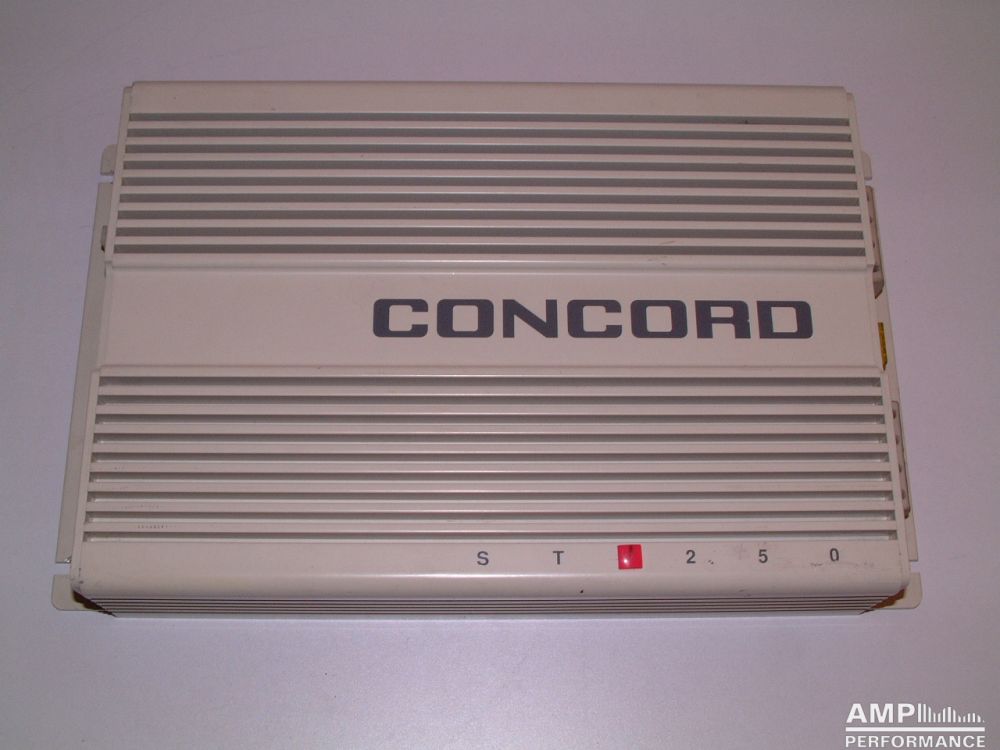

Concord ST250

1 × 118 watts, channel 1 at 4 Ohm
2 × 105 watts, channel 1 + 2 at 4 Ohm

1 × 266 watts, channel 1 + 2 bridged at 4 Ohm

266 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Concord ST-250

1 × 120 watts, channel 1 at 4 Ohm
2 × 106 watts, channel 1 + 2 at 4 Ohm with 13,4V supply voltage
Current consumption 29,1A
efficiency 54,4%

1 × 272 watts, channel 1 + 2 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 45,7A
efficiency 44,8%

272 watts total power
