provided by Carbonat from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

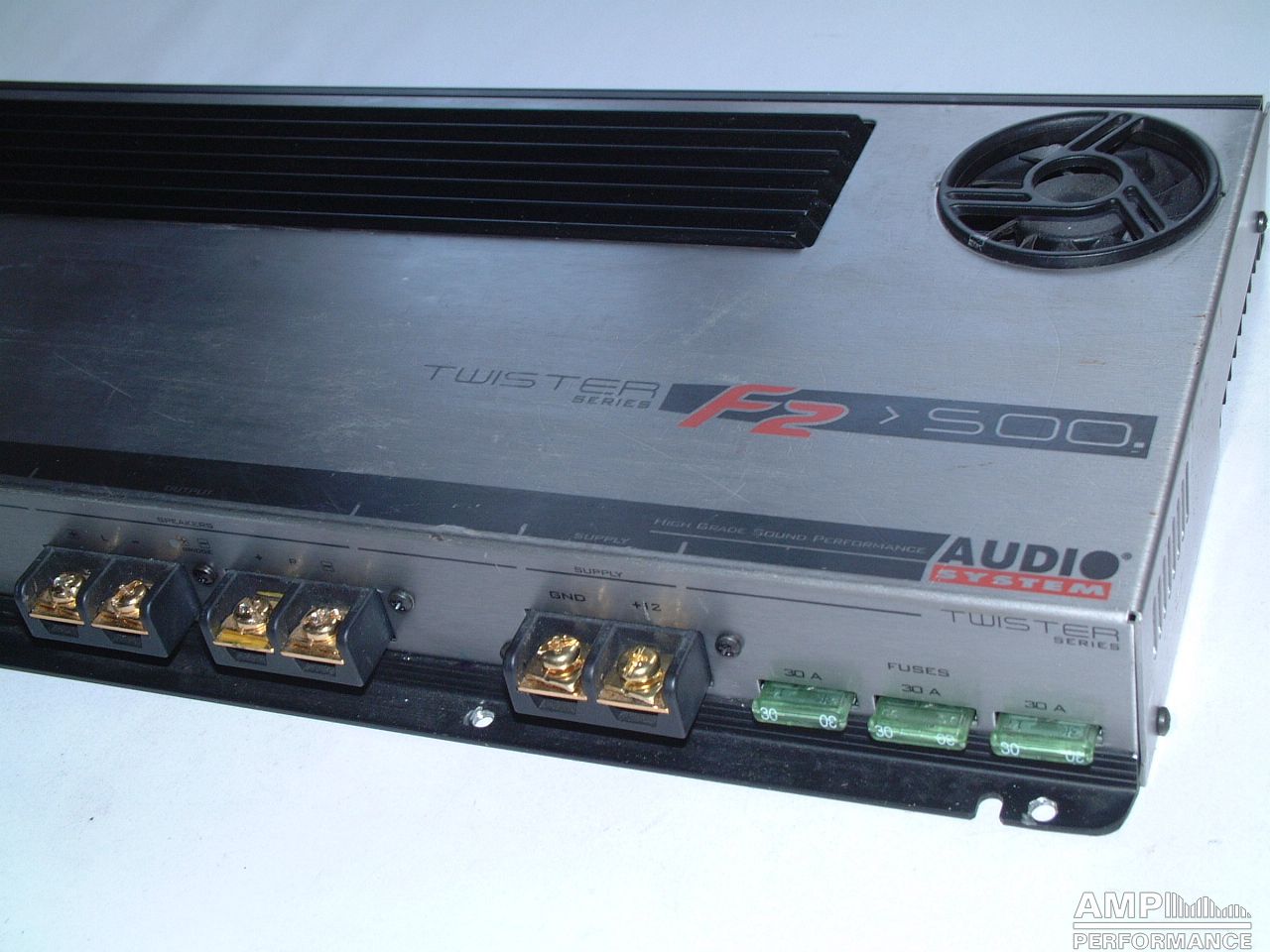

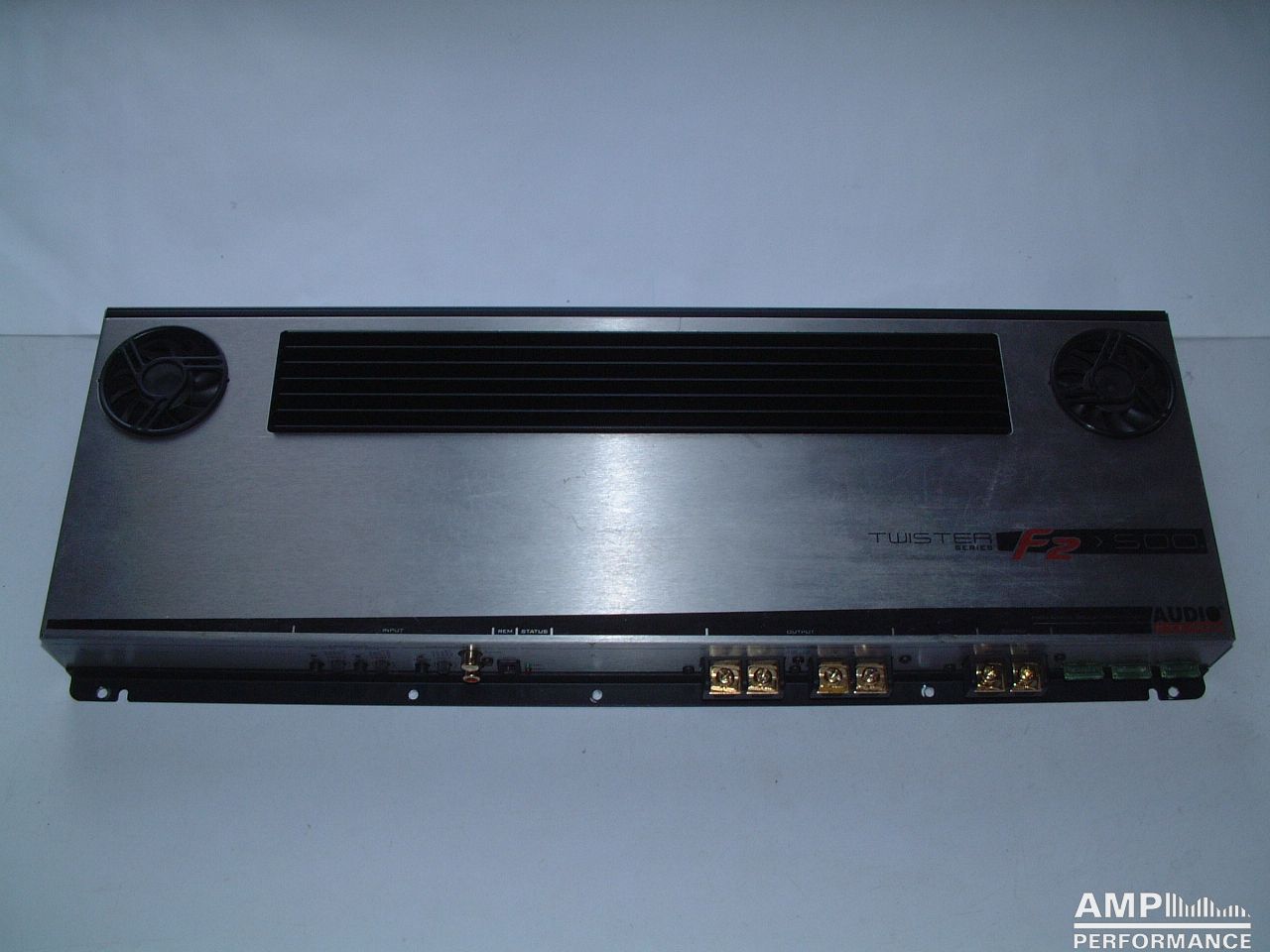

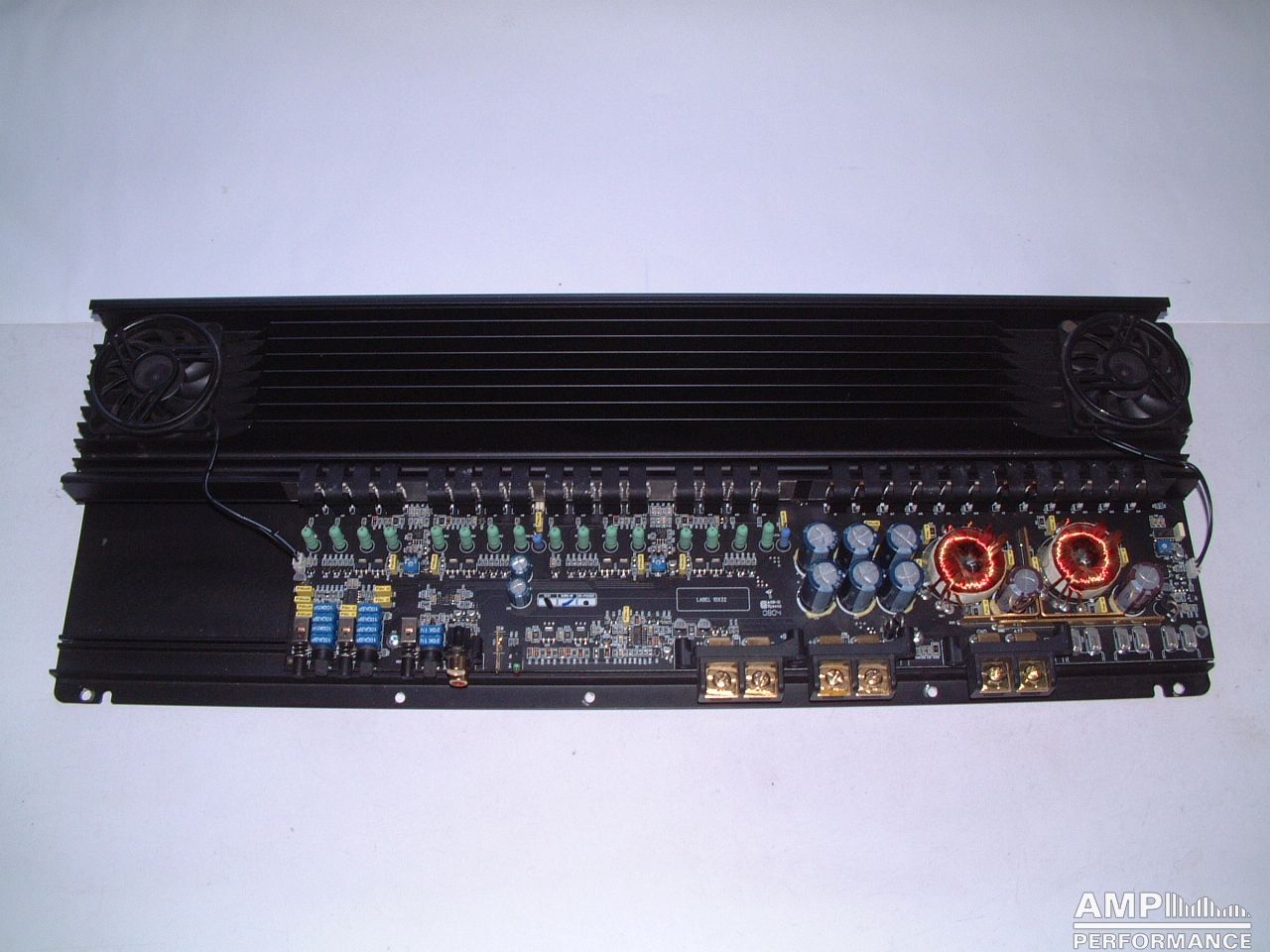

Audio System Twister F2-500 MK II

1 × 225 watts, channel 1 at 4 Ohm
2 × 207 watts, channel 1 + 2 at 4 Ohm

1 × 702 watts, channel 1 + 2 bridged at 4 Ohm

702 watts total power

1-Ohm Betrieb nicht gemessen, wegen zu schwacher Stromversorgung (extern)

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Audio System Twister F2-500 MK II

1 × 228 watts, channel 1 at 4 Ohm
2 × 210 watts, channel 1 + 2 at 4 Ohm
Current consumption 43,2A
efficiency 72,1%

1 × 713 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 78,2A
efficiency 68%

1 × 1095 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 138A
efficiency 59,7%

1095 watts total power
