Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

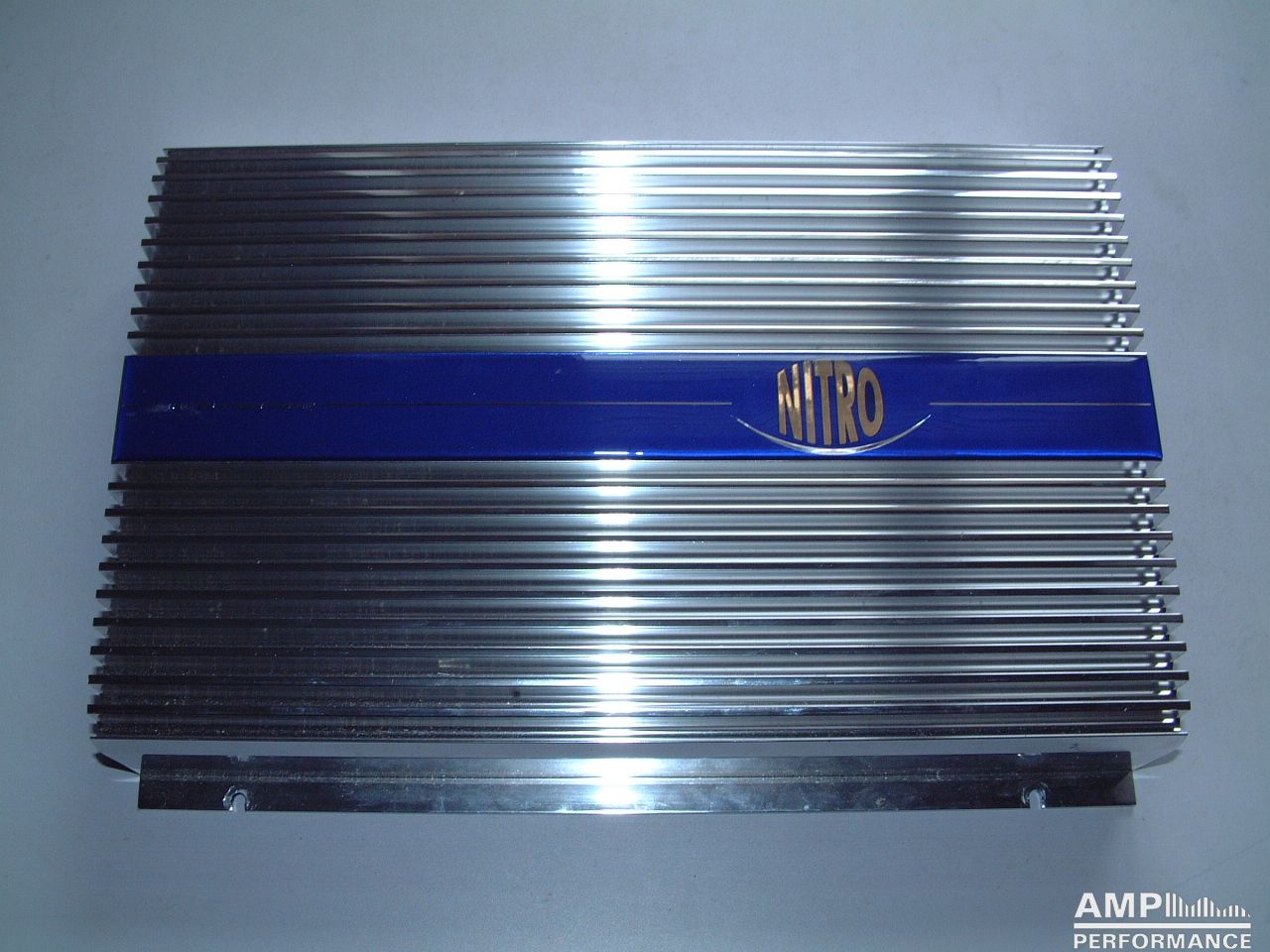

Nitro 3000

1 × 197 watts, channel 1 at 4 Ohm
2 × 196 watts, channel 1 + 2 at 4 Ohm

1 × 576 watts, channel 1 + 2 bridged at 4 Ohm

576 watts total power

provided by my Lanos from the Hififorum

provided by pointexxx from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Nitro 3000

1 × 177 watts, channel 1 at 4 Ohm
2 × 177 watts, channel 1 + 2 at 4 Ohm
Current consumption 39,7A
efficiency 66%

1 × 562 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 68,8A
efficiency 60,9%

562 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Nitro 3000

1 × 193 watts, channel 1 at 4 Ohm
2 × 186 watts, channel 1 + 2 at 4 Ohm
Current consumption 41,2A
efficiency 67%

1 × 566 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 71,2A
efficiency 59,4%

566 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Nitro 3000

1 × 177 watts, channel 1 at 4 Ohm with 13,8V supply voltage
2 × 177 watts, channel 1 + 2 at 4 Ohm with 13,8V supply voltage
Current consumption 41A
efficiency 62,5%

1 × 576 watts, channel 1 + 2 bridged at 4 Ohm with 13,7V supply voltage
Current consumption 72,3A
efficiency 58,2%

1 × 722 watts, channel 1 + 2 bridged at 2 Ohm with 13,7V supply voltage
Current consumption 113A
efficiency 46,6%
