Specialist for Audio-Amplifiers

provided by Scorpion09 from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

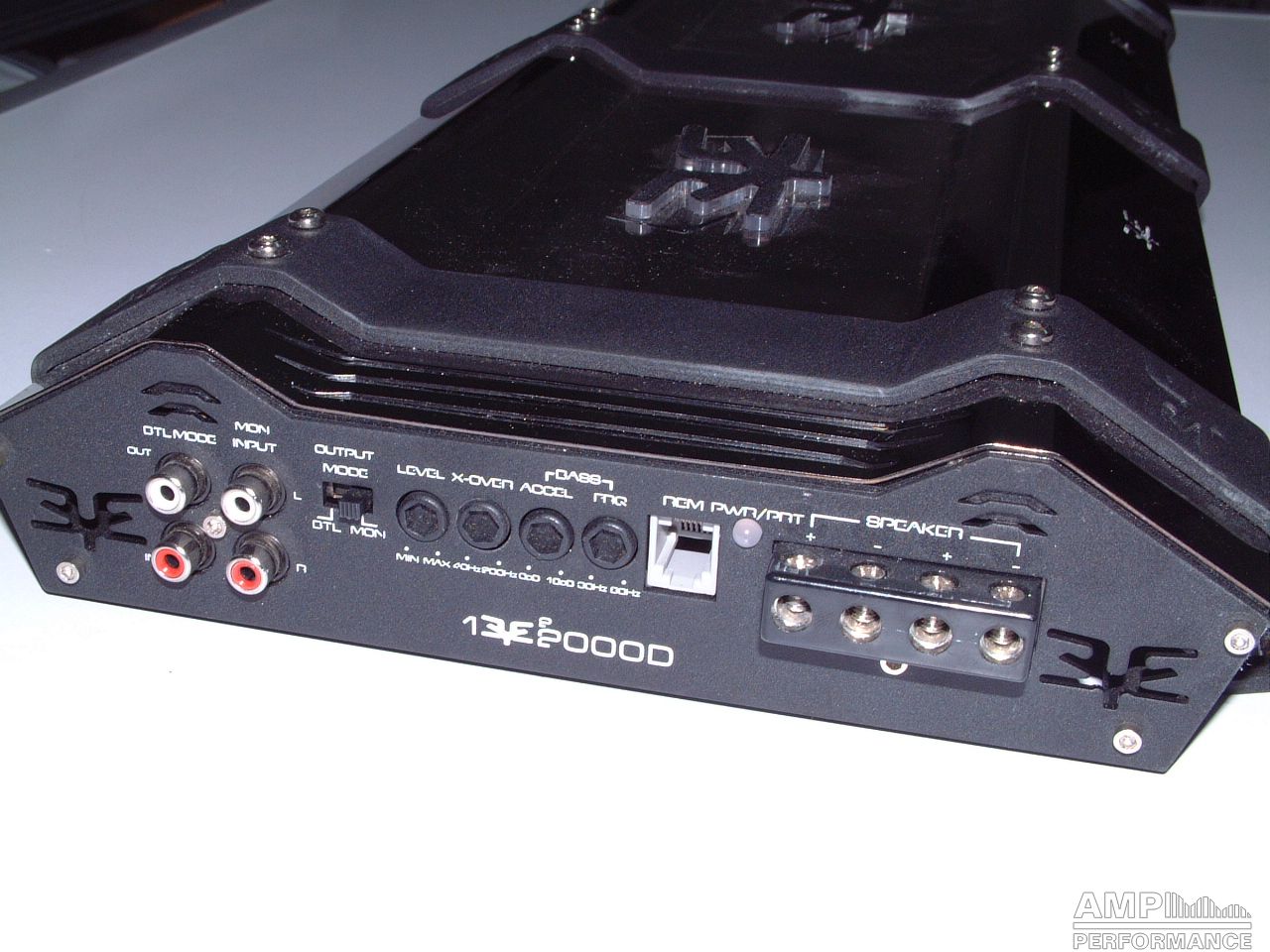

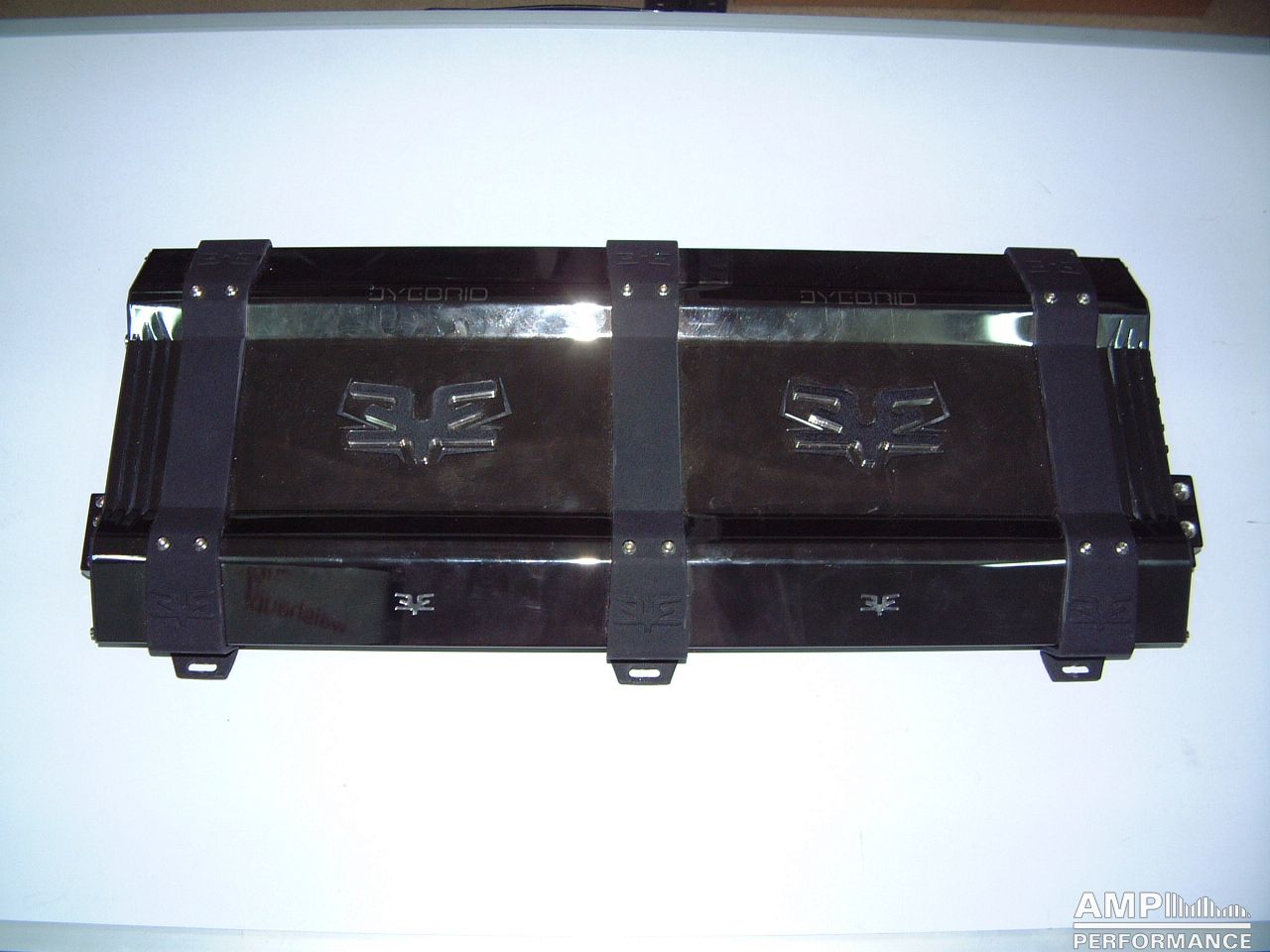

Eyebrid 1Y2000D

1 × 625 Watts channel 1 at 4 Ohm

1 × 1105 Watts channel 1 at 2 Ohm

measured with 150 Hz because of fixed preset low-pass filter

1-Ohm Betrieb nicht gemessen, wegen zu schwacher Stromversorgung (extern)

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Eyebrid 1Y2000D

1 × 663 watts, channel 1 at 4 Ohm
Current consumption 57,7A
efficiency 85,1%

1 × 1176 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 106A
efficiency 82,8%

1 × 1591 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 146A
efficiency 81,3%

1 × 1936 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 184A
efficiency 79,1%

1936 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
