Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

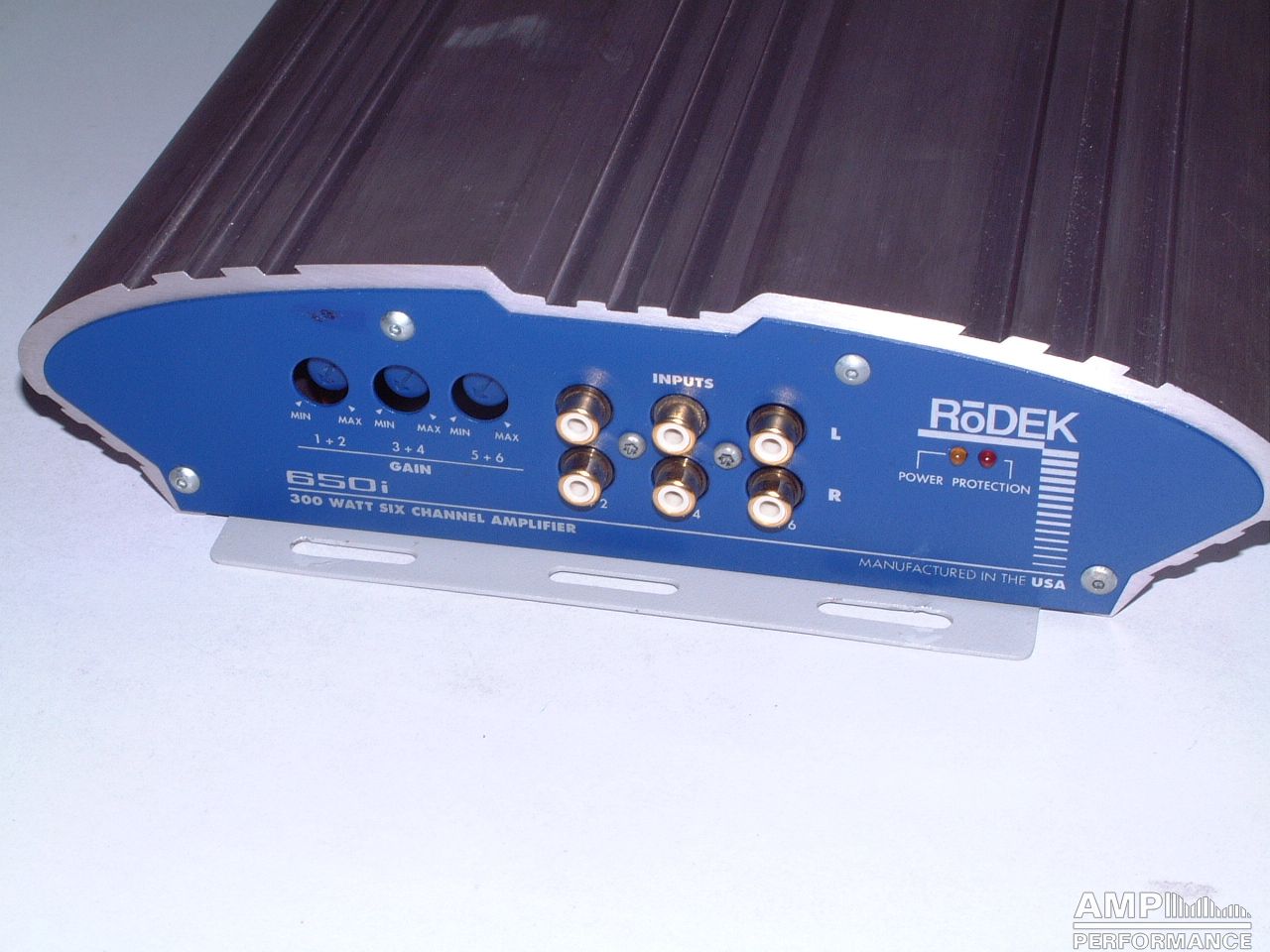

Rodek 650i

by Steven Mantz



1 × 60 Watts channel 1 at 4 Ohm
2 × 60 Watts channel 1 + 2 at 4 Ohm
4 × 60 Watts channel 1 up to 4 at 4 Ohm
6 × 60 Watts channel 1 up to 6 at 4 Ohm

4 × 60 Watts channel 1 up to 4 at 4 Ohm +
1 × 225 Watts channel 5 + 6 bridged at 4 Ohm

2 × 56 Watts channel 1 + 2 at 4 Ohm +
2 × 204 Watts channel 3 + 4 and 5 + 6 bridged at 4 Ohm

3 × 182 Watts alle channelpaare bridged at 4 Ohm

546 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Rodek 650i

1 × 62 watts, channel 1 at 4 Ohm
2 × 62 watts, channel 1 + 2 at 4 Ohm
4 × 62 watts, channel 1 up to 4 at 4 Ohm
6 × 62 watts, channel 1 up to 6 at 4 Ohm
Current consumption 50,5A
efficiency 54,2%

4 × 58 watts, channel 1 up to 4 at 4 Ohm +
1 × 210 Watts channel 5 + 6 bridged at 4 Ohm

3 × 172 watts, channel 1 – 6 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 88A
efficiency 43,7%

516 watts total power
