Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

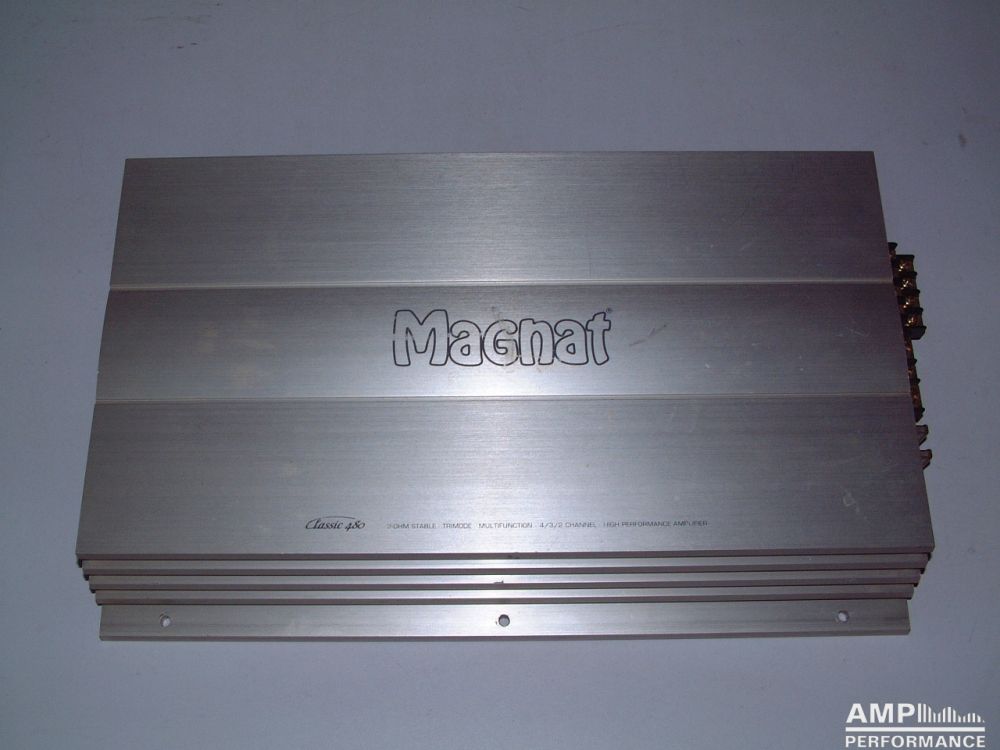

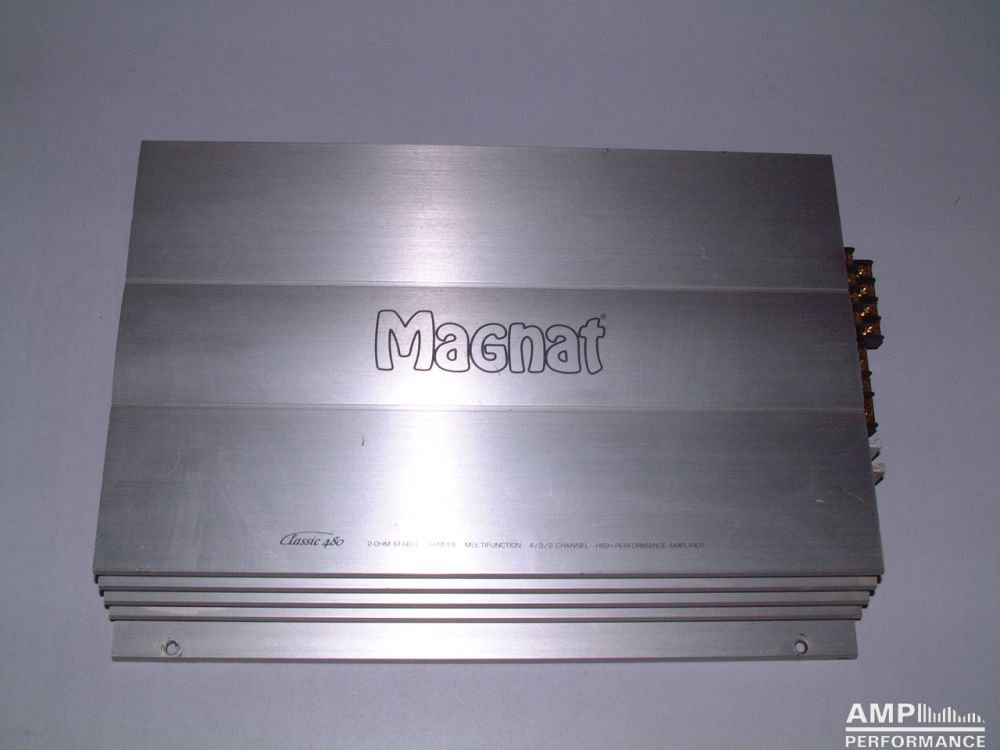

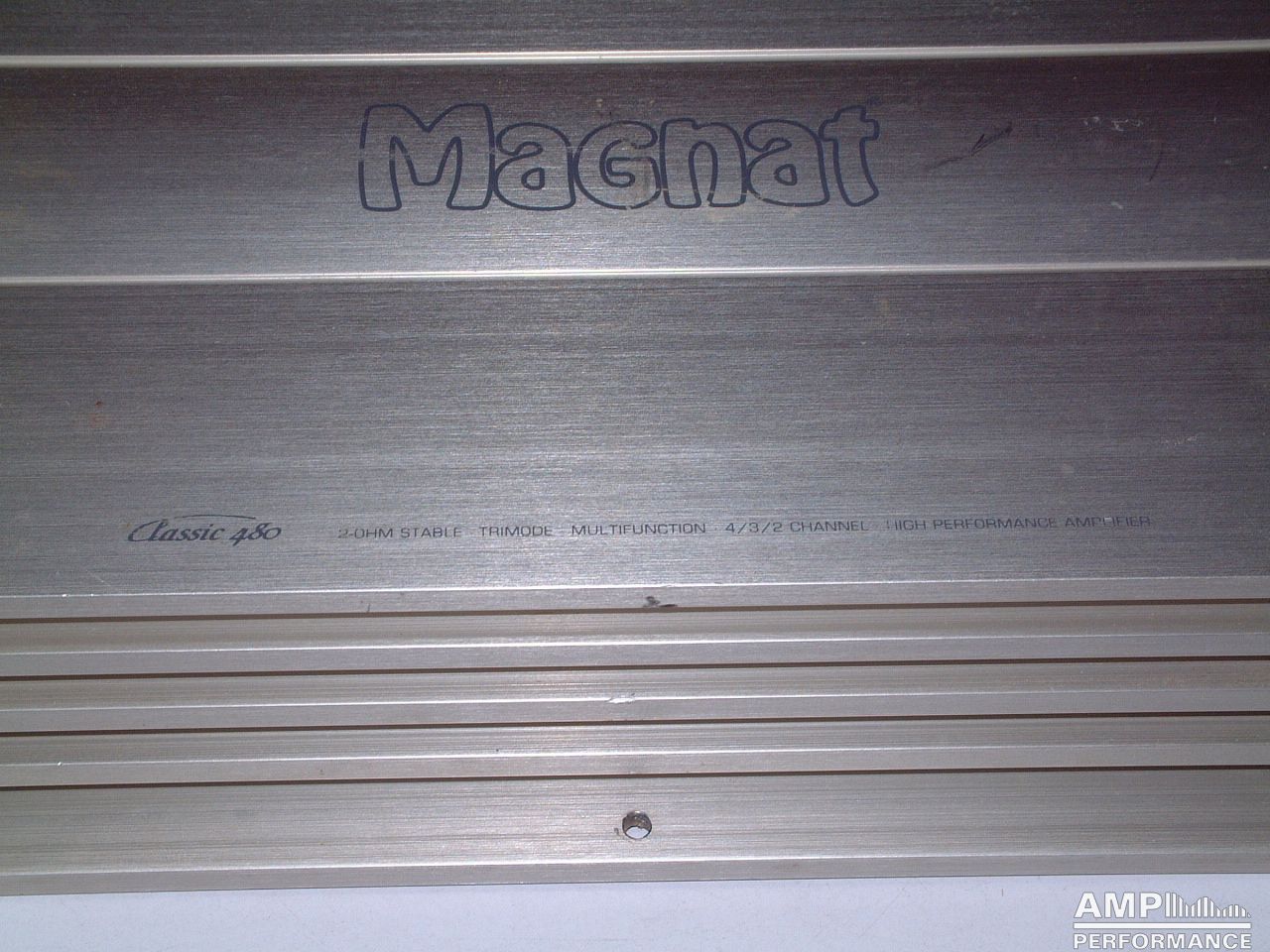

Magnat Classic 480
1 × 72 Watts channel 1 at 4 Ohm
2 × 67 Watts channel 1 + 2 at 4 Ohm
4 × 66 Watts channel 1 up to 4 at 4 Ohm
1 × 207 Watts channel 1 + 2 bridged at 4 Ohm
2 × 196 Watts channel 1 + 2 and 3 + 4 bridged at 4 Ohm
392 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

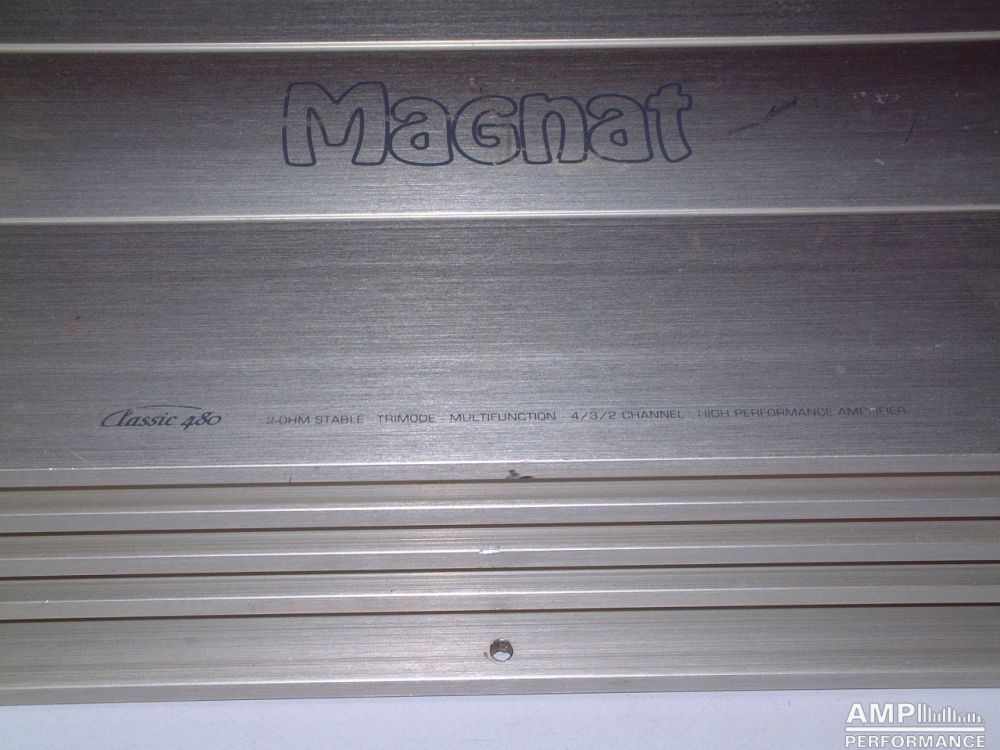

Magnat Classic 480
1 × 81 watts, channel 1 at 4 Ohm
2 × 75 watts, channel 1 + 2 at 4 Ohm
4 × 65 watts, channel 1 up to 4 at 4 Ohm
Current consumption 32,2A
efficiency 59,6%
1 × 228 watts, channel 1 + 2 bridged at 4 Ohm
2 × 182 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm
Current consumption 53A
efficiency 50,9%
364 watts total power
