Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

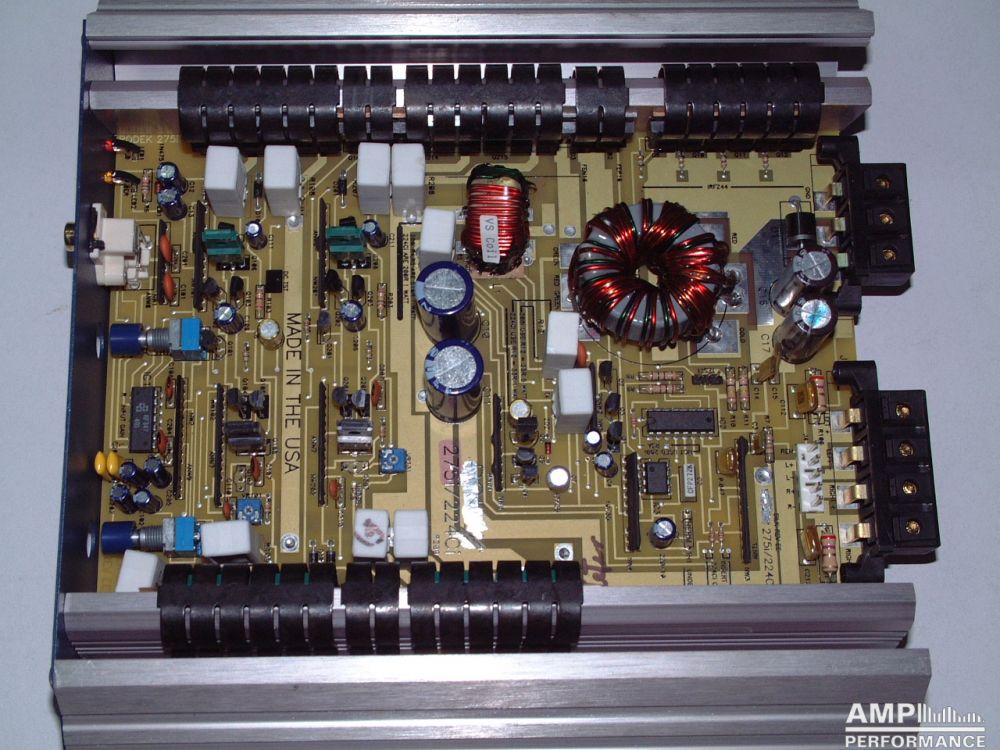

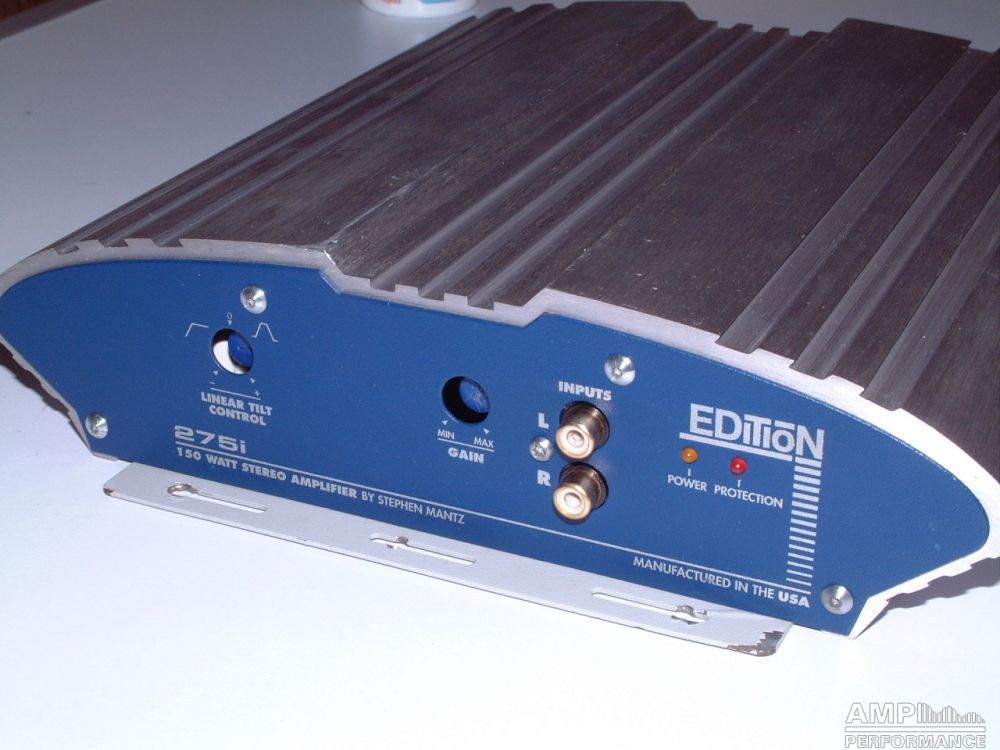

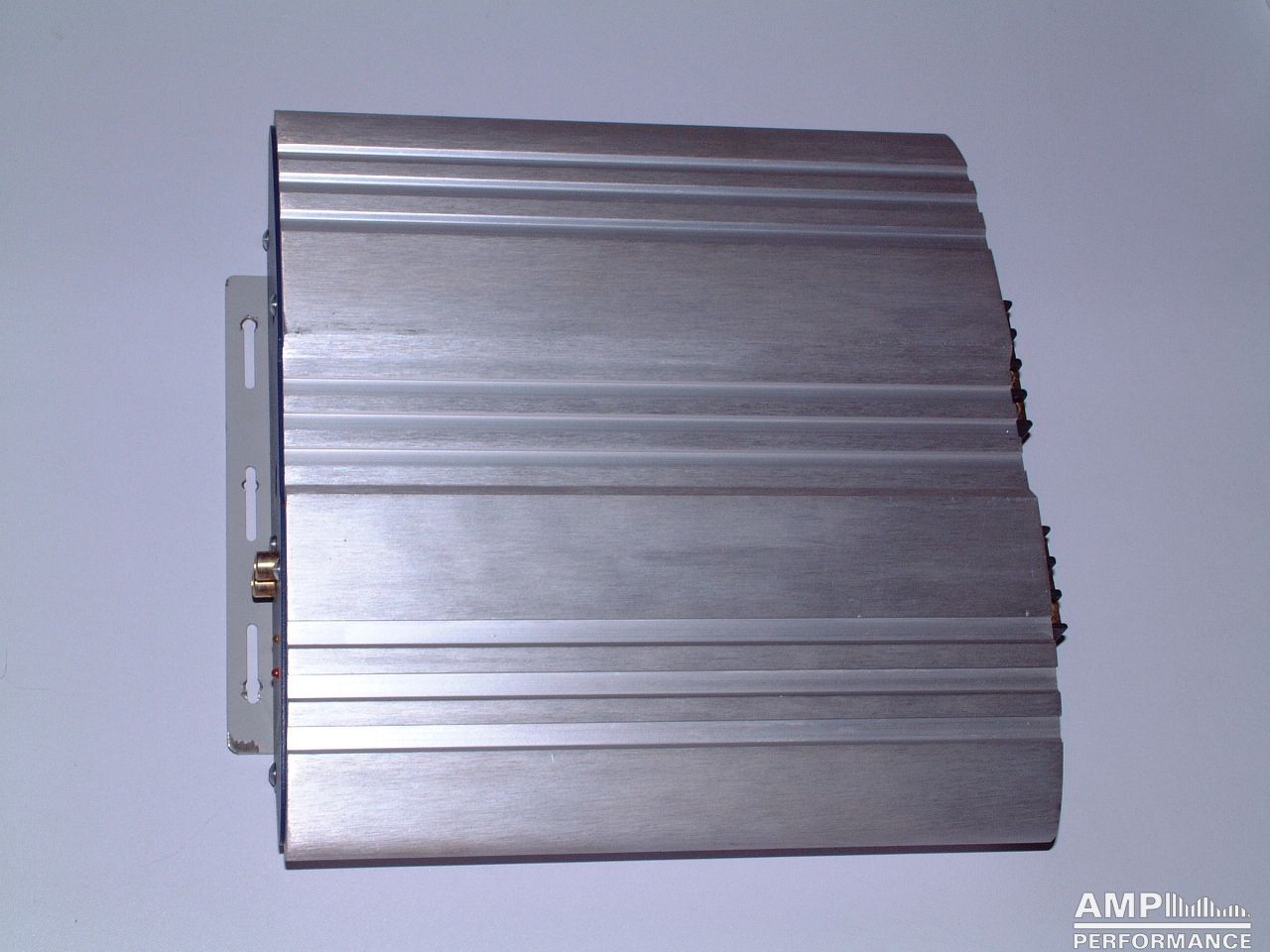

Rodek 275i REV EE

by Steven Mantz




1 × 113 watts, channel 1 at 4 Ohm
2 × 113 watts, channel 1 + 2 at 4 Ohm
Current consumption 28,5A
efficiency 59%

1 × 376 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 54,3A
efficiency 51,3%

376 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

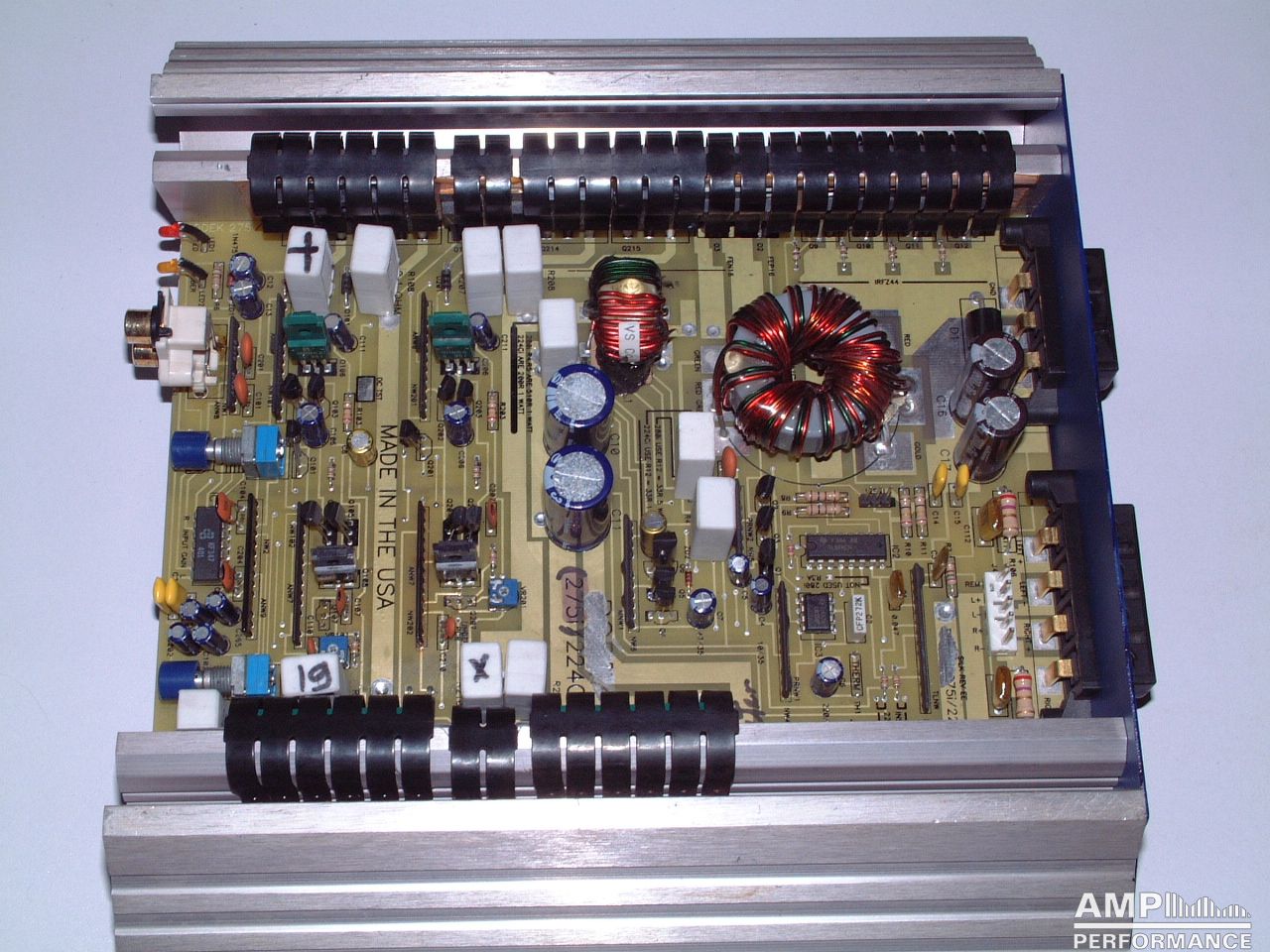

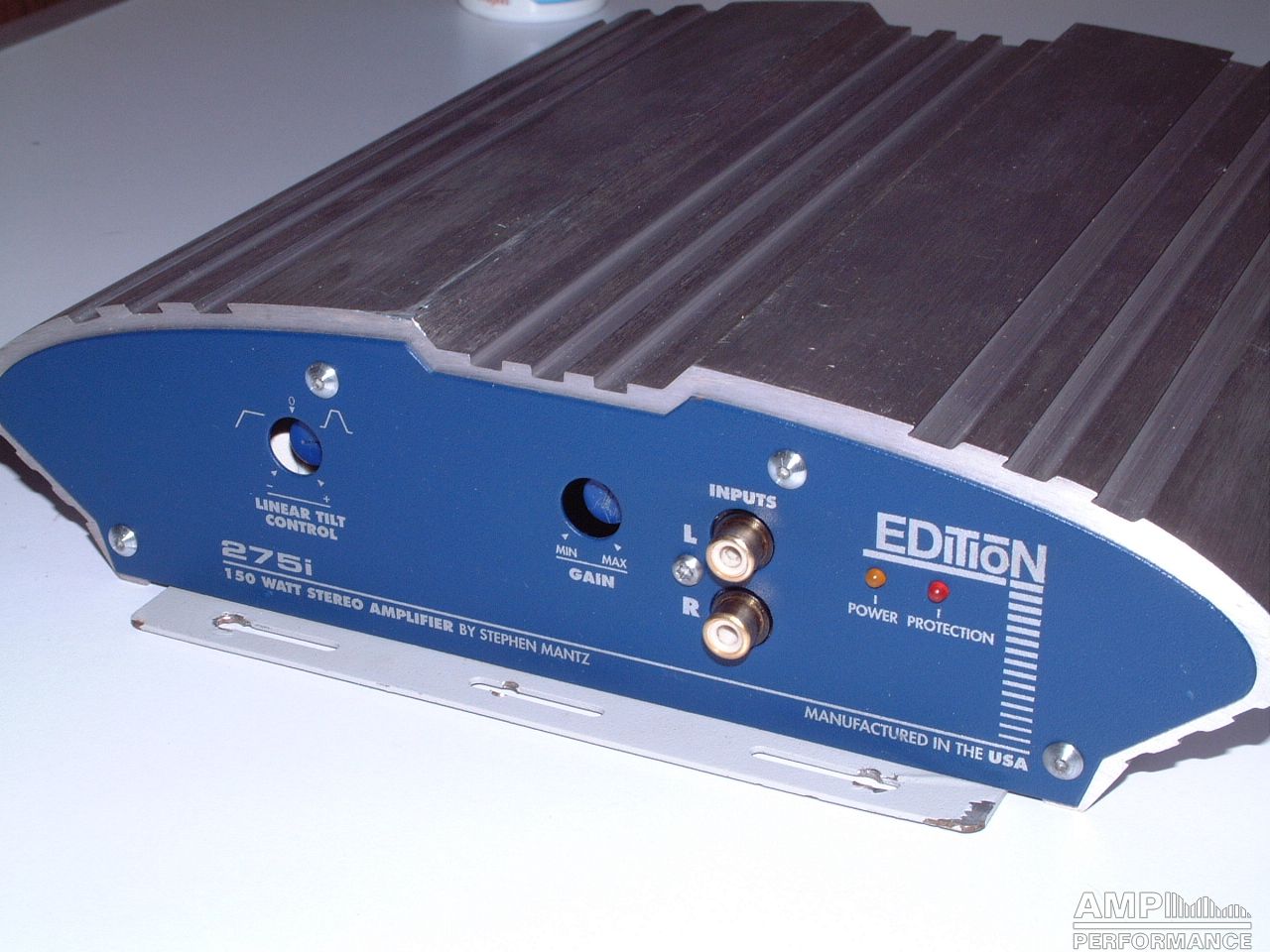

Rodek 275i REV EE

by Steven Mantz




1 × 121 watts, channel 1 at 4 Ohm
2 × 121 watts, channel 1 + 2 at 4 Ohm
Current consumption 29,1A
efficiency 61,6%

1 × 400 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 55,1A
efficiency 54,2%

400 watts total power
