provided by Fabian aus dem Epicenter-Forum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

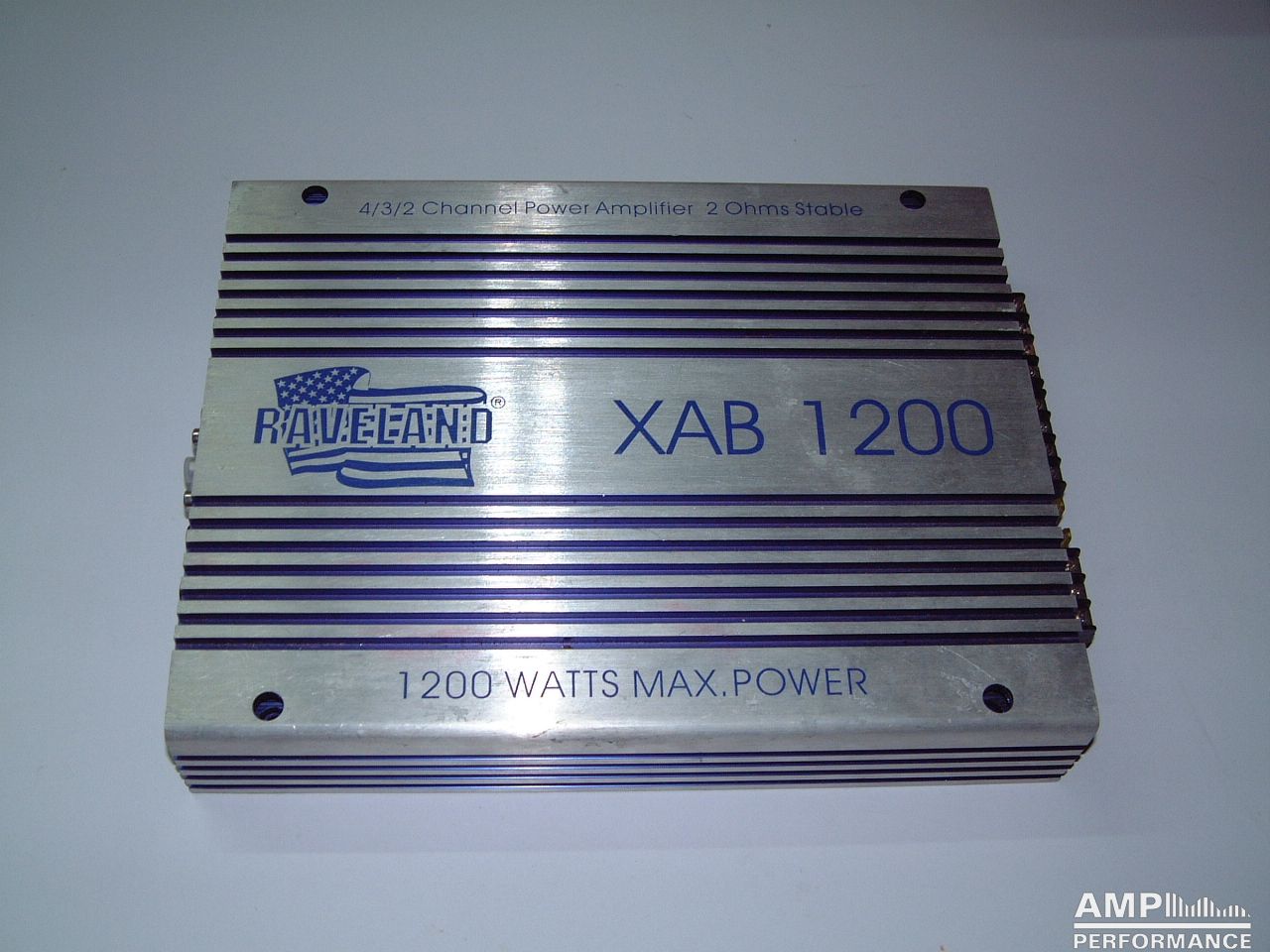

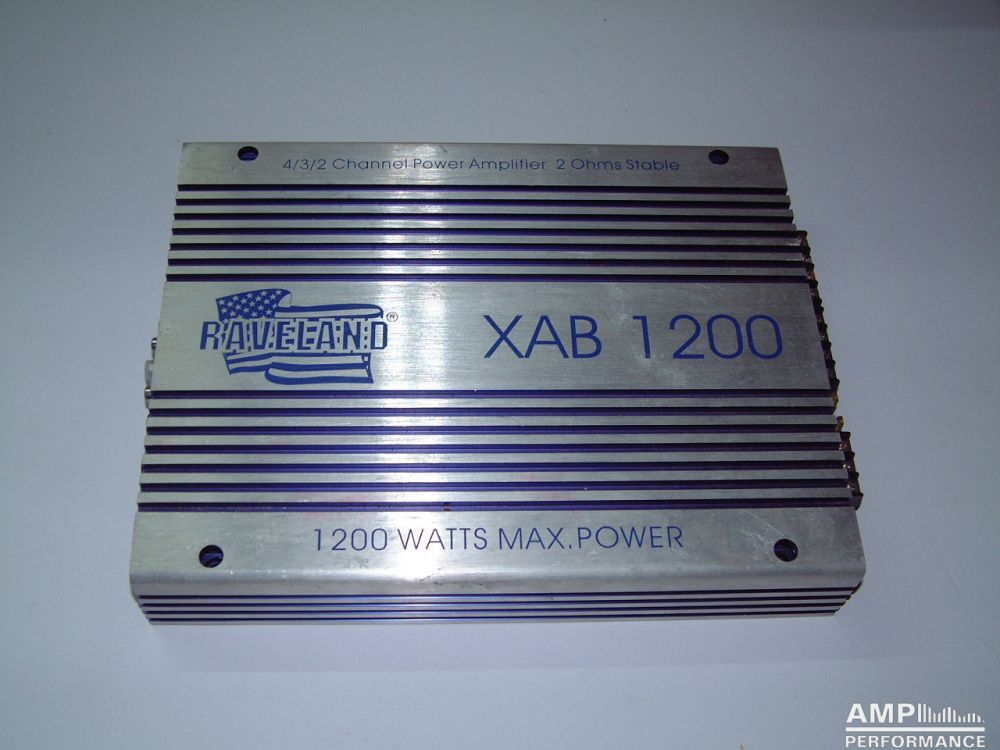

Raveland XAB 1200

1 × 66 watts, channel 1 at 4 Ohm
2 × 62 watts, channel 1 + 2 at 4 Ohm
4 × 55 watts, channel 1 up to 4 at 4 Ohm
Current consumption 27,3A
efficiency 59,4%

1 × 185 watts, channel 1 + 2 bridged at 4 Ohm
2 × 156 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm
Current consumption 49,7A
efficiency 46,6%

312 watts total power
