Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

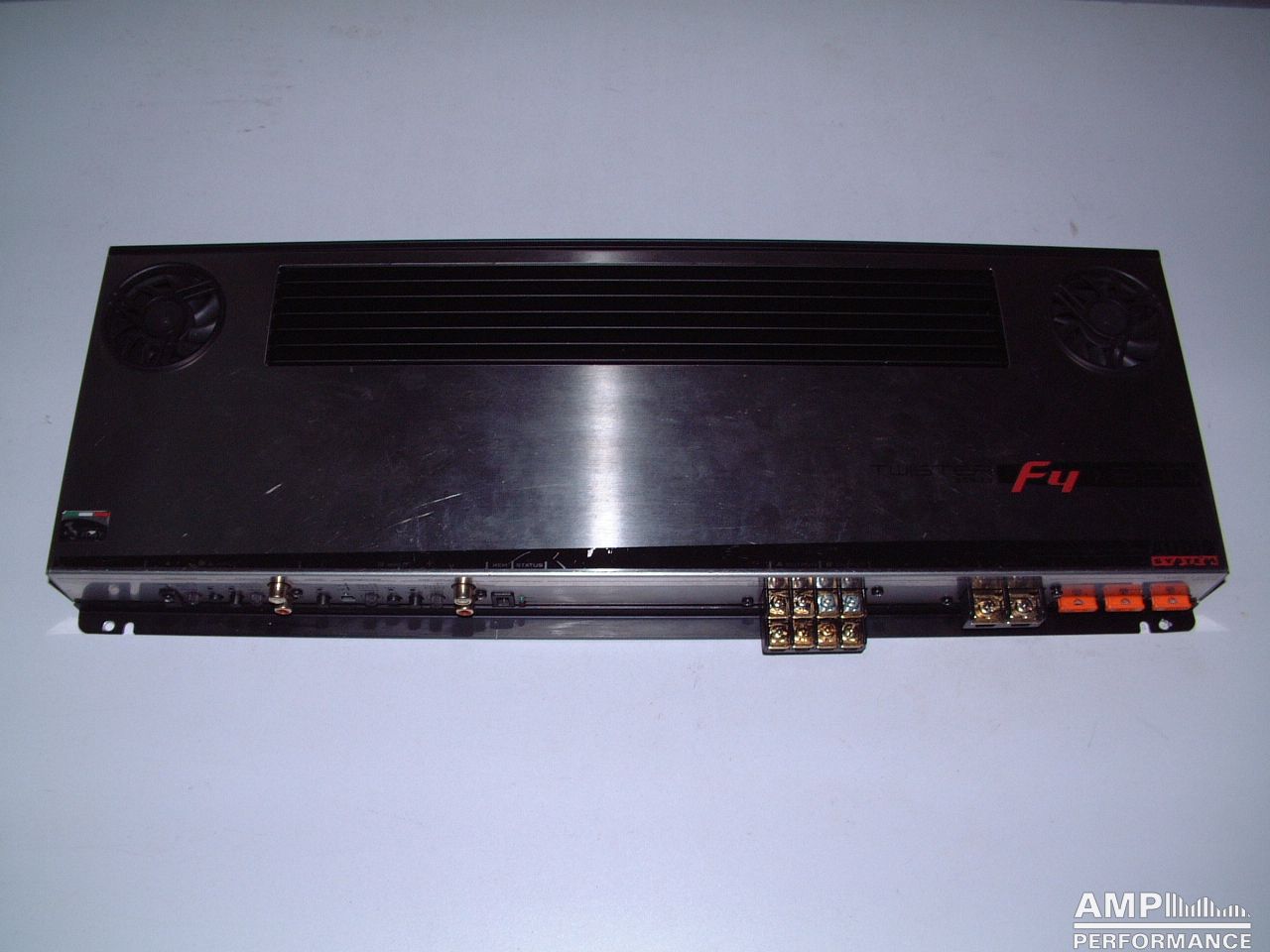

Audio System Twister F4-600
1 × 164 watts, channel 1 at 4 Ohm
2 × 156 watts, channel 1 + 2 at 4 Ohm
4 × 143 watts, channel 1 up to 4 at 4 Ohm with 13,4V supply voltage
Current consumption 61,6A
efficiency 69,2%
1 × 524 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
2 × 449 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 111A
efficiency 60,9%
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Audio System Twister F4-600
1 × 164 watts, channel 1 at 4 Ohm
2 × 156 watts, channel 1 + 2 at 4 Ohm
4 × 143 watts, channel 1 up to 4 at 4 Ohm with 13,4V supply voltage
Current consumption 60,8A
efficiency 70,1%
1 × 524 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
2 × 445 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 109,4A
efficiency 61,2%
1 × 776 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
2 × 606 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,2V supply voltage
Current consumption 171A
efficiency 53,7%
1212 watts total power
provided by AHS from the Hififorum
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Audio System Twister F4-600
1 × 168 watts, channel 1 at 4 Ohm
2 × 159 watts, channel 1 + 2 at 4 Ohm
4 × 142 watts, channel 1 up to 4 at 4 Ohm
Current consumption 59,9A
efficiency 70,1%
1 × 529 watts, channel 1 + 2 bridged at 4 Ohm
2 × 433 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 104,5A
efficiency 62,3%
1 × 776 watts, channel 1 + 2 bridged at 2 Ohm with 13,4V supply voltage
2 × 564 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 163,5A
efficiency 51,9%
1128 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Audio System Twister F4-600
1 × 165 watts, channel 1 at 4 Ohm
2 × 156 watts, channel 1 + 2 at 4 Ohm
4 × 142 watts, channel 1 up to 4 at 4 Ohm
Current consumption 60,2A
efficiency 69,7%
1 × 529 watts, channel 1 + 2 bridged at 4 Ohm
2 × 441 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 105A
efficiency 62,7%
1 × 761 watts, channel 1 + 2 bridged at 2 Ohm with 13,4V supply voltage
2 × 592 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 166A
efficiency 53,6%
1184watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Audio System Twister F4-600
1 × 169 watts, channel 1 at 4 Ohm
2 × 159 watts, channel 1 + 2 at 4 Ohm
4 × 146 watts, channel 1 up to 4 at 4 Ohm
Current consumption 61,2A
efficiency 70,9%
1 × 538 watts, channel 1 + 2 bridged at 4 Ohm
2 × 462 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 106,5A
efficiency 64,8%
1 × 784 watts, channel 1 + 2 bridged at 2 Ohm with 13,4V supply voltage
2 × 592 watts, channel 1 + 2 and 3 + 4 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 165A
efficiency 53,9%
1184watts total power
