provided by Fabian aus dem Epicenter-Forum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

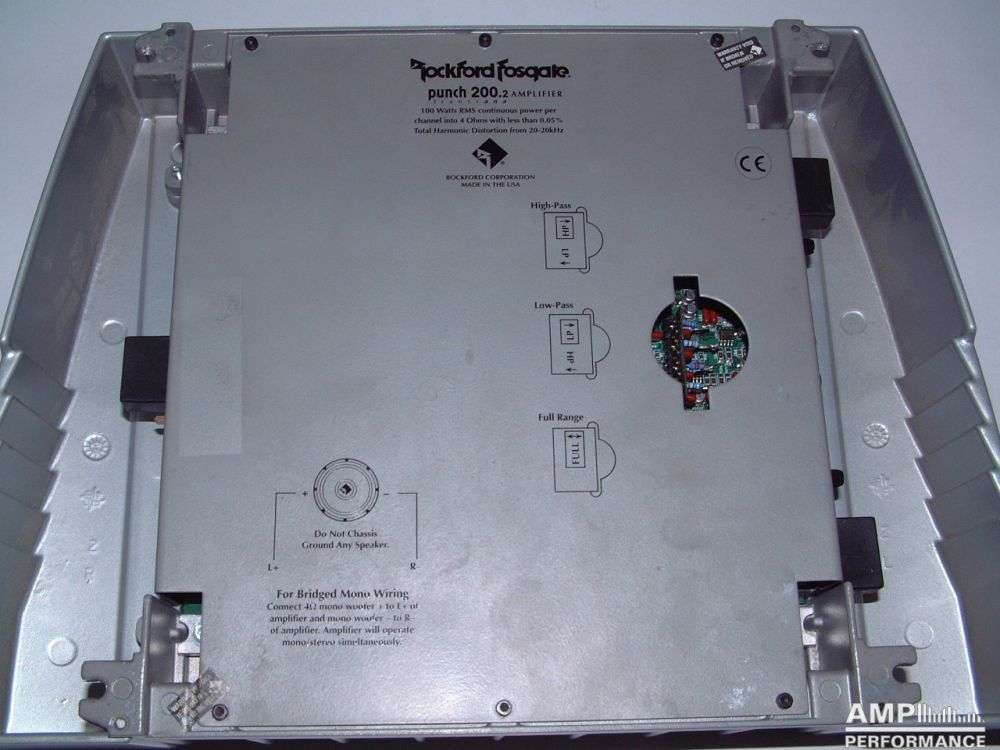

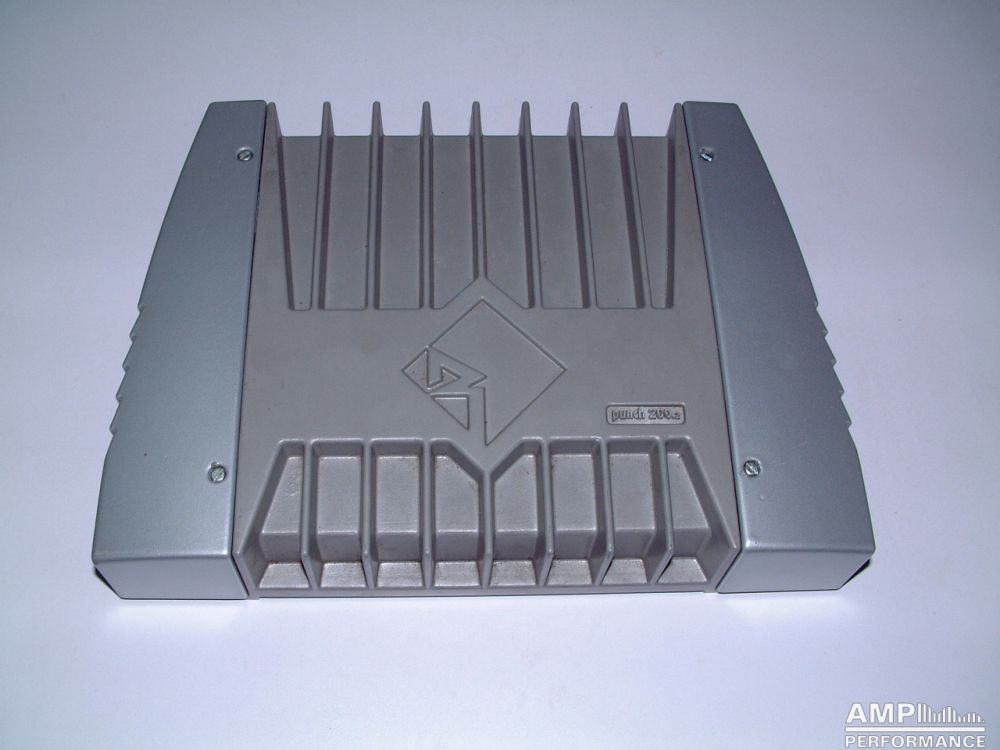

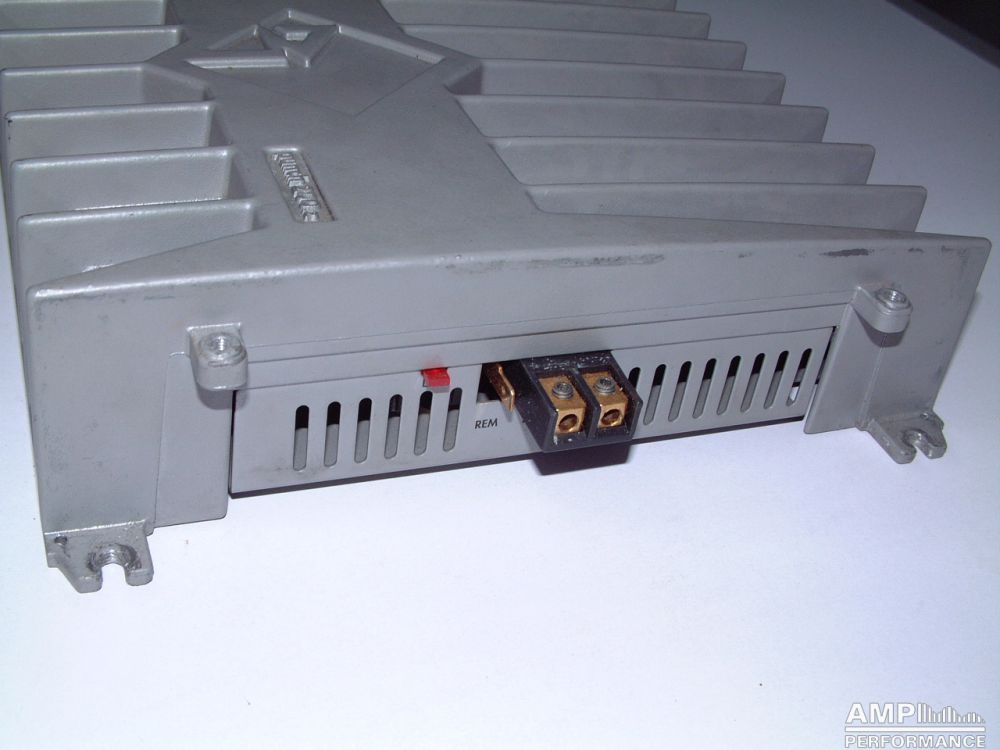

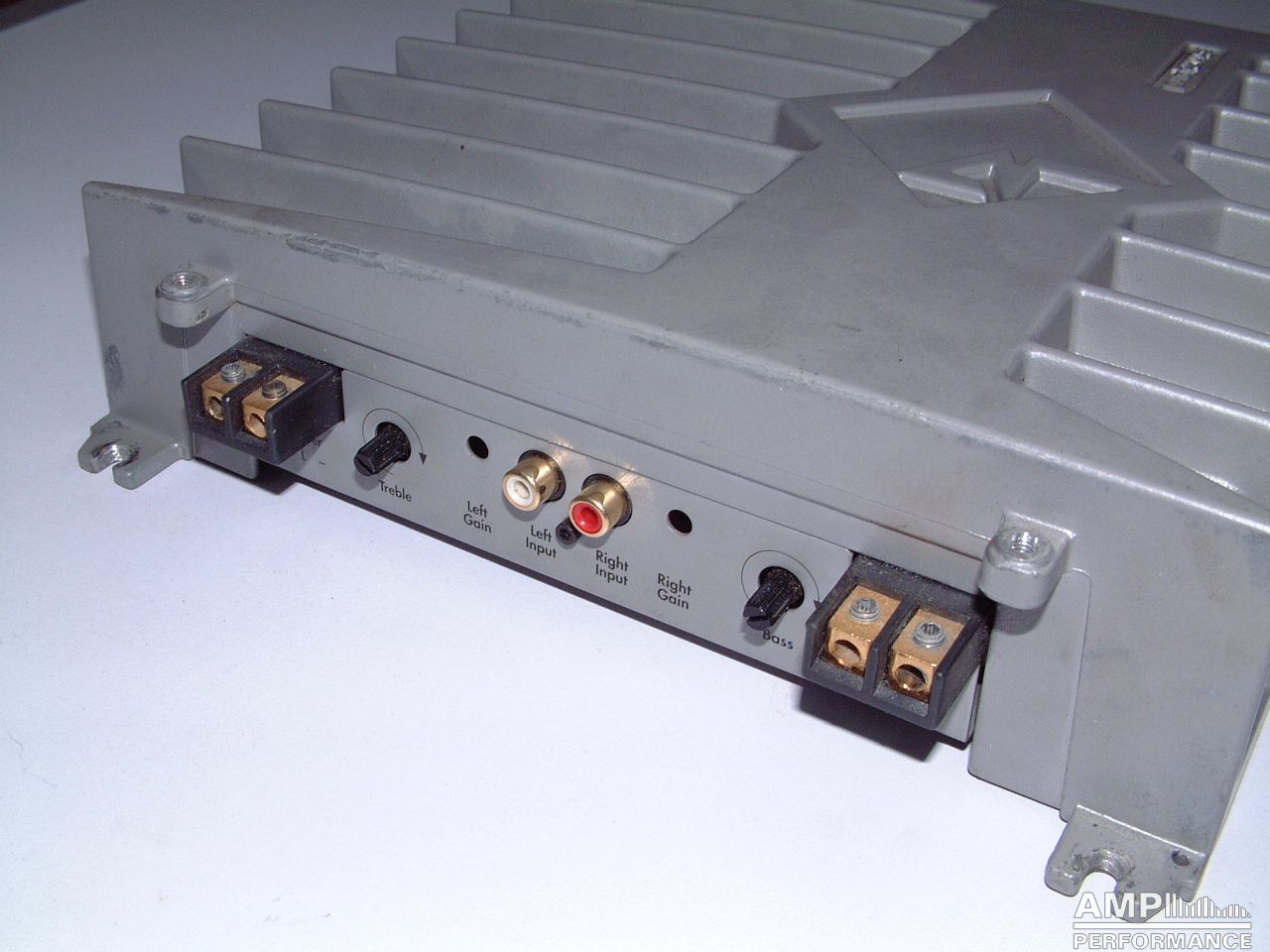

Rockford Fosgate Punch 200.2

1 × 154 watts, channel 1 at 4 Ohm
2 × 138 watts, channel 1 + 2 at 4 Ohm
Current consumption 28,9A
efficiency 70,8%

1 × 424 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 51,4A
efficiency 61,2%

1 × 545 watts, channel 1 + 2 bridged at 2 Ohm
Current consumption 84,2A
efficiency 47,9%

545 watts total power
