Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

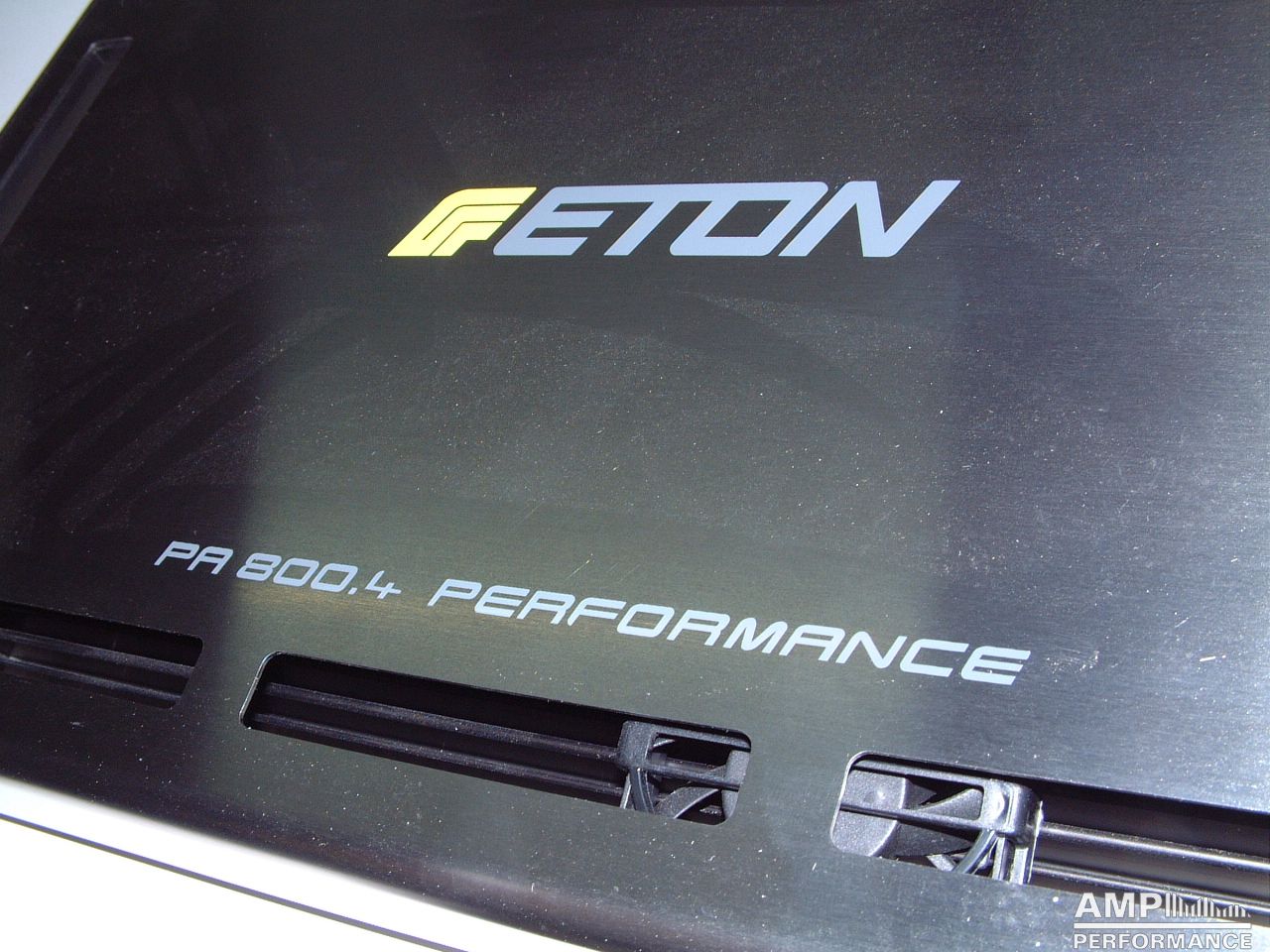

Eton PA 800.4

1 × 173 watts, channel 1 at 4 Ohm
2 × 173 watts, channel 1 + 2 at 4 Ohm
4 × 173 watts, channel 1 up to 4 at 4 Ohm
Current consumption 77,8A
efficiency 65,9%

1 × 635 watts, channel 1 + 2 bridged at 4 Ohm
2 × 635 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13V supply voltage
Current consumption 171A
efficiency 57,1%

1270 watts total power

provided by pimpmysound

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Eton PA 800.4

1 × 172 watts, channel 1 at 4 Ohm
2 × 172 watts, channel 1 + 2 at 4 Ohm
4 × 172 watts, channel 1 up to 4 at 4 Ohm with 13,4V supply voltage
Current consumption 77,7A
efficiency 65,9%

1 × 635 watts, channel 1 + 2 bridged at 4 Ohm
2 × 635 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 172A
efficiency 55,5%

1270 watts total power
