provided by just_me aus dem Klangfuzzi-Forum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

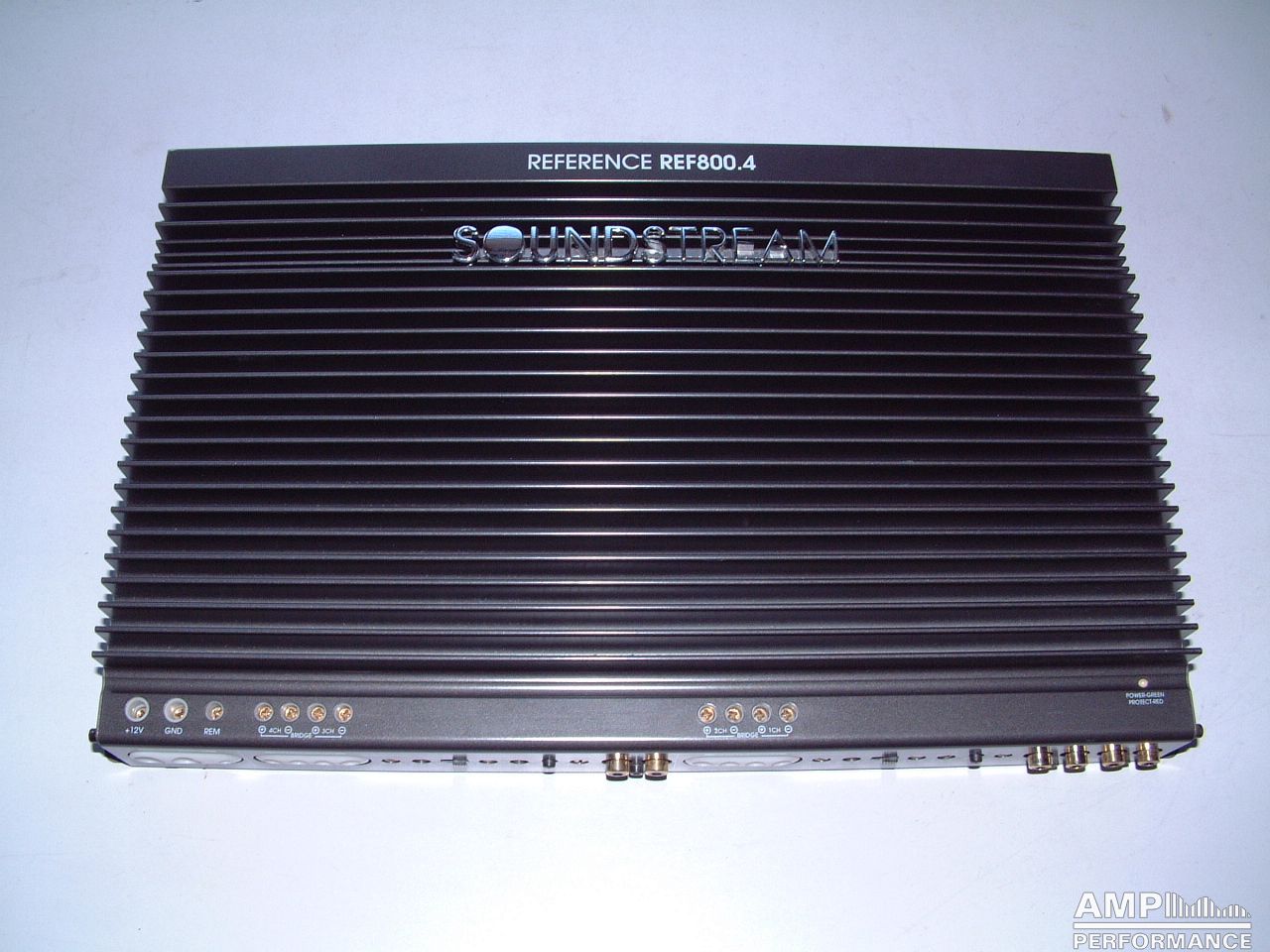

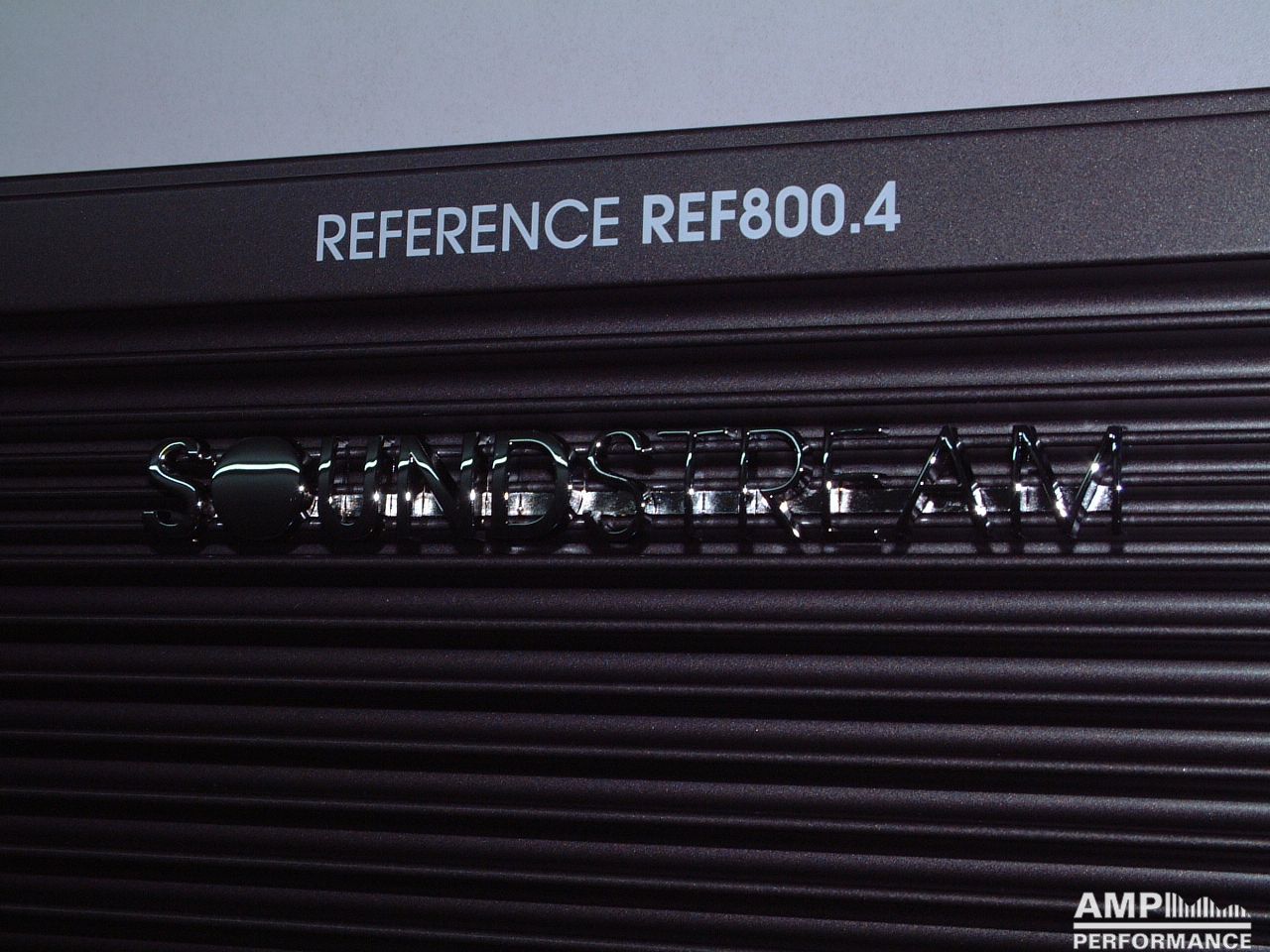

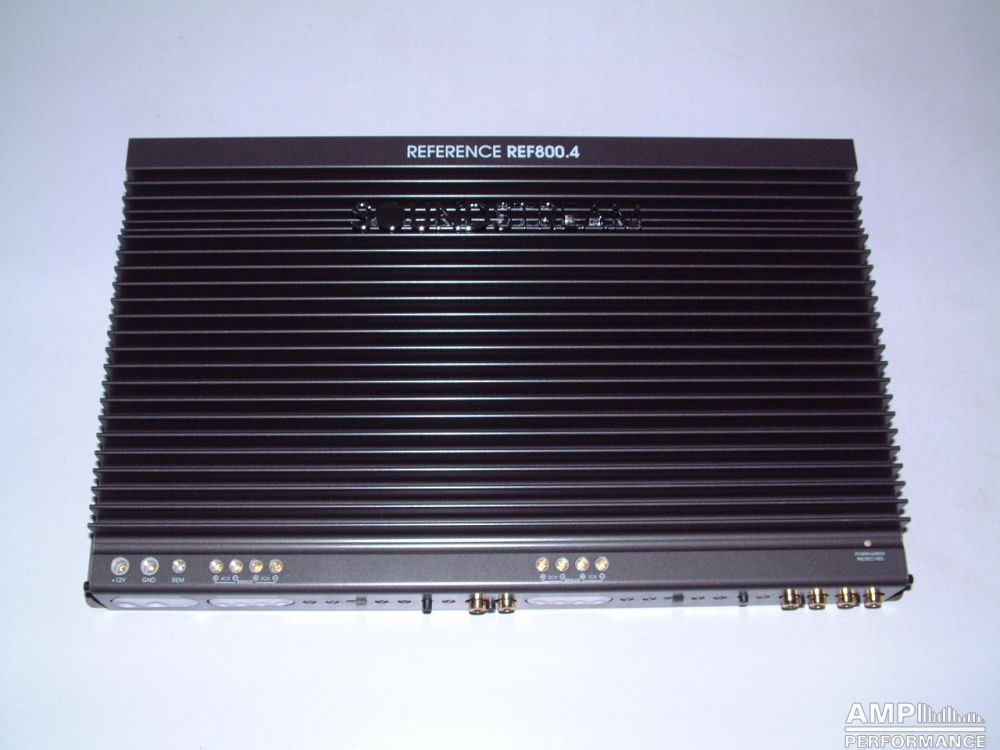

Soundstream Reference REF800.4

1 × 124 watts, channel 1 at 4 Ohm
2 × 121 watts, channel 1 + 2 at 4 Ohm
4 × 110 watts, channel 1 up to 4 at 4 Ohm
Current consumption 49,8A
efficiency 65,6%

1 × 412 watts, channel 1 + 2 bridged at 4 Ohm
2 × 353 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 89,6A
efficiency 59,3%

706 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Soundstream Reference REF800.4

1 × 127 watts, channel 1 at 4 Ohm
2 × 123 watts, channel 1 + 2 at 4 Ohm
4 × 112 watts, channel 1 up to 4 at 4 Ohm
Current consumption 49,5A
efficiency 67,3%

1 × 428 watts, channel 1 + 2 bridged at 4 Ohm
2 × 361 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 89,4A
efficiency 60,3%

722 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Soundstream Reference REF800.4

1 × 128 watts, channel 1 at 4 Ohm
2 × 123 watts, channel 1 + 2 at 4 Ohm
4 × 113 watts, channel 1 up to 4 at 4 Ohm
Current consumption 50A
efficiency 67,2%

1 × 420 watts, channel 1 + 2 bridged at 4 Ohm
2 × 361 watts, channel 1 + 2 and 3 + 4 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 89,9A
efficiency 59,9%

722 watts total power
