provided by FCKW36 from the Hififorum

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

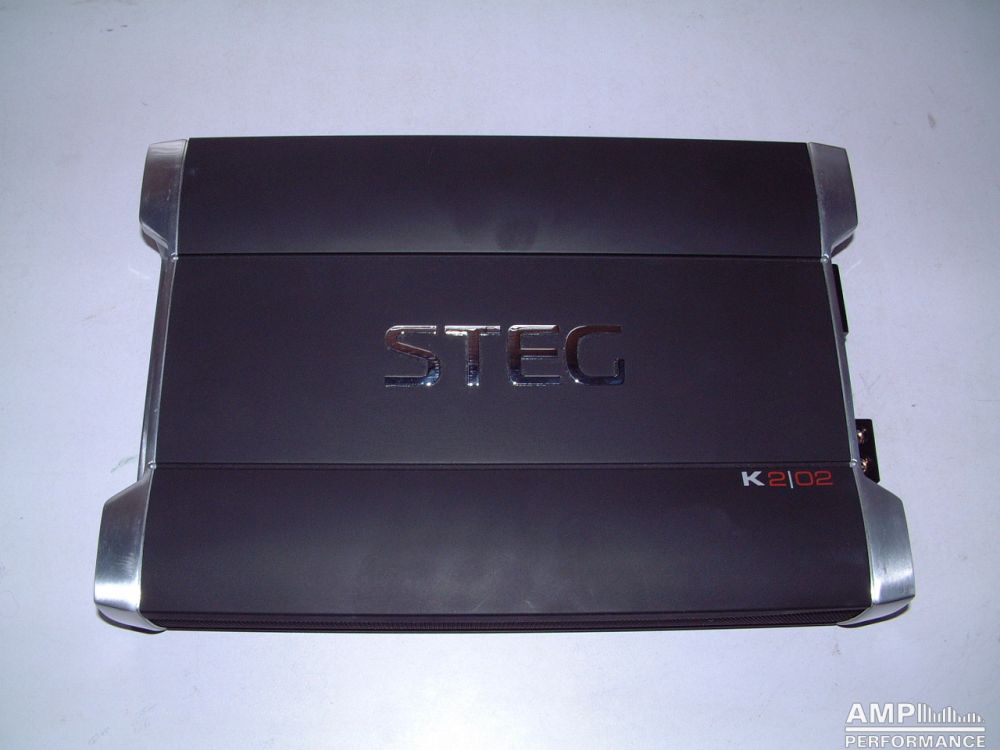

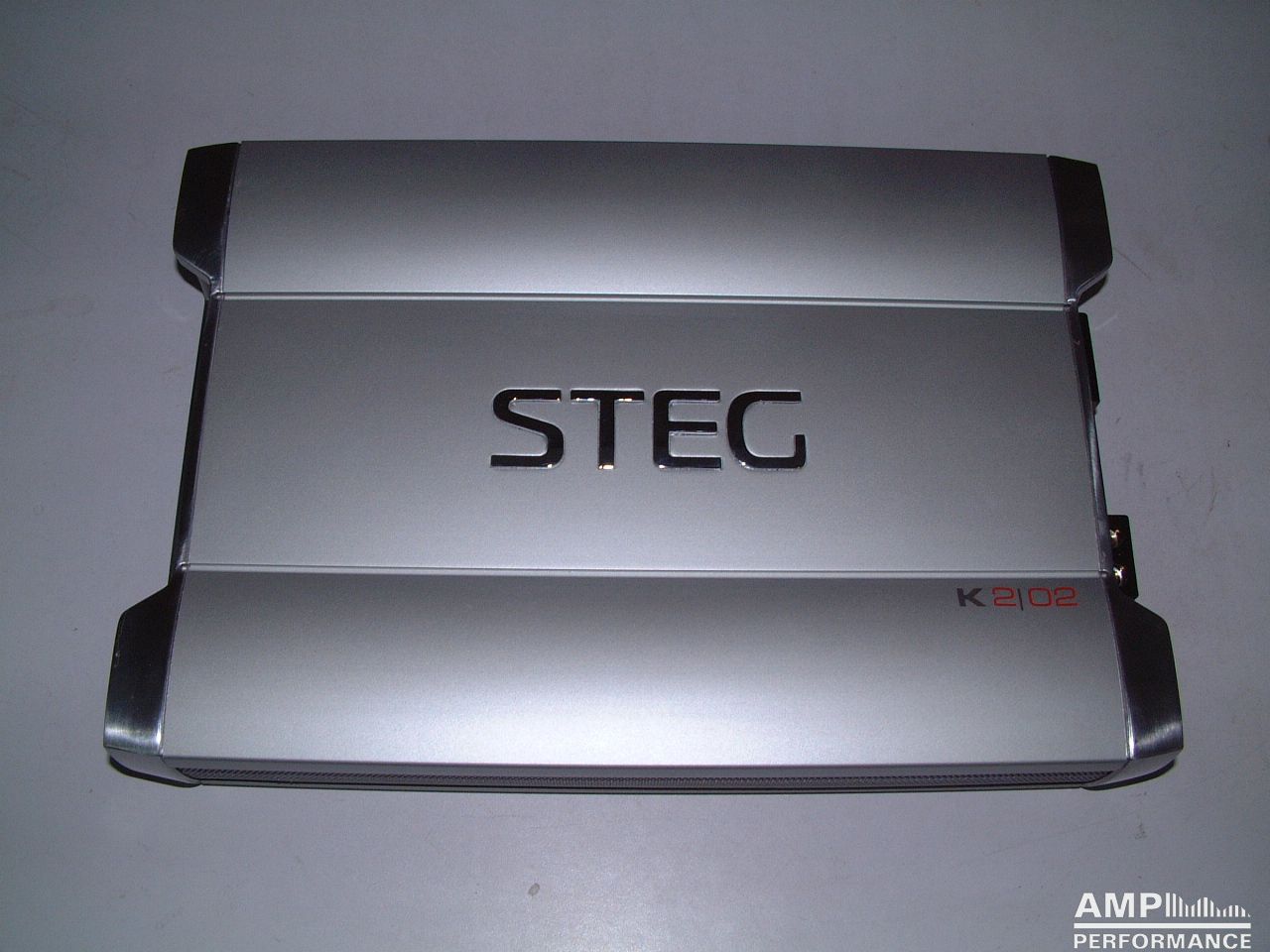

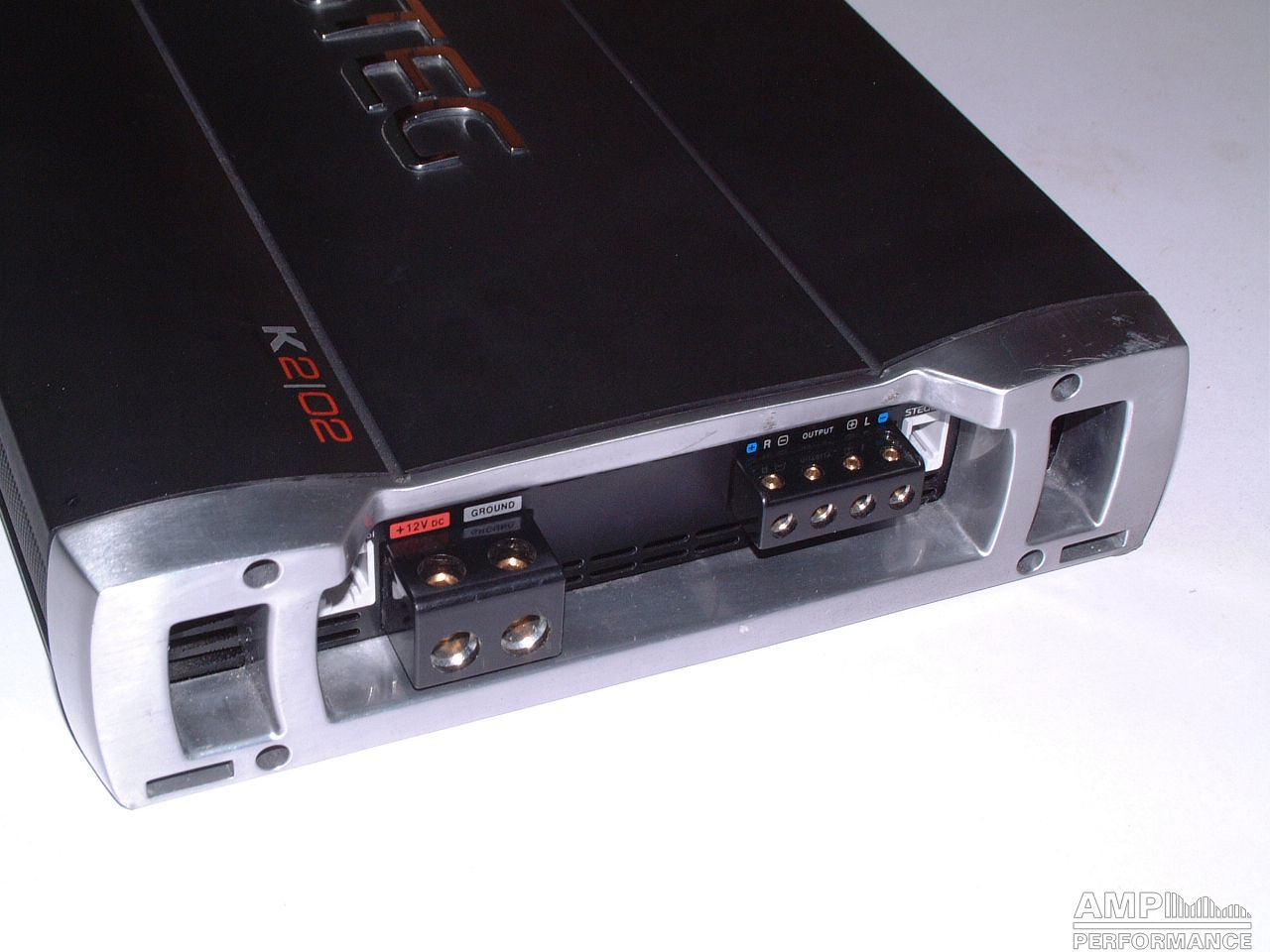

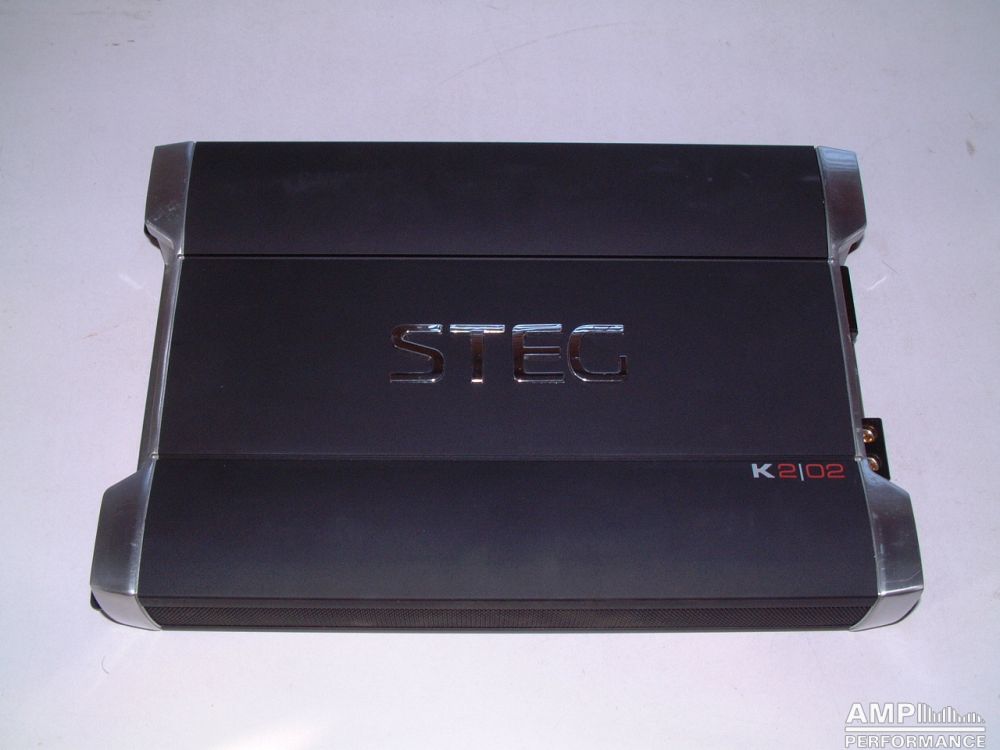

Steg K2.02

1 × 174 watts, channel 1 at 4 Ohm
2 × 174 watts, channel 1 + 2 at 4 Ohm
Current consumption 38,1A
efficiency 67,8%

1 × 671 watts, channel 1 + 2 bridged at 4 Ohm with 13,3V supply voltage
Current consumption 81A
efficiency 62,3%

671 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Steg K2.02

1 × 180 watts, channel 1 at 4 Ohm
2 × 180 watts, channel 1 + 2 at 4 Ohm with 13,8V supply voltage
Current consumption 40A
efficiency 65,1%

1 × 686 watts, channel 1 + 2 bridged at 4 Ohm with 13,6V supply voltage
Current consumption 85,1A
efficiency 59,3%

1 × 1290 watts, channel 1 + 2 bridged at 2 Ohm with 13,5V supply voltage
Current consumption 180A
efficiency 53,1%

1290 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Steg K2.02

1 × 173 watts, channel 1 at 4 Ohm
2 × 173 watts, channel 1 + 2 at 4 Ohm
Current consumption 39,4A
efficiency 67,8%

1 × 676 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 82,8A
efficiency 60,9%

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Steg K2.02

1 × 180 watts, channel 1 at 4 Ohm
2 × 180 watts, channel 1 + 2 at 4 Ohm
Current consumption 39,6A
efficiency 67,2%

1 × 702 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 86A
efficiency 61%

1 × 1201 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 172A
efficiency 52,5%

1201 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Steg K2.02

1 × 180 watts, channel 1 at 4 Ohm
2 × 180 watts, channel 1 + 2 at 4 Ohm
Current consumption 39,3A
efficiency 67,7%

1 × 692 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 83,3A
efficiency 62%

1 × 1280 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 179A
efficiency 53,8%

1280 watts total power

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

Steg K2.02

1 × 180 watts, channel 1 at 4 Ohm
2 × 180 watts, channel 1 + 2 at 4 Ohm
Current consumption 39,7A
efficiency 67%

1 × 692 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 82,8A
efficiency 62,3%

1 × 1290 watts, channel 1 + 2 bridged at 2 Ohm with 13,3V supply voltage
Current consumption 184A
efficiency 52,7%

1290 watts total power
