Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

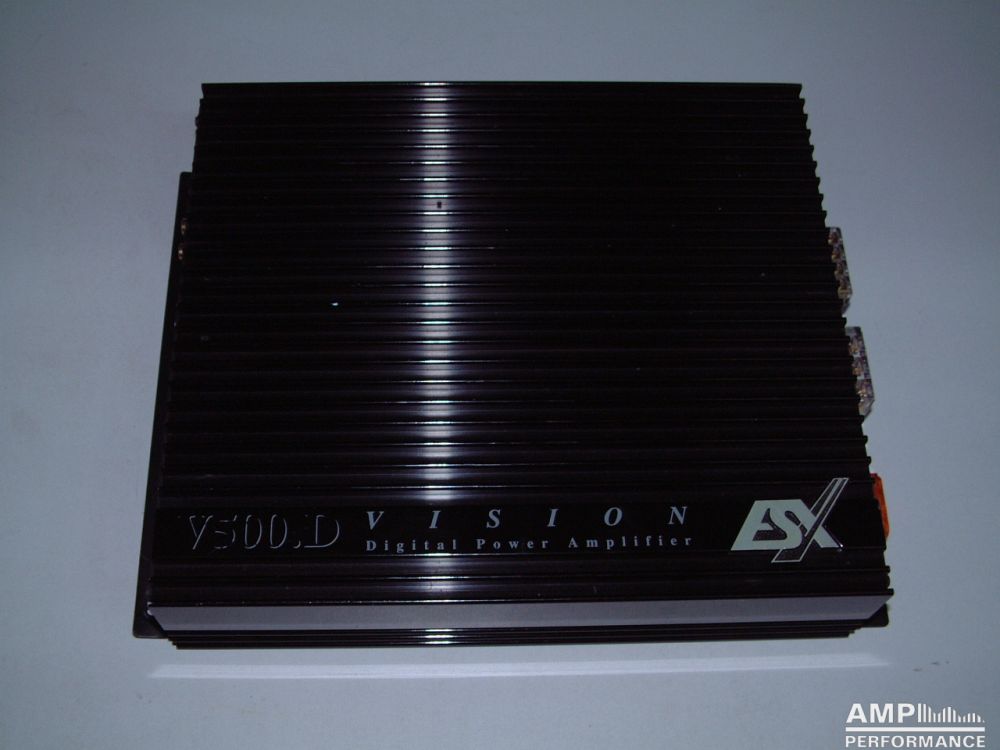

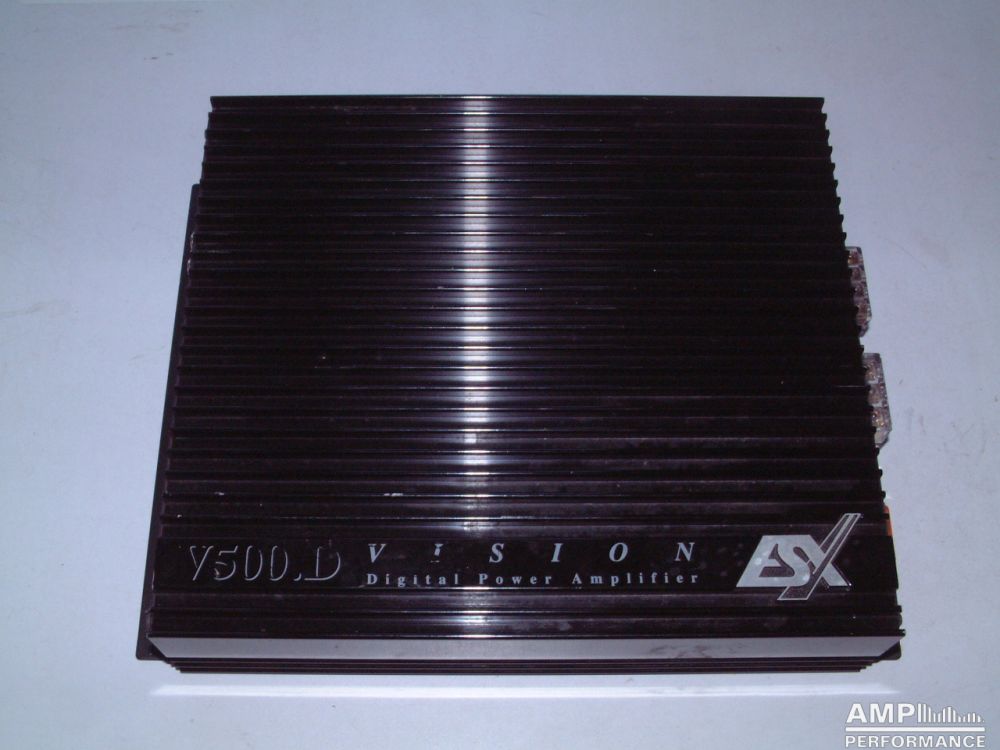

ESX Vision V500.D

1 × 256 watts, channel 1 at 4 Ohm
Current consumption 23,6A
efficiency 80,4%

1 × 426 watts, channel 1 at 2 Ohm
Current consumption 41,6A
efficiency 75,9%

1 × 540 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 57A
efficiency 70,7%

1 × 605 watts, channel 1 at 1 Ohm with 13,4V supply voltage
Current consumption 68,6A
efficiency 65,8%

605 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

ESX Vision V500.D

1 × 246 watts, channel 1 at 4 Ohm
Current consumption 22,6A
efficiency 80,8%

1 × 392 watts, channel 1 at 2 Ohm
Current consumption 39A
efficiency 74,5%

1 × 508 watts, channel 1 at 1,33 Ohm with 13,4V supply voltage
Current consumption 53,5A
efficiency 70,9%

1 × 576 watts, channel 1 at 1 Ohm with 13,4V supply voltage
Current consumption 64A
efficiency 67,2%

576 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
