Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

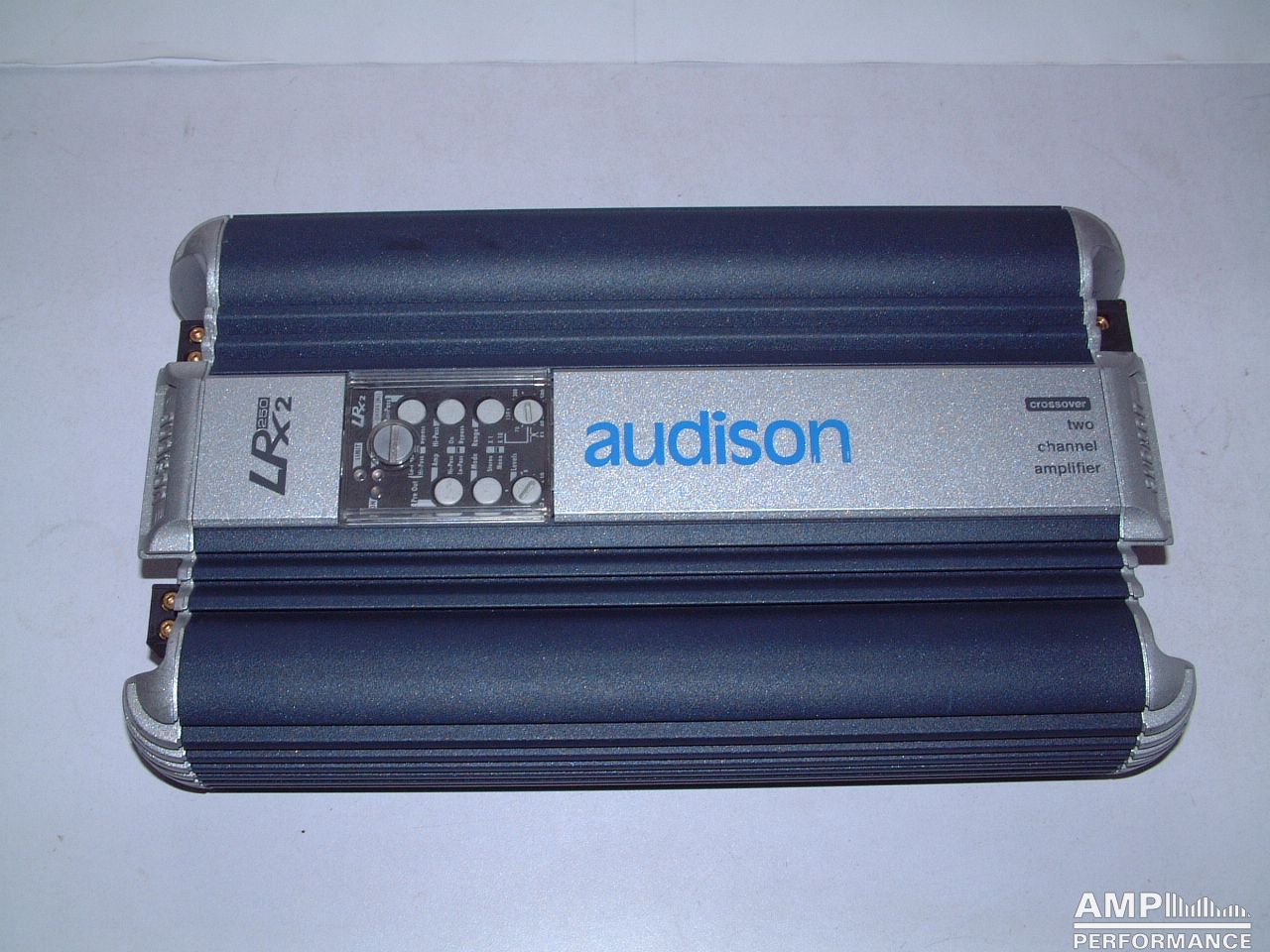

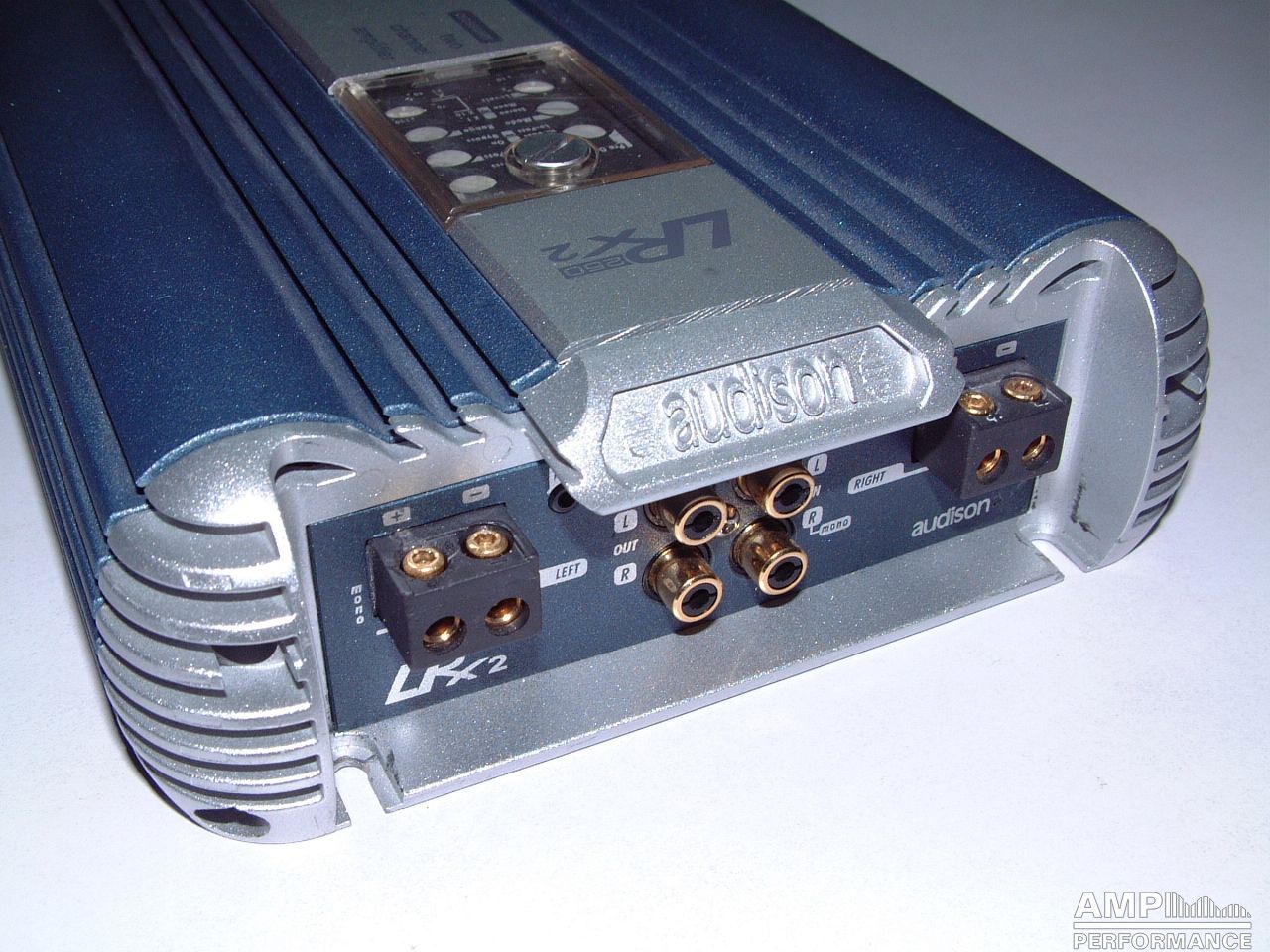

Audison LRX2.250
1 × 125 watts, channel 1 at 4 Ohm
2 × 125 watts, channel 1 + 2 at 4 Ohm
Current consumption 28,8A
efficiency 64,5%
1 × 437 watts, channel 1 + 2 bridged at 4 Ohm
Current consumption 57,2A
efficiency 56,6%
437 watts total power
Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V
Audison LRX2.250
1 × 125 watts, channel 1 at 4 Ohm
2 × 125 watts, channel 1 + 2 at 4 Ohm
Current consumption 28,8A
efficiency 64,5%
1 × 471 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 59,4A
efficiency 59,2%
471 watts total power
