Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

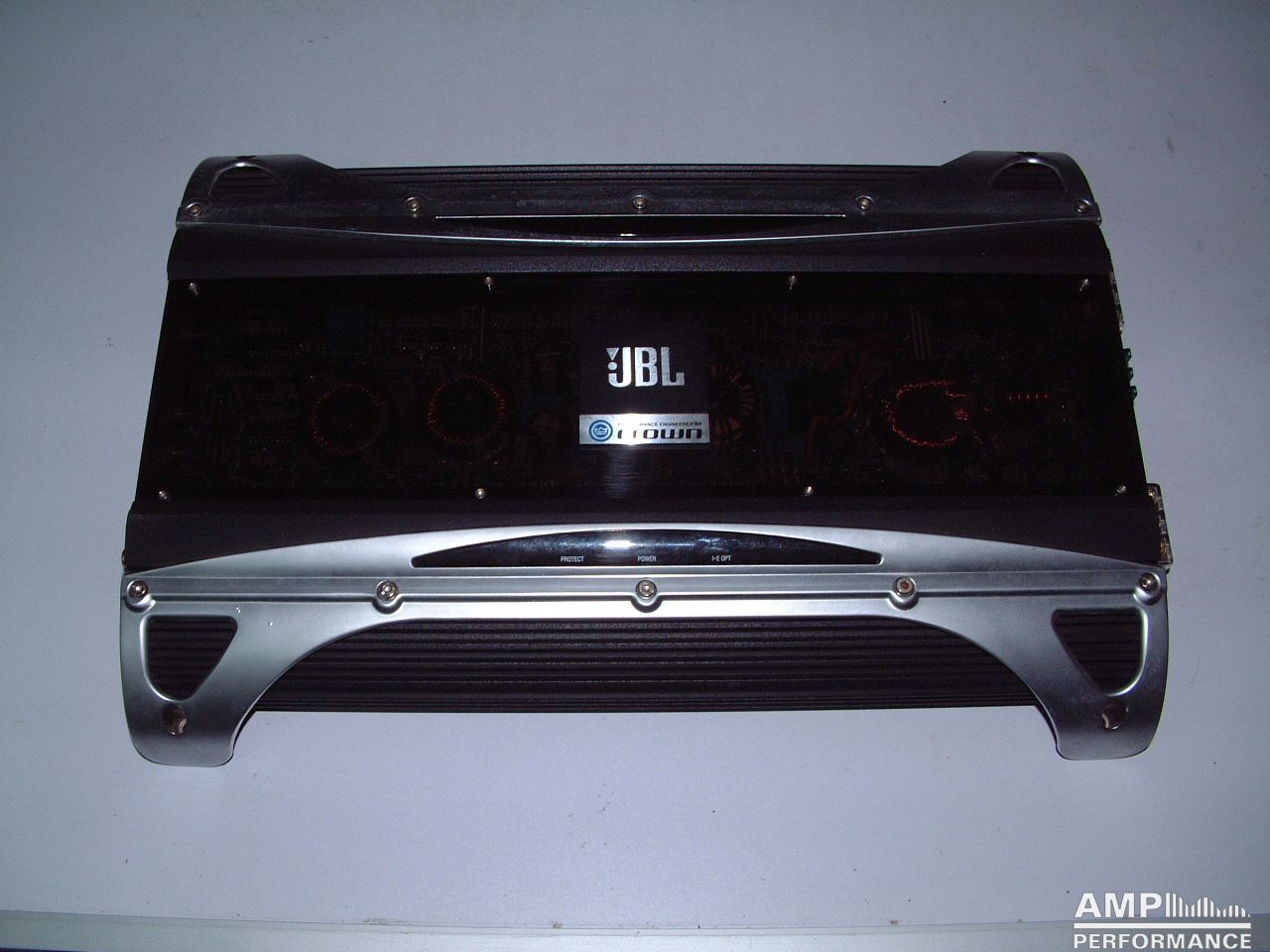

JBL BPX 1100.1
2-channel-Mode
1 × 361 watts, channel 1 at 4 Ohm
2 × 324 watts, channel 1 + 2 at 4 Ohm
Current consumption 62A
efficiency 77,4%
1 × 992 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 104A
efficiency 71,2%
Parallel-Mode
1 × 361 watts, channel 1 at 4 Ohm
Current consumption 34,7A
efficiency 77,1%
1 × 648 watts, channel 1 at 2 Ohm
Current consumption 62A
efficiency 77,4%
1 × 992 watts, channel 1 at 1 Ohm with 13,4V supply voltage
Current consumption 104A
efficiency 71,2%
992 watts total power
measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
