Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

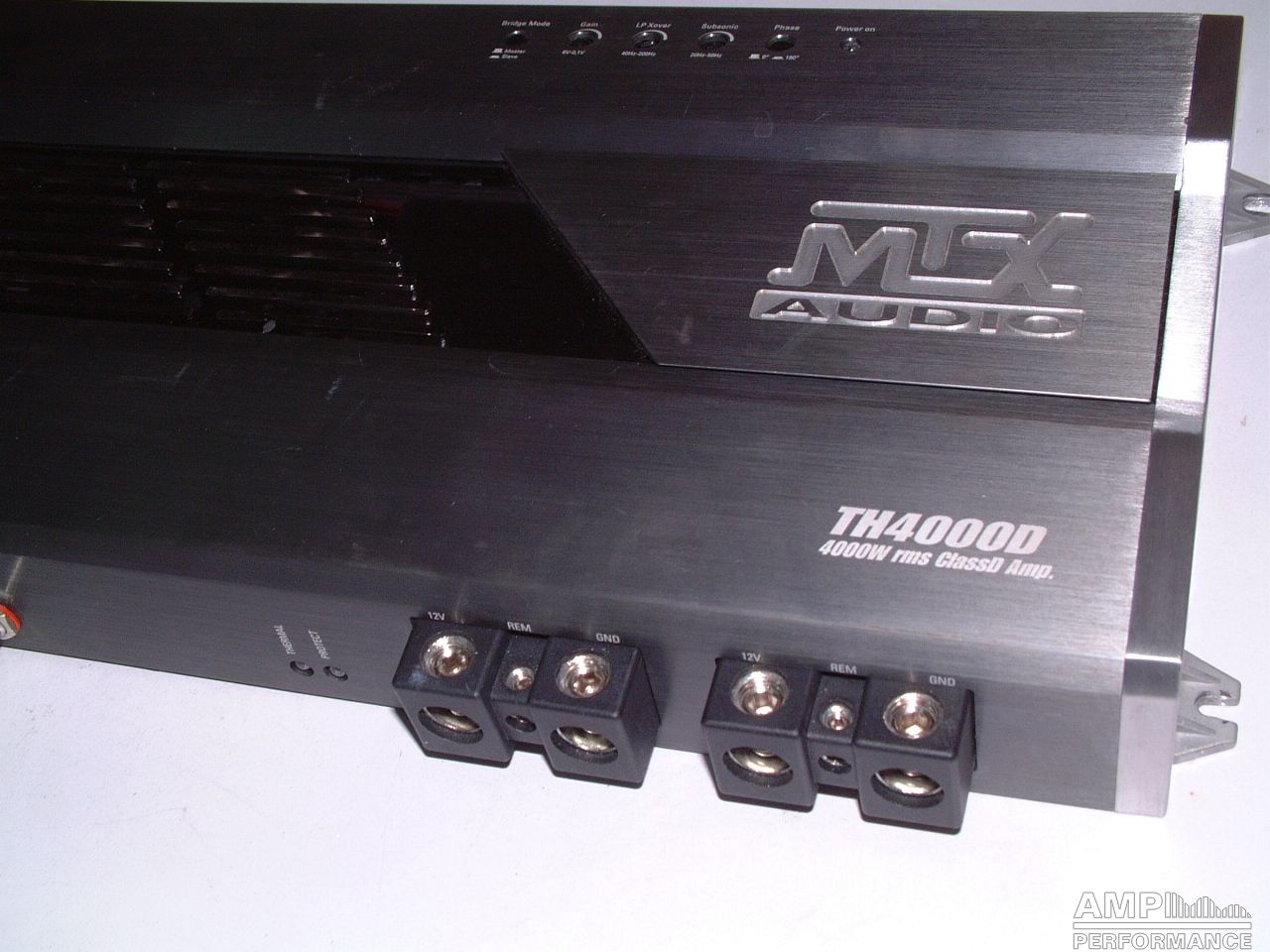

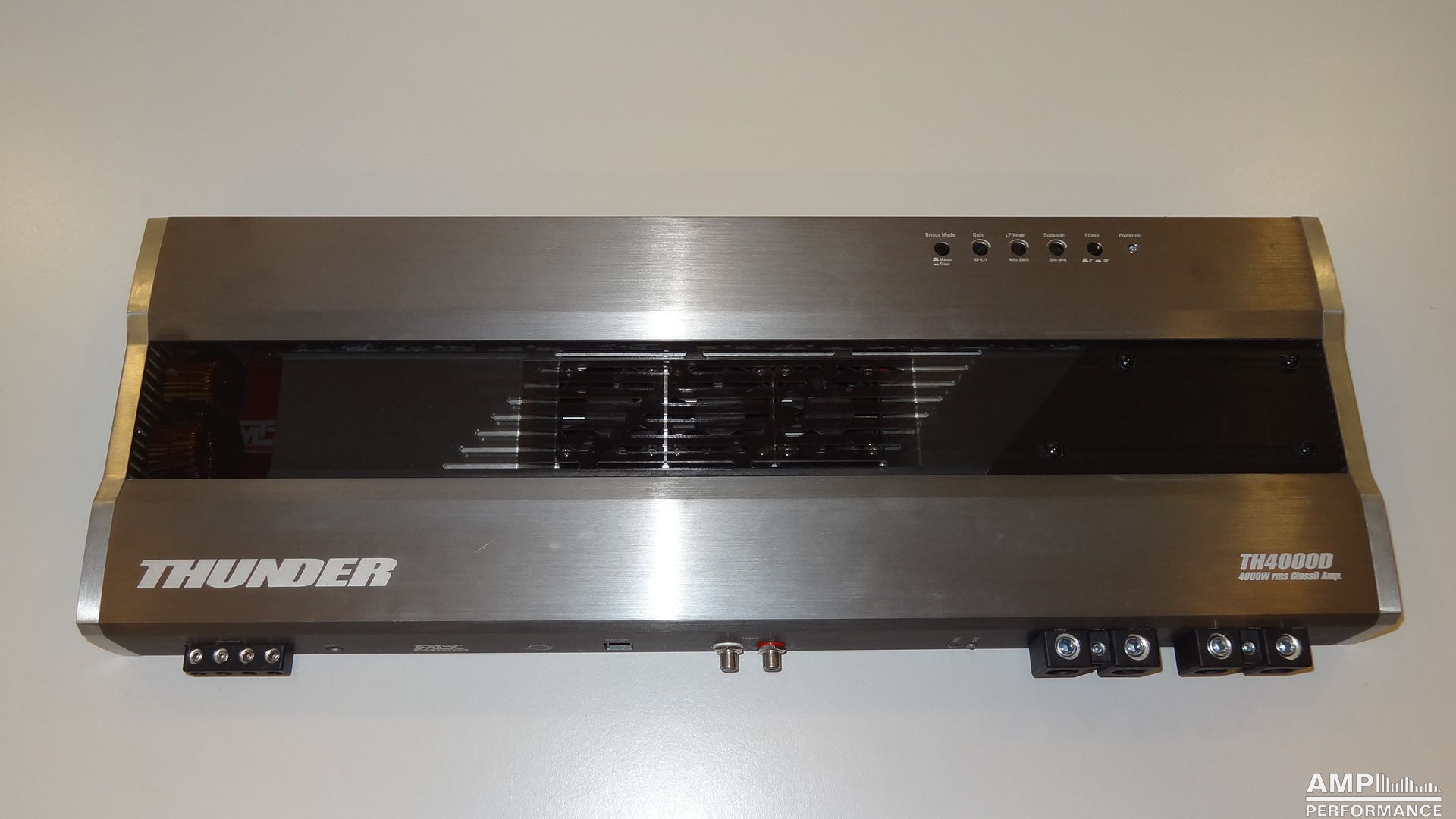

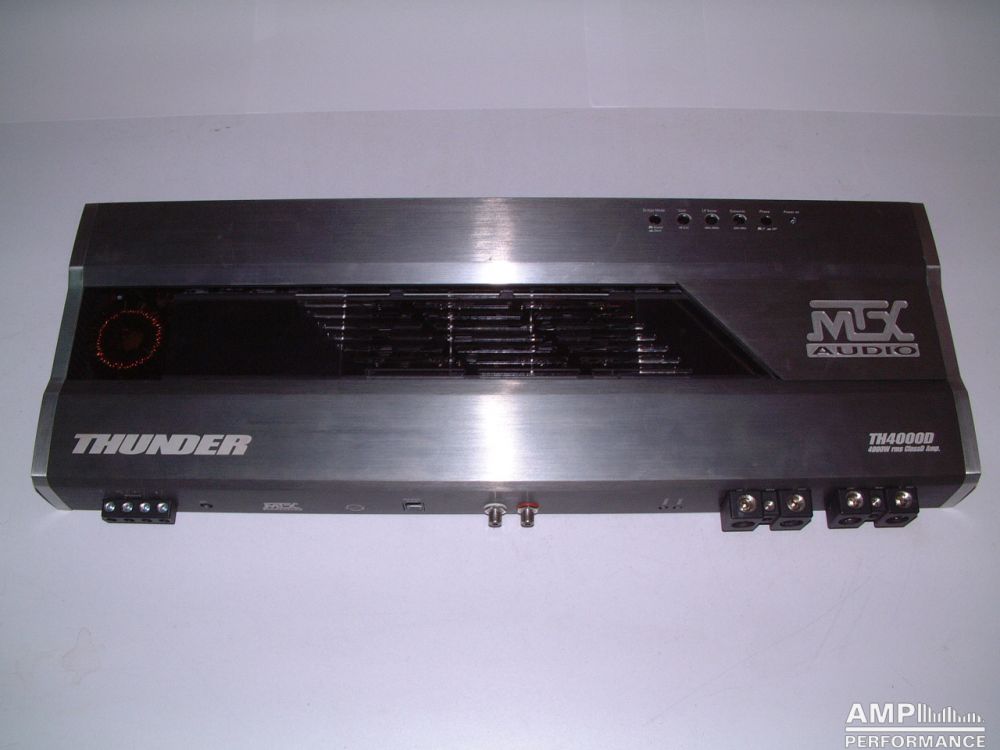

MTX Thunder TH4000D

1 × 1260 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 112A
efficiency 84%

1 × 2048 watts, channel 1 at 2 Ohm with 13,3V supply voltage
Current consumption 193A
efficiency 79,8%

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter

geringere Impedanzen nicht gemessen, wegen zu schwacher Stromversorgung (extern)

Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

MTX Thunder TH4000D

1 × 1296 watts, channel 1 at 4 Ohm with 13,4V supply voltage
Current consumption 114A
efficiency 84,8%

1 × 2048 watts, channel 1 at 2 Ohm with 13,4V supply voltage
Current consumption 196A
efficiency 78%

1 × 2529 watts, channel 1 at 1,33 Ohm with 13,3V supply voltage
Current consumption 258A
efficiency 73,7%

1 × 2916 watts, channel 1 at 1 Ohm with 13,3V supply voltage
Current consumption 292A
efficiency 75,1%

2916 watts total power

measured up to the clipping limit at 100 Hz because of fixed preset low-pass filter
