Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

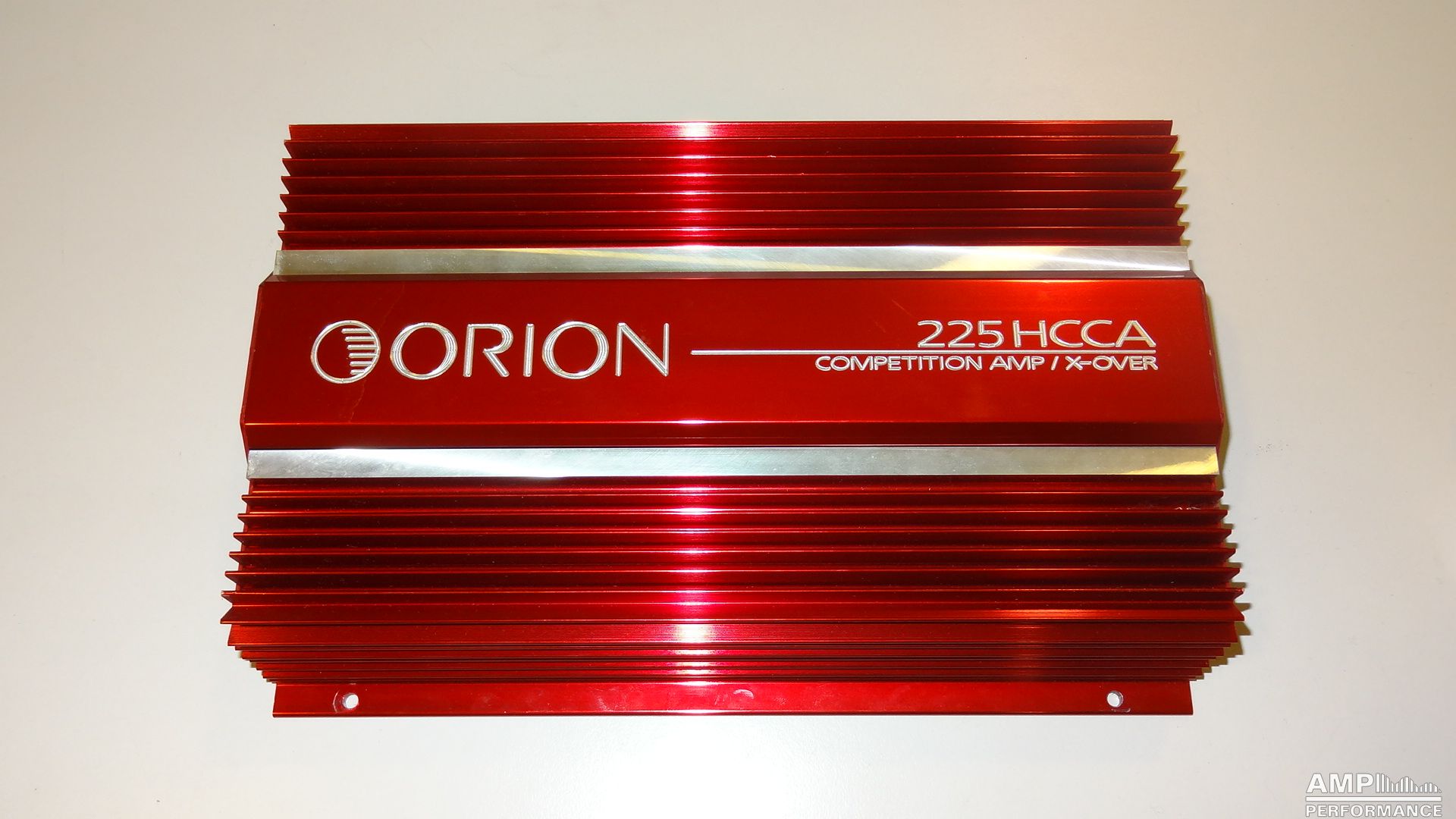

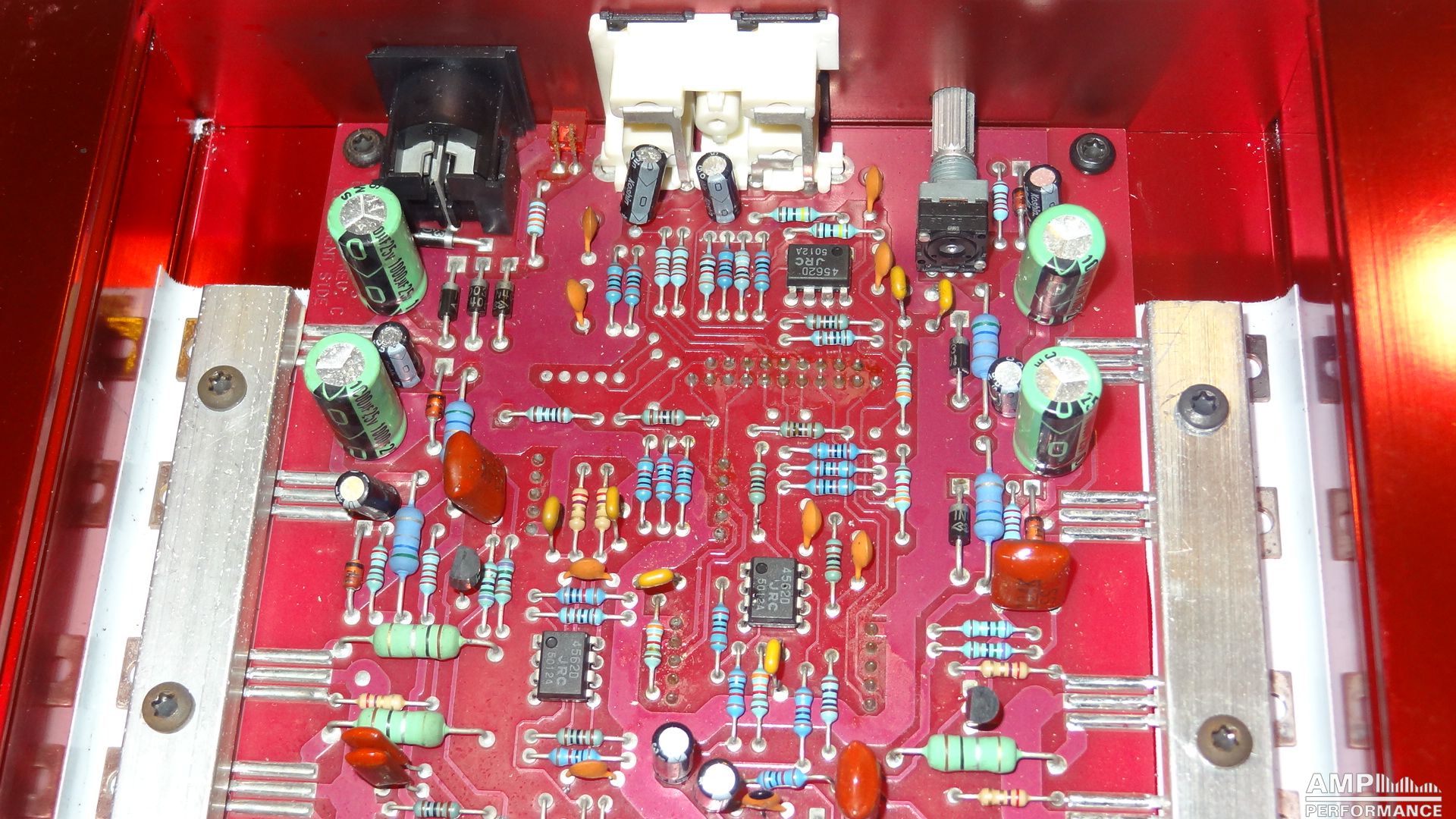

Orion 225HCCA

1 × 71 watts, channel 1 at 4 Ohm
2 × 68 watts, channel 1 + 2 at 4 Ohm with 13,5V supply voltage
Current consumption 14,7A
efficiency 68,6%

1 × 240 watts, channel 1 + 2 bridged at 4 Ohm with 13,4V supply voltage
Current consumption 26,6A
efficiency 67,4%

1 × 365 watts, channel 1 + 2 bridged at 2 Ohm with 13,4V supply voltage
Current consumption 45,5A
efficiency 59,8%
