Rated power measured according to DIN 45500 up to 1% distortion factor in 13,5V

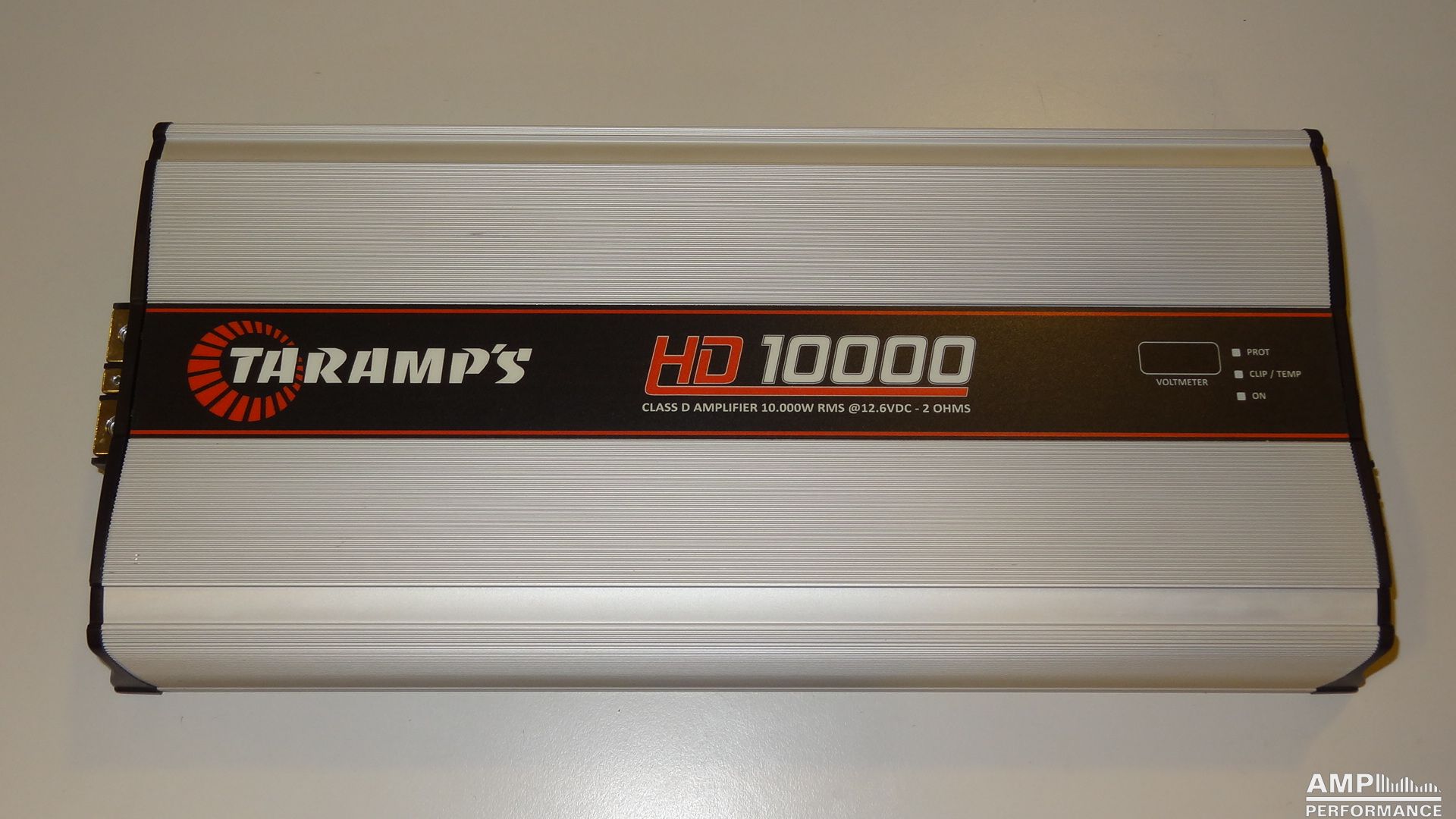

Taramps HD10000

1 × 3961 watts, channel 1 at 8 Ohm with 12,9V supply voltage
Current consumption 352A
efficiency 87,2%

1 × 7056 watts, channel 1 at 4 Ohm with 12,7V supply voltage
Current consumption 655A
efficiency 84,8%

no low-pass filter at the output

Measured up to the clipping limit (illumination of the device-internal LED) at 100 Hz

2-ohm operation not measured due to low power supply (external)
